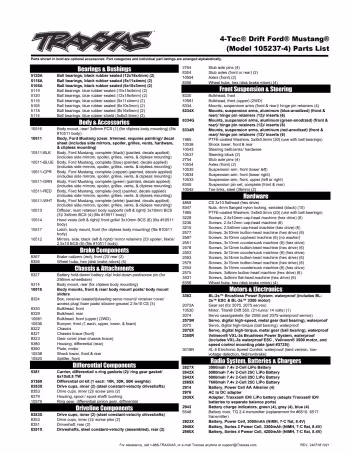

| Part number | Part name |
|---|---|
| 5120A | Ball bearings, black rubber sealed (12x18x4mm) (2) |
| 5116A | Ball bearings, black rubber sealed (5x11x4mm) (2) |
| 5105A | Ball bearings, black rubber sealed (6x10x3mm) (2) |
| 5119 | Ball bearings, blue rubber sealed (10x15x4mm) (2) |
| 5120 | Ball bearings, blue rubber sealed (12x18x4mm) (2) |
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 5105 | Ball bearings, blue rubber sealed (6x10x3mm) (2) |
| 5118 | Ball bearings, blue rubber sealed (8x16x5mm) (2) |
| 5114 | Ball bearings, blue rubber shield (5x8x2.5mm) (2) |
| 10516 | Body mount, rear/ 3x8mm FCS (1) (for clipless body mounting) (fits #10511 body) |
| 10511 | Body, Ford Mustang (clear, trimmed, requires painting)/ decal sheet (includes side mirrors, spoiler, grilles, vents, hardware, & clipless mounting) |
| 10511-BLK | Body, Ford Mustang, complete (black) (painted, decals applied) (includes side mirrors, spoiler, grilles, vents, & clipless mounting) |
| 10511-BLUE | Body, Ford Mustang, complete (blue) (painted, decals applied) (includes side mirrors, spoiler, grilles, vents, & clipless mounting) |
| 10511-CPR | Body, Ford Mustang, complete (copper) (painted, decals applied) (includes side mirrors, spoiler, grilles, vents, & clipless mounting) |
| 10511-GRN | Body, Ford Mustang, complete (green) (painted, decals applied) (includes side mirrors, spoiler, grilles, vents, & clipless mounting) |
| 10511-RED | Body, Ford Mustang, complete (red) (painted, decals applied) (includes side mirrors, spoiler, grilles, vents, & clipless mounting) |
| 10511-WHT | Body, Ford Mustang, complete (white) (painted, decals applied) (includes side mirrors, spoiler, grilles, vents, & clipless mounting) |
| 10513 | Diffuser, rear/ retainer/ body supports (left & right)/ 3x10mm BCS (3)/ 3x6mm BCS (4) (fits #10511 body) |
| 10514 | Hood vents (left & right)/ front grille/ 3x10mm BCS (6) (fits #10511 body) |
| 10517 | Latch, body mount, front (for clipless body mounting) (fits #10511 body) |
| 10512 | Mirrors, side, black (left & right)/ mirror retainers (2)/ spoiler, black/ 2.5x10 BCS (5) (fits #10511 body) |
| 8367 | Brake calipers (red), front (2)/ rear (2) |
| 8356 | Wheel hubs, hex (disk brake rotors) (4) |
| 8327 | Battery hold-down/ battery clip/ hold-down post/screw pin (for 256mm wheelbase) |
| 9314 | Body mount, rear (for clipless body mounting) |
| 10518 | Body mounts, front & rear/ body mount posts/ body mount sliders |
| 8324 | Box, receiver (sealed)(steering servo mount)/ receiver cover/ access plug/ foam pads/ silicone grease/ 2.5x10 CS (3) |
| 8330 | Bulkhead, front |
| 8329 | Bulkhead, rear |
| 10581 | Bulkhead, front (upper) (2WD) |
| 10536 | Bumper, front (1 each, upper, lower, & foam) |
| 8322 | Chassis |
| 8321 | Chassis brace (front) |
| 8323 | Gear cover (rear chassis brace) |
| 8380 | Housing, differential (rear) |
| 8390 | Plate, motor |
| 10538 | Shock tower, front & rear |
| 10520 | Splitter, front |
| 5381 | Carrier, differential/ x-ring gaskets (2)/ ring gear gasket/ 6x10x0.5 TW |
| 5136X | Differential oil kit (1 each: 10K, 30K, 50K weights) |
| 8353X | Drive cups, inner (2) (steel constant-velocity driveshafts) |
| 8353 | Drive cups, inner (2) screw pins (2) |
| 8379 | Housing, spool / spool shaft/ bushing |
| 10579 | Ring gear, differential/ pinion gear, differential |
| 8353X | Drive cups, inner (2) (steel constant-velocity driveshafts) |
| 8353 | Drive cups, inner (2)/ screw pins (2) |
| 8351 | Driveshaft, rear (2) |
| 8351X | Driveshafts, steel constant-velocity (assembled), rear (2) |
| 2754 | Stub axle pins (4) |
| 8354 | Stub axles (front or rear) (2) |
| 10554 | Axles (front) (2) |
| 8356 | Wheel hubs, hex (disk brake rotors) (4) |
| 8330 | Bulkhead, front |
| 10581 | Bulkhead, front (upper) (2WD) |
| 8334 | Mounts, suspension arms (front & rear)/ hinge pin retainers (4) |
| 8334X | Mounts, suspension arms, aluminum (blue-anodized) (front & rear)/ hinge pin retainers (12)/ inserts (6) |
| 8334G | Mounts, suspension arms, aluminum (green-anodized) (front & rear)/ hinge pin retainers (12)/ inserts (6) |
| 8334R | Mounts, suspension arms, aluminum (red-anodized) (front & rear)/ hinge pin retainers (12)/ inserts (6) |
| 1985 | PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings) |
| 10538 | Shock tower, front & rear |
| 10543 | Steering bellcranks/ hardware |
| 10537 | Steering block (2) |
| 2754 | Stub axle pins (4) |
| 10554 | Axles (front) (2) |
| 10535 | Suspension arm, front (lower left) |
| 10534 | Suspension arm, front (lower right) |
| 10533 | Suspension arm, front, upper (left or right) |
| 8340 | Suspension pin set, complete (front & rear) |
| 10542 | Toe links, steel (36mm) (2) |
| 4859 | CS 3x10 flathead (hex drive) |
| 8347 | Nuts, 4mm flanged nylon locking, serrated (black) (10) |
| 1985 | PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings) |
| 3229 | Screws, 2.5x10mm cap-head machine (hex drive) (6) |
| 3236 | Screws, 2.5x12mm head machine (6) |
| 3215 | Screws, 2.5x6mm cap-head machine (hex drive) (6) |
| 2577 | Screws, 3x10mm button-head machine (hex drive) (6) |
| 2587 | Screws, 3x10mm caphead machine (6) (no washer) |
| 2551 | Screws, 3x10mm countersunk machine (6) (hex drive) |
| 2578 | Screws, 3x12mm button-head machine (hex drive) (6) |
| 2552 | Screws, 3x12mm countersunk machine (6) (hex drive) |
| 2593 | Screws, 3x14mm button-head machine (hex drive) (6) |
| 2579 | Screws, 3x15mm button-head machine (hex drive) (6) |
| 2553 | Screws, 3x15mm countersunk machine (6) (hex drive) |
| 2575 | Screws, 3x6mm button-head machine (hex drive) (6) |
| 3931 | Screws, 3x8mm flat-head machine (hex drive) (6) |
| 8356 | Wheel hubs, hex (disk brake rotors) (4) |
| 3382 | BL-2s™ Brushless Power System, waterproof (includes BL-2s™ ESC & BL-2s™ 3300 motor) |
| 2072A | Gear set (for 2070, 2075 servos) |
| 10530 | Motor, Titan® Drift 550, (21-turns/ 14 volts) (1) |
| 2074 | Servo case/gaskets (for 2056 and 2075 waterproof servos) |
| 2075R | Servo, digital high-speed, metal gear (ball bearing), waterproof |
| 2075 | Servo, digital high-torque (ball bearing), waterproof |
| 2075X | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 3350R | Velineon® VXL-3s Brushless Power System, waterproof (includes VXL-3s waterproof ESC , Velineon® 3500 motor, and speed control mounting plate (part #3725)) |
| 3018R | XL-5 Electronic Speed Control, waterproof (land version, low-voltage detection, fwd/rev/brake) |
| 2827X | 3000mah 7.4v 2-Cell LiPo Battery |
| 2842X | 5000mah 7.4v 2-Cell 25C LiPo Battery |
| 2843X | 5800mah 7.4v 2-Cell 25C LiPo Battery |
| 2869X | 7600mah 7.4v 2-Cell 25C LiPo Battery |
| 2914 | Battery, Power Cell AA Alkaline (4) |
| 2976 | AC to DC adapter |
| 2938X | Adapter, Traxxas® iD® LiPo battery (adapts Traxxas® iD® batteries to separate balance ports) |
| 2943 | Battery charge indicators, green (4), grey (4), blue (4) |
| 6548 | Battery door, TQ 2.4 transmitter (replacement for #6516, 6517 transmitter) |
| 2923X | Battery, Power Cell, 3000mAh (NiMH, 7-C flat, 8.4V) |
| 2940X | Battery, Series 3 Power Cell, 3300mAh (NiMH, 7-C flat, 8.4V) |
| 2950X | Battery, Series 4 Power Cell, 4200mAh (NiMH, 7-C flat, 8.4V) |
| 2960X | Battery, Series 5 Power Cell, 5000mAh (NiMH, 7-C flat, 8.4V) |
| 2983 | Battery/charger completer pack (includes #2969 2-amp NiMH peak detecting AC charger (1), #2923X 3000mAh 8.4V 7-cell NiMH iD® battery (1)) |
| 2992 | Battery/charger completer pack (includes #2970 iD® charger (1), #2843X 5800mAh 7.4V 2-cell 25C LiPo iD® battery (1)) |
| 2985-2S | Battery/charger completer pack (includes #2985 charger (1), #2827X 3000mAh 7.4V 2-cell 20C LiPo iD® Battery (1)) |
| 2969 | Charger, AC, 2 amp NiMH peak detecting (5-7 cell, 6.0-8.4 volt, NiMH only) |
| 2975 | Charger, D/C, 4 amp (6 - 7 cell, 7.2 - 8.4 volt, NiMH) |
| 2972 | Charger, EZ-Peak Dual, 100W, NiMH/LiPo with iD Auto Battery Identification |
| 2973 | Charger, EZ-Peak Live Dual, 200W, NiMH/LiPo with iD Auto Battery Identification |
| 2981 | Charger, EZ-Peak Plus 4s, 8 amp, NiMH/LiPo with iD® Auto Battery Identification |
| 2985 | Charger, EZ-Peak®, USB-C, 40W, NiMH/LiPo with iD® Auto Battery Identification |
| 6525 | Communication link, telemetry expander |
| 6512 | Cover plate, Traxxas® Link Bluetooth® module |
| 2971 | EZ-Peak Live 12-amp NiMH/LiPo Fast Charger with iD® Auto Battery Identification and Bluetooth® |
| 2978 | Fuse, D/C charger, 5A (2) (for #2974, 2975, 2977) |
| 2968X | LiPo cell voltage checker/balancer (includes #2938X adapter for Traxxas® iD® batteries) |
| 2968 | LiPo cell voltage checker/balancer (requires #2938X adapter for Traxxas® iD® batteries) |
| 6560 | Mount, telemetry expander (fits 4-Tec® 2.0 & 3.0) |
| 6535 | Mount, temperature sensor (electric motors)/ wire tie/ thermal pad |
| 6533X | Receiver, micro, TQi 2.4GHz with telemetry & TSM® (5-channel) |
| 6552 | Seal kit, expander box (includes o-ring, seals, and silicone grease) |
| 6526 | Sensor, auto-detectable, temperature |
| 6527 | Sensor, auto-detectable, voltage |
| 6521 | Sensor, temperature and voltage (long) |
| 6553X | Telemetry Expander 2.0 and GPS module 2.0, TQi radio system |
| 6550X | Telemetry expander 2.0, TQi radio system (for use only with #6551X GPS module) |
| 6551X | Telemetry GPS module 2.0, TQi radio system (for use only with #6550X telemetry expander) |
| 6507R | TQi 2.4 GHz High Output radio system, 4-channel with Traxxas® Link Bluetooth® module, TSM® (4-ch transmitter, 5-ch micro receiver) |
| 6529A | Transmitter, TQi Traxxas Link™ enabled, 2.4GHz high output, 3-channel (transmitter only) (drag version) |
| 6530 | Transmitter, TQi Traxxas® Link enabled, 2.4GHz high output, 4-channel (transmitter only) |
| 6511 | Traxxas® Link Bluetooth® module |

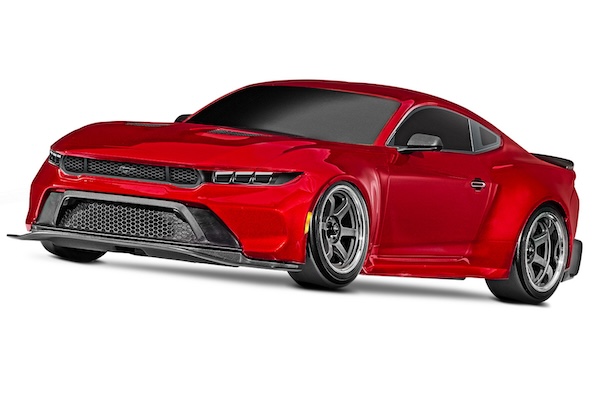

| 105237-4 | 4-Tec® Drift Ford® Mustang®: 1/10 Scale RWD Drift Car with TQi™ Radio System, Traxxas Link™ Wireless Module, & Traxxas Stability Management (TSM®) |
| 8329 | Bulkhead, rear |
| 8348 | Camber links, steel, rear (28mm) (2) |
| 8352 | Carriers, stub axle (left & right) |
| 8380 | Housing, differential (rear) |
| 8334 | Mounts, suspension arms (front & rear)/ hinge pin retainers (4) |
| 8334X | Mounts, suspension arms, aluminum (blue-anodized) (front & rear)/ hinge pin retainers (12)/ inserts (6) |
| 8334G | Mounts, suspension arms, aluminum (green-anodized) (front & rear)/ hinge pin retainers (12)/ inserts (6) |
| 8334R | Mounts, suspension arms, aluminum (red-anodized) (front & rear)/ hinge pin retainers (12)/ inserts (6) |
| 1985 | PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings) |
| 10538 | Shock tower, front & rear |
| 2754 | Stub axle pins (4) |
| 8354 | Stub axles (front or rear) (2) |
| 8331 | Suspension arms, rear (left & right) |
| 8340 | Suspension pin set, complete (front & rear) |
| 5031 | Oil, shock (20 wt, 200 cSt, 60cc) (silicone) |
| 5032 | Oil, shock (30 wt, 350 cSt, 60cc) (silicone) |
| 5033 | Oil, shock (40 wt, 500 cSt, 60cc) (silicone) |
| 5034 | Oil, shock (50 wt, 600 cSt, 60cc) (silicone) |
| 5035 | Oil, shock (60 wt, 700 cSt, 60cc) (silicone) |
| 5036 | Oil, shock (70 wt, 900 cSt, 60cc) (silicone) |
| 5037 | Oil, shock (80 wt, 1,000 cSt, 60cc) (silicone) |
| 5029 | Shock oil bottle (60cc) (for mixing shock oil) |
| 5038X | Shock oil set (includes 20 wt, 30 wt, 40 wt, 50 wt, 60 wt, 70 wt, & 80 wt premium shock oils with spinning carousel rack) |
| 5038 | Spinning carousel rack |
| 2658 | Big-bore shocks (short) (hard-anodized & PTFE-coated T-6 aluminum)(assembled with TiN shafts) with springs (f/r) (2) |
| 2669 | Piston head set (2-hole (2)/ 3-hole (2)/) shock mounting bushings & washers (2) (Big Bore Shocks) |
| 1942 | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 2742X | Rod ends, short (6)/ hollow balls (6) |
| 8361 | Shock caps (black) (4) (assembled with hollow balls) |
| 2667 | Shock caps, aluminum (2) (Big Bore Shocks) |
| 4262 | Shock shaft, hard chrome (32mm) (rear) (2) |
| 4261T | Shock shaft, hardend steel, Titanium Nitride coated (29mm) (front) (2) |
| 4262T | Shock shafts, hardened steel, titanium nitride coated (32mm) (2) |
| 1765 | Silicone diaphragms (4) |
| 2668 | Spring retainers, upper & lower (2)/ spring pre-load spacers: 1mm (4)/ 1.5mm (2)/ 2mm (2)/ 4mm (2)/ 8mm (2) (Big Bore Shocks) |
| 1942 | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 2742X | Rod ends, short (6)/ hollow balls (6) |
| 8361 | Shock caps (black) (4) (assembled with hollow balls) |
| 2362 | Shock rebuild kit (for 2 shocks) |
| 8360 | Ultra Shocks (grey) (short) (includes spring pre-load spacers) (2) |
| 10560 | Spring, shock (1.057 rate) (2) |
| 8362X | Spring, shock (blue) (2) |
| 8362G | Spring, shock (green) (2) |
| 8362P | Spring, shock (pink) (2) |
| 8366 | Spring, shock (red) (2.8 rate, white stripe) (2) |
| 8365 | Spring, shock (red) (3.325 rate, orange stripe) (2) |
| 8362 | Spring, shock (red) (3.7 rate) (2) |
| 8363 | Spring, shock (red) (4.075 rate, green stripe) (2) |
| 8364 | Spring, shock (red) (4.4 rate, black stripe) (2) |
| 2728 | Ball bearings (5x8x2.5mm) (2) |
| 1918 | Gear, 18-T pinion (48-pitch) / set screw |
| 2419 | Gear, 19-T pinion (48-pitch) / set screw |
| 2421 | Gear, 21-T pinion (48-pitch) / set screw |
| 2422 | Gear, 22-T pinion (48-pitch) (fits 3mm shaft)/ set screw |
| 2423 | Gear, 23-T pinion (48-pitch) (fits 3mm shaft)/ set screw |
| 2424 | Gear, 24-T pinion (48-pitch) (fits 3mm shaft)/ set screw |
| 2426 | Gear, 26-T pinion (48-pitch) (fits 3mm shaft)/ set screw |
| 4728 | Gear, 28-T pinion (48-pitch) (fits 3mm shaft)/ set screw |
| 4725 | Gear, pinion (25-tooth) (48-pitch) / set screw |
| 8359 | Spur gear, 62-tooth |
| 8357 | Spur gear, 70-tooth |
| 8368 | Spur gear, 72 tooth (48 pitch) |
| 10543 | Steering bellcranks/ hardware |
| 10542 | Toe links, steel (36mm) (2) |
| 8348 | Camber links, steel, rear (28mm) (2) |
| 10535 | Suspension arm, front (lower left) |
| 10534 | Suspension arm, front (lower right) |
| 10533 | Suspension arm, front, upper (left or right) |
| 10542 | Toe links, steel (36mm) (2) |
| 9916 | Backpack, RC car carrier, 12" x 12" x 24" (fits TRX-4 & similar) |
| 2514 | Decal sheet, racing sponsors |
| 9917 | Duffel bag, medium, 30" x 12" x 12" (fits 1/10 Slash®, TRX-4®, & similar) |
| 9950 | Official Team Traxxas® racing decal set(flag logo/ 6-color) |
| 9909 | Traxxas® racing banner, red & black (3x7 feet) |
| 10574 | Tires & wheels, assembled, glued (six spoke graphite gray wheels w/chrome rim, 1.9" Drift tires (1 dot, hard, rough surfaces)) (front) (2) |
| 10575 | Tires & wheels, assembled, glued (six spoke graphite gray wheels w/chrome rim, 1.9" Drift tires (1 dot, hard, rough surfaces)) (wide, rear) (2) |
| 10577 | Tires & wheels, assembled, glued (six spoke graphite gray wheels w/chrome rim, 1.9" Drift tires (2 dots, soft, smooth surfaces)) (front) (2) |
| 10576 | Tires & wheels, assembled, glued (six spoke graphite gray wheels w/chrome rim, 1.9" Drift tires (2 dots, soft, smooth surfaces)) (wide, rear) (2) |
| 8378 | Tires & wheels, assembled, glued (split-spoke black chrome wheels, 1.9" Drift tires) (front and rear) |
| 8376G | Tires & wheels, assembled, glued (split-spoke green wheels, 1.9" Drift tires) (front) |
| 8377G | Tires & wheels, assembled, glued (split-spoke green wheels, 1.9" Drift tires) (rear) |
| 8376A | Tires & wheels, assembled, glued (split-spoke orange wheels, 1.9" Drift tires) (front) |
| 8377A | Tires & wheels, assembled, glued (split-spoke orange wheels, 1.9" Drift tires) (rear) |
| 10573 | Tires, 1.9" Drift (1 dot, hard, rough surfaces) (rear) (2) |
| 10570 | Tires, 1.9" Drift (1 dot, hard, rough surfaces) (front) (2) |
| 10578 | Tires, 1.9" Drift (2 dots, soft, smooth surfaces) (front) (2) |
| 10580 | Tires, 1.9" Drift (2 dots, soft, smooth surfaces) (rear) (2) |
| 10571 | Wheels, 1.9" six spoke (graphite gray w/chrome rim) (front) (2) |
| 10572 | Wheels, 1.9" six spoke (graphite gray w/chrome rim) (wide, rear) (2) |
| 3433X | Body reamer (aluminum handle) |
| 3433 | Body reamer (plastic handle) |
| 3436 | Cap, body reamer |
| 3432 | Scissors, curved tip |
| 3431 | Scissors, straight tip |
| 8712 | Speed Bit Essentials Set, hex and nut driver, 7-piece, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm) and nut drivers (5.0mm, 5.5mm, 7.0mm, and 8.0mm), 1/4" drive |
| 8720 | Speed bit handle, large (overmolded) |
| 8721 | Speed bit handle, medium (one piece) |
| 8722 | Speed bit handle, premium (rubber overmold) |
| 8710 | Speed Bit Master Set, hex and nut driver, 13-piece, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm, 3.0mm), (ball-end: 2.0mm, 2.5mm, 3.0mm), and nut drivers (4.0mm, 4.5mm, 5.0mm, 5.5mm, 7.0mm, 8.0mm), 1/4" drive |
| 8711 | Speed Bit Master Set, hex driver, 7-piece straight and ball end, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm, 3.0mm) (ball end: 2.0mm, 2.5mm, 3.0mm), 1/4" drive |
| 8719 | Speed Bit Master Set, nut driver, 6-piece, includes premium handle (medium), travel pouch, and nut drivers (4.0mm, 4.5mm, 5.0mm, 5.5mm, 7.0mm, 8.0mm), 1/4" drive |
| 8716 | Speed Bit Set, hex driver, 2-piece ball-end (2.0mm, 2.5mm), 1/4" drive |
| 8716X | Speed Bit Set, hex driver, 3-piece ball-end (2.0mm, 2.5mm, 3.0mm) 1/4" drive |
| 8715 | Speed Bit Set, hex driver, 3-piece straight (1.5mm, 2.0mm, 2.5mm), 1/4" drive |
| 8715X | Speed Bit Set, hex driver, 4-piece straight (1.5mm, 2.0mm, 2.5mm, 3.0mm), 1/4" drive |
| 8714 | Speed Bit Set, screwdriver, 3-piece straight (3mm slotted, #1 Phillips, and #2 Phillips bits), 1/4" drive |
| 2748R | Tool set (includes 1.5mm hex wrench / 2.0mm hex wrench / 2.5mm hex wrench/ 4-way wrench/ 8mm & 4mm wrench/ U-joint wrench) |
| 3415 | Tool set with pouch (includes 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4mm drivers/4mm. 5mm, 5.5mm, 7mm, and 8mm nut drivers/ 2mm, 3mm, and 4mm slotted screwdrivers/ #00 Phillips, #0 Phillips, and #1 Phillips screwdrivers/ 4mm and 8mm wrenches/ driver handle) |
.avif)
.avif)
