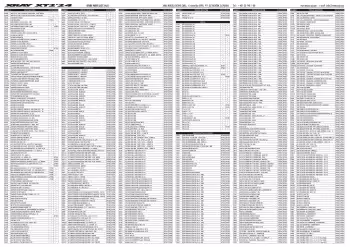

XRAY XT2 '24 Parts List

XT2 '24

XRAY

XT2 '24

Setup sheets →

Spring chart1/10 off-road tire chartDiff oil chartShock oil chart
XT2 '24 parts & upgrades at AMain →AD (opens in new tab)
For this car:ADESCsMotors:StockMod

Commonly replaced parts

The arms, uprights, driveline and shock parts that go first on a race car, with the full list below.

Part #Description
322115-G (opens in new tab)XT2 COMPOSITE SUSPENSION ARM FRONT LOWER - SOLID - GRAPHITE
320904 (opens in new tab)ALU STEERING BLOCKS & C-HUBS WITH BACKSTOP - SET
322250-G (opens in new tab)COMPOSITE STEERING BLOCK - GRAPHITE
323354-G (opens in new tab)COMPOSITE UPRIGHT REAR - UPPER POSITION - GRAPHITE
324102 (opens in new tab)SOLID AXLE - LCG - ULTRA-LIGHTWEIGHT - SET
365351 (opens in new tab)ALU WHEEL HUB 14MM - OFFSET „-0.75MM“ (2)
368032 (opens in new tab)SHOCK PISTONS - COMPLETE SET - DELRIN - BIG BORE
368201 (opens in new tab)REAR SHOCK ABSORBERS - BIG BORE - SET (2)
302665 (opens in new tab)COMPOSITE BALL JOINT 4.9MM - CLOSED WITH HOLE (4)
352460 (opens in new tab)PIVOT BALL 5.8 (10)
364131 (opens in new tab)SLIPPER CLUTCH PAD SLS - SOFT (3)
324990 (opens in new tab)DIFF GASKET (4)
321200 (opens in new tab)COMPOSITE FRONT BUMPER
322090 (opens in new tab)XT2 GRAPHITE SHOCK TOWER FOR 1-PIECE CHASSIS - FRONT

More option parts for this car

Parts & upgrades at AMainAD (opens in new tab)Spring chart1/10 off-road tire chartDiff oil chartShock oil chart

Every part XRAY lists for the XRAY XT2 '24, from XRAY's own parts list, including the spares, the option parts and the hardware. Part numbers link to AMain Hobbies where the part is still sold; parts with no current match are listed as plain text.

Full parts list

Car parts (308)

Part #Description
293080LEAD WEIGHTS 4x5g & 4x10g WITH 3M GLUE
293404ALU CLAMP SERVO HORN - KO PROPO, JR, SANWA, AIRTRONICS - 2-HOLE - 23T
293405ALU CLAMP SERVO HORN - HITEC - 2-HOLE - 24T
293406ALU CLAMP SERVO HORN - FUTABA - 2-HOLE - 25T
293421ALU CLAMP STEERING SERVO HORN - EXTENDED 8MM - KO PROPO, SANWA - 23T
293422ALU CLAMP STEERING SERVO HORN - EXTENDED 8MM - FUTABA, SAVÖX - 25T
293497ALU SERVO HORN - KO PROPO, JR, SANWA, AIRTRONICS - 2-HOLE - 23T
293498ALU SERVO HORN - HITEC - 2-HOLE - 24T
293499ALU SERVO HORN - FUTABA - 2-HOLE - 25T
296509ALU COUNTERSUNK SERVO SHIM (10)
296509-KALU COUNTERSUNK SERVO SHIM - BLACK (10)
296509-OALU COUNTERSUNK SERVO SHIM - ORANGE (10)
296510ALU COUNTERSUNK SHIM (10)
296510-BALU COUNTERSUNK SHIM - BLUE (10)
296510-KALU COUNTERSUNK SHIM - BLACK (10)
296510-OALU COUNTERSUNK SHIM - ORANGE (10)
296510-VALU COUNTERSUNK SHIM - VIOLET (10)
296530-BALU NUT M3 - BLUE (10)
296530-KALU NUT M3 - BLACK (10)
296530-OALU NUT M3 - ORANGE (10)
296540-BALU NUT M4 - BLUE (10)
296540-KALU NUT M4 - BLACK (10)
296540-OALU NUT M4 - ORANGE (10)
301322 (opens in new tab)FRONT BODY MOUNT SET 6MM
301323 (opens in new tab)FRONT BODY MOUNT SET +1MM HEIGHT
301324 (opens in new tab)FRONT BODY MOUNT SET +2MM HEIGHT
301332 (opens in new tab)REAR BODY MOUNT SET 6MM
301333 (opens in new tab)REAR BODY MOUNT SET +1MM HEIGHT
301334 (opens in new tab)REAR BODY MOUNT SET +2MM HEIGHT
302292 (opens in new tab)STEEL STEERING BUSHING LONG (4)
302293C-HUB BUSHING COMPOSITE - V2 (4)
302656 (opens in new tab)ALU BALL END 4.9MM (2)
302665 (opens in new tab)COMPOSITE BALL JOINT 4.9MM - CLOSED WITH HOLE (4)
303120 (opens in new tab)SET OF ALU SHIM (0.5MM, 1.5MM, 2.5MM)
303121SET OF ALU SHIM (1.0MM, 2.0MM, 3.0MM)
303121-K (opens in new tab)ALU SHIM 3x6x0.5MM - BLACK (10)
303121-OALU SHIM 3x6x0.5MM - ORANGE (10)
303122ALU SHIM 3x6x1.0MM (10)
303122-K (opens in new tab)ALU SHIM 3x6x1.0MM - BLACK (10)
303122-O (opens in new tab)ALU SHIM 3x6x1.0MM - ORANGE (10)
303123 (opens in new tab)ALU SHIM 3x6x2.0MM (10)
303123-KALU SHIM 3x6x2.0MM - BLACK (10)
303123-O (opens in new tab)ALU SHIM 3x6x2.0MM - ORANGE (10)
303125 (opens in new tab)ALU SHIM 3x6x3.0MM (10)
303125-K (opens in new tab)ALU SHIM 3x6x3.0MM - BLACK (10)
303125-O (opens in new tab)ALU SHIM 3x6x3.0MM - ORANGE (10)
303126ALU SHIM 3x6x5.0MM (10)
303126-K (opens in new tab)ALU SHIM 3x6x5.0MM - BLACK (10)
303127 (opens in new tab)ALU SHIM 3x6x4.0MM (10)
303127-K (opens in new tab)ALU SHIM 3x6x4.0MM - BLACK (10)
303129 (opens in new tab)COMPOSITE SET OF SHIMS 3x 3x6x1MM; 1x 3x6x2MM (2)
303140-K (opens in new tab)ALU SHIM 3x5x2.0MM - BLACK (10)
303140-O (opens in new tab)ALU SHIM 3x5x2.0MM - ORANGE (10)
303141ALU SHIM 3x5x1.0MM (10)
303141-O (opens in new tab)ALU SHIM 3x5x1.0MM - ORANGE (10)
303142-K (opens in new tab)ALU SHIM 3x5x0.5MM - BLACK (10)
303142-O (opens in new tab)ALU SHIM 3x5x0.5MM - ORANGE (10)
303143 (opens in new tab)ALU SHIM 3x5x0.25MM (10)
303144ALU SHIM 3x5x4.0MM (10)
303144-O (opens in new tab)ALU SHIM 3x5x4.0MM - ORANGE (10)
303411 (opens in new tab)COMPOSITE ANTI-ROLL BAR HOLDERS
303431-K (opens in new tab)ALU 4.9MM BALL END - BLACK (2)
303454 (opens in new tab)COMPOSITE BALL JOINT 4.9MM - OPEN (4)
303455 (opens in new tab)COMPOSITE ANTI-ROLL BAR BALL JOINT 4.9MM (4)
304932 (opens in new tab)GRAPHITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4) - LOW
304980 (opens in new tab)COMPOSITE GEAR DIFF CROSS PIN
305092 (opens in new tab)BALL DIFFERENTIAL SPRING
306219 (opens in new tab)COMPOSITE SET OF SERVO SHIMS (4)
308019COMPOSITE SET OF SHOCKS SHIMS & NUTS (2)
309319UNIVERSAL SET OF PLASTIC SHIMS
309402 (opens in new tab)BODY CLIP FOR 6MM BODY POST (4)
320904 (opens in new tab)ALU STEERING BLOCKS & C-HUBS WITH BACKSTOP - SET
321121 (opens in new tab)XB2/XT2 ALU CHASSIS 1-PIECE - 2.5MM - LONG - SWISS 7075 T6
321162 (opens in new tab)COMPOSITE FRONT BRIDGE UPPER DECK
321200 (opens in new tab)COMPOSITE FRONT BUMPER
321210 (opens in new tab)ALU FRONT LOWER ARM MOUNT BRACE - SWISS 7075 T6 (3MM)
321211 (opens in new tab)ALU FRONT LOWER ARM MOUNT 23°/29° BRACE - SWISS 7075 T6 (3MM)
321254COMPOSITE ELEVATED CHASSIS SIDE BRACES L+R
321254-G (opens in new tab)COMPOSITE ELEVATED CHASSIS SIDE BRACES L+R - GRAPHITE
321291 (opens in new tab)COMPOSITE 5-WIRES HOLDER - SET
321324-H (opens in new tab)XT2 COMPOSITE FRONT BODY MOUNT FOR 1-PIECE CHASSIS
322045 (opens in new tab)COMPOSITE FRONT ROLL-CENTER HOLDER FOR BRIDGE UPPER DECK
322046 (opens in new tab)ALU FRONT ROLL-CENTER HOLDER FOR BRIDGE UPPER DECK - SWISS 7075 T6
322090 (opens in new tab)XT2 GRAPHITE SHOCK TOWER FOR 1-PIECE CHASSIS - FRONT
322114-GXT2 COMPOSITE SUSPENSION ARM FRONT LOWER - GRAPHITE
322114-HXT2 COMPOSITE SUSPENSION ARM FRONT LOWER - HARD
322114-MXT2 COMPOSITE SUSPENSION ARM FRONT LOWER - MEDIUM
322115-G (opens in new tab)XT2 COMPOSITE SUSPENSION ARM FRONT LOWER - SOLID - GRAPHITE
322115-H (opens in new tab)XT2 COMPOSITE SUSPENSION ARM FRONT LOWER - SOLID - HARD
322115-M (opens in new tab)XT2 COMPOSITE SUSPENSION ARM FRONT LOWER - SOLID - MEDIUM
322210-G (opens in new tab)COMPOSITE C-HUB RIGHT - GRAPHITE
322210-H (opens in new tab)COMPOSITE C-HUB RIGHT - HARD
322210-M (opens in new tab)COMPOSITE C-HUB RIGHT - MEDIUM
322211 (opens in new tab)ALU C-HUB RIGHT - SWISS 7075 T6
322212 (opens in new tab)ALU C-HUB UNIVERSAL - SWISS 7075 T6
322220-G (opens in new tab)COMPOSITE C-HUB LEFT - GRAPHITE
322220-H (opens in new tab)COMPOSITE C-HUB LEFT - HARD
322220-M (opens in new tab)COMPOSITE C-HUB LEFT - MEDIUM
322221 (opens in new tab)ALU C-HUB LEFT - SWISS 7075 T6
322250-G (opens in new tab)COMPOSITE STEERING BLOCK - GRAPHITE
322250-H (opens in new tab)COMPOSITE STEERING BLOCK - HARD
322250-M (opens in new tab)COMPOSITE STEERING BLOCK - MEDIUM
322251ALU STEERING BLOCK RIGHT - SWISS 7075 T6
322252 (opens in new tab)ALU STEERING BLOCK UNIVERSAL - SWISS 7075 T6
322261ALU STEERING BLOCK LEFT - SWISS 7075 T6
322270 (opens in new tab)ALU SHIM 5x7x1.0MM (10)
322280 (opens in new tab)COMPOSITE CASTER BUSHING (2x 0°, 2.5°, 5°)
322284 (opens in new tab)GRAPHITE EXTENSION FOR ALU STEERING BLOCK WITH BACKSTOP - 1 DOT (2)
322285 (opens in new tab)GRAPHITE EXTENSION FOR ALU STEERING BLOCK WITH BACKSTOP - 2 DOTS (2)
322286 (opens in new tab)GRAPHITE EXTENSION FOR ALU STEERING BLOCK WITH BACKSTOP - 3 DOTS (2)
322294 (opens in new tab)GRAPHITE EXTENSION FOR STEERING BLOCK - 1 DOT (2)
322295 (opens in new tab)GRAPHITE EXTENSION FOR STEERING BLOCK - 2 DOTS (2)
322296 (opens in new tab)GRAPHITE EXTENSION FOR STEERING BLOCK - 3 DOTS (2)
322312 (opens in new tab)BRASS 46G FRONT LOWER ARM MOUNT 0° - V2
322315 (opens in new tab)COMPOSITE FRONT LOWER ARM MOUNT FOR 1-PIECE CHASSIS
322316 (opens in new tab)ALU FRONT LOWER ARM MOUNT 0° - SWISS 7075 T6
322317 (opens in new tab)ALU FRONT LOWER ARM MOUNT +3°/-3° - SWISS 7075 T6
322440 (opens in new tab)ALU ANTI-ROLL BAR COLLAR
322484XT2‘23 FRONT ANTI-ROLL BAR 1.4MM
322486XT2‘23 FRONT ANTI-ROLL BAR 1.6MM
322488XT2‘23 FRONT ANTI-ROLL BAR 1.8MM
322515 (opens in new tab)COMPOSITE STEERING ARM FOR 1-PIECE CHASSIS (2)
322516 (opens in new tab)ALU STEERING ARM FOR 1-PIECE CHASSIS - SWISS 7075 T6 (2)
322551 (opens in new tab)ALU SERVO SAVER PIVOT SHAFT 15.3MM - SWISS 7075 T6 (2)
322574 (opens in new tab)COMPOSITE STEERING PLATE FOR 1-PIECE CHASSIS
322575 (opens in new tab)ALU STEERING PLATE FOR 1-PIECE CHASSIS - SET
322590 (opens in new tab)ALU SHIM 3x4.7x1.0MM (10)
322591 (opens in new tab)ALU SHIM 3x4.7x0.5MM (10)
323018COMPOSITE REAR MOTOR GEAR BOX - LCG - SET
323018-G (opens in new tab)COMPOSITE REAR MOTOR GEAR BOX - LCG - GRAPHITE - SET
323019COMPOSITE FRONT MOTOR GEAR BOX - LCG - SET
323019-G (opens in new tab)COMPOSITE FRONT MOTOR GEAR BOX - LCG - GRAPHITE - SET
323043ALU REAR ROLL-CENTER HOLDER FOR ANTI-ROLL BAR - 7075 T6
323044COMPOSITE REAR ROLL-CENTER HOLDER FOR ANTI-ROLL BAR
323044-G (opens in new tab)COMPOSITE REAR ROLL-CENTER HOLDER FOR ANTI-ROLL BAR - GRAPHITE
323085-HXT2 COMPOSITE SHOCK TOWER REAR - LCG - HARD
323092 (opens in new tab)XT2 GRAPHITE SHOCK TOWER FOR 1-PIECHE CHASSIS - REAR
323112-G (opens in new tab)XT2 COMPOSITE SUSPENSION ARM REAR LOWER - GRAPHITE
323112-H (opens in new tab)XT2 COMPOSITE SUSPENSION ARM REAR LOWER - HARD
323112-M (opens in new tab)XT2 COMPOSITE SUSPENSION ARM REAR LOWER - MEDIUM
323115-G (opens in new tab)XT2 COMPOSITE SUSPENSION ARM REAR LOWER - SOLID - GRAPHITE
323115-H (opens in new tab)XT2 COMPOSITE SUSPENSION ARM REAR LOWER - SOLID - HARD
323115-M (opens in new tab)XT2 COMPOSITE SUSPENSION ARM REAR LOWER - SOLID - MEDIUM
323315 (opens in new tab)ALU REAR LOWER SUSPENSION HOLDER - WIDER - FRONT
323326 (opens in new tab)ALU REAR LOWER SUSP. HOLDER 1° FOR BENT SIDES CHASSIS - REAR
323327 (opens in new tab)ALU REAR LOWER SUSPENSION HOLDER 3° - WIDER - REAR
323354-G (opens in new tab)COMPOSITE UPRIGHT REAR - UPPER POSITION - GRAPHITE
323354-H (opens in new tab)COMPOSITE UPRIGHT REAR - UPPER POSITION - HARD
323354-M (opens in new tab)COMPOSITE UPRIGHT REAR - UPPER POSITION - MEDIUM
323355 (opens in new tab)ALU MULTI ADJUSTABLE REAR UPRIGHT - UPPER POSITION - SWISS 7075 T6
323356 (opens in new tab)ALU MULTI ADJUSTABLE REAR UPRIGHT - LOWER POSITION - SWISS 7075 T6
323357-G (opens in new tab)COMPOSITE UPRIGHT REAR - LOWER POSITION - GRAPHITE
323357-M (opens in new tab)COMPOSITE UPRIGHT REAR - LOWER POSITION - MEDIUM
323382 (opens in new tab)ALU REAR HUB PLATE FOR MULTI ADJ. UPRIGHT - 1-HOLE - SWISS 7075 T6
323400 (opens in new tab)XB2 ANTI-ROLL BAR REAR 1.0MM SET
323520 (opens in new tab)XT2 LEXAN REAR WING - HIGH
323521 (opens in new tab)XT2 LEXAN REAR WING - LOW
323551 (opens in new tab)XT2 COMPOSITE REAR BODY MOUNT (2)
324016 (opens in new tab)ALU MOTOR PLATE - LCG - SWISS 7075 T6
324017 (opens in new tab)GRAPHITE MOTOR PLATE - LCG - 3.0MM
324021COMPOSITE MOUNT FOR UPPER BRACE - LCG
324042COMPOSITE MOTOR UPPER BRACE - LCG
324052COMPOSITE GEAR COVER - LCG
324101SLIPPER ELIMINATOR - LCG - SET
324102 (opens in new tab)SOLID AXLE - LCG - ULTRA-LIGHTWEIGHT - SET
324113 (opens in new tab)ALU 3-PAD TOP SHAFT 20T - LCG - SWISS 7075 T6 - HARD COATED
324114 (opens in new tab)ALU 2-PAD TOP SHAFT 20T - LCG - SWISS 7075 T6 - HARD COATED
324120 (opens in new tab)ALU 3-PAD SLIPPER CLUTCH PLATE - SWISS 7075 T6 - HARD COATED
324123 (opens in new tab)ALU SLIPPER ELIMINATOR SPACER - SWISS 7075 T6
324126 (opens in new tab)ALU 2-PAD SLIPPER CLUTCH PLATE - SHORT - SWISS 7075 T6
324128 (opens in new tab)ALU 3-PAD SLIPPER CLUTCH PLATE WITH ADAPTER - LCG - SWISS 7075 T6
324129 (opens in new tab)ALU 2-PAD SLIPPER CLUTCH PLATE WITH ADAPTER - LCG - SWISS 7075 T6
324172 (opens in new tab)COMPOSITE ADJUSTMENT BALL-BEARING HUB - 1+2+3 DOTS (2)
324190 (opens in new tab)ALU 3-PAD SLIPPER CLUTCH SHIM
324225 (opens in new tab)COMPOSITE GEAR 25T - GRAPHITE
324238 (opens in new tab)COMPOSITE GEAR 38T - LCG - GRAPHITE
324903 (opens in new tab)GEAR DIFFERENTIAL - LCG - NARROW - SET
324912 (opens in new tab)COMPOSITE GEAR DIFFERENTIAL COVER - LCG - NARROW
324912-G (opens in new tab)COMPOSITE GEAR DIFFERENTIAL COVER - LCG - NARROW - GRAPHITE
324955 (opens in new tab)COMPOSITE GEAR DIFFERENTIAL CASE WITH PULLEY 53T - LCG - NARROW
324955-G (opens in new tab)COMPOSITE GEAR DIFF. CASE WITH PULLEY 53T - LCG - NARROW - GRAPHITE
324990 (opens in new tab)DIFF GASKET (4)
325053 (opens in new tab)COMPOSITE BALL DIFFERENTIAL GEAR 53T
325072 (opens in new tab)ALU BALL DIFFERENTIAL 2.5MM NUT
325101 (opens in new tab)XRAY XB2 ACTIVE DIFFERENTIAL - NARROW - SET
325123 (opens in new tab)ACTIVE DIFF SEGMENT 60° (2)
325125 (opens in new tab)ACTIVE DIFF SEGMENT 90° (2)
325127 (opens in new tab)ACTIVE DIFF SEGMENT 120° (2)
325130 (opens in new tab)ACTIVE DIFF STEEL BEVEL & SATELLITE GEARS (2+4)
325390ALU SHIM 10x12x2MM (2)
325391 (opens in new tab)ALU SHIM 10x12x1MM (2)
325869 (opens in new tab)SLIPPER ELIMINATOR COMPOSITE SPUR GEAR 69T / 48
325872 (opens in new tab)SLIPPER ELIMINATOR COMPOSITE SPUR GEAR 72T / 48
326162 (opens in new tab)SELF-ADHESIVE FOAM 1.5x6.5x87MM (2)
326176-L (opens in new tab)COMPOSITE LIPO BATTERY HOLDER - LONG (2+2)
326177 (opens in new tab)COMPOSITE BATTERY CLAMP (2)
326178 (opens in new tab)GRAPHITE BATTERY BACKSTOP 3.5MM - LOWER (2)
326181 (opens in new tab)STAINLESS STEEL BATTERY WEIGHT 35G
326182 (opens in new tab)STAINLESS STEEL WEIGHT 17G - FRONT
326183 (opens in new tab)STAINLESS STEEL WEIGHT 17G - FRONT-MIDDLE
326184 (opens in new tab)STAINLESS STEEL WEIGHT 7G - MIDDLE
326200 (opens in new tab)COMPOSITE STEERING SERVO ARMS - EXTENDED - 23T + 25T
326202 (opens in new tab)XB2‘24 ALU SERVO HOLDERS & GRAPHITE BRIDGE
326240 (opens in new tab)COMPOSITE FAN HOLDER
327210 (opens in new tab)FRONT SUSPENSION PIVOT PIN (2)
327220 (opens in new tab)FRONT ARM PIVOT PIN (2)
327321 (opens in new tab)REAR ARM PIVOT PIN 3x34MM(2)
328011 (opens in new tab)SHOCK BALL JOINT 21MM (2)
329000 (opens in new tab)XB2 SET OF HIGH-SPEED BALL-BEARINGS (24)
329300 (opens in new tab)XB2 MOUNTING HARDWARE PACKAGE - SET
329704 (opens in new tab)BODY 1/10 2WD STADIUM TRUCK - FRONT/REARWARD SHOCK POSITION
329705 (opens in new tab)BODY 1/10 2WD STADIUM TRUCK - F/R SHOCK POSITION - LIGHTWEIGHT
329902 (opens in new tab)STADIUM TRUCK WHEEL AERODISK WITH 12MM HEX - WHITE (10)
329912 (opens in new tab)STADIUM TRUCK WHEEL AERODISK WITH 12MM HEX - WHITE (2)
332660 (opens in new tab)COMPOSITE STEERING & SERVO BALL JOINT 5.8MM (4+2)
335030DIFF BEVEL & SATELLITE GEARS (2+4)
335080DIFF PIN (2)
335081 (opens in new tab)ALU DIFF PIN - HARD COATED (2)
336120COMPOSITE STEERING SERVO HOLDER - SET - V2
352460 (opens in new tab)PIVOT BALL 5.8 (10)
355180ACTIVE DIFF PIN (2)
356219COMPOSITE SERVO SHIMS 1.0, 1.5 & 2.5MM (2+2+2)
359050 (opens in new tab)BALL-BEARING 5x10x4 STEEL SEALED - GREASE - V2 (2)
359051 (opens in new tab)BALL-BEARING 5x12x4 STEEL SEALED - GREASE (2)
362280 (opens in new tab)ALU CONICAL SHIM 3x6x2.0MM (10)
362280-K (opens in new tab)ALU CONICAL SHIM 3x6x2.0MM - BLACK (10)
362280-O (opens in new tab)ALU CONICAL SHIM 3x6x2.0MM - ORANGE (10)
362290 (opens in new tab)STEEL STEERING BUSHING - SHORT (2)
362291 (opens in new tab)STEEL STEERING BUSHING - LONG (2)
362315 (opens in new tab)CLOSED ECCENTRIC BUSHING SET (2)
362316 (opens in new tab)OPEN ECCENTRIC BUSHING SET (2)
362470 (opens in new tab)ANTI-ROLL BAR 1.0MM
362471 (opens in new tab)ANTI-ROLL BAR 1.1MM
362472 (opens in new tab)ANTI-ROLL BAR 1.2MM
362473 (opens in new tab)ANTI-ROLL BAR 1.3MM
362649 (opens in new tab)BALL END 4.9MM WITH THREAD 5MM (2)
362650 (opens in new tab)BALL END 4.9MM WITH THREAD 6MM (2)
362651 (opens in new tab)BALL END 4.9MM WITH THREAD 8MM (2)
362652 (opens in new tab)BALL END 4.9MM WITH THREAD 10MM (2)
363241 (opens in new tab)BALL UNIVERSAL 5.75MM WITH BACKSTOP (2)
363242 (opens in new tab)PIVOT BALL 5.8MM ECCENTRIC (2)
364131 (opens in new tab)SLIPPER CLUTCH PAD SLS - SOFT (3)
364132 (opens in new tab)SLIPPER CLUTCH PAD BLACK - MEDIUM (2)
364140ALU 3-PAD SLIPPER CLUTCH PLATE DISC - 7075 T6 HARD COATED
364180 (opens in new tab)SLIPPER CLUTCH SPRING C=30 - BLACK
364181 (opens in new tab)SLIPPER CLUTCH SPRING C=45 - BLACK
365080 (opens in new tab)BALL DIFF WASHER 17 x 24.5 x 1 (2)
365351 (opens in new tab)ALU WHEEL HUB 14MM - OFFSET „-0.75MM“ (2)
365352 (opens in new tab)ALU WHEEL HUB 14MM - OFFSET „+0.75MM“ (2)
365353 (opens in new tab)ALU WHEEL HUB 12MM - O SLOTS - V2 (2)
365354 (opens in new tab)ALU WHEEL HUB 12MM - LIGHTWEIGHT - OFFSET „-0.75MM“ (2)
365355 (opens in new tab)ALU WHEEL HUB 12MM - 1 SLOT - OFFSET „+0.75MM“ (2)
365356 (opens in new tab)ALU WHEEL HUB 12MM - 2 SLOTS - OFFSET „+1.50MM“ (2)
365357 (opens in new tab)ALU WHEEL HUB 12MM - 3 SLOTS - OFFSET „+2.25MM“ (2)
365358 (opens in new tab)ALU WHEEL HUB 12MM - 4 SLOTS - OFFSET „+3.00MM“ (2)
365359 (opens in new tab)ALU WHEEL HUB 12MM - 5 SLOTS - OFFSET „+3.75MM“ (2)
365360 (opens in new tab)ALU WHEEL HUB 12MM - 6 SLOTS - OFFSET „+4.5MM“ (2)
365361 (opens in new tab)ALU WHEEL HUB 12MM - LIGHTWEIGHT - OFFSET „-1.25MM“ (2)
365726 (opens in new tab)ALU PINION GEAR - HARD COATED 26T / 48
365727 (opens in new tab)ALU PINION GEAR - HARD COATED 27T / 48
365728 (opens in new tab)ALU PINION GEAR - HARD COATED 28T / 48
365729 (opens in new tab)ALU PINION GEAR - HARD COATED 29T / 48
365730 (opens in new tab)ALU PINION GEAR - HARD COATED 30T / 48
365731ALU PINION GEAR - HARD COATED 31T / 48
365732 (opens in new tab)ALU PINION GEAR - HARD COATED 32T / 48
365733 (opens in new tab)ALU PINION GEAR - HARD COATED 33T / 48
365734ALU PINION GEAR - HARD COATED 34T / 48
365735ALU PINION GEAR - HARD COATED 35T / 48
365736ALU PINION GEAR - HARD COATED 36T / 48
365737ALU PINION GEAR - HARD COATED 37T / 48
365738ALU PINION GEAR - HARD COATED 38T / 48
365872 (opens in new tab)COMPOSITE 3-PAD SLIPPER CLUTCH SPUR GEAR 72T / 48
365875 (opens in new tab)COMPOSITE 3-PAD SLIPPER CLUTCH SPUR GEAR 75T / 48
365878 (opens in new tab)COMPOSITE 3-PAD SLIPPER CLUTCH SPUR GEAR 78T / 48
365881 (opens in new tab)COMPOSITE 3-PAD SLIPPER CLUTCH SPUR GEAR 81T / 48
365884 (opens in new tab)COMPOSITE 3-PAD SLIPPER CLUTCH SPUR GEAR 84T / 48
365887COMPOSITE 3-PAD SLIPPER CLUTCH SPUR GEAR 87T / 48
366202 (opens in new tab)COMPOSITE SERVO MOUNT - HIGHER
367210 (opens in new tab)SUSPENSION PIVOT PIN (2)
368011 (opens in new tab)COMPOSITE SHOCK BALL JOINT +2MM & +4MM (2+2)
368013COMPOSITE SHOCK PARTS FOR 2 SHOCKS - BIG BORE
368021 (opens in new tab)ALU SHOCK SPRING RETAINING COLLAR (4)
368022 (opens in new tab)ALU SHOCK SPRING RETAINING COLLAR -2MM (4)
368023 (opens in new tab)ALU SHOCK SPRING RETAINING COLLAR -4MM (4)
368032 (opens in new tab)SHOCK PISTONS - COMPLETE SET - DELRIN - BIG BORE
368033 (opens in new tab)PRECISION GROUND SHOCK PISTON BLANKS 2.5MM - BIG BORE (4)
368034 (opens in new tab)PRECISION GROUND SHOCK PISTON BLANKS 2.0MM - BIG BORE (4)
368041 (opens in new tab)STEEL SHOCK BUSHING FOR ALU CAP (2)
368042COMPOSITE SHOCK BUSHING & SHIM FOR ALU CAP (2+2)
368045STEEL SCREW SHOCK PIVOT BALL WITH HEX (2)
368049 (opens in new tab)ALU SHOCK ADJUSTABLE NUT - BIG BORE (2)
368054 (opens in new tab)ALU SHOCK CAP-NUT WITH VENT HOLE - BIG BORE (2)
368140 (opens in new tab)ALU LOWER SHOCK BODY CAP (2)
368201 (opens in new tab)REAR SHOCK ABSORBERS - BIG BORE - SET (2)
368222 (opens in new tab)ALU REAR SHOCK BODY - BIG BORE (2)
368223XT2/XT4 ALU REAR SHOCK BODY - BIG BORE (2)
368261XT2/XT4 REAR HARDENED SHOCK SHAFT 56MM (2)
368262 (opens in new tab)REAR HARDENED SHOCK SHAFT 47MM (2)
368392 (opens in new tab)FRONT BIG BORE CONICAL SPRING-SET L=49MM - 2 DOTS (2)
368492 (opens in new tab)REAR BIG BORE CONICAL SPRING-SET L=67MM - 2 DOTS (2)
372503 (opens in new tab)COMPOSITE SERVO SAVER - X-STIFF - SET - V2
397311 (opens in new tab)XRAY STICKER FOR BODY - WHITE
397312XRAY STICKER FOR BODY - METALIC SILVER
397313XRAY STICKER FOR BODY - PURPLE
397314XRAY STICKER FOR BODY - NEON RED
397315XRAY STICKER FOR BODY - NEON YELLOW
397316XRAY STICKER FOR BODY - NEON ORANGE
397320XRAY STICKERS FOR BODY - 5 DIFFERENT COLORS

Screws, bearings, o-rings and hardware (62)

Part #Description
901303 (opens in new tab)HEX SCREW SB M3x3 (10)
901304 (opens in new tab)HEX SCREW SB M3x4 (10)
901306 (opens in new tab)HEX SCREW SB M3x6 (10)
901308 (opens in new tab)HEX SCREW SB M3x8 (10)
902205 (opens in new tab)HEX SCREW SH M2x5 (10)
902254 (opens in new tab)HEX SCREW SH M2.5x4 (10)
902258HEX SCREW SH M2.5x8 (10)
902305 (opens in new tab)HEX SCREW SH M3x5 (10)
902306 (opens in new tab)HEX SCREW SH M3x6 (10)
902308 (opens in new tab)HEX SCREW SH M3x8 (10)
902310 (opens in new tab)HEX SCREW SH M3x10 (10)
902312 (opens in new tab)HEX SCREW SH M3x12 (10)
902316 (opens in new tab)HEX SCREW SH M3x16 (10)
902320 (opens in new tab)HEX SCREW SH M3x20 (10)
902322 (opens in new tab)HEX SCREW SH M3x22 (10)
902325HEX SCREW SH M3x25 (10)
903308 (opens in new tab)HEX SCREW SFH M3x8 (10)
903310 (opens in new tab)HEX SCREW SFH M3x10 (10)
903312 (opens in new tab)HEX SCREW SFH M3x12 (10)
903316 (opens in new tab)HEX SCREW SFH M3x16 (10)
908203HEX SCREW SOCKET HEAD CAP M2x3 (10)
930120CARBIDE BALL 2.4MM FOR BALL DIFFERENTIAL (12)
930126CARBIDE BALL-BEARING AXIAL 2.6x6x1
930220CERAMIC BALL 2.4MM (12)
930306 (opens in new tab)BALL-BEARING 3x6x2.5 STEEL SEALED - OIL (2)
930308 (opens in new tab)BALL-BEARING 3x8x4 STEEL SEALED - OIL (2)
930508 (opens in new tab)BALL-BEARING 5x8x2.5 STEEL SEALED - OIL (2)
940508 (opens in new tab)BALL-BEARING 5x8x2.5 RUBBER SEALED - OIL (2)
940509BALL-BEARING 5x9x3 RUBBER SEALED - OIL (2)
940510 (opens in new tab)BALL-BEARING 5x10x4 RUBBER SEALED - OIL (2)
940512 (opens in new tab)BALL-BEARING 5x12x4 RUBBER SEALED - OIL (2)
940513 (opens in new tab)BALL-BEARING 5x12x4 RUBBER SEALED - GREASE (2)
940612 (opens in new tab)BALL-BEARING 6x12x4 RUBBER SEALED - OIL (2)
941014 (opens in new tab)BALL-BEARING 10x15x4 RUBBER SEALED - GREASE (2)
941015 (opens in new tab)BALL-BEARING 10x15x4 RUBBER SEALED - OIL (2)
960030 (opens in new tab)NUT M3 (10)
960031 (opens in new tab)ALU NUT M3 (10)
960032NUT M3 (10)
960033NUT M3 - THIN (10)
960040NUT M4 (10)
960240 (opens in new tab)NUT M4 WITH SERRATED FLANGE (10)
960241-KALU NUT M4 WITH SERRATED FLANGE - BLACK (10)
960241-O (opens in new tab)ALU NUT M4 WITH SERRATED FLANGE - ORANGE (10)
961032 (opens in new tab)WASHER S 3.2 (10)
962030 (opens in new tab)WASHER S 3x6x0.3 (10)
962031 (opens in new tab)WASHER S 3x6x0.1 (10)
962032 (opens in new tab)WASHER S 3x6x0.2 (10)
962100WASHER S 10x12x0.1 (10)
964031 (opens in new tab)WASHER S 3.5x10x0.2 (10)
964050 (opens in new tab)WASHER S 5x15x0.3 (10)
965023 (opens in new tab)E-CLIP 2.3 (10)
970080 (opens in new tab)O-RING 8x1 (10)
970131 (opens in new tab)O-RING 13 x 1.0 (10)
970150 (opens in new tab)O-RING 15 x 1.5 (10)
971050 (opens in new tab)SILICONE O-RING 5x1.5 (10)
973030 (opens in new tab)SILICONE X-RING PRE-OILED 3x2 (10)
980209 (opens in new tab)PIN 2x8.8 (10)
980210 (opens in new tab)PIN 2x9.8 (10)
980320PIN 3x20 (10)
980320-T (opens in new tab)TITANIUM PIN 3x20 (2)
981210PIN 2x10 (10)
981212 (opens in new tab)PIN 2x12 (10)

Tools, oils and setup equipment (254)

Part #Description
101600HUDY STEEL MINI CLAMP
104004 (opens in new tab)HUDY AIR VAC - VACUUM PUMP - 1/10 OFF-ROAD
105251HUDY TIRE MOUNTING BAND - LARGE - PURPLE (4)
105251-K (opens in new tab)HUDY TIRE MOUNTING BAND - LARGE - BLACK (4)
105500 (opens in new tab)HUDY UNIVERSAL TIRE BALANCING STATION - V2
105520WHEEL ADAPTER FOR 1/10 ON-ROAD & 1/10 OFF-ROAD - 12MM
105590 (opens in new tab)HUDY WHEEL BALANCING PUTTY
106200 (opens in new tab)HUDY MAGIC CLEANING GUM
106205 (opens in new tab)HUDY WASH BOX
106210 (opens in new tab)HUDY GRAPHITE GREASE
106211 (opens in new tab)HUDY DIFF GREASE
106212 (opens in new tab)HUDY SUPER DIFF GREASE
106213 (opens in new tab)HUDY JOINT GREASE
106220 (opens in new tab)HUDY BEARING GREASE
106221 (opens in new tab)HUDY BEARING GREASE - BLUE
106222 (opens in new tab)HUDY BEARING GREASE - RED
106230 (opens in new tab)HUDY BEARING OIL
106281HUDY BODY FIX 28g/1oz
106290HUDY ULTIMATE SOLDER 3M LENGTH
106311HUDY PREMIUM SILICONE OIL 100 cSt - 100ML
106315HUDY PREMIUM SILICONE OIL 150 cSt - 50ML
106316HUDY PREMIUM SILICONE OIL 150 cSt - 100ML
106320HUDY PREMIUM SILICONE OIL 200 cSt - 50ML
106321HUDY PREMIUM SILICONE OIL 200 cSt - 100ML
106325HUDY PREMIUM SILICONE OIL 250 cSt - 50ML
106326HUDY PREMIUM SILICONE OIL 250 cSt - 100ML
106330HUDY PREMIUM SILICONE OIL 300 cSt - 50ML
106331HUDY PREMIUM SILICONE OIL 300 cSt - 100ML
106335HUDY PREMIUM SILICONE OIL 350 cSt - 50ML
106336HUDY PREMIUM SILICONE OIL 350 cSt - 100ML
106337HUDY PREMIUM SILICONE OIL 375 cSt - 50ML
106338HUDY PREMIUM SILICONE OIL 375 cSt - 100ML
106340HUDY ULTIMATE SILICONE OIL 400 cSt - 50ML
106341HUDY PREMIUM SILICONE OIL 400 cSt - 100ML
106342HUDY PREMIUM SILICONE OIL 425 cSt - 50ML
106343HUDY PREMIUM SILICONE OIL 425 cSt - 100ML
106345HUDY PREMIUM SILICONE OIL 450 cSt - 50ML
106346HUDY PREMIUM SILICONE OIL 450 cSt - 100ML
106347HUDY PREMIUM SILICONE OIL 475 cSt - 50ML
106348HUDY PREMIUM SILICONE OIL 475 cSt - 100ML
106350HUDY PREMIUM SILICONE OIL 500 cSt - 50ML
106351HUDY PREMIUM SILICONE OIL 500 cSt - 100ML
106352HUDY PREMIUM SILICONE OIL 525 cSt - 50ML
106353HUDY PREMIUM SILICONE OIL 525 cSt - 100ML
106355HUDY PREMIUM SILICONE OIL 550 cSt - 50ML
106356HUDY PREMIUM SILICONE OIL 550 cSt - 100ML
106357HUDY PREMIUM SILICONE OIL 575 cSt - 50ML
106358HUDY PREMIUM SILICONE OIL 575 cSt - 100ML
106360HUDY PREMIUM SILICONE OIL 600 cSt - 50ML
106361HUDY PREMIUM SILICONE OIL 600 cSt - 100ML
106362HUDY PREMIUM SILICONE OIL 625 cSt - 50ML
106363HUDY PREMIUM SILICONE OIL 625 cSt - 100ML
106365HUDY PREMIUM SILICONE OIL 650 cSt - 50ML
106366HUDY PREMIUM SILICONE OIL 650 cSt - 100ML
106367HUDY PREMIUM SILICONE OIL 675 cSt - 50ML
106368HUDY PREMIUM SILICONE OIL 675 cSt - 100ML
106370HUDY PREMIUM SILICONE OIL 700 cSt - 50ML
106371HUDY PREMIUM SILICONE OIL 700 cSt - 100ML
106375HUDY PREMIUM SILICONE OIL 750 cSt - 50ML
106376HUDY PREMIUM SILICONE OIL 750 cSt - 100ML
106380HUDY PREMIUM SILICONE OIL 800 cSt - 50ML
106381HUDY PREMIUM SILICONE OIL 800 cSt - 100ML
106390HUDY PREMIUM SILICONE OIL 900 cSt - 50ML
106391HUDY PREMIUM SILICONE OIL 900 cSt - 100ML
106410HUDY PREMIUM SILICONE OIL 1000 cSt - 50ML
106411HUDY PREMIUM SILICONE OIL 1000 cSt - 100ML
106420HUDY PREMIUM SILICONE OIL 2000 cSt - 50ML
106421HUDY PREMIUM SILICONE OIL 2000 cSt - 100ML
106430HUDY PREMIUM SILICONE OIL 3000 cSt - 50ML
106431HUDY PREMIUM SILICONE OIL 3000 cSt - 100ML
106440HUDY PREMIUM SILICONE OIL 4000 cSt - 50ML
106441HUDY PREMIUM SILICONE OIL 4000 cSt - 100ML
106450HUDY PREMIUM SILICONE OIL 5000 cSt - 50ML
106451HUDY PREMIUM SILICONE OIL 5000 cSt - 100ML
106460 (opens in new tab)HUDY PREMIUM SILICONE OIL 6000 cSt - 50ML
106461HUDY PREMIUM SILICONE OIL 6000 cSt - 100ML
106470HUDY PREMIUM SILICONE OIL 7000 cSt - 50ML
106471HUDY PREMIUM SILICONE OIL 7000 cSt - 100ML
106480HUDY PREMIUM SILICONE OIL 8000 cSt - 50ML
106481HUDY PREMIUM SILICONE OIL 8000 cSt - 100ML
106490HUDY PREMIUM SILICONE OIL 9000 cSt - 50ML
106491HUDY PREMIUM SILICONE OIL 9000 cSt - 100ML
106510HUDY PREMIUM SILICONE OIL 10 000 cSt - 50ML
106511HUDY PREMIUM SILICONE OIL 10 000 cSt - 100ML
106900 (opens in new tab)HUDY OIL BOTTLE, NOSE, STEEL NEEDLE & SAFETY LOCK - 5ML (3)
107090 (opens in new tab)HUDY BEARING CHECK TOOL
107602LIMITED EDITION - REAMER FOR BODY + COVER - LARGE
107643LIMITED EDITION - ARM REAMER 3.0 MM
107740 (opens in new tab)HUDY RIDE HEIGHT TOOL 14-20MM
107742 (opens in new tab)HUDY RIDE HEIGHT TOOL 20-30MM
107761 (opens in new tab)HUDY ADJUSTABLE CAMBER GAUGE 80MM
107763 (opens in new tab)HUDY ADJUSTABLE RIDE HEIGHT GAUGE 5-40MM
107780HUDY ADJUSTABLE DROOP GAUGE 80~140MM
107783 (opens in new tab)HUDY DROOP GAUGE 70~140MM
107839 (opens in new tab)HUDY CLEANING BRUSH - CHEMICAL RESISTANT - 2.5“
107840CLEANING BRUSH LARGE - SOFT
107841CLEANING BRUSH LARGE - MEDIUM
107842CLEANING BRUSH LARGE - STIFF
107843 (opens in new tab)HUDY CLEANING BRUSH - CHEMICAL RESISTANT - 2.0“
107846CLEANING BRUSH SMALL - SOFT
107847CLEANING BRUSH SMALL - MEDIUM
107848CLEANING BRUSH SMALL - STIFF
107850 (opens in new tab)HUDY PERSONAL RACING DISPLAY
107855HUDY PIT LED
107861HUDY PROFFESIONAL RACING STOPWATCH XL DISPLAY
107865 (opens in new tab)HUDY ULTIMATE DIGITAL SCALE 300g/0.01g
107866HUDY PROFFESIONAL DIGITAL POCKET SCALE 3000g/0.1g
107870 (opens in new tab)HUDY FIBRE-REINFORCED TAPE - BLACK
107875HUDY ULTRA DOUBLE-SIDED TAPE
107876 (opens in new tab)HUDY ULTRA THIN DOUBLE-SIDED TAPE - SINGLE STRIP (5)
107880CHASSIS BALANCING SIMPLE TOOL (2 PCS.)
108160 (opens in new tab)HUDY 1/10 OFF-ROAD CAR STAND
108190HUDY ALU PARTS TRAY
108192 (opens in new tab)HUDY ALU PARTS TRAY NARROW 215x50mm
108193 (opens in new tab)HUDY ALU PARTS TRAY LARGE 215x100mm
108201FLAT SET-UP BOARD FOR 1/10 TOURING CARS
108203FLAT SET-UP BOARD FOR 1/10 TOURING CARS - SILVER GREY
108204FLAT SET-UP BOARD FOR 1/10 TOURING CARS - TITAN
108205FLAT SET-UP BOARD FOR 1/10 TOURING CARS - DARK GREY
108601FLAT SET-UP BOARD FOR 1/10 OFF-ROAD - LIGHTWEIGHT - GREY
108602FLAT SET-UP BOARD FOR 1/10 OFF-ROAD - LIGHTWEIGHT - SILVER GREY
108603FLAT SET-UP BOARD FOR 1/10 OFF-ROAD - LIGHTWEIGHT - DARK GREY
108604FLAT SET-UP BOARD FOR 1/10 OFF-ROAD - LIGHTWEIGHT - TITAN
108605FLAT SET-UP BOARD FOR 1/10 OFF-ROAD - LIGHTWEIGHT - BLACK
108660PLASTIC SET-UP BOARD DECAL 331x386mm - 1/0 OFF-ROAD
108901 (opens in new tab)HUDY SET-UP STATION FOR 1/10 OFF-ROAD CARS
108960ALU NUT FOR 1/10 OFF-ROAD SET-UP SYSTEM (4)
108970ALU SET-UP WHEEL FOR 1/10 OFF-ROAD (4)
109801 (opens in new tab)HUDY ALU TRAY FOR 1/10 OFF-ROAD DIFF & SHOCKS
109840 (opens in new tab)HUDY ALU TRAY FOR 1/10 OFF-ROAD DIFF ASSEMBLY
109860 (opens in new tab)HUDY ALU TRAY FOR SET-UP SYSTEM
109880 (opens in new tab)HUDY ALU TRAY FOR ACCESSORIES & PIT LED
111063LIMITED EDITION - UNIVERSAL HANDLE FOR EL. SCREWDRIVER PINS
111545LIMITED EDITION - ALLEN WRENCH 1.5 MM
112045LIMITED EDITION - ALLEN WRENCH 2.0 MM
170004 (opens in new tab)HUDY SHORT SOCKET WRENCH # 5.5MM
175535LIMITED EDITION - SOCKET DRIVER 5.5 MM
177035LIMITED EDITION - SOCKET DRIVER 7.0 MM
181030 (opens in new tab)HUDY SPRING STEEL TURNBUCKLE WRENCH 3MM
181031ALU TURNBUCKLE WRENCH 3MM - SWISS 7075 T6
181034HUDY SPRING STEEL TURNBUCKLE WRENCH 3 & 4MM
181090 (opens in new tab)HUDY SPECIAL TOOL FOR TURNBUCKLES & NUTS
181110 (opens in new tab)HUDY BALL JOINT WRENCH
183011HUDY PROFESSIONAL MULTI TOOL
188970 (opens in new tab)HUDY PROFESSIONAL TWEEZERS STRAIGHT
188971 (opens in new tab)HUDY PROFESSIONAL TWEEZERS CURVED
188980HUDY BLADE HOBBY KNIFE WITH ALU HANDLE
188981HUDY POCKET HOBBY KNIFE
188984HUDY REPLACEABLE HOBBY KNIFE BLADES (10PCS)
188985HUDY REPLACEABLE HOBBY KNIFE BLADES (5PCS)
188990 (opens in new tab)HUDY ULTIMATE BODY SCISSORS
190001SET OF TOOLS + CARRYING BAG - FOR ELECTRIC TOURING CARS
190005 (opens in new tab)HUDY LIMITED EDITION TOOL SET + CARRYING BAG
190006PT SET OF TOOLS + CARRYING BAG - FOR ALL CARS
190070SET OF POWER TOOL TIPS 2.0, 2.5, 3.00MM + 4.0, 5.8 PHILLIPS
199011-H (opens in new tab)HUDY HARD CASE - 230x180x45MM - TOOL BAG SMALL
199050HUDY RC PLIERS BAG
199060 (opens in new tab)HUDY ALU TOOL STAND
199100 (opens in new tab)HUDY 1/10 TOURING CARRYING BAG + TOOL BAG - V2 - EXCLUSIVE EDITION
199110 (opens in new tab)HUDY 1/10 CARRYING BAG - COMPACT
199120 (opens in new tab)HUDY 1/10 & 1/8 CARRYING BAG + TOOL BAG - EXCLUSIVE EDITION
199150HUDY CARGO BAG - EXCLUSIVE EDITION
199155L (opens in new tab)HUDY TRAVEL BAG - LARGE
199157LHUDY HAND BAG - LARGE
199157MHUDY HAND BAG - MEDIUM
199170 (opens in new tab)HUDY TRANSMITTER BAG - LARGE - EXCLUSIVE EDITION
199171 (opens in new tab)HUDY TRANSMITTER BAG - COMPACT - EXCLUSIVE EDITION
199171-HHUDY HARD CASE - 185x220x145MM - TRANSMITTER SANWA MT44 & M17
199175 (opens in new tab)HUDY RADIO WINTER BAG - EXCLUSIVE EDITION
199176 (opens in new tab)HUDY HEAT PACK GEL
199183 (opens in new tab)HUDY CAR BAG - 1/10 OFF-ROAD
199190 (opens in new tab)HUDY TEAM RUCKSACK
199191HUDY TEAM BACKPACK XL
199199HUDY EURO POUCH
199211 (opens in new tab)HUDY SET-UP BOARD BAG 1/10 OFF-ROAD
199241 (opens in new tab)HUDY SET-UP BAG FOR 1/10 & 1/8 OFF-ROAD CARS & GT
199260 (opens in new tab)HUDY PIT LED BAG
199270 (opens in new tab)HUDY LIPO SAFETY BAG
199280L (opens in new tab)HUDY OIL BAG - LARGE
199280L-HHUDY HARD CASE - 180x140x120MM - OIL BAG LARGE
199280M (opens in new tab)HUDY OIL BAG - MEDIUM
199280M-HHUDY HARD CASE - 140x110x95MM - OIL BAG MEDIUM
199290 (opens in new tab)HUDY ACCESSORIES BAG
199290-H (opens in new tab)HUDY HARD CASE - 235x190x75MM
199291-H (opens in new tab)HUDY HARD CASE - 135x85x75MM - ACCESSORIES / AIR VAC ON-ROAD
199292-H (opens in new tab)HUDY HARD CASE - 175x85x75MM - ACCESSORIES / AIR VAC 1/10 OFF-ROAD
199293-H (opens in new tab)HUDY HARD CASE - 175x110x75MM
199294-H (opens in new tab)HUDY HARD CASE - 215x90x85MM - ACCESSORIES / AIR VAC 1/8 OFF-ROAD
199295-H (opens in new tab)HUDY HARD CASE - 280x150x85MM - ACCESSORIES BAG LARGE
199296-H (opens in new tab)HUDY HARD CASE - 120x85x46MM - ACCESSORIES / STOP WATCH
199297-H (opens in new tab)HUDY HARD CASE - 320x220x145MM - ELECTRONICS
199910 (opens in new tab)HUDY PIT MAT 750x1200MM
199911 (opens in new tab)HUDY PIT MAT ROLL 750x1200MM
199912 (opens in new tab)HUDY PIT MAT ROLL 600x950MM
199913L (opens in new tab)HUDY PIT MAT FULL COLOR 650x1200MM
199913M (opens in new tab)HUDY PIT MAT FULL COLOR 650x950MM
209065HUDY COMPACT CLEANING TOWEL (10)
209073 (opens in new tab)HUDY EXCLUSIVE PIT TOWEL 1100 x 700
209200 (opens in new tab)HUDY CHASSIS PROTECTOR VINYL STICKER 360x125mm
209240 (opens in new tab)HUDY BODY POST HOLE PROTECTOR VINYL STICKER 7x16x0.5MM (8)
286990HUDY FACE MASK
293010HUDY STAINLESS STEEL BATTERY WEIGHT 50G
293011 (opens in new tab)HUDY STAINLESS STEEL BATTERY WEIGHT 35G
293012HUDY STAINLESS STEEL BATTERY WEIGHT FOR NARROW BATTERY PACK 35G
293081 (opens in new tab)HUDY PURE TUNGSTEN WEIGHT 5g
293082 (opens in new tab)HUDY PURE TUNGSTEN WEIGHT 10g
293100HUDY ALU RC FAN 30MM - BOTTOM MOUNT 2 HOLE
293101HUDY ALU RC FAN 30MM - SIDE MOUNT 2 HOLE
293110 (opens in new tab)HUDY BRUSHLESS RC FAN 30MM - WITH EXTERNAL SOLDERING TABS
293112 (opens in new tab)HUDY BRUSHLESS RC FAN 30MM - WITH INTERNAL SOLDERING TABS
293561HUDY ALU REAR WING SHIM (2)
293561-K (opens in new tab)HUDY ALU REAR WING SHIM - BLACK (2)
293561-OHUDY ALU REAR WING SHIM - ORANGE (2)
294017HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 17T / 48
294019 (opens in new tab)HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 19T / 48
294020HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 20T / 48
294021HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 21T / 48
294022HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 22T / 48
294023HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 23T / 48
294024 (opens in new tab)HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 24T / 48
294030HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 30T / 48
294033HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 33T / 48
294035HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 35T / 48
298010HUDY HARDWARE BOX - DOUBLE-SIDED
298011 (opens in new tab)HUDY HARDWARE BOX - DOUBLE-SIDED - COMPACT
298012 (opens in new tab)HUDY PARTS BOX - 10-COMPARTMENTS
298013 (opens in new tab)HUDY SPRINGS BOX - 10-COMPARTMENTS
298014 (opens in new tab)HUDY PARTS BOX - 8-COMPARTMENTS
298015 (opens in new tab)HUDY PARTS CASE - 290 x 195mm
298016 (opens in new tab)HUDY TINY HARDWARE BOX - 4-COMPARTMENTS
298017 (opens in new tab)HUDY TINY ONE-PIECE HARDWARE BOX - 8-COMPARTMENTS
298018 (opens in new tab)HUDY TINY HARDWARE BOX - 8-COMPARTMENTS
298019 (opens in new tab)HUDY DIFF BOX - 8-COMPARTMENTS
298021HUDY HARDWARE BOX - DOUBLE-SIDED - SMALL
298022HUDY TINY HARDWARE BOX - 10-COMPARTMENTS
298025HUDY PARTS CASE - 275 x 180mm
298100 (opens in new tab)HUDY TIN ROUND BOX 80x30MM
305231DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
322611ADJUSTABLE TURNBUCKLE 70MM M3 L/R - HUDY SPRING STEEL™ (2)
322612ADJUSTABLE TURNBUCKLE 75MM M3 L/R - HUDY SPRING STEEL™ (2)
324191STEEL SLIPPER CLUTCH NUT - HUDY SPRING STEEL™
324963GEAR DIFF OUTDRIVE ADAPTER - LCG - HUDY SPRING STEEL™ (2)
325003BALL ADJUSTABLE DIFFERENTIAL - LCG - SET - HUDY SPRING STEEL™
325013BALL DIFFERENTIAL SHORT OUTPUT SHAFT - LCG - HUDY SPRING STEEL™
325023BALL DIFFERENTIAL LONG OUTPUT SHAFT - LCG - HUDY SPRING STEEL™
325061SCREW FOR EXTERNAL BALL DIFF ADJUSTMENT 2.5MM - HUDY SPRING STEEL™
325241XT2 FRONT DRIVE AXLE - HUDY SPRING STEEL™
325313DRIVE SHAFT 97MM WITH 2.5MM PIN - HUDY SPRING STEEL™
325340REAR DRIVE AXLE LB - HUDY SPRING STEEL™
325341REAR ADJUSTABLE DRIVE AXLE LB - HUDY SPRING STEEL™
365230DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
990006 (opens in new tab)HUDY TITAN BALL STUD D=4.9 / L=6 / S=3.5 / 2mm HEX (2)
990008 (opens in new tab)HUDY TITAN BALL STUD D=4.9 / L=8 / S=3.5 / 2mm HEX (2)
990010 (opens in new tab)HUDY TITAN BALL STUD D=4.9 / L=10 / S=3.5 / 2mm HEX (2)

Source document

XRAY XT2 '24 Parts ListOpen Document

XT2 '24 alerts

Email me about new:

RC Setup App icon

Free to start · iOS & Android

RC Setup App

Your XRAY XT2 '24 is in the RC Setup App

Save every setup change you make to your XRAY XT2 '24, get AI tuning answers for that exact car, and log your races — at the track or back in the pits.

  • Setup Tracking
  • AI Mechanic answers
  • Find & Share Setups
  • Race Log
  • Gear Ratio Calculator
  • Free to use
Download on the App StoreGet it on Google Play
See what it does →
← Back to Setup Guides
