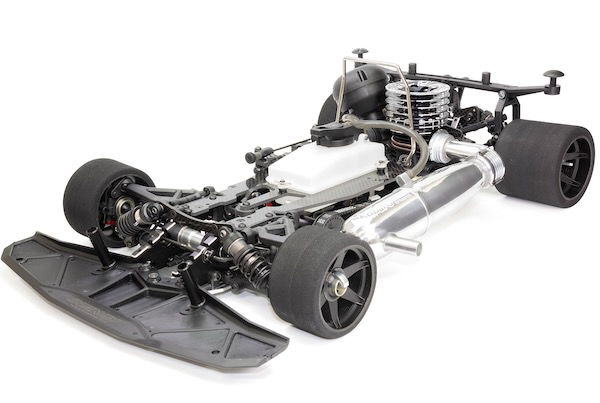

INFINITY IF18-3 Parts List

Advertisement
RC AI Mechanic
May 25, 2025
INFINITY IF18-3 Parts List
INFINITY IF18-3 Parts List
Source: INFINITY
Part numberPart name
A006-20ALUMINUM WASHER 3x6x2.0mm (Black/10pcs)
A73830ALUMINUM WASHER 3x8x3.0mm (Black/8pcs)
A781005ALUMINUM WASHER 8x10x0.5mm (Silver/8pcs)
B01208M2x8mm BUTTON HEAD SCREW (10pcs)
B01306M3x6mm BUTTON HEAD SCREW (10pcs)
B01308M3x8mm BUTTON HEAD SCREW (10pcs)
B01310M3x10mm BUTTON HEAD SCREW (8pcs)
B01312M3x12mm BUTTON HEAD SCREW (8pcs)
B01315M3x15mm BUTTON HEAD SCREW (6pcs)
B01318M3x18mm BUTTON HEAD SCREW (6pcs)
B01325M3x25mm BUTTON HEAD SCREW (6pcs)
B01408M4x8mm BUTTON HEAD SCREW (8pcs)
B02208M2x8mm FLAT HEAD SCREW (10pcs)
B02305M3x5mm FLAT HEAD SCREW (10pcs)
B02306M3x6mm FLAT HEAD SCREW (10pcs)
B02308M3x8mm FLAT HEAD SCREW (10pcs)
B02310M3x10mm FLAT HEAD SCREW (8pcs)
B02315M3x15mm FLAT HEAD SCREW (6pcs)
B02408M4x8mm FLAT HEAD SCREW (6pcs)
B02412M4x12mm FLAT HEAD SCREW (8pcs)
B03212M2x12mm CAP HEAD SCREW (10pcs)
B032610M2.6x10mm CAP HEAD SCREW (10pcs)
B03310M3x10mm CAP HEAD SCREW (8pcs)
B03315M3x15mm CAP HEAD SCREW (6pcs)
B043025FM3x2.5mm SET SCREW (Flat Point/10pcs)
B04304M3x4mm SET SCREW (Cup Point/10pcs)
B04308M3x8mm SET SCREW (Cup Point/10pcs)
B04310M3x10mm SET SCREW (Cup Point/10pcs)
B04315M3x15mm SET SCREW (Cup Point/6pcs)
B04404M4x4mm SET SCREW (Cup Point/8pcs)
B04406M4x6mm SET SCREW (Cup Point/8pcs)
B04408RM4x8mm SET SCREW (Rounded End/4pcs)
B052102.0x10mm PIN (10pcs)
B0610252.5mm E RING (6pcs)
B061066.0mm E RING (10pcs)
B061077.0mm E RING (10pcs)
B06212SNAP RING 12mm (6pcs)
B06311CRESCENT RING 11mm (6pcs)
B072601M2.6 NYLON NUT (Black/6pcs)
B07401M4 NYLON NUT (Black/4pcs)
B081215WASHER 12x15x0.5mm (8pcs)
B081218WASHER 12x18x0.5mm (4pcs)
B2000SHORT ANTENNA PIPE SET (80mm/3pcs/Black)
BB12184BALL BEARING 12x18x4mm (2pcs)
BB3625BALL BEARING 3x6x2.5mm (4pcs)
BB5103BALL BEARING 5x10x3mm (2pcs)
BB5104BALL BEARING 5x10x4mm (2pcs)
BB5825BALL BEARING 5x8x2.5mm (2pcs)
BB81235BALL BEARING 8x12x3.5mm (2pcs)
BB8144BALL BEARING 8x14x4mm (2pcs)
BBT5THRUST BALL BEARING 5mm
CM-A004-088x10 SHIM SET (0.1, 0.2, 0.3mm each10pcs)
CM-A005-10ALUMINUM WASHER 3x6x1.0mm (Red/10pcs)
G171BRAKE PISTON (IF15-2)
G179BRAKE PAD PLATE (IF15-2)
G188BRAKE PAD PLATE SPACER (0.3mm/0.1mm/IF15-2)
G192BRAKE GUIDE (IF15-2)
G194BRAKE SPRING (IF15-2)
G210BRAKE PAD SOFT (IF15-2)
R0001LFRONT BUMPER (LONG) (IF18)
R0004BCENTER BULK
R0006SERVO SAVER SET
R0009BALL SPACER φ8.5mm 6pcs
R0011REAR BUSHING SET
R0012PULLEY SET
R0013BEARING BUSHING SET
R0016RADIO MOUNT SET
R0026FUEL TANK
R0026-01FUEL TANK O RING SET (P18)
R0045STABILIZER STOPPER 2.4mm (2pcs)
R0053BFRONT UPPER BULK (7075)(IF18)
R0054BFRONT LOWER BULK(7075) (IF18/IF18-2)
R0055BALL SCREW 5.8 mm 2pcs
R0057FLANGE BALL 5.8mm (ALUMINUM) 4pcs
R0066BALL SCREW φ8.5 mm 2pcs
R0066LBALL SCREW (LONG) φ8.5 mm 2pcs
R0068FRONT QUICK CHANGE LEVER SET each 2pcs
R0070CAP SCREW 10mm 2pcs
R0071FRONT JOINT CUP 2pcs
R0072FRONT ONEWAY AXLE
R0073BPIN 2.5X11.8mm (10pcs)
R0074UNIVERSAL SWING SHAFT (JOINT) 2pcs
R0075-62FRONT UNIVERSAL SWING SHAFT (L=62) 2pcs
R0076LSERVO SAVER SHAFT (1.0mm)
R0077SERVO SAVER GUIDE
R0078SERVO SAVER NUT O-RING SET
R0080-64STEERING ROD (L=64) 2pcs
R0085MIDDLE SHAFT
R0089BELT TENSIONER ROLLER SET
R0092BALL END SET
R0093BFUEL TANK POST O-RING SET (each 3pcs)
R0094WIF18 WIDE ROLL BAR (SILVER)
R0099MAIN SHAFT
R010418T PULLEY HOLDER
R0116-54REAR UNIVERSAL SWING SHAFT (L=54) 2pcs
R0118REAR QUICK CHANGE LEVER SET each 2pcs
R0119TURNBUCKLE (3x15) 2pcs
R0120REAR BODY MOUNT SCREW 4pcs
R0124REAR UPPER ARM SHAFT 2pcs
R0129BFLANGE BALL 7.8mm (ALUMINUM) 2pcs
R0130SHOCK CAP 2pcs
R0131SHOCK LOWER CAP 2pcs
R0131BSHOCK LOWER O-RING 4pcs
R0132SHOCK BUSHING 2pcs
R0133SHOCK CASE 2pcs
R0135BSHOCK O-RING (WHITE/8pcs)
R0137SHOCK SHAFT 30mm 2pcs
R0138SHOCK SHAFT 33mm 2pcs
R0141BSHOCK DIAPHRAGM (4pcs)
R0142SHOCK PISTON (φ1.3x1HOLE) 2pcs
R0143SHOCK PISTON (φ1.1x2HOLE) 2pcs
R0144SHOCK PLASTIC PARTS each 4pcs
R0163LINKAGE POST
R01652mm STOPPER 3pcs
R0167PIN 3x19.8mm 6pcs
R0168PIN 3x21.8mm 6pcs
R0220LFRONT BODY MOUNT POST L (8mm) 2pcs
R0225-07PULLEY/DISK HOLDER (S)
R0229REAR UPPER BULK 7075 (IF18)
R0230-INREAR LOWER SUS HOLDER 7075 (IF18) IN
R0231-INREAR BACK PLATE 7075 (IF18) IN
R0237LONG FLANGE BALL 5.8mm (ALUMINUM) 2pcs
R0238NARROW REAR AXLE (IF18)
R0240SWAY BAR BUSH 2pcs
R0242-3.0REAR LOWER ARM PLATE LC+3.0 (CARBON) 2pcs
R02440.8M 2nd GEAR HOUSING
R02450.8M 2 SPEED HUB
R0245-012.5x10.8mm PIN (3pcs)
R02460.8M 2 SPEED SHOE SET
R0247-620.8M 1st SPUR GEAR 62T
R0248-580.8M 2nd SPUR GEAR 58T
R0250M6x1.0mm PLASTIC SCREW
R0251-010.8M TAPERED COLLAR (fly-wheel cone)
R0251-040.8M CLUTCH DISK
R0251-050.8M CLUTCH SHOE (YELLOW)
R0251-060.8M CLUTCH SPRING HOLDER
R0251-08B0.8M SPRING NUT (SPEC 2)
R0251-110.8M CLUTCH BELL GUIDE (W/SPACER 0.1 0.3)
R0254PIN 3X23.8mm 2pcs
R0258REAR BODY MOUNT SHAFT SET (STOPPER TYPE)
R0300BFRONT KNUCKLE SET (IF18-2)
R0301FRONT SUSPENSION ARM SET (IF18-2)
R0302FRONT SUSPENSION HOLDER SET (IF18-2)
R0303-02SFRONT SUSPENSION BUSH (Soft/IF18-2)
R0304-2.4FRONT ANTI-ROLL BAR 2.4mm (IF18-2)
R0305-2.45.8mm LONG ANTI-ROLL BAR BALL 2.4mm (IF18-2)
R0305-3.05.8mm LONG ANTI-ROLL BAR BALL 3.0mm (IF18-2)
R0306FRONT KNUCKLE PLATE (IF18-2)
R03077.8mm GUIDE FLANGE BALL 15.5 (IF18-2)
R0308LOWER KNUCKLE BASE 15.5 (IF18-2)
R0310BLOWER BALL SPACER 0.5mm (IF18-2/2pcs)
R0315FRONT SHOCK SET (IF18-2)
R0316REAR SHOCK SET (IF18-2)
R0317FRONT UPPER ARM SHAFT 2pcs(IF18-2)
R0318FRONT LOWER ARM SHAFT (IF18-2)
R0319REAR LOWER ARM SHAFT (IF18-2)
R0320SHOCK SPRING ADJUSTER O-RING SET each 2pcs(IF18-2)
R0332ALU FLANGE BALL 5.8mm (Short) 4pcs
R0336WFRONT SHOCK STAY LD (IF18-2) WIDE
R0342REAR UPRIGHT (Precision Type/IF18-2)
R0343REAR SUSPENSION ARM SET (Long Upper Type/IF18-2)
R0344SS 1st GEAR HOUSING (IF18-2)
R0346ALUMINUM FRONT WHEEL SHAFT (7075)
R0347ALUMINUM REAR WHEEL SHAFT (7075)
R0351MAIN CHASSIS (IF18-3/7075)
R0352SFRONT LOWER ARM END (Soft/IF18-3)
R0353BALL END HOOK (IF18-3/2pcs)
R0354STEP TURNBUCKLE (IF18-3/2pcs)
R0355NF LOWER ARM PLATE N (IF18-3/ CARBON/2pcs)
R0356BRAKE SHAFT (IF18-3)
R0357BRAKE PISTON (IF18-3)
R0358BRAKE DISK (IF18-3)
R0359BRAKE MOUNT R (IF18-3)
R0360BRAKE MOUNT L (IF18-3)
R0361ECCENTRIC POST (IF18-3)
R03623x5x9mm POST (IF18-3)
R0364REAR LOWER BULK (IF18-3)
R0365REAR SHOCK TOWER (IF18-3/CARBON)
R0366REAR UPPER ARM HOLDER (IF18-3/CARBON)
R0367REAR UPPER ROD (IF18-3/21.6mm/2pcs)
R0368CENTER BULK SPACER (IF18-3/2pcs)
R0369LINKAGE PARTS (IF18-3)
R0370BELT TENSIONER PLATE (IF18-3/CARBON)
R03712P BATTERY PLATE (IF18-3/CARBON)
R0372ENGINE MOUNT (IF18-3)
R0373REAR BODY MOUNT SET (IF18-3)
R0374REAR CENTERING PLATE (IF18-3/ CARBON)
R0375CENTERING POST (IF18-3)
R0376CENTERING SCREW (IF18-3)
R0377MIDDLE SHAFT MOUNT (IF18-3)
R0379WIRE STOPPER (IF18-3) 2pcs
R0380SERVO SAVER SPRING (IF18-3/HARD)
R0381SWAY BAR BUSHING (IF18-3/2pcs)
R0382S29SWAY BAR STOPPER 2.9mm (IF18-3/2pcs)
R0383S29REAR SWAY BAR 2.9mm (IF18-3)
R0384T190.8M 1st PINION GEAR 19T
R0385T240.8M 2nd PINION GEAR 24T
R0386CLUTCH SET (IF18-3)
R0386S1FLYWHEEL (IF18-3)
R0386S2CLUTCH WEIGHT (IF18-3)
R0386S3CLUTCH SPRING (IF18-3)
R0386S4FLYWHEEL NUT (14 mm/IF18-3)
R0386S5CLUTCH BELL (IF18-3)
R0387GRAPHITE UPPER DECK (IF18-3)
R0396BRAKE LEVER (IF18-3)
R0397BRAKE ROD (IF18-3)
R0398THROTTLE ROD (IF18-3)
R0399THROTTLE SPRING (IF18-3)
R0404MUFFLER STAY (IF18-3)
R8001FRONT BELT (RUBBER) 210
R8002SIDE BELT (RUBBER) 432
R8003REAR BELT (RUBBER) 201
R8032GBFUEL TUBE (Grey/50cm)
R8034IF18 DECAL BLACK
SMJ1226STEALTH LINE SPRING RS9.5 (Short 21.5mm/2pcs)
SMJ1227STEALTH LINE SPRING RL7.6 (Long 25.5mm/2pcs)
T052ALU FLANGE BALL 5.8mm (4pcs)
T0773mm Countersunk Washers (Red/6pcs)
T210SHOCK WASHER 2.6x6x0.5mm (4pcs)
