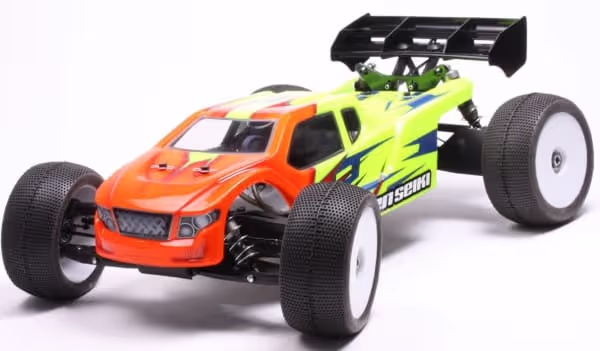

Mugen MBX8T Parts List
Mugen MBX8T Parts List
Source: Mugen
Part numberPart name
E2108AE2108A 10pcs.
E2108CE2108C 2pcs.
E2108FE2108F 2pcs.
E2108BE2108B 10pcs.
E2108EE2108E 2pcs. (2.5mm)
E2112-BE2112-B 1pc.
E2146RE2146R 1pc.
E2146LE2146L 1pc.
E2147RE2147R 1pc.
E2147LE2147L 1pc.
E2115E2115 2pcs.
E2116E2116 2pcs.
E2119AE2119A 4pcs.
E2119BE2119B 4pcs.
E2120E2120 2pcs.
E2121BE2121B 2pcs.
E2123E2123 2pcs.
E2124E2124 2pcs.
E2131LE2131L 1pc.
E2131RE2131R 1pc.
E2134LE2134L 1pc.
E2134RE2134R 1pc.
E2136E2136 2.7 tpc.
E2137E2137 2.8 tpc.
E2138E2138 2.5 tpc.
E2139E2139 4pcs.
E2142AE2142A 1pc.
E2142BE2142B 1pc.
E2143DE2143D 1pc.
E2143EE2143E 1pc.
E2143AE2143A 1pc.
E2143BE2143B 1pc.
E2143CE2143C 1pc.
E2146LE2146L FRONT UPRIGHT
E2148E2148 TENSION ROD
E2150E2150 FRONT LOWER ARM MOUNT F
E2151E2151 FRONT LOWER ARM MOUNT R
E2152E2152 REAR LOWER ARM MOUNT F
E2153E2153 FRONT UPRIGHT ARM (CFRP)
E2158E2158 FRONT UPPER PLATE (CFRP)
E2161E2161 REAR LOWER ARM
E2162E2162 TENSION ROD
E2163E2163 FRONT UPPER ARM
E2164E2164 FRONT UPPER ARM
E2165E2165 2pcs.
E2166E2166 FRONT LOWER ARM PLATE CFRP
E2167E2167 REAR LOWER ARM PLATE CFRP
E2212E2212 CENTER DRIVE SHAFT (156.5)
E2215E2215 CENTER UNIVERSAL JOINT (82.5) SET
E2216E2216 CENTER UNIVERSAL JOINT (156.5) SET
E2230E2230 SPUR GEAR 47T (H.T. DIFF.)
E2231E2231 DIFFER. CASE (H.T. DIFF.)
E2232E2232 SPUR GEAR 44T (H.T. DIFF.)
E2234E2234 DIFF. GEAR 40T (H.T. DIFF.)
E2235E2235 DIFF. GEAR 46T (H.T. DIFF.)
E2236E2236 SPUR GEAR 48T (H.T. DIFF.)
E2237E2237 DIFF. (H.T. DIFF.)
E2238E2238 DIFF. GEAR 20T (H.T. DIFF.)
E2239E2239 DIFF. SHAFT (H.T. DIFF.)
E2240E2240 GASKET FOR DIFF. (H.T. DIFF.)
E2242E2242 S6 O-RINGS HTD (SILICONE)
E2243E2243 DIFF. WASHER SET (H.T. DIFF.)
E2250E2250 SPUR GEAR 47T (H.T. DIFF.)
E2251E2251 H.T. CENTER DIFF. GEAR SET 47T
E2263E2263 BEVEL GEAR 10T
E2264E2264 CONICAL GEAR 46T
E2265E2265 F/R DRIVE SHAFT (137)
E2266E2266 F/R UNIVERSAL JOINT SET
E2301E2301 RADIO BOX
E2302E2302 RADIO PLATE MOUNT
E2303E2303 SERVO SAVER PIPE
E2306E2306 SERVO SAVER ARM
E2314E2314 STEERING PLATE
E2316E2316 SERVO SAVER SPRING (HARD)
E2318E2318 RADIO PLATE
E2320E2320 SERVO SAVER SHAFT
E2321E2321 BRAKE CAM
E2322E2322 SERVO SAVER SHAFT (ALUM)
E2324E2324 BATTERY CONNECTOR HOLDER
E2403E2403 AL. WING WASHER A
E2404E2404 AL. WING WASHER B
E2416E2416 STONE GUARD
E2419E2419 WEIGHT 20g
E2420E2420 WEIGHT 40g
E2421E2421 FRONT BUMPER
E2422E2422 REAR WING STAY
E2426E2426 CHASSIS
E2504E2504 DAMPER END BALL
E2505E2505 DAMPER BOOTS S
E2506E2506 DAMPER BOOTS L
E2507E2507 FRONT DAMPER SPRING Ø1.5 L70/8.25T
E2508E2508 FRONT DAMPER SPRING Ø1.5 L70/8.75T
E2509E2509 FRONT DAMPER SPRING Ø1.5 L70/7.5T
E2516E2516 FRONT DAMPER SPRING Ø1.6 L70/9.25T
E2517E2517 FRONT DAMPER SPRING Ø1.6 L70/9.75T
E2518E2518 FRONT DAMPER SPRING Ø1.6 L70/9.25T
E2536E2536 DAMPER END SET (BLACK)
E2548E2548 2pcs.
E2564E2564 4pcs.
E2567E2567 1pc.
E2568E2568 1pc.
E2569E2569 4pcs.
E2601E2601 2pcs. (5x10x4)
E2601/1E2601 10pcs. (5x10x4)
E2602E2602 (8x16x5)
E2602/1E2602 (8x16x5) 2pcs.
E2702E2702 CLUTCH BELL 13T (LIGHT WEIGHT)
E2705E2705 FLY WHEEL 4P
E2706E2706 4pcs.
E2707E2707 4pcs. (φ0.8) Silver
E2708E2708 4pcs. (φ0.9) Black
E2709E2709 1pc. OW7x14x0.5
E2711E2711 1pc.
E2712E2712 4pcs.
E2713E2713 1pc.
E2803E2803 1pc.
E2804E2804 4pcs.
E2805E2805 3pcs.
E2808E2808 (150mm) 4pcs.
E2809E2809 2pcs.
E2815E2815 1pc.
E2816E2816 1pc.
E2817E2817 P2 O-Ring 10pcs.
E2821E2821 SIG3x1T 3pcs.
E2822E2822 SIG3x5T 8pcs.
E0174E0174 OW5x8x0.1 10pcs.
E0183E0183 5pcs.
E0201E0201 1pc.
E0219E0219 4pcs.
E0221E0221 2pcs.
E0225E0225 1pc.
E0236E0236 10pcs.
E0238E0238 10pcs.
E0239E0239 2pcs.
E0240E0240 2pcs.
E0241E0241 2pcs.
E0242E0242 2pcs.
E0243E0243 2pcs.
C0264C0264 2pcs.
C0265C0265 6pcs.
C0270C0270 10pcs.
C0271C0271 10pcs.
H0274H0274 10pcs.
E0319E0319 2pcs.
E0322E0322 2pcs.
B0431B0431 4pcs.
H0471H0471 1pc.
E0517E0517 2pcs.
E0518E0518 2pcs.
E0519E0519 2pcs.
E0520E0520 4pcs.
C0529AC0529A 4pcs.
E0545E0545 DAMPER END
E0546E0546 DAMPER MOUNT PIVOT BUSH
E0548E0548 DAMPER MOUNT PIVOT
E0551E0551 FRONT DAMPER SPRING Ø1.6 L75/9.5T
E0552E0552 FRONT DAMPER SPRING Ø1.6 L75/9.25T
E0553E0553 FRONT DAMPER SPRING Ø1.6 L75/9.0T
E0555E0555 FRONT DAMPER SPRING Ø1.6 L75/10.25T
E0556E0556 FRONT DAMPER SPRING Ø1.6 L75/10.0T
E0560E0560 FRONT DAMPER SPRING Ø1.6 L75/9.75T
E0568E0568 REAR DAMPER SPRING Ø1.6 L86/10.25T
E0569E0569 REAR DAMPER SPRING Ø1.6 L86/9.75T
E0571E0571 FRONT DAMPER SPRING Ø1.5 L75/8.25T
E0572E0572 FRONT DAMPER SPRING Ø1.5 L75/7.0T
E0573E0573 FRONT DAMPER SPRING Ø1.5 L75/7.75T
E0574E0574 FRONT DAMPER SPRING Ø1.5 L75/7.25T
E0581E0581 FRONT DAMPER SPRING Ø1.5 L75/8.0T
E0575E0575 FRONT DAMPER SPRING Ø1.5 L86/8.5T
E0576E0576 FRONT DAMPER SPRING Ø1.5 L86/8.25T
E0577E0577 FRONT DAMPER SPRING Ø1.5 L86/7.0T
E0578E0578 REAR DAMPER SPRING Ø1.5 L86/7.75T
E0582E0582 REAR DAMPER SPRING Ø1.5 L86/8.75T
C0601C0601 BEARINGS (8x16x5) 2pcs.
C0601/1C0601/1 BEARINGS (8x16x5) 10pcs.
D0602D0602 BEARINGS (6x13x5) 2pcs.
E0601E0601 BEARINGS (15x21x4) 2pcs.
E0601/1aE0601/1a BEARINGS (15x21x4) 10pcs.
E0602E0602 BEARINGS (5x10x4) 2pcs.
E0602/1E0602/1 BEARINGS (5x10x4) 10pcs.
C0605C0605 BEARINGS (6x10x3) 2pcs.
E0701E0701 OW7x14x0.5 4pcs.
H0855H0855 BALL LINK φ6mm (C0111C)
H0864-BH0864-B FUEL TANK CAP
E0903E0903 C0091A 1pc.
P0402P0402 12 LOGO STICKER
P0403P0403 12 LOGO STICKER (METALLIC)
