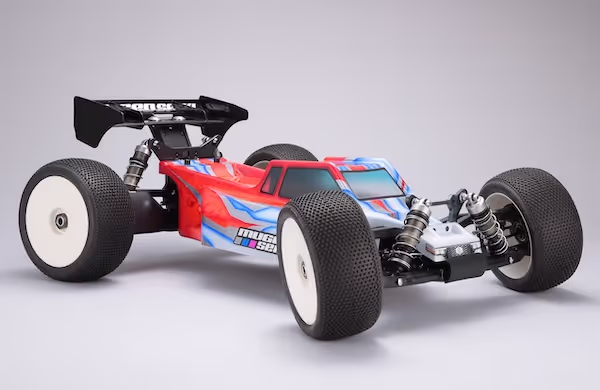

Mugen MBX8TR ECO Parts List
Mugen MBX8TR ECO Parts List
Source: Mugen
Part numberPart name
B0431aB0431a 3mm CONE WASHER
B0432B0432 ANTENNA CAP (5pcs.)
C0107DaC0107Da PIVOT BALL Φ7mm
C0264C0264 JOINT SHAFT
C0270C0270 JOINT PIN(FOR E2228/E2229/E2261/E2262)
C0271C0271 JOINT PIN(FOR E2218/E2219/E0222)
C05929AC05929A BALL KIT
C0601C0601 BEARINGS (8x16x5) 2pcs.
C0601/1aC0601/1a BEARINGS (8x16x15) 10pcs.
C0605C0605 BEARINGS (6x10x3) 2pcs.
C0801HaC0801Ha PIVOT BUSH
D0602D0602 BEARINGS (6x13x5) 2pcs.
D0807D0807 BODY PIN 15/21
E0135-BaE0135-Ba SUS. ARM SPACER
E0155E0155 ANTI ROLL BAR LINK
E0159E0159 ADJUST NUT
E0160AE0160A FRONT LOWER KINGPIN BALL
E0161aE0161a FRONT TRACK WIDTH ADJUST SPACER
E0162aE0162a FRONT UPPER ARM SHAFT
E0163E0163 FRONT ANTI ROLL BAR Φ2.2mm
E0164E0164 FRONT ANTI ROLL BAR Φ2.3mm
E0165E0165 FRONT ANTI ROLL BAR Φ2.4mm
E0166E0166 FRONT ANTI ROLL BAR Φ2.5mm
E0167E0167 FRONT ANTI ROLL BAR Φ2.6mm
E0175E0175 REAR ANTI ROLL BAR Φ2.7mm
E0168E0168 REAR ANTI ROLL BAR Φ2.8mm
E0169E0169 REAR ANTI ROLL BAR Φ2.9mm
E0170E0170 REAR ANTI ROLL BAR Φ3.2mm
E0171E0171 REAR ANTI ROLL BAR Φ3.6mm
E0172E0172 REAR ANTI ROLL BAR Φ4.0mm
E0174E0174 OW5x8x0.1 10pcs. OW13.5x15.9x0.2 5pcs.
E0183E0183 E0183 5pcs.
E0210E0210 Φ3x16.8 Pin 8pcs.
E0219aE0219a SELF-LOCK WHEEL NUT
E0221E0221 F/R AXLE SHAFT
E0238E0238 JOINT PIN (Φ2.5x14.8) (FOR E0220/E0221/E0242)
E0239aE0239a WHEEL HUB
E0240aE0240a WIDE OFFSET WHEEL HUB 1mm
E0241aE0241a WIDE OFFSET WHEEL HUB 2mm
E0242E0242 AL. F/R AXLE SHAFT
E0322E0322 RADIO BOX GROMMET
E0517E0517 FRONT DAMPER SHAFT
E0518E0518 REAR DAMPER SHAFT
E0519E0519 OIL SEAL CAP
E0520E0520 OIL SEAL SET
E0545aE0545a DAMPER END PARTS
E0546aE0546a DAMPER MOUNT PIVOT BUSH
E0548aE0548a DAMPER MOUNT PIVOT BUSH
E0551E0551 FRONT DAMPER SPRING Φ1.6 L75/9.5T
E0552E0552 FRONT DAMPER SPRING Φ1.6 L75/9.0T
E0553E0553 FRONT DAMPER SPRING Φ1.6 L75/10.25T
E0558E0558 FRONT DAMPER SPRING Φ1.6 L75/10.0T
E0559E0559 FRONT DAMPER SPRING Φ1.6 L75/10.75T
E0560E0560 REAR DAMPER SPRING Φ1.6 L86/10.25T
E0561E0561 REAR DAMPER SPRING Φ1.6 L86/10.0T
E0562E0562 REAR DAMPER SPRING Φ1.6 L86/11.0T
E0563E0563 REAR DAMPER SPRING Φ1.6 L86/10.75T
E0568E0568 REAR DAMPER SPRING Φ1.6 L86/9.75T
E0569E0569 REAR DAMPER SPRING Φ1.6 L86/9.25T
E0571E0571 FRONT DAMPER SPRING Φ1.5 L78/8.25T
E0572E0572 FRONT DAMPER SPRING Φ1.5 L78/7.0T
E0573E0573 FRONT DAMPER SPRING Φ1.5 L78/7.75T
E0574E0574 FRONT DAMPER SPRING Φ1.5 L78/7.5T
E0581E0581 FRONT DAMPER SPRING Φ1.5/8.5T
E0575E0575 REAR DAMPER SPRING Φ1.5 L86/8.25T
E0576E0576 REAR DAMPER SPRING Φ1.5 L86/8.25T
E0577E0577 REAR DAMPER SPRING Φ1.5 L86/8.0T
E0578E0578 REAR DAMPER SPRING Φ1.5 L86/7.75T
E0582E0582 REAR DAMPER SPRING Φ1.5 L86/8.75T
E0601E0601 BEARINGS (15x21x4) 2pcs.
E0601/1bE0601/1b BEARINGS (15x21x4) 10pcs.
E0711E0711 12T
E0712E0712 13T
E0713E0713 14T
E0714E0714 15T
E0715E0715 16T
E0716E0716 17T
E0803E0803 E0803
E0806E0806 E0806A
E0808aE0808a E0808
E0813E0813 E0813A 2pcs.
E0814E0814 E0814A 2pcs.
E0829aE0829a E0829 4pcs.
E0834E0834 E0834 2pcs.
E0835E0835 E0835 2pcs.
E1081WE1081W E1081W 1pc. (White)
E1081YE1081Y E1081Y 1pc. (Yellow)
E1081BE1081B E1081B 1pc. (Black)
E1085E1085 MBX8TR ECO INSTRUCTION MANUAL
E2115E2115 FRONT LOWER ARM SHAFT
E2116E2116 REAR LOWER ARM SHAFT S
E2120E2120 REAR LOWER ARM SHAFT L
E2121BaE2121Ba REAR LOWER SWAPER C(FR) (E2121/E2158)
E2123E2123 KINGPIN BALL (STEEL)
E2124E2124 ADJUST NUT (STEEL)
E2136E2136 FRONT ANTI ROLL BAR Φ2.7mm
E2137E2137 FRONT ANTI ROLL BAR Φ2.8mm
E2184E2184 REAR ANTI ROLL BAR Φ2.0 1pc.
E2138E2138 FRONT TRACK WIDTH ADJUST SPACER (5.0mm)
E2185E2185 FRONT TRACK WIDTH ADJUST SPACER (6.0mm)
E2139E2139 4pcs.
E2141AaE2141Aa MOTOR MOUNT
E2141BaE2141Ba MOTOR MOUNT B
E2142aE2142a GEAR BOX PARTS
E2148aE2148a E2107A 1pc.
E2149aE2149a E2149 1pc.
E2150aE2150a E2150 1pc.
E2153aE2153a FRONT UPPER PLATE CFRP
E2158aE2158a FRONT UPPER PLATE CFRP
E2115E2115 FRONT LOWER ARM SHAFT
E2116E2116 REAR LOWER ARM SHAFT S
E2120E2120 REAR LOWER ARM SHAFT L
E2121BaE2121Ba REAR LOWER SWAPER C(FR) (E2121/E2158)
E2123E2123 KINGPIN BALL (STEEL)
E2124E2124 ADJUST NUT (STEEL)
E2136E2136 FRONT ANTI ROLL BAR Φ2.7mm
E2137E2137 FRONT ANTI ROLL BAR Φ2.8mm
E2184E2184 REAR ANTI ROLL BAR Φ2.0 1pc.
E2138E2138 FRONT TRACK WIDTH ADJUST SPACER (5.0mm)
E2185E2185 FRONT TRACK WIDTH ADJUST SPACER (6.0mm)
E2139E2139 4pcs.
E2141AaE2141Aa MOTOR MOUNT
E2141BaE2141Ba MOTOR MOUNT B
E2142aE2142a GEAR BOX PARTS
E2148aE2148a E2107A 1pc.
E2149aE2149a E2149 1pc.
E2150aE2150a E2150 1pc.
E2153aE2153a FRONT UPPER PLATE CFRP
E2158aE2158a FRONT UPPER PLATE CFRP
E2160-BE2160-B CENTER DIFF. MOUNT
E2161aE2161a FRONT LOWER ARM
E2162aE2162a REAR LOWER ARM
E2163aE2163a TENSION ROD
E2164aE2164a FRONT UPPER ARM ROD 47
E2166aE2166a FRONT LOWER ARM PLATE (1.2mm)CFRP
E2167aE2167a REAR LOWER ARM PLATE (1.2mm)CFRP
E2165E2165 FRONT UPRIGHT ARM (-3)
E2173E2173 ARM MOUNT INSERT SET
E2174E2174 REAR LINK PLATES (+3)
E2178E2178 REAR LINK PLATES (0)
E2179E2179 ANTI-ROLL BAR STOPPER
E2182E2182 AL. REAR HUB SET
E2182AE2182A AL. REAR HUB BUSH SET
E2182LE2182L AL. REAR HUB (L)
E2182RE2182R AL. REAR HUB (R)
E2184E2184 FRONT ANTI-ROLL BAR (Φ2.0mm)
E2185E2185 REAR ANTI-ROLL BAR (Φ2.4mm)
E2187E2187 REAR LOWER ARM MOUNT F
E2188E2188 REAR LOWER ARM MOUNT R
E2189E2189 LW FRONT LOWER ARMS
E2230E2230 CENTER UNIVERSAL JOINT F (82.5)
E2231E2231 CENTER UNIVERSAL JOINT R (156.5)
E2232AE2232A CENTER DIFF. CASE (H.T. DIFF.)
E2237E2237 DIFF. CASE (H.T. DIFF.)
E2238aE2238a DIFF. GEAR 10T (H.T. DIFF.)
E2240aE2240a GASKET FOR DIFF. (H.T. DIFF.)
E2241E2241 S6 O-RINGS (H.T. DIFF.)
E2242aE2242a DIFF. WASHER SET (H.T. DIFF.)
E2258aE2258a PLASTIC SPUR GEAR H.T. 44T
E2259aE2259a PLASTIC SPUR GEAR H.T. 46T
E2260E2260 CENTER JOINT CUP
E2263aE2263a BEVEL GEAR 10T
E2264aE2264a CONICAL GEAR 46T
E2265E2265 F/R DRIVE SHAFT (137)
E2266E2266 F/R UNIVERSAL JOINT SET
E2268E2268 CENTER DRIVE SHAFT (88)
E2269E2269 CENTER DRIVE SHAFT (161.5)
E2270aE2270a CLOSED WHEEL NUT
E2271E2271 DIFF. GEAR 20T
E2272E2272 F/R UNIVERSAL JOINT
E2301aE2301a SERVO SAVER
E2306aE2306a SERVO SAVER PIP
E2314aE2314a SERVO SAVER SPRING (HARD)
E2316E2316 SERVO SAVER SHAFT
E2319E2319 SERVO SAVER SPRING ADJUSTER
E2320E2320 SERVO SAVER SPRING ADJUSTER
E2322E2322 SERVO SAVER SHAFT (ALUM)
E2323-BE2323-B SERVO MOUNT & RECEIVER BOX
E2331E2331 BATTERY HOLDER
E2416-BE2416-B STONE GUARD
E2419aE2419a WEIGHT 20g
E2420E2420 WEIGHT 40g
E2421aE2421a FRONT BUMPER
E2422aE2422a REAR WING STAY
E2429E2429 REAR WING MOUNT (+15)
E2430E2430 REAR WING MOUNT PLATE CFRP
E2431E2431 CHASSIS
E2435E2435 DAMPER END BALL
E2504aE2504a DAMPER BOOTS S
E2505E2505 DAMPER BOOTS L
E2506E2506 DAMPER BOOTS L
E2507E2507 FRONT DAMPER SPRING Φ1.5 L70/8.25T 2pcs. OPT
E2510E2510 FRONT DAMPER SPRING Φ1.5 L70/7.5T 2pcs. OPT
E2515E2515 FRONT DAMPER SPRING Φ1.6 L70/9.5T 2pcs. OPT
E2516E2516 FRONT DAMPER SPRING Φ1.6 L70/9.0T 2pcs. OPT
E2517E2517 FRONT DAMPER SPRING Φ1.6 L70/9.0T 2pcs. OPT
E2518E2518 FRONT DAMPER SPRING Φ1.6 L70/8.75T 2pcs. OPT
E2523E2523 DAMPER SPRING ADJUSTER
E2524E2524 DIAPHRAGM
E2525aE2525a DAMPER PISTON (Φ1.3/8H)
E2530E2530 FRONT DAMPER CASE
E2534aE2534a AS-018 O-RINGS
E2564E2564 REAR DAMPER CASE
E2568aE2568a SHOCK PIN
E2569aE2569a DAMPER PISTON (Φ1.3/6H)
E2571E2571 DAMPER PISTON STAY CFRP
E2572E2572 EMULSION DAMPER CAP SEAL
E2573E2573 EMULSION DAMPER CAP
E2574aE2574a OW2x4x0.5 AL. WASHER
E2577E2577 FRONT SHOCK SET
E2579E2579 FRONT SHOCK TOWER
E2580E2580 REAR SHOCK SET
E2581E2581 REAR SHOCK SPRING Φ1.6 L86/9T 2pcs.
E2601aE2601a 5x10x4 NMB BEARINGS (2pcs.)
E2601/1aE2601/1a 5x10x4 NMB BEARINGS (10pcs.)
E2602E2602 8x16x5 NMB BEARINGS (2pcs.)
E2602/1E2602/1 8x16x5 NMB BEARINGS (10pcs.)
E2803aE2803a SERVO HORN
E2804aE2804a PIVOT BALL
E2808E2808 ANTENNA PIPE (150mm) 4pcs.
E2828E2828 BATTERY STRAP SET
FP2155FP2155 BODY MBX8TR/ECO
E2258aE2258a PLASTIC SPUR GEAR H.T. 44T
E2259aE2259a PLASTIC SPUR GEAR H.T. 46T
E2260E2260 CENTER JOINT CUP
E2263aE2263a BEVEL GEAR 10T
E2264aE2264a CONICAL GEAR 46T
E2265E2265 F/R DRIVE SHAFT (137)
E2266E2266 F/R UNIVERSAL JOINT SET
E2268E2268 CENTER DRIVE SHAFT (88)
E2269E2269 CENTER DRIVE SHAFT (161.5)
E2270aE2270a CLOSED WHEEL NUT
E2271E2271 DIFF. GEAR 20T
E2272E2272 F/R UNIVERSAL JOINT
E2301aE2301a SERVO SAVER
E2306aE2306a SERVO SAVER PIP
E2314aE2314a SERVO SAVER SPRING (HARD)
E2316E2316 SERVO SAVER SHAFT
E2319E2319 SERVO SAVER SPRING ADJUSTER
E2320E2320 SERVO SAVER SPRING ADJUSTER
E2322E2322 SERVO SAVER SHAFT (ALUM)
E2323-BE2323-B SERVO MOUNT & RECEIVER BOX
E2331E2331 BATTERY HOLDER
E2416-BE2416-B STONE GUARD
E2419aE2419a WEIGHT 20g
E2420E2420 WEIGHT 40g
E2421aE2421a FRONT BUMPER
E2422aE2422a REAR WING STAY
E2429E2429 REAR WING MOUNT (+15)
E2430E2430 REAR WING MOUNT PLATE CFRP
E2431E2431 CHASSIS
E2435E2435 DAMPER END BALL
E2504aE2504a DAMPER BOOTS S
E2505E2505 DAMPER BOOTS L
E2506E2506 DAMPER BOOTS L
E2523E2523 DAMPER SPRING ADJUSTER
E2524E2524 DIAPHRAGM
E2530E2530 FRONT DAMPER CASE
E2564E2564 REAR DAMPER CASE
E2572E2572 EMULSION DAMPER CAP SEAL
E2573E2573 EMULSION DAMPER CAP
E2574aE2574a OW2x4x0.5 AL. WASHER
E2577E2577 FRONT SHOCK SET
E2579E2579 FRONT SHOCK TOWER
E2580E2580 REAR SHOCK SET
E2803aE2803a SERVO HORN
E2804aE2804a PIVOT BALL
E2808E2808 ANTENNA PIPE (150mm) 4pcs.
E2828E2828 BATTERY STRAP SET
FP2155FP2155 BODY MBX8TR/ECO
H0181A-GaH0181A-Ga 0.5mm SPACER 8pcs.
H0181B-GaH0181B-Ga 1mm SPACER 8pcs.
H0181C-GaH0181C-Ga 2mm SPACER 8pcs.
H0181D-GaH0181D-Ga 3mm SPACER 8pcs.
H0274H0274 ROLLER PIN Φ2.5x11.8 (10pcs.)
H0855aH0855a BALL LINK Φ6mm (C0111C)
T2805aT2805a AL. PIVOT BALL Φ6
