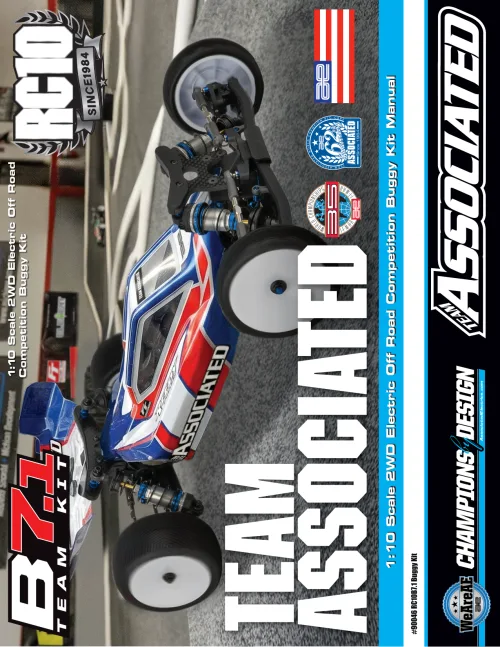

Team Associated RC10 B7.1 Manual

Commonly replaced parts

The parts a 1/10 buggy goes through: arms, hubs and blocks, CVAs and axles, diff and slipper parts, shock rebuild parts, turnbuckles and ballstuds. Full list below.

Part #	Description
92574 (opens in new tab)	RC10B7.1 Front Suspension Arms
92588 (opens in new tab)	RC10B7 Rear Suspension Arms V2, 78mm
92576 (opens in new tab)	RC10B7.1 Caster And Steering Block Set
92412 (opens in new tab)	RC10B7 Rear Hubs
92496 (opens in new tab)	RC10B7 Hinge Pin Set
92454 (opens in new tab)	RC10B7 HD CVA Bones, 69mm
92462 (opens in new tab)	RC10B7 Front Axles, 6.5mm, blue aluminum
91859 (opens in new tab)	RC10B6.2 CVA Axles, +2mm
92306 (opens in new tab)	RC10B74 FT LTC Differential Rebuild Set, metal
92559 (opens in new tab)	RC10B84 FT HTC Metal Differential Rebuild Set
92285 (opens in new tab)	FT Octalock LCF Slipper Pad, 11mm
92295 (opens in new tab)	Octalock Spur Gear, 78T 48P
91619 (opens in new tab)	3x27.5 mm Shock Shafts (V2), TiN
91615 (opens in new tab)	3x21 mm Shock Shafts (V2), TiN
91493 (opens in new tab)	FT Low Friction X-Rings, 2.9 x 1.78 mm, for shocks
91932 (opens in new tab)	FT 13mm Shock Pistons, 2.5mm, 2x1.6
92337 (opens in new tab)	Turnbuckles, M3.5x48mm, steel
92308 (opens in new tab)	Ballcups, for 3.5mm turnbuckles
91048 (opens in new tab)	Heavy-duty Ballstuds, 8 mm, long neck
92427 (opens in new tab)	RC10B7 Spur Gear Cover, Bumpers, Bulkhead Shims

More option parts for this car

Parts & upgrades at AMainAD Diff oil chart Spring chart 1/10 off-road tire chart Shock oil chart

Free to start · iOS & Android

Your Team Associated RC10 B7.1/B7.1D is in the RC Setup App

Save every setup change you make to your Team Associated RC10 B7.1/B7.1D, get AI tuning answers for that exact car, and log your races — at the track or back in the pits.

See what it does →

Team Associated

RC10 B7.1/B7.1D

Setup sheets →

RC10 B7.1/B7.1D parts & upgrades at AMain →AD

For this car:ADESCsMotors:Stock Mod

Email me about new:

SetupsKit & part deals

Dial in your setup

Diff oil chart Spring chart 1/10 off-road tire chart Shock oil chart

Manuals for other versions of this car:

RC10 B7.1D RC10 B7 RC10 B7D RC10 B6.4 Manual & Parts List

Every part Team Associated calls out in the RC10 B7.1 build, grouped by the bags AE packs and builds the kit in. AE's current manuals no longer print a parts list, so this one is assembled from the part numbers on each build step of the RC10B7.1 manual, with names from AE's own parts catalog. Part numbers link to AMain Hobbies where the part is still sold; anything AMain does not carry is listed as plain text.

Full parts list

Steering (16)

Part #	Description
91973 (opens in new tab)	RC10B6.4 Steering Bellcrank and Rack Set
91983 (opens in new tab)	RC10B6.4 FT Steering Bellcranks, blue aluminum
31732 (opens in new tab)	FT Ball Bearings, 4x7x2.5 mm
91048 (opens in new tab)	Heavy-duty Ballstuds, 8 mm, long neck
31383 (opens in new tab)	Ballstud Washers, 5.5x3.0x2.0 mm, blue aluminum
92489 (opens in new tab)	RC10B7 FT Steering Bellcrank and Rack Set, carbon
91984 (opens in new tab)	RC10B6.4 FT Steering Rack, blue aluminum
32042 (opens in new tab)	HD Ballstuds, Short 6mm
31382 (opens in new tab)	Ballstud Washers, 5.5x3.0x1.0 mm, blue aluminum
92457 (opens in new tab)	RC10B7 Anti-Roll Bar Hardware Set, blue aluminum
91974 (opens in new tab)	RC10B6.4 Steering Hat Bushing Set
92459 (opens in new tab)	RC10B7 Front Anti-roll Bar Set
92587 (opens in new tab)	RC10B7.1 FT Top Plate And Ballstud Mounts, Carbon
92586 (opens in new tab)	RC10B7.1 Top Plate And Ballstud Mounts
25225 (opens in new tab)	Set Screws, M3x3 mm
89202 (opens in new tab)	Screws, M3x12 mm BHCS

Front Suspension (38)

Part #	Description
89224 (opens in new tab)	Screws, M3x16 mm SHCS
92400 (opens in new tab)	RC10B7 Chassis
92427 (opens in new tab)	RC10B7 Spur Gear Cover, Bumpers, Bulkhead Shims
92436 (opens in new tab)	RC10B7 FT Front Bulkhead, 0 deg., blue aluminum
92437 (opens in new tab)	RC10B7 FT Front Bulkhead, +/-2.5 deg., blue aluminum
91976 (opens in new tab)	RC10B6.4 FT 11g ESC Weight, aluminum
91975 (opens in new tab)	RC10B6.4 FT ESC Weight, carbon fiber
91977 (opens in new tab)	RC10B6.4 FT 33g ESC Weight, steel
91988 (opens in new tab)	RC10B6.4 Battery Foam Set
91978 (opens in new tab)	RC10B6.4 Front Wing Mount, Fan Mounts, and Battery Brace Shim Set
92402 (opens in new tab)	RC10B7 FT Side Rails, carbon
92401 (opens in new tab)	RC10B7 Side Rails
91749 (opens in new tab)	Screws, M2x3 mm FHCS
25201 (opens in new tab)	Screws, M3x8 mm FHCS
92579 (opens in new tab)	RC10B7.1 Rod Ends
32040 (opens in new tab)	HD Ballstuds, Short 8mm
81258 (opens in new tab)	Set Screws, M3x12 mm
91728 (opens in new tab)	RC10B6 Servo Horns, 15.5 mm
31531 (opens in new tab)	Screws, M3x6 mm BHCS
1369 (opens in new tab)	FT Aluminum Clamping Servo Horn 23T, 15.5 mm
1370 (opens in new tab)	FT Aluminum Clamping Servo Horn 25T, 15.5 mm
92418 (opens in new tab)	RC10B7 Battery Mount, Fan Mount, Servo Mount
25202 (opens in new tab)	Screws, M3x10 mm FHCS
41089 (opens in new tab)	Screws, LP Low-Profile, M3x6mm SHCS
89203 (opens in new tab)	Screws, M3x16 mm BHCS
31510 (opens in new tab)	Screws, M2x0.4x4 mm BHCS
92575 (opens in new tab)	RC10B7.1 FT Front Suspension Arms, Carbon
92574 (opens in new tab)	RC10B7.1 Front Suspension Arms
92496 (opens in new tab)	RC10B7 Hinge Pin Set
71222 (opens in new tab)	RC10T7 Front Hinge Pin Brace
92581 (opens in new tab)	RC10B7.1 FT Front Shock Tower, -2mm
92580 (opens in new tab)	RC10B7.1 Shock Tower Cover Set
92443 (opens in new tab)	RC10B7 Shock Bushings, 8mm, blue aluminum
89208 (opens in new tab)	Screws, M3x14 mm FHCS
31520 (opens in new tab)	Screws, M2.5x6 mm BHCS
41091 (opens in new tab)	Screws, LP Low-Profile M3x20mm SHCS
92417 (opens in new tab)	RC10B7 Rear Wing Mount and Body Mounts
25203 (opens in new tab)	Screws, M3x12 mm FHCS

Caster / Steering Blocks (14)

Part #	Description
92576 (opens in new tab)	RC10B7.1 Caster And Steering Block Set
92577 (opens in new tab)	RC10B7.1 FT Caster And Steering Block Set, Carbon
91560 (opens in new tab)	FT Bearings, 5x10x4 mm
71144 (opens in new tab)	RC10T6.2 Steering Arm, +1mm, carbon fiber
25215 (opens in new tab)	Locknuts, M3, black steel
91683 (opens in new tab)	RC10B6 FT Titanium Front Axles, 5mm
71181 (opens in new tab)	RC10B6 FT Hex Adapter Front Axles, titanium
92462 (opens in new tab)	RC10B7 Front Axles, 6.5mm, blue aluminum
31532 (opens in new tab)	Screws, M3x8 mm BHCS
91049 (opens in new tab)	Heavy-duty Ballstuds, 10 mm, long neck
92467 (opens in new tab)	RC10B7 Caster Block Link Mount Set, 0, carbon fiber
92416 (opens in new tab)	RC10B7 Caster Inserts and Shims
91676 (opens in new tab)	RC10B6 Caster Hat Bushings
25187 (opens in new tab)	Screws, M3x14 mm BHCS

Rear Suspension (8)

Part #	Description
92585 (opens in new tab)	RC10B7 FT -1 Deg Aluminum Arm Mount C, 3-Gear Gearbox
92588 (opens in new tab)	RC10B7 Rear Suspension Arms V2, 78mm
92589 (opens in new tab)	RC10B7 FT Carbon Rear Suspension Arms V2, 78mm
92014 (opens in new tab)	Arm Mount Inserts
89455	Screws, M3x22 mm FHCS
31385 (opens in new tab)	Bulkhead Washers, 7.8x3.0x1.0 mm, blue aluminum
92578 (opens in new tab)	RC10B7.1 FT Gull Dropper And Rear Shock Tower Set, -2mm
92497 (opens in new tab)	RC10B7 FT Rear Inverted Shock Standoff Set

Gear Differential (10)

Part #	Description
92306 (opens in new tab)	RC10B74 FT LTC Differential Rebuild Set, metal
92559 (opens in new tab)	RC10B84 FT HTC Metal Differential Rebuild Set
92420 (opens in new tab)	RC10B7 Gear Differential Case and Cross Pins
92138 (opens in new tab)	RC10B74 Differential Cross Pins
92133 (opens in new tab)	RC10B74 Differential Gasket and O-rings
92452 (opens in new tab)	RC10B7 HD Gear Differential Outdrives
91206	Gear Diff washer 5x8.5x0.2mm (part number as printed in AE's manual; AE's catalog lists #91206 as SC10B Roll Cage Roof)
92461 (opens in new tab)	RC10B7 Gear Differential Cap
92560 (opens in new tab)	RC10B84 FT HTC Plastic Differential Rebuild Set
31472 (opens in new tab)	Screws, M2.5x8mm FHCS, 2mm hex

Gearbox (30)

Part #	Description
92447 (opens in new tab)	RC10B7 Top Shaft
71215 (opens in new tab)	RC10B7 3-Gear Gearbox
91563 (opens in new tab)	FT Bearings, 10x15x4 mm
71221 (opens in new tab)	RC10B7 FT 3-Gear Gearbox, Carbon
71216 (opens in new tab)	RC10B7 3-Gear Gearbox, Idler Gear 54t
71217 (opens in new tab)	RC10B7 3-Gear Gearbox, Idler Shaft
92419 (opens in new tab)	RC10B7 Rod Ends
92458 (opens in new tab)	RC10B7 Rear Anti-roll Bar Set
92405 (opens in new tab)	RC10B7 5-Gear Gearbox
92407 (opens in new tab)	RC10B7 Differential Height Inserts
92505 (opens in new tab)	RC10B84 Battery Holder And Fan Mount Set
92504 (opens in new tab)	RC10B84 FT Carbon Chassis Braces
92433 (opens in new tab)	RC10B7 Arm Mount D, blue aluminum
92440 (opens in new tab)	RC10B7 Rear Ballstud Mount, blue aluminum
89204 (opens in new tab)	Screws, M3x24 mm BHCS
91685 (opens in new tab)	RC10B6 Bumpers
91803 (opens in new tab)	RC10B6.1 Slipper Hub, inner
92295 (opens in new tab)	Octalock Spur Gear, 78T 48P
92287	Octalock Slipper Pads, 11mm
92285 (opens in new tab)	FT Octalock LCF Slipper Pad, 11mm
92439 (opens in new tab)	RC10B7 Motor Mount, blue aluminum
92451 (opens in new tab)	RC10B7 FT Vented Slipper Hubs
92448 (opens in new tab)	RC10B7 Top Shaft Screw
91891 (opens in new tab)	RC10B6.3 HD Slipper Spring and Adapters
41095 (opens in new tab)	Screws, LP Low-Profile M3x22mm SHCS
25612 (opens in new tab)	Locknuts, M3, flanged, black
31386 (opens in new tab)	Bulkhead Washers, 7.8x2.0 mm, blue aluminum
92276	RC10B74.1 Slipper Spring, 500lb/in, L11, 2D, ID7.8
92506 (opens in new tab)	RC10B84 Wing Mount Set
31541 (opens in new tab)	Screws, M3x6 mm FHCS

Rear Hubs (14)

Part #	Description
92412 (opens in new tab)	RC10B7 Rear Hubs
91051	Heavy-duty Ballstud, 4mm (part number as printed in AE's manual; AE's catalog lists #91051 as Heavy-duty Ball Cups)
92413 (opens in new tab)	RC10B7 FT Rear Hubs, carbon
92441 (opens in new tab)	RC10B7 Hub Link Mounts, +1mm, blue aluminum
92179 (opens in new tab)	Rear Hub Insert Set
81267	M3 x 6mm Set Screw
91438 (opens in new tab)	CVA Rebuild Kit
91859 (opens in new tab)	RC10B6.2 CVA Axles, +2mm
92454 (opens in new tab)	RC10B7 HD CVA Bones, 69mm
91567 (opens in new tab)	Bearings, 5x12x4 mm
91436 (opens in new tab)	CVA/Wheel Hex Pins
91611 (opens in new tab)	Screws, M1.6x5 mm SHCS
71034 (opens in new tab)	FT Clamping Wheel Hexes, 6.0 mm
92188 (opens in new tab)	RC10B74 Rear Hub Hinge Pins

Turnbuckles (3)

Part #	Description
92308 (opens in new tab)	Ballcups, for 3.5mm turnbuckles
92337 (opens in new tab)	Turnbuckles, M3.5x48mm, steel
92360 (opens in new tab)	RC10B6.4 FT Titanium Turnbuckle Set, M3.5mm

Shocks (18)

Part #	Description
91932 (opens in new tab)	FT 13mm Shock Pistons, 2.5mm, 2x1.6
92428 (opens in new tab)	FT 13mm Shock Pistons, 2.5mm, 2x1.9
89278 (opens in new tab)	Washers, 2.6x6 mm
91619 (opens in new tab)	3x27.5 mm Shock Shafts (V2), TiN
91615 (opens in new tab)	3x21 mm Shock Shafts (V2), TiN
91996 (opens in new tab)	13mm Shock Rebuild Set
91922 (opens in new tab)	Shock Bodies, 13x27.5mm
91920 (opens in new tab)	Shock Bodies, 13x23mm
91493 (opens in new tab)	FT Low Friction X-Rings, 2.9 x 1.78 mm, for shocks
31327 (opens in new tab)	FT VCS3 Shock Bottom Caps
4187 (opens in new tab)	Washers, 6x3x1 mm, nylon
91819 (opens in new tab)	RC10B6.1 Shock Pivot Balls
91926 (opens in new tab)	13mm Shock Caps
91928 (opens in new tab)	13mm Shock Collars, blue aluminum
91946 (opens in new tab)	13mm Front Shock Springs, purple 4.6lb/in, L44, 5.75T, 1.2D
91959	13mm Rear Shock Springs, Purple 2.6 Lb/In, L61, 8.75t, 1.2d
91966 (opens in new tab)	13mm Shock Spring Cup Set
25189 (opens in new tab)	Screws, M3x22 mm BHCS

Electronics (10)

Part #	Description
41096 (opens in new tab)	Screws, LP Low-Profile M3x8mm SHCS
6727 (opens in new tab)	Servo Tape
25211 (opens in new tab)	Screws, M3x10 mm BHCS
92463 (opens in new tab)	RC10B7 Battery Holder O-Rings
92422 (opens in new tab)	RC10B7 Body, 0.8mm, clear
92423 (opens in new tab)	RC10B7 FT Lightweight Body, 0.5mm, clear
91158 (opens in new tab)	Screws, M3x4 mm BHCS
92425 (opens in new tab)	RC10B7 Front Wing
92424 (opens in new tab)	RC10B7 Rear Wing, 7in, clear
91150 (opens in new tab)	M4 Low Profile Serrated Steel Wheel Nuts
