The suspension, driveline and shock parts a short course truck goes through, with the full list below.
| Part # | Description | Qty |
|---|---|---|
| 7449 | T4 Rear A-Arm, Carbon | Pr. |
| 7667 | Diff Outdrive Hub, Right, 2.60:1 | 1 |
| 31237 | CVA Pin Retaining Clip | Pr. |
| 91307 | 12MM 35 x 3 TiN Shock Shaft | 1 |
| 9831 | Gear Diff O-Ring Set | 1 |
| 7485 | V2 Slipper Hubs | 2 |
| 7101 | Turnbuckle 2.80” | Pr. |
| 9817 | SC10 RR Bumper and Brace, Includes | 1 |
| 91635 | 12mm Shock Spring, 54mm, Green 3.75lbs | 2 |
More option parts for this car

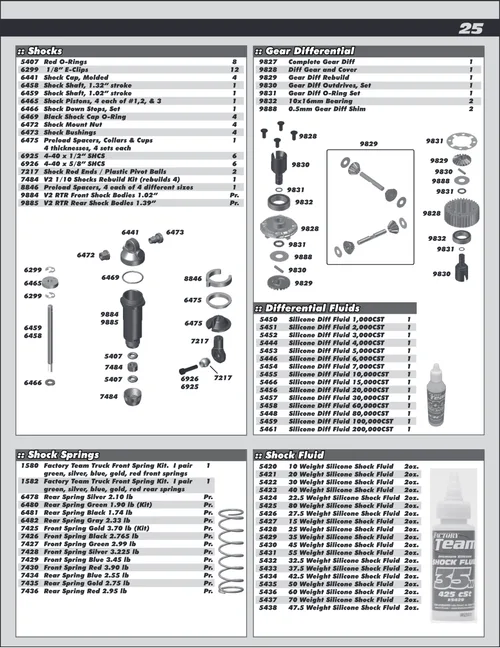

Every part Team Associated lists for the SC10.3, from Team Associated's own SC10.3 parts list, in the sections and order AE prints them. Part numbers link to AMain Hobbies where the part is still sold; discontinued and unmatched parts are listed as plain text.
| Part # | Description | Qty |
|---|---|---|
| 5407 | Red O-Rings | 8 |
| 6299 | 1/8” E-Clips | 12 |
| 6441 | Shock Cap, Molded | 4 |
| 6458 | Shock Shaft, 1.32“ stroke | 1 |
| 6459 | Shock Shaft, 1.02” stroke | 1 |
| 6465 | Shock Pistons, 4 each of #1,2, & 3 | 1 |
| 6466 | Shock Down Stops, Set | 1 |
| 6469 | Black Shock Cap O-Ring | 4 |
| 6472 | Shock Mount Nut | 4 |
| 6473 | Shock Bushings | 4 |
| 6475 | Preload Spacers, Collars & Cups | 1 |
| 6925 | 4-40 x 1/2“ SHCS | 6 |
| 6926 | 4-40 x 5/8” SHCS | 6 |
| 7217 | Shock Rod Ends / Plastic Pivot Balls | 2 |
| 7484 | V2 1/10 Shocks Rebuild Kit (rebuilds 4) | 1 |
| 8846 | Preload Spacers, 4 each of 4 different sizes | 1 |
| 9884 | V2 RTR Front Shock Bodies 1.02“ | Pr. |
| 9885 | V2 RTR Rear Shock Bodies 1.39” | Pr. |
| Part # | Description | Qty |
|---|---|---|
| 9827 | Complete Gear Diff | 1 |
| 9828 | Diff Gear and Cover | 1 |
| 9829 | Gear Diff Rebuild | 1 |
| 9830 | Gear Diff Outdrives, Set | 1 |
| 9831 | Gear Diff O-Ring Set | 1 |
| 9832 | 10x16mm Bearing | 2 |
| 9888 | 0.5mm Gear Diff Shim | 2 |
| Part # | Description | Qty |
|---|---|---|
| 5453 | Silicone Diff Fluid 5,000CST | 1 |
| 5455 | Silicone Diff Fluid 10,000CST | 1 |
| 5458 | Silicone Diff Fluid 60,000CST | 1 |
| 5448 | Silicone Diff Fluid 80,000CST | 1 |
| 5459 | Silicone Diff Fluid 100,000CST | 1 |
| 5461 | Silicone Diff Fluid 200,000CST | 1 |
| Part # | Description | Qty |
|---|---|---|
| 1580 | Factory Team Truck Front Spring Kit. I pair | 1 |
| 1582 | Factory Team Truck Front Spring Kit. I pair | 1 |
| 6478 | Rear Spring Silver 2.10 lb | Pr. |
| 6480 | Rear Spring Green 1.90 lb (Kit) | Pr. |
| 6481 | Rear Spring Black 1.74 lb | Pr. |
| 6482 | Rear Spring Gray 2.33 lb | Pr. |
| 7425 | Front Spring Gold 3.70 lb (Kit) | Pr. |
| 7426 | Front Spring Black 2.765 lb | Pr. |
| 7427 | Front Spring Green 2.99 lb | Pr. |
| 7428 | Front Spring Silver 3.225 lb | Pr. |
| 7429 | Front Spring Blue 3.45 lb | Pr. |
| 7430 | Front Spring Red 3.90 lb | Pr. |
| 7434 | Rear Spring Blue 2.55 lb | Pr. |
| 7435 | Rear Spring Gold 2.75 lb | Pr. |
| 7436 | Rear Spring Red 2.95 lb | Pr. |
| Part # | Description | Qty |
|---|---|---|
| 3977 | Ball Bearing, 3/16” x 3/8“ | 2 |
| 6913 | 4-40 x 1 1/4” SHCS | 6 |
| 6928 | 4-40 x 1” SHCS | 6 |
| 9360 | Idler Gear, molded | 1 |
| 9361 | Idler Gear Shaft | 1 |
| 9600 | B4/T4 Motor Plate | 1 |
| 9601 | B4/T4 Top Shaft | 1 |
| 9602 | B4/T4 Top Shaft Spacer | 1 |
| 9826 | SC10 Transmission Case (left & right) | 1 |
| Part # | Description | Qty |
|---|---|---|
| 6285 | 4-40 x 1/4 SHCS | 12 |
| 6629 | 5-40 Locknuts | 6 |
| 7461 | Molded B4/T4 Gear Cover, clear | 1 |
| 7486 | V2 Slipper Spring and Washer | 1 |
| 7485 | V2 Slipper Hubs | 2 |
| 9603 | B4/T4 Slipper Pad | 2 |
| 9650 | 75T 48P Spur Gear | 1 |
| 9651 | 81T 48P Spur Gear | 1 |
| 9652 | 78T 48P Spur Gear | 1 |
| 9653 | 84T 48P Spur Gear | 1 |
| 9654 | 87T 48P Spur Gear (Kit) | 1 |
| Part # | Description | Qty |
|---|---|---|
| 8253 | 16T 48P Pinion Gear - Brushed Kit | 1 |
| 8267 | 30T 48P Pinion Gear | 1 |
| 8254 | 17T 48P Pinion Gear | 1 |
| 8268 | 31T 48P Pinion Gear | 1 |
| 8255 | 18T 48P Pinion Gear - Brushless Kits | 1 |
| 8269 | 32T 48P Pinion Gear | 1 |
| 8256 | 19T 48P Pinion Gear | 1 |
| 8270 | 33T 48P Pinion Gear | 1 |
| 8257 | 20T 48P Pinion Gear | 1 |
| 8271 | 34T 48P Pinion Gear | 1 |
| 8258 | 21T 48P Pinion Gear | 1 |
| 8272 | 35T 48P Pinion Gear | 1 |
| 8259 | 22T 48P Pinion Gear | 1 |
| 8260 | 23T 48P Pinion Gear | 1 |
| 8261 | 24T 48P Pinion Gear | 1 |
| 8262 | 25T 48P Pinion Gear | 1 |
| 8263 | 26T 48P Pinion Gear | 1 |
| 8264 | 27T 48P Pinion Gear | 1 |
| 8265 | 28T 48P Pinion Gear | 1 |
| 8266 | 29T 48P Pinion Gear | 1 |
| Part # | Description | Qty |
|---|---|---|
| 6573 | Diff Thrust Washer & Bolt | 2 |
| 6574 | Precision Diff Thrust Balls, 5/64” | 6 |
| 6581 | 3/32” Carbide Diff Balls | 12 |
| 6582 | Diff Thrust Spring | 1 |
| 6589 | Ball Bearing, 5/32 x 5/16” unflanged | 2 |
| 7664 | Diff Gear 52T | 1 |
| 7666 | Diff Drive Rings, 2.60:1 | 2 |
| 7667 | Diff Outdrive Hub, Right, 2.60:1 | 1 |
| 7668 | Diff Outdrive Hub, Left, 2.60:1 | 1 |
| 7677 | B4 / T4 / GT Diff Rebuild Kit | 1 |
| 9852 | SC10 Ball Diff Outdrives | 1 |
| 9853 | SC10 Complete Ball Differential | 1 |
| Part # | Description | Qty |
|---|---|---|
| 3897 | Pivoting Body Mounts, Set | 1 |
| 6272 | Foam Ballend Dust Covers | 28 |
| 6277 | Ballstud .30 Silver (short) | 4 |
| 6292 | 4-40 x 3/8” FHCS | 6 |
| 6295 | 4-40 Nut | 18 |
| 6332 | Body Clips | 6 |
| 6915 | 4-40 x 5/8” FHCS | 6 |
| 6924 | 4-40 x 3/8” SHCS | 6 |
| 7738 | 4-40 x 7/8” SHCS | 6 |
| 9630 | .030” Ballstud Washer | 10 |
| 9816 | SC10 Front Bumper, Front Bumper | 1 |
| 9820 | SC10 Front Body Mount | 1 |
| 9821 | SC10 Front Body Posts, Set | 1 |
| 9825 | SC10 Front Shock Tower | 1 |
| Part # | Description | Qty |
|---|---|---|
| 3983 | Ballstud .30” Black (short) | 6 |
| 4187 | .030 Nylon Washers | 12 |
| 4449 | 4-40x3/16 Aluminum Locknut | 5 |
| 6953 | 8-32 LP Locking Nut, Steel | 6 |
| 7260 | 4-40 Plain Nut | 12 |
| 7369 | 1/16“ Unoiversal Roll Pin | 4 |
| 7446 | T4 Front A-Arm (left & right) | Pr. |
| 7922 | 30˚ Caster Blocks (left & right) | Pr. |
| 9580 | Caster Block Spacers, Set | 1 |
| 9621 | B4 Inner Hinge Pin Set | 1 |
| 9622 | B4 Outer Hinge Pin Set | 1 |
| 9645 | 2-56 x 1/8” BHCS | 8 |
| 9880 | Steering Blocks, hex style | Pr. |
| 9881 | SC10 Front Axle Hex | Pr. |
| 9882 | C Clip | 6 |
| 9883 | SC10 Wheel Hex Adapters | 4 |
| Part # | Description | Qty |
|---|---|---|
| 2221 | 4-40 x 7/16” BHCS | 6 |
| 3856 | Steering Bushings, Set | 1 |
| 6276 | Ballstud .20” Silver (short) | 6 |
| 9566 | B4 / T4 Top Plate | 1 |
| 9610 | Servo Saver / Steering Hardware | 1 |
| 9640 | B4 / T4 Steering Bolt, left & right | 1 |
| 9657 | B4 / T4 HD Servo Saver Spring | 1 |
| 9659 | B4 / T4 Steering Set. Includes Rack, | 1 |
| Part # | Description | Qty |
|---|---|---|
| 3981 | Ballstud .20” Black (short) | 6 |
| 6917 | 4-40 x 3/8” BHCS | 6 |
| 7101 | Turnbuckle 2.80” | Pr. |
| 7230 | Ballcups, large | 12 |
| 7253 | Turnbuckle 2.62” | Pr. |
| 7336 | Servo Mount Set | 1 |
| 7337 | Gold Washer | 4 |
| 9170 | B4 / T4 Servo Link | 1 |
| 9180 | Servo Horns Set | 1 |
| Part # | Description | Qty |
|---|---|---|
| 9815 | SC10 Foam Battery Spacer | 1 |
| 9879 | SC10 LiPo Battery Strap. Thumb | 1 |
| Part # | Description | Qty |
|---|---|---|
| 3862 | 5-40 x 1/8” Set Screw | 6 |
| 4334 | 2-56 x 5/16” BHCS | 8 |
| 6338 | Antenna Tube (black) | 1 |
| 6919 | 4-40 x 5/16” BHCS | 6 |
| 6922 | 4-40 x 1/2” FHCS | 6 |
| 7487 | Arm Mounts, 2.5, 3, 3.5, 4 | 1 |
| 9269 | 5-40 x 1/2” FHCS | 6 |
| 9563 | B4 / T4 / GT2 Front Bulkhead | 1 |
| 9564 | RR / FR Hinge Brace | 1 |
| 9643 | 5-40 x 7/16” SHCS | 6 |
| 9818 | SC10 Arm Mount / Chassis Plate | 1 |
| 9819 | SC10 Rear Motor Guard | 1 |
| 9822 | SC10 Nerf Bars | Pr. |
| 9823 | SC10 Chassis | 1 |
| 9877 | SC10 Receiver Box | 1 |
| 9878 | SC10 Receiver Box Seals | 1 |
| Part # | Description | Qty |
|---|---|---|
| 6952 | 8-32 Locking Nut, steel | 6 |
| 7377 | Axle Spacer Crush Tubes | 2 |
| 7448 | T4 Rear A-Arms | Pr. |
| 7462 | T4 / GT2 RTR Dogbone | 1 |
| 9584 | B4 / T4 RR Hub Carrier (left & right) | Pr. |
| 9670 | 3/16” Rear Axle | 1 |
| Part # | Description | Qty |
|---|---|---|
| 6927 | 4-40 x 3/4” SHCS | 6 |
| 9644 | 5-40 x 9/16” SHCS | 6 |
| 9824 | T4 / SC10 Rear Shock Tower | 1 |
| Part # | Description | Qty |
|---|---|---|
| 9817 | SC10 RR Bumper and Brace, Includes | 1 |
| 9833 | 4-40 x 1 3/4” SHCS | 6 |
| 89218 | 3x8mm washer | 10 |
| 89430 | Mud Flaps | Pr. |
| Part # | Description | Qty |
|---|---|---|
| 9809 | SC10 Tire with Foam Insert | 2 |
| 9922 | SC10RS Tires and Inserts | 2 |
| 89413 | 1/8 Molded Tire Insert | 2 |
| 91101 | KMC Hex Wheels, Black | 2 |
| 91102 | KMC Hex Wheels, Silver | 2 |
| 91103 | KMC Hex Wheels, Chrome | 2 |
| 91104 | KMC Hex Wheels/Tire Black (Kit) | 2 |
| 91105 | KMC Hex Wheels/Tire Silver | 2 |
| 91106 | KMC Hex Wheels/Tire Chrome | 2 |
| Part # | Description | Qty |
|---|---|---|
| 1283 | FT T4 Ti Turnbuckle Set | 1 |
| 1408 | FT Ti Turnbuckle, 2.65” (blue) front steering | Pr. |
| 1409 | FT Ti Turnbuckle, 1” (sway bar) (blue) | Pr. |
| 1417 | FT Ti Turnbuckle, 2.80” (blue) front/rear camber | Pr. |
| 1585 | FT B4 Aluminum Trailing Axle, | Pr. |
| 1598 | FT Blue Aluminum Shock Caps, | 4 |
| 6439 | 91176 VTS Slipper Housing | 1 |
| 1654 | FT Solid Axle Pins | 4 |
| 1734 | FT Blue Body Clip, 4 long, 6 short | 10 |
| 1735 | FT Blue Body Clip, long | 4 |
| 1736 | FT Blue Body Clip, short | 6 |
| 1770 | FT Milled Aluminum Motor Plate, (blue) | 1 |
| 1777 | Blue Aluminum Shock Ball Ends with Eyelets, Set | 1 |
| 1778 | FT Milled Aluminum Motor Plate, (black) | 1 |
| 1779 | FT Servo Mounts, blue aluminum | Pr. |
| 1780 | FT Blue Aluminum Threaded Shock Bushings | 4 |
| 1781 | FT Rear Shock Bushing (short) | 4 |
| 1787 | FT Battery Strap Thumb Screws, Set | 1 |
| 3438 | 8-32 LP Locknuts (blue) | 3 |
| 3971 | Steering Rack Bearings | 4 |
| 6416 | Gold Shock Shaft, 1.32” stroke | 1 |
| 6417 | Gold Shock Shaft, 1.02” stroke | 1 |
| 6443 | Bleeder Shock Caps, 1/10 | 4 |
| 6463 | Shock Pistons, Blank | 8 |
| 6584 | 3/32“ Ceramic Diff Balls | 14 |
| 6906 | Ball Bearing, PTFE Sealed 3/16 x 3/8” | 2 |
| 6937 | FT 4-40 Aluminum Locknuts (blue) | 6 |
| 6943 | FT 8-32 Aluminum Locknuts (blue) | 6 |
| 7381 | CVD/CVA Rebuild Kit | 1 |
| 7447 | T4 Front A-Arm, Carbon | Pr. |
| 7449 | T4 Rear A-Arm, Carbon | Pr. |
| 7453 | CVD Axle Bone T4 (black) | Pr. |
| 7455 | CVD Set T4 | Pr. |
| 7495 | FT Vented V2 Slipper Hubs | 2 |
| 7919 | Caster Block 25 deg, (left & right) | Pr. |
| 7933 | Crush Tube (for use with FT Aluminum Hubs Only) | 2 |
| 7935 | .187 x .50 x .196 Bearing | 2 |
| 7990 | Aluminum Front Bulkhead (blue) | 1 |
| 9565 | B4 / T4 Chassis Brace, Hinge Pin Brace, Carbon | 1 |
| 9567 | B4 / T4 Top Plate, Carbon | 1 |
| 9592 | B4 / T4 Caster Block 20 deg, (left & right) | Pr. |
| 9596 | FT SC10 / T4 CVA Bones, requires #9755 | Pr. |
| 9598 | CVD Axles B4, T4, SC10 | Pr. |
| 9608 | RR Axle Wheel Spacer (silver) | Pr. |
| 9635 | B4 / T4 Sway Bar Kit. | 1 |
| 9665 | FT B4 / T4 Aluminum Hinge Pin Brace V2 | 1 |
| 9674 | T4 Shiny CVD Dogbone, requires #9598 | Pr. |
| 9678 | FT SC10 / T4 CVA Set | Pr. |
| 9755 | CVA Axle, Rear B44, B4, T4, SC10 | Pr. |
| 9789 | SC10 / B4 FT Ti Front Axles, Set, | 1 |
| 9795 | Ti Nitride Ballstuds 4-40 x .20 - long | Pr. |
| 9796 | Ti Nitride Ballstuds 4-40 x .30 - long | Pr. |
| 9797 | Ti Nitride Ballstuds 4-40 x .40 - long | Pr. |
| 9798 | Ti Nitride Ballstuds 4-40 x .20 - short | Pr. |
| 9799 | Ti Nitride Ballstuds 4-40 x .30 - short | Pr. |
| 9851 | SC10 Battery Strap, Carbon | 1 |
| 9864 | FT Aluminum Hub, 0 deg | Pr. |
| 9865 | FT Aluminum Hub, 0.5 deg | Pr. |
| 9866 | FT Aluminum Hub, 1 deg | Pr. |
| 9867 | FT Aluminum Hub, 1.5 deg | Pr. |
| 9872 | FT Aluminum Hub Tower Set | 1 |
| 9873 | FT Aluminum Hub Tower C, carbon fiber | Pr. |
| 9892 | 12mm Alum. Clamping Wheel Hex, Rear | 2 |
| Part # | Description | Qty |
|---|---|---|
| 9917 | Aluminum Hub A, Carbon | Pr. |
| 9918 | Aluminum Hub B, Carbon | Pr. |
| 31237 | CVA Pin Retaining Clip | Pr. |
| 31286 | FT Ballstud Washer, aluminum (1mm, 2mm) | 4ea. |
| 31327 | VCS3 Shock Bottom Cap and O-Ring | 2ea. |
| 91170 | FT High Torque Slipper Pad | 2 |
| 91175 | FT VTS Slipper Conversion | 1 |
| 91177 | VTS Slipper Pads | 2 |
| 91178 | VTS Slipper Plate | 1 |
| 91179 | FT VTS Slipper Hub, outer | 1 |
| 91201 | SC10B Front Arm | Pr. |
| 91202 | SC10B Front Shock Tower | 1 |
| 91300 | 12X27.5mm FT Shock Bodies (front) | 2 |
| 91302 | 12X36mm FT Shock Bodies (rear) | 2 |
| 91303 | 12MM Shock Cap | 2 |
| 91304 | 12MM Threaded Collar and O-Ring | 2 |
| 91306 | 12MM 27.5 x 3 TiN Shock Shaft | 1 |
| 91307 | 12MM 35 x 3 TiN Shock Shaft | 1 |
| 91308 | 12MM Shock Pistons, (1.5, 1.6, 1.7) | 4 ea. |
| 91309 | 12MM Shock Rebuild Kit | 1 |
| 91312 | 12MM Mounting Hardware | 1 |
| 91315 | 12MM Big Bore Shock Kit (SC10 Front) | 1 |
| 91325 | 12MM Front SPRING BRN 2.85 | Pr. |
| 91326 | 12MM Front SPRING BLK 3.00 | Pr. |
| 91327 | 12MM Front SPRING GRN 3.15 | Pr. |
| 91328 | 12MM Front SPRING WHT 3.30 | Pr. |
| 91329 | 12MM Front SPRING GRY 3.45 | Pr. |
| 91330 | 12MM Front SPRING BLU 3.60 | Pr. |
| 91331 | 12MM Front SPRING YLW 3.75 | Pr. |
| 91332 | 12MM Front SPRING RED 3.90 | Pr. |
| 91333 | 12MM Front SPRING ORN 4.05 | Pr. |
| 91334 | 12MM Front SPRING PRL 4.20 | Pr. |
| 91335 | 12MM Rear SPRING BLK 1.90 | Pr. |
| 91336 | 12MM Rear SPRING GRN 2.00 | Pr. |
| 91337 | 12MM Rear SPRING WHT 2.10 | Pr. |
| 91338 | 12MM Rear SPRING GRY 2.20 | Pr. |
| 91339 | 12MM Rear SPRING BLU 2.30 | Pr. |
| 91340 | 12MM Rear SPRING YLW 2.40 | Pr. |
| 91341 | 12MM Big Bore Front Soft Spring Kit | 1 |
| 91342 | 12MM Big Bore Front Medium Spring Kit | 1 |
| 91343 | 12MM Big Bore Front Hard Spring Kit | 1 |
| 91344 | 12MMv Big Bore Rear Soft Spring Kit | 1 |
| 91345 | 12MM Big Bore Rear Medium Spring Kit | 1 |
| 91346 | FT 12MM Piston, 2 x 1.5mm, Tapered | 4 |
| 91347 | FT 12MM Piston, 2 x 1.6mm, Tapered | 4 |
| 91348 | FT 12MM Piston, 2 x 1.7mm, Tapered | 4 |
| 91349 | FT 12MM Piston, 3 x 1.4mm, Tapered | 4 |
| 91350 | FT 12MM Piston, 4 x 1.3mm, Tapered | 4 |
| 91351 | FT 12MM Piston, 2 x 1.6mm, Flat | 4 |
| 91352 | FT 12MM Piston, 3 x 1.4mm, Flat | 4 |
| 91353 | FT 12MM Piston, 4 x 1.3mm, Flat | 4 |
| 91448 | Shock Pivot Ball and Rod End | 4 |
| 91449 | 12MM V2 Composite Shock Cap | 4 |
| 91577 | FT 12x27.5mm FOX Shock Bodies with | 2 |
| 91579 | FT 12x36mm FOX Shock Bodies with | 2 |
| 91635 | 12mm Shock Spring, 54mm, Green 3.75lbs | 2 |
| 91636 | 12mm Shock Spring, 54mm, White 4.10lbs | 2 |
| 91637 | 12mm Shock Spring, 54mm, Gray 4.45lbs | 2 |
| 91639 | 12mm Shock Spring, 72mm, Green 2.20lbs | 2 |
| 91640 | 12mm Shock Spring, 72mm, White 2.40lbs | 2 |
| 91641 | 12mm Shock Spring, 72mm, Gray 2.60lbs | 2 |
| Part # | Description | Qty |
|---|---|---|
| 9836 | SC10 Body, Clear | 1 |
| 9837 | SC10 ’09 Championship Body, Clear | 1 |
| 9838 | SC10 KMC (TM) Wheels Body, Painted | 1 |
| 9850 | SC10 Number Plate Decals | 1 |
| 9856 | SC10 ‘09 Body, Lucas Oil, Painted | 1 |
| 9858 | SC10 ‘09 Body, Pro Comp, Painted | 1 |
| 9862 | SC10 ‘09 Body, Rockstar / Makita, Painted | 1 |
| 9863 | SC10 ‘09 Decals, Rockstar / Makita | 1 |
| 9876 | SC10 Contender Body, Clear | 1 |
| 9926 | SC10 Toyota Racing Body, Clear | 1 |
| 91191 | SC10 Contender Body, Lucas Oil | 1 |
| 91192 | SC10 Contender Body, AE Team | 1 |
| Part # | Description | Qty |
|---|---|---|
| 1105 | FT Green Slime Shock Lube | 1 |
| 1596 | FT Locking Adhesive | 1 |
| 1597 | FT Tire Adhesive, medium | 1 |
| 6588 | Black Grease - 4cc | 1 |
| 6591 | S.Diff Lube - 4cc | 1 |
| 6636 | Silicone Grease - 4cc | 1 |
| 6727 | Servo Tape | 2 |
| 726 | Reedy 2016 Sticker Set | 1 |
| 3840 | 2016 Team Associated Decals | 1 |
| 9787 | FT Chassis Protective Sheet | 1 |
| Part # | Description | Qty |
|---|---|---|
| 1111 | FT Turnbuckle Wrench | 1 |
| 1113 | 12mm Big Bore Shock Tool | 1 |
| 1114 | FT Dual Turnbuckle Wrench | 1 |
| 1449 | FT Off Road Ride Height Gauge | 1 |
| 1500 | FT 1.5mm Hex Driver | 1 |
| 1501 | FT 2.0mm Hex Driver | 1 |
| 1502 | FT 2.0mm Ball Hex Driver | 1 |
| 1503 | FT 2.5mm Hex Driver | 1 |
| 1504 | FT 2.5mm Ball Hex Driver | 1 |
| 1506 | FT 5.0mm Hex Driver | 1 |
| 1507 | FT 5.5mm Nut Driver | 1 |
| 1508 | FT 7.0mm Nut Driver | 1 |
| 1511 | FT 2.0mm Hex Replacement Tip | 1 |
| 1512 | FT 2.0mm Ball Hex Replacement Tip | 1 |
| 1513 | FT 2.5mm Hex Replacement Tip | 1 |
| 1514 | FT 2.5mm Ball Hex Replacement Tip | 1 |
| 1515 | FT 3.0mm Hex Replacement Tip | 1 |
| 1518 | FT Hex Driver Tool Set, 3pc | 1 |
| 1519 | FT Hex/Nut Driver Tool Set, 5pc | 1 |
| 1541 | FT Hex Driver Set, (7 pcs) | 1 |
| 1545 | FT 5/64” Blue Hex Driver | 1 |
| 1546 | FT 3/32” Gold Hex Driver | 1 |
| 1554 | FT Silver Spring Hook Tool | 1 |
| 1567 | FT 8mm Gold Nut Driver | 1 |
| 1568 | Factory Team 5.5mm Short Nut Driver | 1 |
| 1569 | Factory Team 7mm Nut Driver, T-Handle | 1 |
| 1570 | Factory Team 7.0mm Short Nut Driver | 1 |
| 1571 | FT 1/8 Wheel Nut Wrench | 1 |
| 1590 | FT 3/32” Gold Ball Hex Driver | 1 |
| 1592 | FT Ball Hex Driver Set, (3 pcs) | 1 |
| 1655 | FT 8-Piece 1/4” Hex Drive Set | 1 |
| 1656 | FT 1/4” Hex Drive Handle, without tips | 1 |
| 1657 | FT 1/4” Hex Drive .050” Tip | 1 |
| 1658 | FT 1/4” Hex Drive 1/16” Tip | 1 |
| 1659 | FT 1/4” Hex Drive 5/64” - 2.0mm Tip | 1 |
| 1660 | FT 1/4” Hex Drive 3/32” Tip | 1 |
| 1661 | FT 1/4” Hex Drive 1.5mm Tip | 1 |
| 1662 | FT 1/4” Hex Drive 2.5mm Tip | 1 |
| 1663 | FT 1/4” Hex Drive 3/16” Nut Driver Tip | 1 |
| 1664 | FT 1/4” Hex Drive 1/4” Nut Driver Tip | 1 |
| 1665 | FT 1/4” Hex Drive 11/32” Nut Driver Tip | 1 |
| 1666 | FT 1/4” Hex Drive 5.5mm Nut Driver Tip | 1 |
| 1667 | FT 1/4” Hex Drive 7.0mm Nut Driver Tip | 1 |
| 1668 | FT 1/4” Hex Drive 8.0mm Nut Driver Tip | 1 |
| 1669 | FT 1/4” Hex Drive 5/64” - 2.0mm Ball End Tip | 1 |
| 1670 | FT 1/4” Hex Drive 3/32” Ball End Tip | 1 |
| 1671 | FT 1/4” Hex Drive Standard Screwdriver Tip | 1 |
| 1672 | FT 1/4” Hex Drive Phillips Screwdriver Tip | 1 |
| 1673 | FT 1/4” Hex Drive 2.5mm Ball End Tip | 1 |
| 1674 | FT 1/4” 5 Piece Power Tool Tips Set (5/64-2.0mm, | 1 |
| 1675 | FT Shock Shaft Pliers | 1 |
| 1679 | FT T-Handle Ratchet Driver | 1 |
| 1719 | FT Camber + Track Width Tool | 1 |
| 1737 | FT Body Scissors | 1 |
| 3718 | 12 Inch Nylon Wire Ties | 12 |
| 3719 | 6 Inch Nylon Wire Ties | 12 |
| 3720 | 8 Inch Nylon Wire Ties | 12 |
| 3987 | Composite Droop Gauge | 1 |
| 6429 | Shock Building Tool | 1 |
| 6956 | Molded Tools, Set | 1 |
| 7709 | 4 Inch Nylon Wire Ties | 12 |
| Part # | Description | Qty |
|---|---|---|
| 2016 | Worlds T-Shirt - Blue - (S, M, L, XL-5XL) | 1 |
| 2015 | Worlds T-Shirt - Blue (S, M, L, XL-5XL) | 1 |
| 2012 | Hat, Black, Flat Bill, S/M | 1 |
| Part # | Description | Qty |
|---|---|---|
| SP408 | AE Worlds Hat - Black Snap Back | 1 |
| SP425 | FT Fluid Carrier | 1 |
| 715 | Reedy 2009 Track Banner | 1 |
AE prints its Reedy, LRP, XP and apparel catalogue in the same list. These are not parts for the truck, so they are listed here as reference only, without links.
| Part # | Description | Qty |
|---|---|---|
| 907 | 540-SL4 3300kV 4-pole Sensorless Brushless Motor | 1 |
| 26169 | 0712MG 7kg Metal Gear Servo | 1 |
| 26170 | 1415MG 15kg Metal Gear Servo | 1 |
| 27100 | RS1206 Digital HV Hi-Speed Competition Servo | 1 |
| 27101 | RT1508 Digital HV Hi-Torque Competition Servo | 1 |
| 29184 | SC800-BL/SC1000-BL/SC1000-DB/SC600-BL Switch | 1 |
| 29185 | SC600-BL Brushless ESC | 1 |
| 29186 | SC600-BL Fan | 1 |
| 29166 | XP DS1313 Digital Servo | 1 |
| 302 | AA Alkaline 1.5V (4) | 1 |
| 29167 | XP DS1015 Digital Servo | 1 |
| 681 | Wolfpack 2400mAh 7.2V w/T-Plug connector | 1 |
| 29203 | AE XP120 2.4GHz Radio System | 1 |
| 682 | Wolfpack 3000mAh 7.2V w/T-Plug connector | 1 |
| 29204 | AE XP-R4 2.4GHz 4CH Receiver | 1 |
| 683 | Wolfpack 3600mAh 7.2V w/T-Plug connector | 1 |
| 29261 | ESS-One Plus Engine Sound System | 1 |
| 684 | Wolfpack 4200mAh 7.2V w/T-Plug connector | 1 |
| 29265 | XP Police Light Bar, 1:10 scale | 1 |
| 751 | Wolfpack LiPo 3300mAh 30C 7.4V w/T-Plug | 1 |
| 29266 | XP LED RC Light Kit (12 LEDs) | 1 |
| 752 | Wolfpack LiPo 4000mAh 35C 7.4V w/T-Plug | 1 |
| 29267 | XP LED Roof Light Kit (4 LEDs) | 1 |
| 753 | Wolfpack LiPo 5400mAh 35C 7.4V w/T-Plug | 1 |
| 29268 | XP LED Roof Light Kit (6 LEDs) | 1 |
| 754 | Wolfpack LiPo 7500mAh 30C 7.4V w/T-Plug | 1 |
| 29272 | XP 5 LED Aluminum Light Bar, 88mm | 1 |
| 755 | Wolfpack LiPo 4500mAh 35C 11.1V w/T-Plug | 1 |
| 29273 | XP 7 LED Aluminum Light Bar, 120mm | 1 |
| 29274 | XP 10 LED Aluminum Light Bar, 170mm | 1 |
| 29275 | XP LED Light Bar Hardware | 1 |
| 616 | 423-S AC 35W Compact Balance Charger | 1 |
| 27201 | 324-S AC LiPo/LiFe Compact Balance Charger | 1 |
| 27220 | 7-in-1 Universal Charge Lead (4mm) | 1 |
| 27221 | T-plug Charge Lead (4mm) | 1 |
| 29269 | KICKER KPw Wireless Speaker System, (black) | 1 |
| 29270 | KICKER KPw Wireless Speaker System, (white) | 1 |
Free to start · iOS & Android
Your Team Associated SC10.3 is in the RC Setup App
Save every setup change you make to your Team Associated SC10.3, get AI tuning answers for that exact car, and log your races — at the track or back in the pits.
