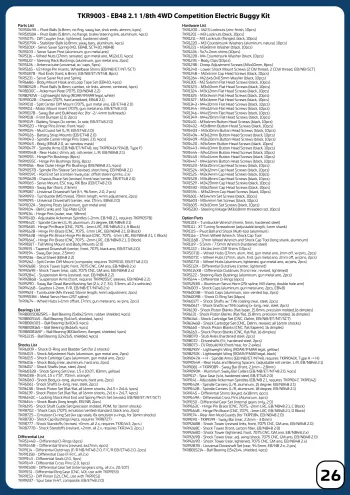

Tekno EB48 2.2 Parts List
Tekno EB48 2.2 Parts List
Source: Tekno
Part numberPart name
TKR5049ATKR5049A - Pivot Balls (6.8mm, no flng, sway bar, shck ends, almmn, 4pcs)
TKR5058ATKR5058A - Pivot Balls (5.8mm, no flange, brake/steering link, aluminum, 4pcs)
TKR5075TKR5075 - Diff Coupler (rear, lightened, hardened steel)
TKR5079ATKR5079A - Stabilizer Balls (6.8mm, sway bars, aluminum, 4pcs)
TKR5101XTKR5101X - Servo Saver Spring (HD, EB48, SCT410, NB48)
TKR5103TKR5103 - Servo Saver Post (aluminum, gun metal ano)
TKR5116TKR5116 - Wheel Nuts (17mm, serrated, gun metal ano, M12x1.0, 4pcs)
TKR5122TKR5122 - Steering Rack Bushings (aluminum, gun metal ano, 2pcs)
TKR5122TKR5122 - Antenna tube (universal, w/ caps, 5pcs)
TKR5165TKR5165 - V2 Hinge Pin Inserts, Wheelbase Shims (EB/NB/ET/NT/SCT)
TKR5187BTKR5187B - Rod Ends (hard, 6.8mm, EB/NB/ET/NT48, 8pcs)
TKR5231TKR5231 - Servo Saver Nut and Spring
TKR6868TKR6868 - Body Mount Hook and Loop Tape Set (EB410, 4pcs)
TKR8052ATKR8052A - Pivot Balls (6.8mm, camber, str links, almmn, centered, 4pcs)
TKR8100CTKR8100C - Ackerman Plate (7075, EB/NB48 2.2)
TKR8292WTKR8292W - Lightweight Wing (ROAR/IFMAR legal, white)
TKR9002BTKR9002B - Chassis (7075, hard anodized, EB48 2.1)
TKR9010TKR9010 - Split Center Diff Mount (7075, gun metal ano, EB/ET48 2.0)
TKR9011TKR9011 - Motor Mount Insert (7075, gun metal ano, EB/ET48 2.0)
TKR9017BTKR9017B - Sway Bar and Bulkhead Acc (for -2/-4mm bulkhead)
TKR9018TKR9018 - Front Bumper (2.0, 2pcs)
TKR9019TKR9019 - Battery Straps (1x center, 1x side, EB/ET48 2.0)
TKR9020TKR9020 - Hinge Pins (inner, front/rear)
TKR9024TKR9024 - Mud Guard Set (L/R, EB/ET48 2.0)
TKR9026TKR9026 - Battery Strap Mounts (EB/ET48 2.0)
TKR9043TKR9043 - Spindle Carrier Hinge Pins (steel, 2.0, 4pcs)
TKR9045TKR9045 - Body (EB48 2.0, w/ window mask)
TKR9047FTKR9047F - Spindle Arms (EB/NB/ET/NT48, req TKR9041X/9141B, Type F)
TKR9054BTKR9054B - Rear Hubs (-2mm, adj. roll center, L/R, EB/NB48 2.1)
TKR9055TKR9055 - Hinge Pin Bushings (8pcs)
TKR9055CTKR9055C - Hinge Pin Bushings (long, 8pcs)
TKR9056TKR9056 - Rear Outer Hinge Pin Bushings (EB/NB48 2.1, 4pcs)
TKR9057BTKR9057B - Spindle Pin/Sleeve Set (revised, short/long, EB/NB48 2.1)
TKR9059CTKR9059C - Rod End Set (camber/sway bar, offset steering links, 2x)
TKR9062BTKR9062B - Chassis Brace Set (revised, front/rear/center, EB/ET48 2.0)
TKR9065TKR9065 - Servo Mount, ESC tray, RX Box (EB/ET48 2.0)
TKR9083TKR9083 - Sway Bar (front, 2.3mm)
TKR9087TKR9087 - Universal Driveshaft Set (f/r, 96.5mm, 2.0, 2 pcs)
TKR9093TKR9093 - Turnbuckle (M5 thread, 70mm length, 4mm adjustment, 2pcs)
TKR9095TKR9095 - Universal Driveshaft (center, rear, 17mm, EB48 2.0)
TKR9102ATKR9102A - Steering Posts (aluminum, gun metal ano)
TKR9104TKR9104 - Bell Cranks and Top Plate (2.0)
TKR9134TKR9134 - Hinge Pins (outer, rear, 58mm)
TKR9141BTKR9141B - Adjustable Ackerman Spindles (-2mm, EB/NB 2.1, requires TKR9057B)
TKR9142CTKR9142C - Spindle Carriers (L/R, aluminum, 21 degree, EB/NB48 2.1)
TKR9161BTKR9161B - Hinge Pin Brace (CNC, 7075, -1mm LRC, EB/NB48 2.1, A Block)
TKR9162BTKR9162B - Hinge Pin Brace (CNC, 7075, -1mm LRC, EB/NB48 2.1, B Block)
TKR9163BTKR9163B - Hinge Pin Brace Hinge Pin Brace (CNC, 7075, -1mm LRC, EB/NB48 2.1, C Block)
TKR9164CTKR9164C - Hinge Pin Brace (CNC, 7075, -2mm LRC, EB/NB48 2.1, D Block)
TKR9181TTKR9181T - Tall Wing Mount and Body Mounts (2.0)
TKR9191TKR9191 - Tapered Driveshaft (center, front, 7075, black ano, EB/ET48 2.0)
TKR9194TKR9194 - Sway Bar (rear, 2.5mm)
TKR9236TKR9236 - Decal Sheet (EB48 2.2)
TKR9262TKR9262 - Split Center Diff Mount (composite, requires TKR9010, EB/ET48 2.0)
TKR9268ETKR9268E - Shock Tower (split, front, 7075 CNC, GM ano, EB/NB48 2.x)
TKR9269ETKR9269E - Shock Tower (rear, split, 7075 CNC, GM ano, EB/NB48 2.x)
TKR9284CTKR9284C - Suspension Arms (revised, rear, EB/NB48 2.2)
TKR9286BTKR9286B - Suspension Arms (front, requires TKR9055C V sleeves, EB/NB48 2.2)
TKR9290TKR9290 - Sway Bar Dead Band Bushing Set (2.4, 2.7, 3.0, 3.3mm, all 2.x vehicles)
TKR9416BTKR9416B - Gearbox (-2mm, F/R, EB/NB/ET/NT48 2.x)
TKR9523TKR9523 - Turnbuckle (M4 thread, 55mm length, 4mm adjustment, 2pcs)
TKR9553MTKR9553M - Metal Servo Horn (25T spline)
TKR9674TKR9674 - Wheel Hubs (+1mm offset, 17mm, gun metal ano, w/pins, 2pcs)
TKRB8050825RSTKRB8050825RS - Ball Bearing (5x8x2.5mm, rubber shielded, 4pcs)
TKRB805145TKRB805145 - Ball Bearing (5x14x5, shielded, 4pcs)
TKRB806103TKRB806103 - Ball Bearing (6x10x3, 4pcs)
TKRB808165TKRB808165 - Ball Bearing (8x16x5, 4pcs)
TKRB808165FTKRB808165F - Ball Bearing (8X16x5mm, flanged, shielded, 4pcs)
TKR12215TKR12215 - Ball Bearing (12x21x5, shielded, 4pcs)
TKR6009TKR6009 - Shock O-Ring and Bladder Set (for 2 shocks)
TKR6013TKR6013 - Shock Adjustment Nuts (aluminum, gun metal ano, 2pcs)
TKR6015TKR6015 - Shock Cartridge Caps (aluminum, gun metal ano, 2pcs)
TKR6016TKR6016 - Shock Body (rear, aluminum, hard ano, 2pcs)
TKR6018TKR6018 - Shock Shafts (rear, steel, 2pcs)
TKR6032BTKR6032B - Shock Spring Set (rear, 1.5 x 10.0T, 83mm, yellow)
TKR6038TKR6038 - (front, 1.5 x 7.5T, 70mm, orange)
TKR6060TKR6060 - Shock Body (x-long, aluminum, hard ano, 2pcs)
TKR6061TKR6061 - Shock Shafts (x-long, rear, steel, 2pcs)
TKR6138TKR6138 - Shock Piston Set (flat/flat, all 16mm shocks, 2x1.5 + 2x1.6, 4pcs)
TKR6139TKR6139 - Shock Piston Set (flat/flat, all 16mm shocks, 2x1.6 + 2x1.7, 4pcs)
TKR6140CTKR6140C - Locking Shock Rod End and Spring Perch Set (revised, EB/NB/ET/NT/SCT)
TKR6144TKR6144 - Shock Boots (long length, EB/NB, 2pcs)
TKR6195TKR6195 - Shock Shaft Guide Set (precision molded, POM, for 16mm shocks)
TKR80702TKR80702 - Shock Caps 7075, emulsion/vented/standard, black ano, 2pcs)
TKR8725TKR8725 - Emulsion O-ring Set (4x cap seals, 8x emulsion o-rings, for 16mm shocks)
TKR8730TKR8730 - Shock Cap Bushings (4pcs, requires TKR8797)
TKR8777TKR8777 - Shock Standoffs (revised, +0mm, all 2.x, requires TKR1443, 2pcs.)
TKR8777BTKR8777B - Shock Standoffs (revised, +2mm, all 2.x, requires TKR1443, 2pcs.)
TKR5144BTKR5144B - Differential O-Rings (6pcs)
TKR5145BTKR5145B - Differential Shims (revised, 6x17mm, 6pcs)
TKR9114TKR9114 - Differential Outdrives (F/R NB/NT48 2.0, F/C/R EB/ET48 2.0, 2pcs)
TKR9115BTKR9115B - Differential Case (F/R/C, all 2.x)
TKR9143TKR9143 - Differential Seals (2.0, 3pcs)
TKR9149TKR9149 - Differential Cross Pins (2.0, 6pcs)
TKR9150BTKR9150B - Differential Gear Set (internal gears only, all 2.x, 20/10T)
TKR9151TKR9151 - Differential Ring Gear (CNC, 40t, use with TKR9153)
TKR9153TKR9153 - Diff Pinion (12t, CNC, use with TKR9151)
TKR9237TKR9237 - Spur Gear (44T, composite, EB/ET48 2.0)
TKR1200TKR1200 - M2.5 Locknuts (zinc finish, 10pcs)
TKR1201TKR1201 - M3 Locknuts (black, 10pcs)
TKR1211TKR1211 - M3 Locknuts (flanged, black, 10pcs)
TKR1220TKR1220 - M3 Countersunk Washers (aluminum, natural, 10pcs)
TKR1221TKR1221 - M3x8mm Washer (black, 10pcs)
TKR1226TKR1226 - 5x7x2mm shims (10pcs)
TKR1228TKR1228 - M4 Countersunk Washer (black, 10pcs)
TKR235TKR235 - Body Clips (10pcs)
TKR1238TKR1238 - Door Adjustment Screws (M4x10mm, 8pcs)
TKR1240TKR1240 - Lower Shock Mount Screws (2 CW thread, 2 CCW thread, EB/NB/SCT)
TKR1248TKR1248 - M2x4mm Cap Head Screws (black, 10pcs)
TKR1264TKR1264 - M2.6x6.0x0.5mm Washer (black, 10pcs)
TKR1301TKR1301 - M2.5x5mm Flat Head Screws (black, 10pcs)
TKR1324TKR1324 - M3x10mm Flat Head Screws (black, 10pcs)
TKR1324TKR1324 - M3x12mm Flat Head Screws (black, 10pcs)
TKR1325TKR1325 - M3x14mm Flat Head Screws (black, 10pcs)
TKR1327TKR1327 - M3x16mm Flat Head Screws (black, 10pcs)
TKR1344TKR1344 - M4x10mm Flat Head Screws (black, 10pcs)
TKR1346TKR1346 - M4x15mm Flat Head Screws (black, 10pcs)
TKR1349TKR1349 - M4x20mm Flat Head Screws (black, 10pcs)
TKR1401TKR1401 - M3x6mm Button Head Screws (black, 10pcs)
TKR1402TKR1402 - M3x8mm Button Head Screws (black, 10pcs)
TKR1403TKR1403 - M3x10mm Button Head Screws (black, 10pcs)
TKR1404TKR1404 - M3x12mm Button Head Screws (black, 10pcs)
TKR1409TKR1409 - M3x20mm Button Head Screws (black, 10pcs)
TKR1420TKR1420 - M3x5mm Button Head Screws (black, 10pcs)
TKR1443TKR1443 - M4x10mm Button Head Screws (black, 10pcs)
TKR1444TKR1444 - M4x12mm Button Head Screws (black, 10pcs)
TKR1445TKR1445 - M4x14mm Button Head Screws (black, 10pcs)
TKR1447TKR1447 - M4x16mm Button Head Screws (black, 10pcs)
TKR1523TKR1523 - M3x10mm Cap Head Screws (black, 10pcs)
TKR1524TKR1524 - M3x12mm Cap Head Screws (black, 10pcs)
TKR1525TKR1525 - M3x18mm Cap Head Screws (black, 10pcs)
TKR1528TKR1528 - M3x28mm Cap Head Screws (black, 10pcs)
TKR1529TKR1529 - M3x20mm Cap Head Screws (black, 10pcs)
TKR1530TKR1530 - M3x25mm Cap Head Screws (black, 10pcs)
TKR1534TKR1534 - M3x22mm Cap Head Screws (black, 10pcs)
TKR1601TKR1601 - M3x4mm Set Screws (black, 10pcs)
TKR1603TKR1603 - M5x4mm Set Screws (black, 10pcs)
TKR1605TKR1605 - M3x10mm Set Screws (black, 10pcs)
TKR5230TKR5230 - Steering linkage (M3x18mm threaded rod, 10pcs)
TKR1103TKR1103 - Turnbuckle Wrench (4mm, 5mm, hardened steel)
TKR1111TKR1111 - XT Tuning Screwdriver (adjustable length, 4mm shank)
TKR1115TKR1115 - Pivot Ball and Shock Multi-tool (aluminum)
TKR1116TKR1116 - 17mm Wheel Wrench, Shock Cap Tool
TKR1116BTKR1116B - 17mm Wheel Wrench and Shock Cap Tool (long shank, aluminum)
TKR1119TKR1119 - 5.5mm / 7.0mm Wrench (hardened steel)
TKR1222TKR1222 - 13x16x1mm Diff Shims (10pcs)
TKR5071BTKR5071B - Wheel Hubs (17mm, alum, ltnd, gun metal ano, 1mm off, w/pins, 2pcs)
TKR5071CTKR5071C - Wheel Hubs (17mm, alum, ltnd, gun metal ano, 2mm off, w/pins, 2pcs)
TKR5071XTKR5071X - Wheel Hubs (aluminum, lightened, gun metal ano, w/pins, 2pcs)
TKR5112XTKR5112X - Differential Outdrives (center, lightened)
TKR5122TKR5122 - Steering Rack Bushings (aluminum, gun metal ano, 2pcs)
TKR5144TKR5144 - Differential O-Rings (6pcs)
TKR5253BTKR5253B - Aluminum Servo Horn (25t spline, M3 clamp, double hole arm)
TKR6003BTKR6003B - Shock Caps (aluminum, non-vented top, 2pcs)
TKR6009BTKR6009B - Shock O-Ring Set (16pcs)
TKR6017TTKR6017T - Shock Shafts w/ TiNi coating (rear, steel, 2pcs)
TKR6061TTKR6061T - Shock Shafts w/ TiNi coating (x-long, rear, steel, 2pcs)
TKR6130TKR6130 - Shock Piston Blanks (flat/taper, 15.8mm, precision molded,16 dimples)
TKR6131TKR6131 - Shock Piston Blanks (flat/flat, 15.8mm, precision molded, 16 dimples)
TKR6146TKR6146 - Shock Cartridge Set (CNC, Delrin, EB/NB/ET/NT/SCT)
TKR6146BTKR6146B - Shock Cartridge Set (CNC, Delrin, revised, all 16mm shocks)
TKR6160TKR6160 - Shock Piston Blanks (CNC, flat/tapered, 16 dimples)
TKR6163TKR6163 - Shock Piston Blanks (CNC, flat/flat, 16 dimples)
TKR8070TKR8070 - Stub Axles (hardened steel, 2pcs)
TKR8072TKR8072 - Driveshafts (f/r, hardened steel, 2pcs)
TKR8073TKR8073 - CV Rebuild Kit (front/rear, for 2 axles)
TKR8292YTKR8292Y - Lightweight Wing (ROAR/IFMAR legal, yellow)
TKR8292KTKR8292K - Lightweight Wing (ROAR/IFMAR legal, black)
TKR9047ATKR9047A -> H - Spindle Arms (EB/NB/ET/NT48, requires TKR9041X, Type A -> H)
TKR9054ATKR9054A - Rear Hubs and Bearing Spacers (adjustable roll center, L/R, EB/NB48 2.1)
TKR9081TKR9081 -> TKR9089 - Sway Bar (front, 2.1mm - 2.8mm)
TKR9090ATKR9090A - Aluminum Sway Bar Collars (EB/NB/ET/NT48 2.0, 4pcs)
TKR9117TKR9117 - Spur Gear (44t, hardened steel, EB/ET48 2.0)
TKR9141TKR9141 - Adjustable Ackerman Spindles (EB/NB 2.1, requires TKR9047, TKR9142)
TKR9142ATKR9142A - Spindle Carriers (L/R, aluminum, 15 degree, EB/NB48 2.1)
TKR9142BTKR9142B - Spindle Carriers (L/R, aluminum, 18 aluminum, 18 degree, EB/NB48 2.1)
TKR9145TKR9145 - Differential Shims keyed, 6x18mm, 6pcs)
TKR9149TKR9149 - Differential Cross Pins (Aluminum, 6pcs)
TKR9150TKR9150 - Differential Gear Set (internal gears only, 2.0)
TKR9163CTKR9163C - Hinge Pin Brace (CNC, 7075, -2mm LRC, EB/NB48 2.1, C Block)
TKR9164BTKR9164B - Hinge Pin Brace (CNC, 7075, -1mm LRC, EB/NB48 2.1, D Block)
TKR9174TKR9174 - Rear Arm Mud Guards (for TKR9184, EB/NB48 2.0)
TKR9190TKR9190 - TKR9199 - Sway Bar (rear, 2.2mm - 3.0mm)
TKR9268BTKR9268B - Shock Tower (revised list, front, 7075 CNC, GM ano, EB/NB48 2.0)
TKR9268CTKR9268C - Shock Tower (front, carbon fiber, EB/NB48 2.0)
TKR9268DTKR9268D - Shock Tower (lightened, front, 7075 CNC, GM ano, EB/NB48 2.x)
TKR9269BTKR9269B - Shock Tower (rear, adj. wing/shock, 7075 CNC, GM ano, EB/NB48 2.0)
TKR9269DTKR9269D - Shock Tower (rear, lightened, 7075 CNC, GM ano, EB/NB48 2.x)
TKR9287BTKR9287B - Universal Driveshaft Set (rear, 94.5mm, EB/NB 2.x, 2 pcs)
TKRB815214TKRB815214 - Ball Bearing (15x21x4, shielded, 4pcs)
Learn more about setting up...
No items found.
Related articles
No related articles.
Related cars
More setups for:
EB48 2.2
Search icon

Guides

Steering
Full Builds
Shocks
Body & Chassis
So Dialed Help
Engines
Drivetrain
Troubleshooting
Suspension
Electronics
Tires

RC Apps for iOS & Android

RC Setup App & Race Log
Setup App & Race Log
RC AI Mechanic
RC AI Mechanic
RC Pit Calc Pro
Pit Calc Pro
RC Maintenance Timer
Maintenance Timer
RC Speed Run
RC Speed Run
RC Rock Crawl Scorekeeper
Crawl Scorekeeper
RCSpeedRun.comCrawlScore.com
