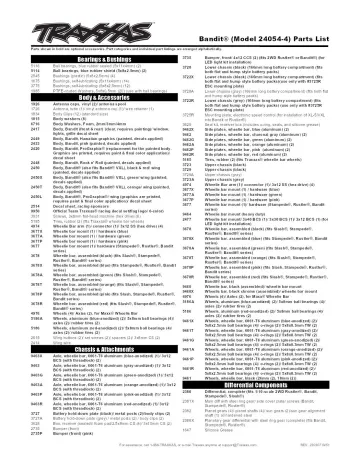

Every stock spare part and optional accessory for the Traxxas Bandit (model 24054-4), from the official Traxxas parts list. Part numbers link to AMain Hobbies where a match was found.
Bandit — Parts & Accessories
Bearings & Bushings
| Part # | Part |
|---|---|
| 5116 (opens in new tab) | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 5114 (opens in new tab) | Ball bearings, blue rubber shield (5x8x2.5mm) (2) |
| 2545 (opens in new tab) | Bushings (plastic) (5x8x2.5mm) (4) |
| 1675 (opens in new tab) | Bushings, self-lubricating (5x11x4mm) (14) |
| 3775 (opens in new tab) | Bushings, self-lubricating (5x8x2.5mm) (12) |
| 1985 (opens in new tab) | PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings) |
Body & Accessories
| Part # | Part |
|---|---|
| 1926 (opens in new tab) | Antenna caps, vinyl (2)/ antenna spool |
| 1726 (opens in new tab) | Antenna, tube (1)/ vinyl antenna cap (1)/ wire retainer (1) |
| 1834 (opens in new tab) | Body Clips (12) (standard size) |
| 1815 (opens in new tab) | Body washers (8) |
| 6716 (opens in new tab) | Body Washers, Foam, 2mm/3mm/4mm |
| 2417 (opens in new tab) | Body, Bandit (front & rear) (clear, requires painting)/ window, lights, grille decal sheet |
| 2449 | Body, Bandit, Hawaiian graphics (painted, decals applied) |
| 2433 | Body, Bandit, pink (painted, decals applied) |
| 2420 (opens in new tab) | Body, Bandit, ProGraphix® (replacement for the painted body. Graphics are printed, requires paint & final color application)/ decal sheet |
| 2448 | Body, Bandit, Rock n’ Roll (painted, decals applied) |
| 2450 | Body, Bandit® (also fits Bandit® VXL), black & red/ wing (painted, decals applied) |
| 2450X | Body, Bandit® (also fits Bandit® VXL), green/ wing (painted, decals applied) |
| 2450T | Body, Bandit® (also fits Bandit® VXL), orange/ wing (painted, decals applied) |
| 2450L | Body, Bandit®, ProGraphix®/ wing (graphics are printed, requires paint & final color application)/ decal sheet |
| 2514 (opens in new tab) | Decal sheet, racing sponsors |
| 9950 (opens in new tab) | Official Team Traxxas® racing decal set(flag logo/ 6-color) |
| 3931 (opens in new tab) | Screws, 3x8mm flat-head machine (hex drive) (6) |
| 5185 (opens in new tab) | Tires, rubber (2) (fits Traxxas® wheelie bar wheels) |
| 4974 (opens in new tab) | Wheelie Bar arm (1)/ connector (1)/ 3x12 SS (hex drive) (4) |
| 3677X (opens in new tab) | Wheelie bar mount (1) / hardware (blue) |
| 3677A (opens in new tab) | Wheelie bar mount (1) / hardware (green) |
| 3677P (opens in new tab) | Wheelie bar mount (1) / hardware (pink) |
| 3677 (opens in new tab) | Wheelie bar mount (1)/ hardware (Stampede®, Rustler®, Bandit series) |
| 3678 (opens in new tab) | Wheelie bar, assembled (black) (fits Slash®, Stampede®, Rustler®, Bandit® series) |
| 3678X (opens in new tab) | Wheelie bar, assembled (blue) (fits Stampede®, Rustler®, Bandit series) |
| 3678A (opens in new tab) | Wheelie bar, assembled (green) (fits Slash®, Stampede®, Rustler®, Bandit® series) |
| 3678T (opens in new tab) | Wheelie bar, assembled (orange) (fits Slash®, Stampede®, Rustler®, Bandit® series) |
| 3678P (opens in new tab) | Wheelie bar, assembled (pink) (fits Slash, Stampede®, Rustler®, Bandit series) |
| 3678R (opens in new tab) | Wheelie bar, assembled (red) (fits Slash®, Stampede®, Rustler®, Bandit® series) |
| 4976 (opens in new tab) | Wheels (4)/ Axles (2), for Maxx® Wheelie Bar |
| 5186A (opens in new tab) | Wheels, aluminum (blue-anodized) (2)/ 5x8mm ball bearings (4)/ axles (2)/ rubber tires (2) |
| 5186 (opens in new tab) | Wheels, aluminum (red-anodized) (2)/ 5x8mm ball bearings (4)/ axles (2)/ rubber tires (2) |
| 2615 (opens in new tab) | Wing buttons (2)/ set screws (2)/ spacers (2)/ 3x8mm CS (2) |
| 2414 (opens in new tab) | Wing wire |
Chassis & Attachments
| Part # | Part |
|---|---|
| 9463X (opens in new tab) | Axle, wheelie bar, 6061-T6 aluminum (blue-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
| 9463 (opens in new tab) | Axle, wheelie bar, 6061-T6 aluminum (gray-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
| 9463G (opens in new tab) | Axle, wheelie bar, 6061-T6 aluminum (green-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
| 9463A (opens in new tab) | Axle, wheelie bar, 6061-T6 aluminum (orange-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
| 9463P (opens in new tab) | Axle, wheelie bar, 6061-T6 aluminum (pink-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
| 9463R (opens in new tab) | Axle, wheelie bar, 6061-T6 aluminum (red-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
| 3727 (opens in new tab) | Battery hold-down plate (black)/ metal posts (2)/body clips (2) |
| 3727A (opens in new tab) | Battery hold-down plate (grey) / metal posts (2) / body clips (2) |
| 3628 (opens in new tab) | Box, receiver (sealed)/ foam pad/2.5x8mm CS (4)/ 3x10mm CS (2) |
| 2735 (opens in new tab) | Bumper (front) |
| 2735P (opens in new tab) | Bumper (front) (pink) |
| 3735 | Bumper, front/ 4x12 CCS (2) (fits 2WD Rustler® or Bandit®) (for LED light kit installation) |
| 3728 (opens in new tab) | Lower chassis (black) (166mm long battery compartment) (fits both flat and hump style battery packs) |
| 3722X | Lower chassis (black) (166mm long battery compartment) (fits both flat and hump style battery packs)(use only with #3725R ESC mounting plate) |
| 3728A (opens in new tab) | Lower chassis (gray) (166mm long battery compartment) (fits both flat and hump style battery packs) |
| 3722R | Lower chassis (grey) (166mm long battery compartment) (fits both flat and hump style battery packs) (use only with #3725R ESC mounting plate) |
| 3725R (opens in new tab) | Mounting plate, electronic speed control (for installation of XL-5/VXL into Bandit or Rustler®) |
| 3629 (opens in new tab) | Seal kit, receiver box (includes o-ring, seals, and silicone grease) |
| 9462X (opens in new tab) | Side plates, wheelie bar, blue (aluminum) (2) |
| 9462 (opens in new tab) | Side plates, wheelie bar, charcoal gray (aluminum) (2) |
| 9462G (opens in new tab) | Side plates, wheelie bar, green (aluminum) (2) |
| 9462A (opens in new tab) | Side plates, wheelie bar, orange (aluminum) (2) |
| 9462P (opens in new tab) | Side plates, wheelie bar, pink (aluminum) (2) |
| 9462R (opens in new tab) | Side plates, wheelie bar, red (aluminum) (2) |
| 5185 (opens in new tab) | Tires, rubber (2) (fits Traxxas® wheelie bar wheels) |
| 3723 (opens in new tab) | Upper chassis (black) |
| 3729 | Upper chassis (black) |
| 3729A (opens in new tab) | Upper chassis (gray) |
| 3723A (opens in new tab) | Upper chassis (grey) |
| 4974 (opens in new tab) | Wheelie Bar arm (1)/ connector (1)/ 3x12 SS (hex drive) (4) |
| 3677X (opens in new tab) | Wheelie bar mount (1) / hardware (blue) |
| 3677A (opens in new tab) | Wheelie bar mount (1) / hardware (green) |
| 3677P (opens in new tab) | Wheelie bar mount (1) / hardware (pink) |
| 3677 (opens in new tab) | Wheelie bar mount (1)/ hardware (Stampede®, Rustler®, Bandit series) |
| 9464 (opens in new tab) | Wheelie bar mount (heavy duty) |
| 2477 | Wheelie bar mount/ 3x40 BCS (1)/ 3x30 BCS (1)/ 3x12 BCS (1) (for LED light kit installation) |
| 3678 (opens in new tab) | Wheelie bar, assembled (black) (fits Slash®, Stampede®, Rustler®, Bandit® series) |
| 3678X (opens in new tab) | Wheelie bar, assembled (blue) (fits Stampede®, Rustler®, Bandit series) |
| 3678A (opens in new tab) | Wheelie bar, assembled (green) (fits Slash®, Stampede®, Rustler®, Bandit® series) |
| 3678T (opens in new tab) | Wheelie bar, assembled (orange) (fits Slash®, Stampede®, Rustler®, Bandit® series) |
| 3678P (opens in new tab) | Wheelie bar, assembled (pink) (fits Slash, Stampede®, Rustler®, Bandit series) |
| 3678R (opens in new tab) | Wheelie bar, assembled (red) (fits Slash®, Stampede®, Rustler®, Bandit® series) |
| 9460 (opens in new tab) | Wheelie bar, black (assembled)/ wheelie bar mount |
| 9460X (opens in new tab) | Wheelie bar, black chrome (assembled)/ wheelie bar mount |
| 4976 (opens in new tab) | Wheels (4)/ Axles (2), for Maxx® Wheelie Bar |
| 5186A (opens in new tab) | Wheels, aluminum (blue-anodized) (2)/ 5x8mm ball bearings (4)/ axles (2)/ rubber tires (2) |
| 5186 (opens in new tab) | Wheels, aluminum (red-anodized) (2)/ 5x8mm ball bearings (4)/ axles (2)/ rubber tires (2) |
| 9461X (opens in new tab) | Wheels, wheelie bar, 6061-T6 aluminum (blue-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
| 9461T (opens in new tab) | Wheels, wheelie bar, 6061-T6 aluminum (gray-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
| 9461G (opens in new tab) | Wheels, wheelie bar, 6061-T6 aluminum (green-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
| 9461A (opens in new tab) | Wheels, wheelie bar, 6061-T6 aluminum (orange-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
| 9461P (opens in new tab) | Wheels, wheelie bar, 6061-T6 aluminum (pink-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
| 9461R (opens in new tab) | Wheels, wheelie bar, 6061-T6 aluminum (red-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
| 9461 (opens in new tab) | Wheels, wheelie bar, black (26mm (2), 18mm (2)) |
Differential Components
| Part # | Part |
|---|---|
| 2380 (opens in new tab) | Differential, complete (fits 1/10-scale 2WD Rustler®, Bandit, Stampede®, Slash®) |
| 2381X (opens in new tab) | Main diff with steel ring gear/ side cover plate/ screws (Bandit, Stampede®, Rustler®) |
| 2382 (opens in new tab) | Planet gears (4)/ planet shafts (4)/ sun gears (2)/sun gear alignment shaft (1) all hardened steel |
| 2388X (opens in new tab) | Planetary gear differential with steel ring gear (complete) (fits Bandit, Stampede®, Rustler®) |
| 1647 (opens in new tab) | Silicone Grease |
Driveline Components
| Part # | Part |
|---|---|
| 4628R (opens in new tab) | Differential output yokes, black (2)/ 3x5mm countersunk screws (2)/ screw pin (2) |
| 4628X (opens in new tab) | Differential output yokes, hardened steel (w/ U-joints) (2) |
| 9450 (opens in new tab) | Driveshaft assembly (1), left or right (fully assembled, ready to install)/ screw pin (1) |
| 9450R (opens in new tab) | Driveshafts, rear, steel-spline constant-velocity (complete assembly) (2) |
| 9451 | Half shaft, external splined (steel-spline constant velocity) (1) (fits #9450R rear steel CV driveshaft) (for Bandit®, Bandit® VXL, Drag Slash®) |
| 2751 (opens in new tab) | Half-shaft pro-pack (intemal-splined (6)/extemal (6)) (plastic shafts only) |
| 1651 (opens in new tab) | Half-shafts (internal-splined (2)/external-splined (2))/ metal U-joints (4) |
| 3652 (opens in new tab) | Stub axle carriers (2) |
| 3752 (opens in new tab) | Stub axle carriers (2) (requires 5x11x4mm bearings) |
| 3652A (opens in new tab) | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (blue-anodized)/ 5x11mm ball bearings (4) |
| 3652G (opens in new tab) | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (green-anodized)/ 5x11mm ball bearings (4) |
| 3652T (opens in new tab) | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (orange-anodized)/ 5x11mm ball bearings (4) |
| 3652P (opens in new tab) | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (pink-anodized)/ 5x11mm ball bearings (4) |
| 3652X (opens in new tab) | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (red-anodized)/ 5x11mm ball bearings (4) |
| 2754 (opens in new tab) | Stub axle pins (4) |
| 2753X (opens in new tab) | Stub axles, rear (2) |
Front Suspension & Steering
| Part # | Part |
|---|---|
| 2537 (opens in new tab) | 3mm threaded rods: 1 each of 20mm,25mm&44mm |
| 5114 (opens in new tab) | Ball bearings, blue rubber shield (5x8x2.5mm) (2) |
| 2530 | Bulkhead (front) (black) |
| 2530A (opens in new tab) | Bulkhead (front) (grey) |
| 2545 (opens in new tab) | Bushings (plastic) (5x8x2.5mm) (4) |
| 2432 (opens in new tab) | Caster blocks (left & right) (30-degree) |
| 2437 (opens in new tab) | Front axles (2) |
| 1942 (opens in new tab) | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 5525R (opens in new tab) | Rod ends, heavy duty (Jato®/Slayer) (8) |
| 2742 (opens in new tab) | Rod ends, long (6)/ hollow ball connectors (6) |
| 5347 (opens in new tab) | Rod ends, Revo® (large) with hollow balls (12) |
| 2742X (opens in new tab) | Rod ends, short (6)/ hollow balls (6) |
| 3744 (opens in new tab) | Servo saver w/ adapters |
| 3639 (opens in new tab) | Shock tower (front) |
| 3636 (opens in new tab) | Steering blocks (L&R) |
| 3736 (opens in new tab) | Steering blocks, left & right (2) (requires 5x11x4mm bearings) |
| 3636A (opens in new tab) | Steering blocks, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (blue-anodized)/ 5x11mm ball bearings (4) |
| 3636G (opens in new tab) | Steering blocks, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (green-anodized)/ 5x11mm ball bearings (4) |
| 3636T (opens in new tab) | Steering blocks, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (orange-anodized)/ 5x11mm ball bearings (4) |
| 3636P (opens in new tab) | Steering blocks, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (pink-anodized)/ 5x11mm ball bearings (4) |
| 3636X (opens in new tab) | Steering blocks, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (red-anodized)/ 5x11mm ball bearings (4) |
| 2531X (opens in new tab) | Suspension arms (front) (2) |
| 2531A (opens in new tab) | Suspension arms, black, front, heavy duty (2) (requires #3632 series caster block and #3640 screw pin set) |
| 2531L (opens in new tab) | Suspension arms, blue, front, heavy duty (2) (requires #3632 series caster block and #3640 screw pin set) |
| 2531G (opens in new tab) | Suspension arms, green, front, heavy duty (2) (requires #3632 series caster block and #3640 screw pin set) |
| 2531T (opens in new tab) | Suspension arms, orange, front, heavy duty (2) (requires #3632 series caster block and #3640 screw pin set) |
| 2531R (opens in new tab) | Suspension arms, red, front, heavy duty (2) (requires #3632 series caster block and #3640 screw pin set) |
| 3740 (opens in new tab) | Suspension pins, 2.5x31.5mm (king pins) w/ E-clips (2) (strengthens caster blocks) |
| 2640 (opens in new tab) | Suspension pins, 44mm (2) w/ E-clips (Use with tie bar to strengthen front bulkhead) |
| 3640 (opens in new tab) | Suspension screw pin set, steel (hex drive) (requires part # 2640 for a complete suspension pin set) (Rustler®, Stampede®, Bandit) |
| 2532 (opens in new tab) | Tie bar, fiberglass (requires suspension pins, part# 2640) |
| 2444 (opens in new tab) | Turnbuckles, camber link, 47mm (67mm center to center) (front) (assembled with rod ends and hollow balls) (1 left, 1 right) |
| 2445 (opens in new tab) | Turnbuckles, toe link, 55mm (75mm center to center) (2) (assembled with rod ends and hollow balls) |
Hardware
| Part # | Part |
|---|---|
| 2537 (opens in new tab) | 3mm threaded rods: 1 each of 20mm,25mm&44mm |
| 4363 (opens in new tab) | Ball screws (3x12mm) (lower shock attachment screws) (6) |
| 1834 (opens in new tab) | Body Clips (12) (standard size) |
| 3934 (opens in new tab) | Body clips, heavy duty (12) |
| 3980 (opens in new tab) | Glow plug wrench (Universal wrench) |
| 1552 (opens in new tab) | Motor screws, 3x8mm hex cap (6)/ washers (6)/ wrench |
| 1747P (opens in new tab) | Nuts, 4mm flanged nylon locking (aluminum, pink anodized) (4) |
| 3647 (opens in new tab) | Nuts, 4mm flanged nylon locking (steel, serrated) (8) |
| 1747 (opens in new tab) | Nuts, 4mm nylon locking (10) |
| 1747R (opens in new tab) | Nuts, aluminum, flanged, serrated (4mm) (blue-anodized) (4) |
| 1747G (opens in new tab) | Nuts, aluminum, flanged, serrated (4mm) (green-anodized) (4) |
| 1747T (opens in new tab) | Nuts, aluminum, flanged, serrated (4mm) (orange-anodized) (4) |
| 1747A (opens in new tab) | Nuts, aluminum, flanged, serrated (4mm) (red-anodized) (4) |
| 1985 (opens in new tab) | PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings) |
| 1942 (opens in new tab) | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 5525R (opens in new tab) | Rod ends, heavy duty (Jato®/Slayer) (8) |
| 2742 (opens in new tab) | Rod ends, long (6)/ hollow ball connectors (6) |
| 5347 (opens in new tab) | Rod ends, Revo® (large) with hollow balls (12) |
| 2742X (opens in new tab) | Rod ends, short (6)/ hollow balls (6) |
| 3739 (opens in new tab) | Screw pin set (Rustler®/ Bandit/ Stampede®) |
| 3288 (opens in new tab) | Screw, 3x15mm washerhead self-tapping (6) |
| 3229 (opens in new tab) | Screws, 2.5x10mm cap-head machine (hex drive) (6) |
| 3965 (opens in new tab) | Screws, 2.5x8mm cap-head machine (6) |
| 2587 (opens in new tab) | Screws, 3x10mm caphead machine (6) (no washer) |
| 2675 (opens in new tab) | Screws, 3x10mm roundhead self-tapping (6) |
| 2648 (opens in new tab) | Screws, 3x12mm countersunk self-tapping (6) |
| 2676 (opens in new tab) | Screws, 3x12mm roundhead self-tapping (6) |
| 3186 (opens in new tab) | Screws, 3x12mm washerhead machine (6) |
| 3286 (opens in new tab) | Screws, 3x12mm washerhead self-tapping (6) |
| 2649 | Screws, 3x15mm countersunk self-tapping (6) |
| 2563 (opens in new tab) | Screws, 3x15mm roundhead machine (6) |
| 3187 (opens in new tab) | Screws, 3x15mm washerhead machine (6) |
| 2566 (opens in new tab) | Screws, 3x20mm roundhead machine (6) |
| 2567 (opens in new tab) | Screws, 3x23mm roundhead machine (6) |
| 2554 (opens in new tab) | Screws, 3x6mm caphead machine (hex drive) (6) |
| 2558 (opens in new tab) | Screws, 3x6mm roundhead machine (6) |
| 3185X (opens in new tab) | Screws, 3x8mm washerhead machine (large head for motor mount) (6) |
| 3290 (opens in new tab) | Screws, 3x8mm washerhead self-tapping (6) |
| 2548 (opens in new tab) | Screws, 4x12mm countersunk machine (100-degree) (6) |
| 3167 (opens in new tab) | Screws, 4x15mm countersunk machine (6) |
| 2743 (opens in new tab) | Set (grub) screws, 3mm hardened (12) |
| 3742 (opens in new tab) | Shoulder screws, steering bellcranks (3x30mm cap-head machine) (2)/ draglink shoulder screws (chrome) (2) |
| 3642 (opens in new tab) | Shoulder screws, Ultra shocks (3x12) (6) |
| 2754 (opens in new tab) | Stub axle pins (4) |
| 3740 (opens in new tab) | Suspension pins, 2.5x31.5mm (king pins) w/ E-clips (2) (strengthens caster blocks) |
| 2637 (opens in new tab) | Suspension pins, 31.5mm, chrome (2) w/ E-clips (4) |
| 2746 (opens in new tab) | Washers, 3x6mm metal (12) |
| 2615 (opens in new tab) | Wing buttons (2)/ set screws (2)/ spacers (2)/ 3x8mm CS (2) |
LED Lights
| Part # | Part |
|---|---|
| 3791 (opens in new tab) | LED light bar, front (assembled)/ 3x8 BCS (2)/ 2.5x8 BCS (2) (requires #3735 front bumper for 2WD Rustler® or Bandit®) |
| 3795 | LED light harness, rear (requires #2477 wheelie bar mount) |
| 3794 (opens in new tab) | LED light set, complete (includes front and rear bumpers with LED light bar, rear LED harness, & BEC Y-harness) (fits 2WD Rustler® or Bandit®) |
| 2263 (opens in new tab) | Y-harness, BEC to LED light set |
Motors & Electronics
| Part # | Part |
|---|---|
| 1726 (opens in new tab) | Antenna, tube (1)/ vinyl antenna cap (1)/ wire retainer (1) |
| 2260 (opens in new tab) | BEC assembly (complete) (12.6 volts (3s LiPo) maximum input voltage) |
| 3790 (opens in new tab) | Gear adapter, fixed |
| 2053 (opens in new tab) | Gear set (for 2055, 2056 servos) |
| 2072A (opens in new tab) | Gear set (for 2070, 2075 servos) |
| 2252 (opens in new tab) | Gear set, metal (for 2250, 2255 servos) |
| 2272 (opens in new tab) | Gear set, metal (for 2270 waterproof servo) |
| 1552 (opens in new tab) | Motor screws, 3x8mm hex cap (6)/ washers (6)/ wrench |
| 1275 (opens in new tab) | Motor, Stinger (20-turn, 540 size) |
| 3785 (opens in new tab) | Motor, Titan® 12T (12-Turn, 550 size) |
| 3351R (opens in new tab) | Motor, Velineon® 3500, brushless (assembled with 12-gauge wire and gold-plated bullet connectors) |
| 3725R (opens in new tab) | Mounting plate, electronic speed control (for installation of XL-5/VXL into Bandit or Rustler®) |
| 2254 (opens in new tab) | Servo case, aluminum (middle) (blue-anodized) (for 2250 servo) |
| 2253 (opens in new tab) | Servo case, aluminum (middle) (red-anodized) (for 2255 servo) |
| 2251 (opens in new tab) | Servo case, plastic (top, middle, bottom)/ gaskets/ hardware (for 2250, 2255 servos) |
| 2271 (opens in new tab) | Servo case/ gaskets (for 2270 waterproof servo) |
| 2074 (opens in new tab) | Servo case/gaskets (for 2056 and 2075 waterproof servos) |
| 2075R (opens in new tab) | Servo, digital high-speed, metal gear (ball bearing), waterproof |
| 2075 (opens in new tab) | Servo, digital high-torque (ball bearing), waterproof |
| 2250 (opens in new tab) | Servo, digital high-torque 300 coreless, metal gear (ball bearing), waterproof |
| 2255 (opens in new tab) | Servo, digital high-torque 400 brushless, metal gear (ball bearing), waterproof |
| 2270 (opens in new tab) | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 2075X (opens in new tab) | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 2056 (opens in new tab) | Servo, high-torque, waterproof (blue case) |
| 3350R (opens in new tab) | Velineon® VXL-3s Brushless Power System, waterproof (includes VXL-3s waterproof ESC , Velineon® 3500 motor, and speed control mounting plate (part #3725)) |
| 3355R (opens in new tab) | VXL-3s Waterproof Electronic Speed Control (brushless) (fwd/rev/brake) |
| 3018R (opens in new tab) | XL-5 Electronic Speed Control, waterproof (land version, low-voltage detection, fwd/rev/brake) |
Radio System, Batteries & Chargers
| Part # | Part |
|---|---|
| 2842X (opens in new tab) | 5000mah 7.4v 2-Cell 25C LiPo Battery |
| 2843X (opens in new tab) | 5800mah 7.4v 2-Cell 25C LiPo Battery |
| 2869X (opens in new tab) | 7600mah 7.4v 2-Cell 25C LiPo Battery |
| 2914 (opens in new tab) | AA 4PK |
| 2976 (opens in new tab) | AC to DC adapter |
| 2938X (opens in new tab) | Adapter, Traxxas® iD® LiPo battery (adapts Traxxas® iD® batteries to separate balance ports) |
| 2943 (opens in new tab) | Battery charge indicators, green (4), grey (4), blue (4) |
| 6548 (opens in new tab) | Battery door, TQ 2.4 transmitter (replacement for #6516, 6517 transmitter) |
| 2923X (opens in new tab) | Battery, Power Cell, 3000mAh (NiMH, 7-C flat, 8.4V) |
| 2926X (opens in new tab) | Battery, Power Cell, 3000mAh (NiMH, 7-C hump, 8.4V) |
| 2942X (opens in new tab) | Battery, Series 3 Power Cell, 3300mAh (NiMH, 6-C flat, 7.2V) |
| 2940X (opens in new tab) | Battery, Series 3 Power Cell, 3300mAh (NiMH, 7-C flat, 8.4V) |
| 2941X (opens in new tab) | Battery, Series 3 Power Cell, 3300mAh (NiMH, 7-C hump, 8.4V) |
| 2952X (opens in new tab) | Battery, Series 4 Power Cell, 4200mAh (NiMH, 6-C flat, 7.2V) |
| 2950X (opens in new tab) | Battery, Series 4 Power Cell, 4200mAh (NiMH, 7-C flat, 8.4V) |
| 2951X (opens in new tab) | Battery, Series 4 Power Cell, 4200mAh (NiMH, 7-C hump, 8.4V) |
| 2960X (opens in new tab) | Battery, Series 5 Power Cell, 5000mAh (NiMH, 7-C flat, 8.4V) |
| 2961X (opens in new tab) | Battery, Series 5 Power Cell, 5000mAh (NiMH, 7-C hump, 8.4V) |
| 2983 (opens in new tab) | Battery/charger completer pack (includes #2969 2-amp NiMH peak detecting AC charger (1), #2923X 3000mAh 8.4V 7-cell NiMH iD® battery (1)) |
| 2984 (opens in new tab) | Battery/charger completer pack (includes #2969 2-amp NiMH peak detecting AC charger (1), #2926X 3000mAh 8.4V 7-cell NiMH iD® battery (1)) |
| 2992 (opens in new tab) | Battery/charger completer pack (includes #2970 iD® charger (1), #2843X 5800mAh 7.4V 2-cell 25C LiPo iD® battery (1)) |
| 2260 (opens in new tab) | BEC assembly (complete) (12.6 volts (3s LiPo) maximum input voltage) |
| 2975 (opens in new tab) | Charger, D/C, 4 amp (6 - 7 cell, 7.2 - 8.4 volt, NiMH) |
| 2972 (opens in new tab) | Charger, EZ-Peak Dual, 100W, NiMH/LiPo with iD Auto Battery Identification |
| 2973 (opens in new tab) | Charger, EZ-Peak Live Dual, 200W, NiMH/LiPo with iD Auto Battery Identification |
| 2970 (opens in new tab) | Charger, EZ-Peak Plus, 4 amp, NiMH/LiPo with iD Auto Battery Identification |
| 2971 (opens in new tab) | Charger, EZ-Peak® Live, 100W, NiMH/LiPo with iD® Auto Battery Identification |
| 2981 (opens in new tab) | Charger, EZ-Peak® Plus 4s, 8 amp, NiMH/LiPo with iD® Auto Battery Identification |
| 2978 (opens in new tab) | Fuse, D/C charger, 5A (2) (for #2974, 2975, 2977) |
| 2053 (opens in new tab) | Gear set (for 2055, 2056 servos) |
| 2072A (opens in new tab) | Gear set (for 2070, 2075 servos) |
| 2252 (opens in new tab) | Gear set, metal (for 2250, 2255 servos) |
| 2272 (opens in new tab) | Gear set, metal (for 2270 waterproof servo) |
| 2968X (opens in new tab) | LiPo cell voltage checker/balancer (includes #2938X adapter for Traxxas® iD® batteries) |
| 2968 (opens in new tab) | LiPo cell voltage checker/balancer (requires #2938X adapter for Traxxas® iD® batteries) |
| 6554X (opens in new tab) | Mount, telemetry expander (fits Rustler®, Bandit, Slash 2WD) |
| 6535 (opens in new tab) | Mount, temperature sensor (electric motors)/ wire tie/ thermal pad |
| 6519 (opens in new tab) | Receiver, micro, TQ 2.4GHz (3-channel) |
| 6526 (opens in new tab) | Sensor, auto-detectable, temperature |
| 6527 (opens in new tab) | Sensor, auto-detectable, voltage |
| 6520 (opens in new tab) | Sensor, RPM (long)/ 3x4mm BCS (1)/ 3x4 GS (1) |
| 6521 (opens in new tab) | Sensor, temperature and voltage (long) |
| 2254 (opens in new tab) | Servo case, aluminum (middle) (blue-anodized) (for 2250 servo) |
| 2253 (opens in new tab) | Servo case, aluminum (middle) (red-anodized) (for 2255 servo) |
| 2251 (opens in new tab) | Servo case, plastic (top, middle, bottom)/ gaskets/ hardware (for 2250, 2255 servos) |
| 2271 (opens in new tab) | Servo case/ gaskets (for 2270 waterproof servo) |
| 2074 (opens in new tab) | Servo case/gaskets (for 2056 and 2075 waterproof servos) |
| 2075R (opens in new tab) | Servo, digital high-speed, metal gear (ball bearing), waterproof |
| 2075 (opens in new tab) | Servo, digital high-torque (ball bearing), waterproof |
| 2250 (opens in new tab) | Servo, digital high-torque 300 coreless, metal gear (ball bearing), waterproof |
| 2255 (opens in new tab) | Servo, digital high-torque 400 brushless, metal gear (ball bearing), waterproof |
| 2075X (opens in new tab) | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 2270 (opens in new tab) | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 2056 (opens in new tab) | Servo, high-torque, waterproof (blue case) |
| 6553X (opens in new tab) | Telemetry Expander 2.0 and GPS module 2.0, TQi radio system |
| 6550X (opens in new tab) | Telemetry expander 2.0, TQi radio system (for use only with #6551X GPS module) |
| 6551X (opens in new tab) | Telemetry GPS module 2.0, TQi radio system (for use only with #6550X telemetry expander) |
| 6538 (opens in new tab) | Telemetry trigger magnet holders, spur gear/ magnet, 5x2mm (1)/ 3x8mm CCS (3)/ 3x10mm CCS (3) |
| 6540 (opens in new tab) | Telemetry trigger magnet, 5X2mm (1) |
| 6509R | TQi 2.4 GHz High Output radio system, 2-channel, Traxxas® Link enabled, TSM® (2-ch transmitter, 5-ch micro receiver) |
| 6507R | TQi 2.4 GHz High Output radio system, 4-channel with Traxxas® Link Bluetooth® module, TSM® (4-ch transmitter, 5-ch micro receiver) |
| 6516 (opens in new tab) | Transmitter, TQ 2.4GHz, 2-channel (transmitter only) |
| 6528 (opens in new tab) | Transmitter, TQi Traxxas® Link enabled, 2.4GHz high output, 2- channel (transmitter only) |
| 6529 (opens in new tab) | Transmitter, TQi Traxxas® Link enabled, 2.4GHz high output, 3- channel (transmitter only) |
| 6530 (opens in new tab) | Transmitter, TQi Traxxas® Link enabled, 2.4GHz high output, 4- channel (transmitter only) |
| 6511 (opens in new tab) | Traxxas® Link Bluetooth® module |
| 6537 (opens in new tab) | Wire retainers, gear cover/ 3x4mm BCS (2) |
| 3018R (opens in new tab) | XL-5 Electronic Speed Control, waterproof (land version, low-voltage detection, fwd/rev/brake) |
Ready-To-Race Model
| Part # | Part |
|---|
Rear Suspension
| Part # | Part |
|---|---|
| 9450 (opens in new tab) | Driveshaft assembly (1), left or right (fully assembled, ready to install)/ screw pin (1) |
| 3638 | Shock tower (rear) |
| 3652 (opens in new tab) | Stub axle carriers (2) |
| 3752 (opens in new tab) | Stub axle carriers (2) (requires 5x11x4mm bearings) |
| 3652A (opens in new tab) | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (blue-anodized)/ 5x11mm ball bearings (4) |
| 3652G (opens in new tab) | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (green-anodized)/ 5x11mm ball bearings (4) |
| 3652T (opens in new tab) | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (orange-anodized)/ 5x11mm ball bearings (4) |
| 3652P (opens in new tab) | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (pink-anodized)/ 5x11mm ball bearings (4) |
| 3652X (opens in new tab) | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (red-anodized)/ 5x11mm ball bearings (4) |
| 2753X (opens in new tab) | Stub axles, rear (2) |
| 2750A (opens in new tab) | Suspension arms, black, rear (left & right), heavy duty (2) |
| 2750X (opens in new tab) | Suspension arms, blue, rear (left & right), heavy duty (2) |
| 2750G (opens in new tab) | Suspension arms, green, rear (left & right), heavy duty (2) |
| 2750T (opens in new tab) | Suspension arms, orange, rear (left & right), heavy duty (2) |
| 2750L (opens in new tab) | Suspension arms, red, rear (left & right), heavy duty (2) |
| 3640 (opens in new tab) | Suspension screw pin set, steel (hex drive) (requires part # 2640 for a complete suspension pin set) (Rustler®, Stampede®, Bandit) |
Shock Oil
| Part # | Part |
|---|---|
| 5031 (opens in new tab) | Oil, shock (20 wt, 200 cSt, 60cc) (silicone) |
| 5032 (opens in new tab) | Oil, shock (30 wt, 350 cSt, 60cc) (silicone) |
| 5033 (opens in new tab) | Oil, shock (40 wt, 500 cSt, 60cc) (silicone) |
| 5034 (opens in new tab) | Oil, shock (50 wt, 600 cSt, 60cc) (silicone) |
| 5035 (opens in new tab) | Oil, shock (60 wt, 700 cSt, 60cc) (silicone) |
| 5036 (opens in new tab) | Oil, shock (70 wt, 900 cSt, 60cc) (silicone) |
| 5037 (opens in new tab) | Oil, shock (80 wt, 1,000 cSt, 60cc) (silicone) |
| 5029 | Shock oil bottle (60cc) (for mixing shock oil) |
| 5038X (opens in new tab) | Shock oil set (includes 20 wt, 30 wt, 40 wt, 50 wt, 60 wt, 70 wt, & 80 wt premium shock oils with spinning carousel rack) |
| 5038 (opens in new tab) | Spinning carousel rack |
Shocks (Pro-level Aluminum)
| Part # | Part |
|---|---|
| 2664 (opens in new tab) | Big Bore shock cylinder (long) (1) |
| 5862 (opens in new tab) | Big Bore shocks (hard-anodized & PTFE-coated T6 aluminum) (assembled with TiN shafts and springs) (front & rear) (4) |
| 2660 (opens in new tab) | Big-bore shocks (long) (hard-anodized & PTFE-coated T6 aluminum) (assembled with TiN shafts) w/o springs (rear) (2) |
| 2662 (opens in new tab) | Big-bore shocks (xx-long) (hard-anodized & PTFE-coated T6 aluminum) (assembled with TiN shafts) w/o springs (rear) (2) |
| 2669 (opens in new tab) | Piston head set (2-hole (2)/ 3-hole (2))/ shock mounting bushings & washers (2) (Big Bore Shocks) |
| 1942 (opens in new tab) | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 2742X (opens in new tab) | Rod ends, short (6)/ hollow balls (6) |
| 2667 (opens in new tab) | Shock caps, aluminum (2) (Big Bore Shocks) |
| 2362 (opens in new tab) | Shock rebuild kit (for 2 shocks) |
| 1664T (opens in new tab) | Shock shafts, hardened steel, titanium nitride coated (long) (2) |
| 2656T (opens in new tab) | Shock shafts, hardened steel, titanium nitride coated (xx-long) (2) |
| 1664 (opens in new tab) | Shock shafts, steel, chrome finish (long) (2) |
| 2765 (opens in new tab) | Shock shafts, steel, chrome finish (x-long) (2) |
| 1765 (opens in new tab) | Silicone diaphragms (4) |
| 2668 (opens in new tab) | Spring retainers, upper & lower (2)/ spring pre-load spacers: 1mm (4)/ 1.5mm (2)/ 2mm (2)/ 4mm (2)/ 8mm (2) (Big Bore Shocks) |
| 5860 (opens in new tab) | Springs, front (white) (progressive rate) (2) (for Slash big bore shocks) |
| 5859 (opens in new tab) | Springs, rear (white) (progressive rate) (2) (for Slash big bore shocks) |
Shocks (Ultra Shocks)
| Part # | Part |
|---|---|
| 3642 (opens in new tab) | Attachment screws, shock (3x12mm shoulder screws) (6) |
| 3765A (opens in new tab) | Body, Ultra Shock (long) (grey) (2) |
| 3766A (opens in new tab) | Body, Ultra Shock (XXL) (grey) (2) |
| 1942 (opens in new tab) | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 2742X (opens in new tab) | Rod ends, short (6)/ hollow balls (6) |
| 3767 (opens in new tab) | Shock caps (2)/ shock bottoms (2) |
| 8361 (opens in new tab) | Shock caps (black) (4) (assembled with hollow balls) |
| 3767A (opens in new tab) | Shock caps, aluminum (blue-anodized) (4) (fits all Ultra Shocks) |
| 3767G (opens in new tab) | Shock caps, aluminum (green-anodized) (4) (fits all Ultra Shocks) |
| 3767T (opens in new tab) | Shock caps, aluminum (orange-anodized) (4) (fits all Ultra Shocks) |
| 3767P (opens in new tab) | Shock caps, aluminum (pink-anodized) (4) (fits all Ultra Shocks) |
| 3767X (opens in new tab) | Shock caps, aluminum (red-anodized) (4) (fits all Ultra Shocks) |
| 2362 (opens in new tab) | Shock rebuild kit (for 2 shocks) |
| 1664T (opens in new tab) | Shock shafts, hardened steel, titanium nitride coated (long) (2) |
| 2765T (opens in new tab) | Shock shafts, hardened steel, titanium nitride coated (x-long) (2) |
| 1664 (opens in new tab) | Shock shafts, steel, chrome finish (long) (2) |
| 2765 (opens in new tab) | Shock shafts, steel, chrome finish (x-long) (2) |
| 1765 (opens in new tab) | Silicone diaphragms (4) |
| 3769 (opens in new tab) | Spring pre-load spacers: 1mm (4)/ 2mm (2)/ 4mm (2)/ 8mm (2) |
| 3768 (opens in new tab) | Spring retainers, upper & lower (2)/ piston head set (2-hole (2)/ 3-hole (2)) |
| 2457 (opens in new tab) | Spring, rear(black) (2) |
| 2458P (opens in new tab) | Springs (front) (pink) (2) |
| 2458A (opens in new tab) | Springs (front) (white) (2) |
| 2457P (opens in new tab) | Springs, (rear) (pink) (2) |
| 2458 (opens in new tab) | Springs, front (black) (2) |
| 2457A (opens in new tab) | Springs, rear (white) (2) |
| 3760 (opens in new tab) | Ultra Shocks (black) (long) (complete w/ spring pre-load spacers & springs) (front) (2) |
| 3762 (opens in new tab) | Ultra Shocks (black) (xx-long) (complete w/ spring pre-load spacers & springs) (rear) (2) |
| 3760A (opens in new tab) | Ultra Shocks (grey) (long) (complete w/ spring pre-load spacers & springs) (2) |
| 3762A (opens in new tab) | Ultra Shocks (grey) (xx-long) (complete w/ spring pre-load spacers & springs) (rear) (2) |
Slipper Clutch Components
| Part # | Part |
|---|---|
| 3793 (opens in new tab) | Input shaft (slipper shaft) / spring pin |
| 5552X (opens in new tab) | Rebuild kit, slipper clutch (steel disc/ friction pads (3)/ spring (2)/ pin/ 4.0mm NL (1)/ 5.0mm NL (1)) |
| 2554 (opens in new tab) | Screws, 3x6mm caphead machine (hex drive) (6) |
| 5556 (opens in new tab) | Slipper pressure plate & hub (aluminum alloy) |
Spur Gears & Pinion Gears
| Part # | Part |
|---|---|
| 3790 (opens in new tab) | Gear adapter, fixed |
| 2416 (opens in new tab) | Gear, 16-T pinion (48-pitch) / set screw |
| 1918 (opens in new tab) | Gear, 18-T pinion (48-pitch) / set screw |
| 2419 (opens in new tab) | Gear, 19-T pinion (48-pitch) / set screw |
| 2421 (opens in new tab) | Gear, 21-T pinion (48-pitch) / set screw |
| 2423 (opens in new tab) | Gear, 23-T pinion (48-pitch) (fits 3mm shaft)/ set screw |
| 2426 (opens in new tab) | Gear, 26-T pinion (48-pitch) (fits 3mm shaft)/ set screw |
| 2431 (opens in new tab) | Gear, 31-T pinion (48-pitch) (fits 3mm shaft)/ set screw |
| 4725 (opens in new tab) | Gear, pinion (25-tooth) (48-pitch) / set screw |
| 4676 (opens in new tab) | Spur gear, 76-tooth (48-pitch) (for models with Torque Control slipper clutch) |
| 4683 (opens in new tab) | Spur gear, 83-tooth (48-pitch) (for models with Torque Control slipper clutch) |
| 4686 (opens in new tab) | Spur gear, 86-tooth (48-pitch) (for models with Torque-Control slipper clutch) |
| 4690 (opens in new tab) | Spur gear, 90-tooth (48-pitch) (for models with Torque-Control slipper clutch) |
Steering Components
| Part # | Part |
|---|---|
| 2537 (opens in new tab) | 3mm threaded rods: 1 each of 20mm,25mm&44mm |
| 5114 (opens in new tab) | Ball bearings, blue rubber shield (5x8x2.5mm) (2) |
| 2545 (opens in new tab) | Bushings (plastic) (5x8x2.5mm) (4) |
| 1942 (opens in new tab) | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 2742 (opens in new tab) | Rod ends, long (6)/ hollow ball connectors (6) |
| 5347 (opens in new tab) | Rod ends, Revo® (large) with hollow balls (12) |
| 2742X (opens in new tab) | Rod ends, short (6)/ hollow balls (6) |
| 3744 (opens in new tab) | Servo saver w/ adapters |
| 3742 (opens in new tab) | Shoulder screws, steering bellcranks (3x30mm cap-head machine) (2)/ draglink shoulder screws (chrome) (2) |
| 3743 (opens in new tab) | Steering bellcranks (l&r)/ draglink |
| 3743A (opens in new tab) | Steering bellcranks, drag link (blue-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743G (opens in new tab) | Steering bellcranks, drag link (green-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743T (opens in new tab) | Steering bellcranks, drag link (orange-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743P (opens in new tab) | Steering bellcranks, drag link (pink-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743X (opens in new tab) | Steering bellcranks, drag link (red-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 6845X (opens in new tab) | Steering bellcranks/ servo saver/ servo saver spring/ servo spring retainer/servo horn, steering |
| 1937 (opens in new tab) | Turnbuckles (54mm) (2)/ 3x6x4mm aluminum spacers (rear camber links) |
| 2445 (opens in new tab) | Turnbuckles, toe link, 55mm (75mm center to center) (2) (assembled with rod ends and hollow balls) |
Suspension Linkage
| Part # | Part |
|---|---|
| 3642 (opens in new tab) | Attachment screws, shock (3x12mm shoulder screws) (6) |
| 2441A (opens in new tab) | Camber link set for Bandit (grey) (plastic/ non-adjustable) |
| 2441 (opens in new tab) | Camber link set for Bandit® (plastic/ non-adjustable) |
| 2444X | Camber links, front (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2444A | Camber links, front (TUBES charcoal gray-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2444G | Camber links, front (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2444T | Camber links, front (TUBES orange-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2444P | Camber links, front (TUBES pink-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2444R | Camber links, front (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2443X | Camber links, rear (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2443A | Camber links, rear (TUBES charcoal gray-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2443G | Camber links, rear (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2443T | Camber links, rear (TUBES orange-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2443P | Camber links, rear (TUBES pink-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2443R | Camber links, rear (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 1942 (opens in new tab) | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 5525R (opens in new tab) | Rod ends, heavy duty (Jato®/Slayer) (8) |
| 2742 (opens in new tab) | Rod ends, long (6)/ hollow ball connectors (6) |
| 5347 (opens in new tab) | Rod ends, Revo® (large) with hollow balls (12) |
| 2742X (opens in new tab) | Rod ends, short (6)/ hollow balls (6) |
| 3739 (opens in new tab) | Screw pin set (Rustler®/ Bandit/ Stampede®) |
| 3740 (opens in new tab) | Suspension pins, 2.5x31.5mm (king pins) w/ E-clips (2) (strengthens caster blocks) |
| 2637 (opens in new tab) | Suspension pins, 31.5mm, chrome (2) w/ E-clips (4) (front suspension arm to caster block) |
| 2640 (opens in new tab) | Suspension pins, 44mm (2) w/ E-clips (Use with tie bar to strengthen front bulkhead) |
| 3640 (opens in new tab) | Suspension screw pin set, steel (hex drive) (requires part # 2640 for a complete suspension pin set) (Rustler®, Stampede®, Bandit) |
| 2445X | Toe links, front (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2445A | Toe links, front (TUBES charcoal gray-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2445G | Toe links, front (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2445T | Toe links, front (TUBES orange-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2445P | Toe links, front (TUBES pink-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2445R | Toe links, front (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 1937 (opens in new tab) | Turnbuckles (54mm) (2)/ 3x6x4mm aluminum spacers (rear camber links) |
| 1935 (opens in new tab) | Turnbuckles, 36mm (2) |
| 2443 (opens in new tab) | Turnbuckles, camber link, 36mm (56mm center to center) (rear) (assembled with rod ends and hollow balls) (1 left, 1 right) |
| 2444 (opens in new tab) | Turnbuckles, camber link, 47mm (67mm center to center) (front) (assembled with rod ends and hollow balls) (1 left, 1 right) |
| 2445 (opens in new tab) | Turnbuckles, toe link, 55mm (75mm center to center) (2) (assembled with rod ends and hollow balls) |
Team Traxxas Items
| Part # | Part |
|---|---|
| 2514 (opens in new tab) | Decal sheet, racing sponsors |
| 6160X (opens in new tab) | DVD, Maxx® Power! Full Throttle Action (sleeve) |
| 9950 (opens in new tab) | Official Team Traxxas® racing decal set(flag logo/ 6-color) |
| 9909 | Traxxas® racing banner, red & black (3x7 feet) |
Tires & Wheels
| Part # | Part |
|---|---|
| 3775 (opens in new tab) | Bushings, self-lubricating (5x8x2.5mm) (12) |
| 2475 (opens in new tab) | Front wheels(2)(Bandit) |
| 1747P (opens in new tab) | Nuts, 4mm flanged nylon locking (aluminum, pink anodized) (4) |
| 3647 (opens in new tab) | Nuts, 4mm flanged nylon locking (steel, serrated) (8) |
| 1747R (opens in new tab) | Nuts, aluminum, flanged, serrated (4mm) (blue-anodized) (4) |
| 1747G (opens in new tab) | Nuts, aluminum, flanged, serrated (4mm) (green-anodized) (4) |
| 1747T (opens in new tab) | Nuts, aluminum, flanged, serrated (4mm) (orange-anodized) (4) |
| 1747A (opens in new tab) | Nuts, aluminum, flanged, serrated (4mm) (red-anodized) (4) |
| 1985 (opens in new tab) | PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings) |
| 2474 (opens in new tab) | Rear wheels (2) (Bandit) |
| 1647 (opens in new tab) | Silicone Grease |
| 3471 (opens in new tab) | Street tread tires, 2.15" Pro-trax (f)(2) |
| 2754 (opens in new tab) | Stub axle pins (4) |
| 1771 (opens in new tab) | Tire, front 2.1" spike (2) |
| 2470T (opens in new tab) | Tires & wheels, assembled (2.2" black chrome wheels, Alias® 2.2" tires) (2) (Bandit® rear, medium compound with foam inserts) |
| 2471T | Tires & wheels, assembled (2.2" black chrome wheels, Alias® ribbed 2.2" tires) (2) (Bandit® front, medium compound w/ foam inserts) |
| 2479T | Tires & wheels, assembled (2.2" black chrome wheels, Anaconda® 2.2" tires with foam inserts) (2) (Bandit® front)) |
| 2478T | Tires & wheels, assembled (2.2" black chrome wheels, Anaconda® 2.2" tires with foam inserts) (2) (Bandit® rear) |
| 2470G (opens in new tab) | Tires & wheels, assembled (2.2" black, satin chrome beadlock wheels, Alias® 2.2" tires) (2) (Bandit® rear, medium compound with foam inserts) |
| 2471G | Tires & wheels, assembled (2.2" black, satin chrome beadlock wheels, Alias® ribbed 2.2" tires) (2) (Bandit® front, medium compound w/ foam inserts) |
| 2479G (opens in new tab) | Tires & wheels, assembled (2.2" black, satin chrome beadlock wheels, Anaconda® 2.2" tires with foam inserts) (2) (Bandit® front) |
| 2478G | Tires & wheels, assembled (2.2" black, satin chrome beadlock wheels, Anaconda® 2.2" tires with foam inserts) (2) (Bandit® rear) |
| 2471A (opens in new tab) | Tires & wheels, assembled (Tracer 2.2" black chrome wheels, Alias® ribbed 2.2" tires) (2) (Bandit front, medium compound w/ foam inserts) |
| 2478A (opens in new tab) | Tires & wheels, assembled (Tracer 2.2" black chrome wheels, Anaconda® 2.2" tires with foam inserts) (2) (Bandit rear) |
| 2470R (opens in new tab) | Tires & wheels, assembled (Tracer 2.2" chrome wheels, Alias® 2.2" tires) (2) (Bandit rear, medium compound with foam inserts) |
| 2471R (opens in new tab) | Tires & wheels, assembled (Tracer 2.2" chrome wheels, Alias® ribbed 2.2" tires) (2) (Bandit front, medium compound w/ foam inserts) |
| 2479R (opens in new tab) | Tires & wheels, assembled (Tracer 2.2" chrome wheels, Anaconda® 2.2" tires with foam inserts) (2) (Bandit front) |
| 2478R (opens in new tab) | Tires & wheels, assembled (Tracer 2.2" chrome wheels, Anaconda® 2.2" tires with foam inserts) (2) (Bandit rear) |
| 4740 | Tires, 2.1" Pro-Trax ribbed (front) (2) |
| 1770 (opens in new tab) | Tires, 2.15 spiked (rear) (2) |
| 2470 | Tires, Alias® 2.2" (rear) (2)/ foam inserts (Bandit) (soft compound) |
| 2471 | Tires, Alias® ribbed 2.2" (wide, front) (2)/ foam inserts (Bandit) (soft compound) |
| 2478 | Tires, Anaconda® 2.2" (rear) (2)/ foam inserts (Bandit) (soft compound) |
| 2479 | Tires, Anaconda® 2.2" (wide, front) (2)/foam inserts (Bandit) (soft compound) |
| 3470 | Tires, street slicks (rear) (2) |
| 2481A | Wheels, 2.2" (black chrome) (2) (Bandit® front) |
| 2480A | Wheels, 2.2" (black chrome) (2) (Bandit® rear) |
| 2481 | Wheels, 2.2" (black, satin chrome beadlock) (2) (Bandit® front) |
| 2480 | Wheels, 2.2" (black, satin chrome beadlock) (2) (Bandit® rear) |
| 2473A (opens in new tab) | Wheels, Tracer 2.2" (black chrome) (2) (Bandit front) |
| 2472A (opens in new tab) | Wheels, Tracer 2.2" (black chrome) (2) (Bandit rear) |
| 2473 (opens in new tab) | Wheels, Tracer 2.2" (chrome) (2) (Bandit front) |
| 2472 (opens in new tab) | Wheels, Tracer 2.2" (chrome) (2) (Bandit rear) |
Transmission Components
| Part # | Part |
|---|---|
| 5116 (opens in new tab) | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 3792 (opens in new tab) | Cover, gear/ rubber gear cover plug/ 3x6 RM (2) (Stampede/Rustler/Bandit) |
| 5478 (opens in new tab) | Flat wrench, 8mm (blue anodized aluminum) |
| 3790 (opens in new tab) | Gear adapter, fixed |
| 3691 (opens in new tab) | Gearbox halves (L&R) (black) w/ idler gear shaft |
| 3691A (opens in new tab) | Gearbox halves (L&R) (grey) w/ idler gear shaft |
| 5148 (opens in new tab) | Grease, white lithium |
| 9492 (opens in new tab) | Idler gear, 30-tooth/ idler gear shaft (steel) |
| 3696 (opens in new tab) | Idler gear, steel (30-tooth) |
| 9494 (opens in new tab) | Input gear, 22-tooth/ input shaft (transmission) (heavy duty) (fits Bandit®, Rustler®, Stampede®, Slash® 2WD) |
| 3793 (opens in new tab) | Input shaft (slipper shaft) / spring pin |
| 2381X (opens in new tab) | Main diff with steel ring gear/ side cover plate/ screws (Bandit, Stampede®, Rustler®) |
| 1552 (opens in new tab) | Motor screws, 3x8mm hex cap (6)/ washers (6)/ wrench |
| 2382 (opens in new tab) | Planet gears (4)/ planet shafts (4)/ sun gears (2)/sun gear alignment shaft (1) all hardened steel |
| 2388X (opens in new tab) | Planetary gear differential with steel ring gear (complete) (fits Bandit, Stampede®, Rustler®) |
| 9495 | Pro Series Magnum 272R™ Transmission, complete (assembled) (fits 1/10-scale 2WD Rustler®, Bandit®, Stampede®, Slash®) |
| 5552X (opens in new tab) | Rebuild kit, slipper clutch (steel disc/ friction pads (3)/ spring (2)/ pin/ 4.0mm NL (1)/ 5.0mm NL (1)) |
| 2554 (opens in new tab) | Screws, 3x6mm caphead machine (hex drive) (6) |
| 3185X (opens in new tab) | Screws, 3x8mm washerhead machine (large head for motor mount) (6) |
| 1647 (opens in new tab) | Silicone Grease |
| 5556 (opens in new tab) | Slipper pressure plate & hub (aluminum alloy) |
| 3195 (opens in new tab) | Top drive gear, steel (22-tooth) |
| 3695 (opens in new tab) | Transmission, complete (fits 1/10-scale 2WD Rustler®, Bandit®, Stampede®, Slash®) |
Traxxas Tools
| Part # | Part |
|---|---|
| 3433X (opens in new tab) | Body reamer (aluminum handle) |
| 3433 (opens in new tab) | Body reamer (plastic handle) |
| 3436 (opens in new tab) | Cap, body reamer |
| 3432 (opens in new tab) | Scissors, curved tip |
| 3431 (opens in new tab) | Scissors, straight tip |
| 8712 (opens in new tab) | Speed Bit Essentials Set, hex and nut driver, 7-piece, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm) and nut drivers (5.0mm, 5.5mm, 7.0mm, and 8.0mm), 1/4” drive |
| 8720 (opens in new tab) | Speed bit handle, large (overmolded) |
| 8721 (opens in new tab) | Speed bit handle, medium (one piece) |
| 8722 (opens in new tab) | Speed bit handle, premium (rubber overmold) |
| 8710 (opens in new tab) | Speed Bit Master Set, hex and nut driver, 13-piece, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm, 3.0mm), (ball-end: 2.0mm, 2.5mm, 3.0mm), and nut drivers (4.0mm, 4.5mm, 5.0mm, 5.5mm, 7.0mm, 8.0mm), 1/4” drive |
| 8711 (opens in new tab) | Speed Bit Master Set, hex driver, 7-piece straight and ball end, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm, 3.0mm) (ball end: 2.0mm, 2.5mm, 3.0mm), 1/4" drive |
| 8719 (opens in new tab) | Speed Bit Master Set, nut driver, 6-piece, includes premium handle (medium), travel pouch, and nut drivers (4.0mm, 4.5mm, 5.0mm, 5.5mm, 7.0mm, 8.0mm), 1/4" drive |
| 8716 (opens in new tab) | Speed Bit Set, hex driver, 2-piece ball-end (2.0mm, 2.5mm), 1/4" drive |
| 8716X (opens in new tab) | Speed Bit Set, hex driver, 3-piece ball-end (2.0mm, 2.5mm, 3.0mm) 1/4" drive |
| 8715 (opens in new tab) | Speed Bit Set, hex driver, 3-piece straight (1.5mm, 2.0mm, 2.5mm), 1/4" drive |
| 8715X (opens in new tab) | Speed Bit Set, hex driver, 4-piece straight (1.5mm, 2.0mm, 2.5mm, 3.0mm), 1/4" drive |
| 8714 | Speed Bit Set, screwdriver, 3-piece straight (3mm slotted, #1 Phillips, and #2 Phillips bits), 1/4" drive |
| 2748R (opens in new tab) | Tool set (includes 1.5mm hex wrench / 2.0mm hex wrench / 2.5mm hex wrench/ 4-way wrench/ 8mm & 4mm wrench/ U-joint wrench) |
| 3415 (opens in new tab) | Tool set with pouch (includes 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4mm drivers/4mm. 5mm, 5.5mm, 7mm, and 8mm nut drivers/ 2mm, 3mm, and 4mm slotted screwdrivers/ #00 Phillips, #0 Phillips, and #1 Phillips screwdrivers/ 4mm and 8mm wrenches/ driver handle) |
Turnbuckles & Threaded Rods
| Part # | Part |
|---|---|
| 2537 (opens in new tab) | 3mm threaded rods: 1 each of 20mm,25mm&44mm |
| 2444X | Camber links, front (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2444A | Camber links, front (TUBES charcoal gray-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2444G | Camber links, front (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2444T | Camber links, front (TUBES orange-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2444P | Camber links, front (TUBES pink-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2444R | Camber links, front (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2443X | Camber links, rear (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2443A | Camber links, rear (TUBES charcoal gray-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2443G | Camber links, rear (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2443T | Camber links, rear (TUBES orange-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2443P | Camber links, rear (TUBES pink-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2443R | Camber links, rear (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 1942 (opens in new tab) | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 5525R (opens in new tab) | Rod ends, heavy duty (Jato®/Slayer) (8) |
| 2742 (opens in new tab) | Rod ends, long (6)/ hollow ball connectors (6) |
| 5347 (opens in new tab) | Rod ends, Revo® (large) with hollow balls (12) |
| 2742X (opens in new tab) | Rod ends, short (6)/ hollow balls (6) |
| 2445X | Toe links, front (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2445A | Toe links, front (TUBES charcoal gray-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2445G | Toe links, front (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2445T | Toe links, front (TUBES orange-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2445P | Toe links, front (TUBES pink-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 2445R | Toe links, front (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (2) (assembled with rod ends and hollow balls)/ aluminum wrench (1) |
| 1937 (opens in new tab) | Turnbuckles (54mm) (2)/ 3x6x4mm aluminum spacers (rear camber links) |
| 1935 (opens in new tab) | Turnbuckles, 36mm (2) |
| 2443 (opens in new tab) | Turnbuckles, camber link, 36mm (56mm center to center) (rear) (assembled with rod ends and hollow balls) (1 left, 1 right) |
| 2444 (opens in new tab) | Turnbuckles, camber link, 47mm (67mm center to center) (front) (assembled with rod ends and hollow balls) (1 left, 1 right) |
| 2445 (opens in new tab) | Turnbuckles, toe link, 55mm (75mm center to center) (2) (assembled with rod ends and hollow balls) |
Need different gearing for the pinion/spur combo above? Use the gear ratio calculator to dial in your final drive ratio.
Part numbers from Traxxas’ official Bandit (Model 24054-4) Parts List, which covers the Bandit and mixes stock spares with optional accessories. Some links above are affiliate links that support the site.
