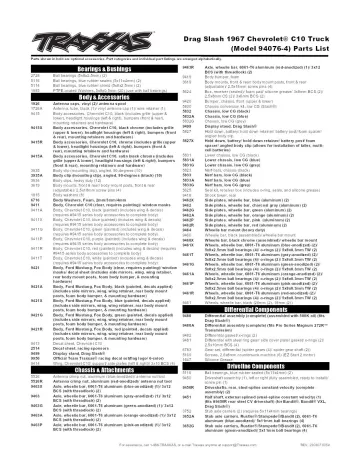

| Part number | Part name |
|---|---|
| 2728 | Ball bearings (5x8x2.5mm) (2) |
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 5114 | Ball bearings, blue rubber shield (5x8x2.5mm) (2) |
| 1985 | PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings) |
| 1926 | Antenna caps, vinyl (2)/ antenna spool |
| 1726A | Antenna, tube, black (1)/ vinyl antenna cap (1)/ wire retainer (1) |
| 9415 | Body accessories, Chevrolet C10, black (includes grille (upper & lower), headlight housings (left & right), bumpers (front & rear), mounting retainers and hardware) |
| 9415X | Body accessories, Chevrolet C10, black chrome (includes grille (upper & lower), headlight housings (left & right), bumpers (front & rear), mounting retainers and hardware) |
| 9415R | Body accessories, Chevrolet C10, chrome (includes grille (upper & lower), headlight housings (left & right), bumpers (front & rear), mounting retainers and hardware) |
| 9415A | Body accessories, Chevrolet C10, satin black chrome (includes grille (upper & lower), headlight housings (left & right), bumpers (front & rear), mounting retainers and hardware) |
| 3935 | Body clip (mounting clip), angled, 90-degrees (10) |
| 3935A | Body clip (mounting clip), angled, 90-degrees (black) (10) |
| 3934 | Body clips, heavy duty (12) |
| 3619 | Body mounts, front & rear/ body mount posts, front & rear (adjustable)/ 2.5x18mm screw pins (4) |
| 1815 | Body washers (8) |
| 6716 | Body Washers, Foam, 2mm/3mm/4mm |
| 9411 | Body, Chevrolet C10 (clear, requires painting)/ window masks |
| 9411A | Body, Chevrolet C10, black (painted) (includes wing & decals) (requires #9415 series body accessories to complete body) |
| 9411X | Body, Chevrolet C10, blue (painted) (includes wing & decals) (requires #9415 series body accessories to complete body) |
| 9411G | Body, Chevrolet C10, green (painted) (includes wing & decals) (requires #9415 series body accessories to complete body) |
| 9411P | Body, Chevrolet C10, purple (painted) (includes wing & decals) (requires #9415 series body accessories to complete body) |
| 9411R | Body, Chevrolet C10, red (painted) (includes wing & decals) (requires #9415 series body accessories to complete body) |
| 9411T | Body, Chevrolet C10, white (painted) (includes wing & decals) (requires #9415 series body accessories to complete body) |
| 9421 | Body, Ford Mustang, Fox Body (clear, requires painting)/ window masks/ decal sheet (includes side mirrors, wing, wing retainer, rear body mount posts, foam body bumper, & mounting hardware) |
| 9421A | Body, Ford Mustang, Fox Body, black (painted, decals applied) (includes side mirrors, wing, wing retainer, rear body mount posts, foam body bumper, & mounting hardware) |
| 9421X | Body, Ford Mustang, Fox Body, blue (painted, decals applied) (includes side mirrors, wing, wing retainer, rear body mount posts, foam body bumper, & mounting hardware) |
| 9421G | Body, Ford Mustang, Fox Body, green (painted, decals applied) (includes side mirrors, wing, wing retainer, rear body mount posts, foam body bumper, & mounting hardware) |
| 9421R | Body, Ford Mustang, Fox Body, red (painted, decals applied) (includes side mirrors, wing, wing retainer, rear body mount posts, foam body bumper, & mounting hardware) |
| 9413 | Decal sheet, Chevrolet C10 |
| 2514 | Decal sheet, racing sponsors |
| 9499 | Display stand, Drag Slash® |
| 9950 | Official Team Traxxas® racing decal set(flag logo/ 6-color) |
| 9414 | Wing, Chevrolet C10/ support/ side plates (left & right)/ 3x10 BCS (4) |
| 5526 | Antenna crimp nut, aluminum (blue-anodized)/ antenna nut tool |
| 5526R | Antenna crimp nut, aluminum (red-anodized)/ antenna nut tool |
| 9463X | Axle, wheelie bar, 6061-T6 aluminum (blue-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
| 9463 | Axle, wheelie bar, 6061-T6 aluminum (gray-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
| 9463G | Axle, wheelie bar, 6061-T6 aluminum (green-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
| 9463A | Axle, wheelie bar, 6061-T6 aluminum (orange-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
| 9463P | Axle, wheelie bar, 6061-T6 aluminum (pink-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
| 9463R | Axle, wheelie bar, 6061-T6 aluminum (red-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
| 9419 | Body bumper, foam |
| 3619 | Body mounts, front & rear/ body mount posts, front & rear (adjustable)/ 2.5x18mm screw pins (4) |
| 5624 | Box, receiver (sealed)/ foam pad/ silicone grease/ 3x8mm BCS (2)/ 2.5x8mm CS (2)/ 3x6mm BCS (2) |
| 9420 | Bumper, chassis, front (upper & lower) |
| 5830 | Chassis conversion kit, low CG (Slash®) |
| 5832 | Chassis, low CG (black) |
| 5832A | Chassis, low CG (blue) |
| 5832G | Chassis, low CG (grey) |
| 9499 | Display stand, Drag Slash® |
| 5827 | Hold down, battery/ hold down retainer/ battery post/ foam spacer/ angled body clip |
| 5827X | Hold down, battery/ hold down retainer/ battery post/ foam spacer/ angled body clip (allows for installation of taller, multi-cell batteries) |
| 5831 | Lower chassis, low CG (black) |
| 5831A | Lower chassis, low CG (blue) |
| 5831G | Lower chassis, low CG (grey) |
| 5823 | Nerf bars, chassis (black) |
| 5833 | Nerf bars, low CG (black) |
| 5833A | Nerf bars, low CG (blue) |
| 5833G | Nerf bars, low CG (grey) |
| 5625 | Seal kit, receiver box (includes o-ring, seals, and silicone grease) |
| 9418 | Shock tower, rear |
| 9462X | Side plates, wheelie bar, blue (aluminum) (2) |
| 9462 | Side plates, wheelie bar, charcoal gray (aluminum) (2) |
| 9462G | Side plates, wheelie bar, green (aluminum) (2) |
| 9462A | Side plates, wheelie bar, orange (aluminum) (2) |
| 9462P | Side plates, wheelie bar, pink (aluminum) (2) |
| 9462R | Side plates, wheelie bar, red (aluminum) (2) |
| 9464 | Wheelie bar mount (heavy duty) |
| 9460 | Wheelie bar, black (assembled)/ wheelie bar mount |
| 9460X | Wheelie bar, black chrome (assembled)/ wheelie bar mount |
| 9461X | Wheels, wheelie bar, 6061-T6 aluminum (blue-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
| 9461T | Wheels, wheelie bar, 6061-T6 aluminum (gray-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
| 9461G | Wheels, wheelie bar, 6061-T6 aluminum (green-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
| 9461A | Wheels, wheelie bar, 6061-T6 aluminum (orange-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
| 9461P | Wheels, wheelie bar, 6061-T6 aluminum (pink-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
| 9461R | Wheels, wheelie bar, 6061-T6 aluminum (red-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
| 9461 | Wheels, wheelie bar, black (26mm (2), 18mm (2)) |
| 9480 | Differential assembly (complete) (assembled with 500K oil) (fits Drag Slash®) |
| 9480A | Differential assembly (complete) (fits Pro Series Magnum 272R™ Transmission) |
| 9482 | Differential gasket/ x-rings (2) |
| 9481 | Differential with steel ring gear/ side cover plate/ gasket/ x-rings (2)/ 2.5x10mm BCS (4) |
| 6783 | Gear set, differential (spider gears (4)/ spider gear shaft (2)) |
| 5169 | Screws, 2.6x8mm countersunk machine (6) (EZ Start 2 motor) |
| 1647 | Silicone Grease |
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 9450 | Driveshaft assembly (1), left or right (fully assembled, ready to install)/ screw pin (1) |
| 9450R | Driveshafts, rear, steel-spline constant-velocity (complete assembly) (2) |
| 9451 | Half shaft, external splined (steel-spline constant velocity) (1) (fits #9450R rear steel CV driveshaft) (for Bandit®, Bandit® VXL, Drag Slash®) |
| 3752 | Stub axle carriers (2) (requires 5x11x4mm bearings) |
| 3652A | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (blue-anodized)/ 5x11mm ball bearings (4) |
| 3652G | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (green-anodized)/ 5x11mm ball bearings (4) |
| 3652T | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (orange-anodized)/ 5x11mm ball bearings (4) |
| 3652P | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (pink-anodized)/ 5x11mm ball bearings (4) |
| 3652X | Stub axle carriers, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (red-anodized)/ 5x11mm ball bearings (4) |
| 2754 | Stub axle pins (4) |
| 2728 | Ball bearings (5x8x2.5mm) (2) |
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 2530 | Bulkhead (front) (black) |
| 2530A | Bulkhead (front) (grey) |
| 2432 | Caster blocks (left & right) (30-degree) |
| 2437 | Front axles (2) |
| 6846 | Linkage, steering (Revo) (3x20mm turnbuckle) (1)/ rod ends (2)/ hollow balls (2) |
| 5347 | Rod ends, Revo® (large) with hollow balls (12) |
| 3646 | Screws, 3x15mm flat-head machine (hex drive) (6) |
| 3744 | Servo saver w/ adapters |
| 3639 | Shock tower (front) |
| 3743A | Steering bellcranks, drag link (blue-anodized T6 aluminum)/ 5x8mm ball bearings (4) hardware (assembled) (requires #3744 servo saver w/adapters) |
| 3743G | Steering bellcranks, drag link (green-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743T | Steering bellcranks, drag link (orange-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743P | Steering bellcranks, drag link (pink-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743X | Steering bellcranks, drag link (red-anodized T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) (requires #3744 servo saver w/adapters) |
| 6845X | Steering bellcranks/ servo saver/ servo saver spring/ servo spring retainer/servo horn, steering |
| 3736 | Steering blocks, left & right (2) (requires 5x11x4mm bearings) |
| 3636A | Steering blocks, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (blue-anodized)/ 5x11mm ball bearings (4) |
| 3636G | Steering blocks, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (green-anodized)/ 5x11mm ball bearings (4) |
| 3636T | Steering blocks, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (orange-anodized)/ 5x11mm ball bearings (4) |
| 3636P | Steering blocks, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (pink-anodized)/ 5x11mm ball bearings (4) |
| 3636X | Steering blocks, Rustler®/Stampede®/Bandit (2), 6061-T6 aluminum (red-anodized)/ 5x11mm ball bearings (4) |
| 2754 | Stub axle pins (4) |
| 2531X | Suspension arms (front) (2) |
| 2531A | Suspension arms, black, front, heavy duty (2) (requires #3632 series caster block and #3640 screw pin set) |
| 2531L | Suspension arms, blue, front, heavy duty (2) (requires #3632 series caster block and #3640 screw pin set) |
| 2531G | Suspension arms, green, front, heavy duty (2) (requires #3632 series caster block and #3640 screw pin set) |
| 2531T | Suspension arms, orange, front, heavy duty (2) (requires #3632 series caster block and #3640 screw pin set) |
| 2531R | Suspension arms, red, front, heavy duty (2) (requires #3632 series caster block and #3640 screw pin set) |
| 2640 | Suspension pins, 44mm (2) w/ E-clips |
| 3640 | Suspension screw pin set, steel (hex drive) (requires part # 2640 for a complete suspension pin set) (Rustler®, Stampede®, Bandit) |
| 2532 | Tie bar, fiberglass |
| 1935 | Turnbuckles, 36mm (2) |
| 2444 | Turnbuckles, camber link, 47mm (67mm center to center) (front) (assembled with rod ends and hollow balls) (1 left, 1 right) |
| 2445 | Turnbuckles, toe link, 55mm (75mm center to center) (2) (assembled with rod ends and hollow balls) |
| 1926 | Antenna caps, vinyl (2)/ antenna spool |
| 1726A | Antenna, tube, black (1)/ vinyl antenna cap (1)/ wire retainer (1) |
| 3935A | Body clip (mounting clip), angled, 90-degrees (black) (10) |
| 3934 | Body clips, heavy duty (12) |
| 4859 | CS 3x10 flathead (hex drive) |
| 1589 | Double-sided adhesive tape (25mm x 25mm) |
| 1633 | E-clips/ C-rings |
| 2745 | Nuts, 3mm nylon locking (12) |
| 1747P | Nuts, 4mm flanged nylon locking (aluminum, pink anodized) (4) |
| 3647 | Nuts, 4mm flanged nylon locking (steel, serrated) (8) |
| 1747 | Nuts, 4mm nylon locking (10) |
| 1747R | Nuts, aluminum, flanged, serrated (4mm) (blue-anodized) (4) |
| 1747G | Nuts, aluminum, flanged, serrated (4mm) (green-anodized) (4) |
| 1747T | Nuts, aluminum, flanged, serrated (4mm) (orange-anodized) (4) |
| 1985 | PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings) |
| 1647 | Silicone Grease |
| 2754 | Stub axle pins (4) |
| 9469H | Tire inserts, molded (2) (for #9475 rear tires) (+1 firmness) |
| 9469X | Tire inserts, molded (2) (for #9475 rear tires) (+2 firmness) |
| 9469K | Tire inserts, molded (2) (for #9475 rear tires) (+2 firmness) |
| 9469X | Tires & wheels, assembled, glued (Weld black chrome wheels, Mickey Thompson® ET Drag® Slicks, foam inserts) (rear) (2) |
| 9477X | Tires & wheels, assembled, glued (Weld black chrome wheels, Mickey Thompson® ET Drag® Slicks, smoke compound, foam inserts) (rear) (2) |
| 9476X | Tires & wheels, assembled, glued (Weld black chrome wheels, Mickey Thompson® ET Drag® Slicks, sticky compound, foam inserts) (rear) (2) |
| 9474X | Tires & wheels, assembled, glued (Weld chrome wheels, Mickey Thompson® ET Front® tires, foam inserts) (2) |
| 9474R | Tires & wheels, assembled, glued (Weld chrome wheels, Mickey Thompson® ET Front® tires, foam inserts) (2) |
| 9475R | Tires & wheels, assembled, glued (Weld chrome with black wheels, Mickey Thompson® ET Drag® Slicks, foam inserts) (rear) (2) |
| 9477R | Tires & wheels, assembled, glued (Weld chrome with black wheels, Mickey Thompson® ET Drag® Slicks, smoke compound, foam inserts) (rear) (2) |
| 9476R | Tires & wheels, assembled, glued (Weld chrome with black wheels, Mickey Thompson® ET Drag® Slicks, sticky compound, foam inserts) (rear) (2) |
| 9475 | Tires & wheels, assembled, glued (Weld gloss black wheels, Mickey Thompson® ET Drag® Slicks, foam inserts) (rear) (2) |
| 9474 | Tires & wheels, assembled, glued (Weld gloss black wheels, Mickey Thompson® ET Front® tires, foam inserts) (2) |
| 9477 | Tires & wheels, assembled, glued (Weld glossy black wheels, Mickey Thompson® ET Drag® Slicks, smoke compound, foam inserts) (rear) (2) |
| 9476 | Tires & wheels, assembled, glued (Weld glossy black wheels, Mickey Thompson® ET Drag® Slicks, sticky compound, foam inserts) (rear) (2) |
| 9475A | Tires & wheels, assembled, glued (Weld satin black chrome wheels, Mickey Thompson® ET Front® tires, foam inserts) (2) |
| 9474A | Tires & wheels, assembled, glued (Weld satin black chrome wheels, Mickey Thompson® ET Front® tires, foam inserts) (2) |
| 9470 | Tires, front (Mickey Thompson® ET Front®) (2)/ foam inserts (2) |
| 9471 | Tires, rear (Mickey Thompson® ET Drag® Slicks) (2) |
| 9471X | Tires, rear (Mickey Thompson® ET Drag® Slicks, smoke compound) (2) |
| 9471R | Tires, rear (Mickey Thompson® ET Drag® Slicks, sticky compound) (2) |
| 1654X | Wheel hubs, hex (blue-anodized, lightweight aluminum) (2)/ axle pins(2) |
| 3654 | Wheel hubs, hex (front) (tall offset) (2)/ axle pins (2.5x10mm) (2) |
| 1654 | Wheel hubs, hex (rear) (2)/ stub axle pins (2) |
| 5853X | Wheel hubs, splined, 17mm, short (2), long (2) (blue-anodized) / wheel nuts, splined, 17mm (blue-anodized) (4)/ hub retainer M4 X 0.7 (4)/ axle pin (4) (Slash 2WD) |
| 5353 | Wheel nuts, splined, 17mm (blue-anodized) (4) |
| 5480X | Wheel wrench, splined, 17mm |
| 9472X | Wheels, Weld black chrome (front) (2) |
| 9473X | Wheels, Weld black chrome (rear) (2) |
| 9472R | Wheels, Weld chrome (front) (2) |
| 9473R | Wheels, Weld chrome with black (rear) (2) |
| 9472 | Wheels, Weld gloss black (front) (2) |
| 3415 | Tool set with pouch (includes 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4mm drivers/4mm. 5mm, 5.5mm, 7mm, and 8mm nut drivers/ 2mm, 3mm, and 4mm slotted screwdrivers/ #00 Phillips, #0 Phillips, and #1 Phillips screwdrivers/ 4mm and 8mm wrenches/ driver handle) |
