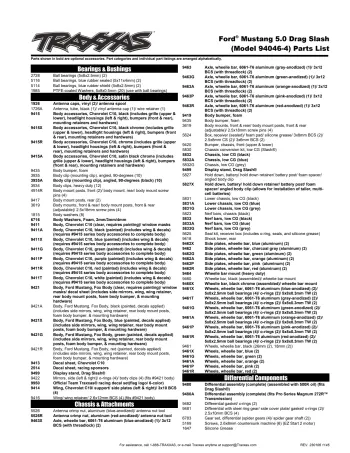

Part number | Part name |
---|---|
2728 | Ball bearings (5x8x2.5mm) (2) |
5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
5114 | Ball bearings, blue rubber shield (5x8x2.5mm) (2) |
1985 | PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings) |
1926 | Antenna caps, vinyl (2)/ antenna spool |
1726A | Antenna, tube, black (1)/ vinyl antenna cap (1)/ wire retainer (1) |
9415 | Body accessories, Chevrolet C10, black (includes grille (upper & lower), headlight housings (left & right), bumpers (front & rear), mounting retainers and hardware) |
9415X | Body accessories, Chevrolet C10, black chrome (includes grille (upper & lower), headlight housings (left & right), bumpers (front & rear), mounting retainers and hardware) |
9415R | Body accessories, Chevrolet C10, chrome (includes grille (upper & lower), headlight housings (left & right), bumpers (front & rear), mounting retainers and hardware) |
9415A | Body accessories, Chevrolet C10, satin black chrome (includes grille (upper & lower), headlight housings (left & right), bumpers (front & rear), mounting retainers and hardware) |
9435 | Body bumper, foam |
3935 | Body clip (mounting clip), angled, 90-degrees (10) |
3935A | Body clip (mounting clip), angled, 90-degrees (black) (10) |
3934 | Body clips, heavy duty (12) |
4914R | Body mount posts, front (2)/ body mount, rear/ body mount screw pins (4) |
9417 | Body mount posts, rear (2) |
3619 | Body mounts, front & rear/ body mount posts, front & rear (adjustable)/ 2.5x18mm screw pins (4) |
1815 | Body washers (8) |
6716 | Body Washers, Foam, 2mm/3mm/4mm |
9411 | Body, Chevrolet C10 (clear, requires painting)/ window masks |
9411A | Body, Chevrolet C10, black (painted) (includes wing & decals) (requires #9415 series body accessories to complete body) |
9411X | Body, Chevrolet C10, blue (painted) (includes wing & decals) (requires #9415 series body accessories to complete body) |
9411G | Body, Chevrolet C10, green (painted) (includes wing & decals) (requires #9415 series body accessories to complete body) |
9411P | Body, Chevrolet C10, purple (painted) (includes wing & decals) (requires #9415 series body accessories to complete body) |
9411R | Body, Chevrolet C10, red (painted) (includes wing & decals) (requires #9415 series body accessories to complete body) |
9411T | Body, Chevrolet C10, white (painted) (includes wing & decals) (requires #9415 series body accessories to complete body) |
9421 | Body, Ford Mustang, Fox Body (clear, requires painting)/ window masks/ decal sheet (includes side mirrors, wing, wing retainer, rear body mount posts, foam body bumper, & mounting hardware) |
9421A | Body, Ford Mustang, Fox Body, black (painted, decals applied) (includes side mirrors, wing, wing retainer, rear body mount posts, foam body bumper, & mounting hardware) |
9421X | Body, Ford Mustang, Fox Body, blue (painted, decals applied) (includes side mirrors, wing, wing retainer, rear body mount posts, foam body bumper, & mounting hardware) |
9421G | Body, Ford Mustang, Fox Body, green (painted, decals applied) (includes side mirrors, wing, wing retainer, rear body mount posts, foam body bumper, & mounting hardware) |
9421R | Body, Ford Mustang, Fox Body, red (painted, decals applied) (includes side mirrors, wing, wing retainer, rear body mount posts, foam body bumper, & mounting hardware) |
9413 | Decal sheet, Chevrolet C10 |
2514 | Decal sheet, racing sponsors |
9499 | Display stand, Drag Slash® |
9422 | Mirrors, side (left & right)/ o-rings (4)/ body clips (4) (fits #9421 body) |
9950 | Official Team Traxxas® racing decal set(flag logo/ 6-color) |
9414 | Wing, Chevrolet C10/ support/ side plates (left & right)/ 3x10 BCS (4) |
9416 | Wing/ wing retainer/ 2.6x12mm BCS (4) (fits #9421 body) |
5526 | Antenna crimp nut, aluminum (blue-anodized)/ antenna nut tool |
5526R | Antenna crimp nut, aluminum (red-anodized)/ antenna nut tool |
9463X | Axle, wheelie bar, 6061-T6 aluminum (blue-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
9463 | Axle, wheelie bar, 6061-T6 aluminum (gray-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
9463G | Axle, wheelie bar, 6061-T6 aluminum (green-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
9463A | Axle, wheelie bar, 6061-T6 aluminum (orange-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
9463P | Axle, wheelie bar, 6061-T6 aluminum (pink-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
9463R | Axle, wheelie bar, 6061-T6 aluminum (red-anodized) (1)/ 3x12 BCS (with threadlock) (2) |
9419 | Body bumper, foam |
9435 | Body bumper, foam |
3619 | Body mounts, front & rear/ body mount posts, front & rear (adjustable)/ 2.5x18mm screw pins (4) |
5624 | Box, receiver (sealed)/ foam pad/ silicone grease/ 3x8mm BCS (2)/ 2.5x8mm CS (2)/ 3x6mm BCS (2) |
9420 | Bumper, chassis, front (upper & lower) |
5830 | Chassis conversion kit, low CG (Slash®) |
5832 | Chassis, low CG (black) |
5832A | Chassis, low CG (blue) |
5832G | Chassis, low CG (grey) |
9499 | Display stand, Drag Slash® |
5827 | Hold down, battery/ hold down retainer/ battery post/ foam spacer/ angled body clip |
5827X | Hold down, battery/ hold down retainer/ battery post/ foam spacer/ angled body clip (allows for installation of taller, multi-cell batteries) |
5831 | Lower chassis, low CG (black) |
5831A | Lower chassis, low CG (blue) |
5831G | Lower chassis, low CG (grey) |
5823 | Nerf bars, chassis (black) |
5833 | Nerf bars, low CG (black) |
5833A | Nerf bars, low CG (blue) |
5833G | Nerf bars, low CG (grey) |
5625 | Seal kit, receiver box (includes o-ring, seals, and silicone grease) |
9418 | Shock tower, rear |
9462X | Side plates, wheelie bar, blue (aluminum) (2) |
9462 | Side plates, wheelie bar, charcoal gray (aluminum) (2) |
9462G | Side plates, wheelie bar, green (aluminum) (2) |
9462A | Side plates, wheelie bar, orange (aluminum) (2) |
9462P | Side plates, wheelie bar, pink (aluminum) (2) |
9462R | Side plates, wheelie bar, red (aluminum) (2) |
9464 | Wheelie bar mount (heavy duty) |
9460 | Wheelie bar, black (assembled)/ wheelie bar mount |
9460X | Wheelie bar, black chrome (assembled)/ wheelie bar mount |
9461X | Wheels, wheelie bar, 6061-T6 aluminum (blue-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2) 5x8x0.3mm TW (2) |
9461T | Wheels, wheelie bar, 6061-T6 aluminum (gray-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
9461G | Wheels, wheelie bar, 6061-T6 aluminum (green-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
9461A | Wheels, wheelie bar, 6061-T6 aluminum (orange-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
9461P | Wheels, wheelie bar, 6061-T6 aluminum (pink-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
9461R | Wheels, wheelie bar, 6061-T6 aluminum (red-anodized) (2)/ 5x8x2.5mm ball bearings (4)/ o-rings (2)/ 5x8x0.3mm TW (2) |
9461 | Wheels, wheelie bar, black (26mm (2), 18mm (2)) |
9461K | Wheels, wheelie bar, blue (2) |
9461G | Wheels, wheelie bar, green (2) |
9461A | Wheels, wheelie bar, orange (2) |
9461P | Wheels, wheelie bar, pink (2) |
9461R | Wheels, wheelie bar, red (2) |
9480 | Differential assembly (complete) (assembled with 500K oil) (fits Drag Slash®) |
9480A | Differential assembly (complete) (fits Pro Series Magnum 272R™ Transmission) |
9482 | Differential gasket/ x-rings (2) |
9481 | Differential with steel ring gear/ side cover plate/ gasket/ x-rings (2)/ 2.5x10mm BCS (4) |
6783 | Gear set, differential (spider gears (4)/ spider gear shaft (2)) |
5169 | Screws, 2.6x8mm countersunk machine (6) (EZ Start 2 motor) |
1647 | Silicone Grease |
