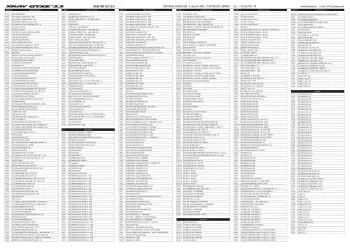

XRAY GTXE '23 Parts List

XRAY

GTXE '23

Setup sheets →

Shock oil chart GTXE '23 parts & upgrades at AMain →Ad

Commonly replaced parts

The arms, uprights, driveline and shock parts that go first on a race car, with the full list below.

Part #	Description
352121-G	XB8 C-HUB COMPOSITE FRONT LOWER SUSPENSION ARM - GRAPHITE
352121-H	XB8 C-HUB COMPOSITE FRONT LOWER SUSPENSION ARM - HARD
352245	XB8 C-HUB STEERING BLOCK LB WITH ALU INSERTS
353354	XB8 COMPOSITE REAR UPRIGHT LB
355250	ALU WHEEL AXLE - BLACK COATED (2)
358032	SHOCK PISTON SET 8-HOLE (1.2; 1.3) 10-H. (1.1MM) - DELRIN - V3
352470	COMPOSITE BALL JOINT 5.8 (8)
333450	ANTI-ROLL BAR PIVOT BALL 5.8 MM (2)
355086	EXTREME HEAT RESISTANT F/R ALU DIFF PIN WITH INSERTS (2+4)
351202	GT COMPOSITE FRONT BUMPER - NARROW

More option parts for this car

Parts & upgrades at AMainAd Shock oil chart

Every part XRAY lists for the XRAY GTXE '23, from XRAY's own parts list, including the spares, the option parts and the hardware. Part numbers link to AMain Hobbies where the part is still sold; parts with no current match are listed as plain text.

Full parts list

Car parts (241)

Part #	Description
293080	LEAD WEIGHTS 4x5g & 4x10g WITH 3M GLUE
293404	ALU CLAMP SERVO HORN - KO PROPO, JR, SANWA, AIRTRONICS - 2-HOLE - 23T
293405	ALU CLAMP SERVO HORN - HITEC - 2-HOLE - 24T
293406	ALU CLAMP SERVO HORN - FUTABA - 2-HOLE - 25T
293497	ALU SERVO HORN - KO PROPO, JR, SANWA, AIRTRONICS - 2-HOLE - 23T
293498	ALU SERVO HORN - HITEC - 2-HOLE - 24T
293499	ALU SERVO HORN - FUTABA - 2-HOLE - 25T
296510	ALU COUNTERSUNK SHIM (10)
296510-B	ALU COUNTERSUNK SHIM - BLUE (10)
296510-K	ALU COUNTERSUNK SHIM - BLACK (10)
296510-O	ALU COUNTERSUNK SHIM - ORANGE (10)
296510-V	ALU COUNTERSUNK SHIM - VIOLET (10)
296530-B	ALU NUT M3 - BLUE (10)
296530-K	ALU NUT M3 - BLACK (10)
296530-O	ALU NUT M3 - ORANGE (10)
296540-B	ALU NUT M4 - BLUE (10)
296540-K	ALU NUT M4 - BLACK (10)
296540-O	ALU NUT M4 - ORANGE (10)
303122	ALU SHIM 3x6x1.0MM (10)
303122-K	ALU SHIM 3x6x1.0MM - BLACK (10)
303122-O	ALU SHIM 3x6x1.0MM - ORANGE (10)
303123	ALU SHIM 3x6x2.0MM (10)
303123-K	ALU SHIM 3x6x2.0MM - BLACK (10)
303123-O	ALU SHIM 3x6x2.0MM - ORANGE (10)
303125	ALU SHIM 3x6x3.0MM (10)
303125-K	ALU SHIM 3x6x3.0MM - BLACK (10)
303125-O	ALU SHIM 3x6x3.0MM - ORANGE (10)
303126	ALU SHIM 3x6x5.0MM (10)
303126-K	ALU SHIM 3x6x5.0MM - BLACK (10)
303127	ALU SHIM 3x6x4.0MM (10)
303127-K	ALU SHIM 3x6x4.0MM - BLACK (10)
303128	ALU SHIM 3x6x6.0MM (10)
303128-K	ALU SHIM 3x6x6.0MM - BLACK (10)
303129	COMPOSITE SET OF SHIMS 3x 3x6x1MM; 1x 3x6x2MM (2)
306219	COMPOSITE SET OF SERVO SHIMS (4)
306310	ANTENNA (2)
326177	COMPOSITE BATTERY CLAMP (2)
332071	COMPOSITE BALL-BEARING HUB (4)
333450	ANTI-ROLL BAR PIVOT BALL 5.8 MM (2)
333451	ALU ANTI-ROLL BAR PIVOT BALL 5.8 MM - SWISS 7075 T6 - HARD COATED (2)
343481-K	ALU CUTTED ANTI-ROLL BAR COLLAR o3.0 - BLACK (2)
343482-K	ALU CUTTED ANTI-ROLL BAR COLLAR o2.6 - BLACK (2)
343483-K	ALU CUTTED ANTI-ROLL BAR COLLAR o2.2 - BLACK (2)
343484-K	ALU CUTTED ANTI-ROLL BAR COLLAR o2.4 - BLACK (2)
343485-K	ALU CUTTED ANTI-ROLL BAR COLLAR o2.8 - BLACK (2)
345545	COMPOSITE 2-SPEED GEAR 45T (2nd) - H
345546	COMPOSITE 2-SPEED GEAR 46T (2nd) - H
345547	COMPOSITE 2-SPEED GEAR 47T (2nd) - H
345645	GRAPHITE 2-SPEED GEAR 45T (2nd)
345646	GRAPHITE 2-SPEED GEAR 46T (2nd)
345647	GRAPHITE 2-SPEED GEAR 47T (2nd)
349400	BODY CLIP (10)
350907	XRAY XB8/GTX C-HUB FRONT SUSPENSION CONVERSION SET
351138	GTXE‘23 ALU CHASSIS - SWISS 7075 T6 (3MM)
351202	GT COMPOSITE FRONT BUMPER - NARROW
351210	GT COMPOSITE FRONT UPPER BUMPER
351220	GT FOAM BUMPER - V2
351222	GT FOAM BUMPER - LIGHT - V2
351233	GT COMPOSITE REAR DIFFUSOR
351242	GT GRAPHITE PLATE FOR FRONT UPPER BUMPER 2.5MM
351352	GT‘23 GRAPHITE SERVO SAVER UPPER PLATE 2.5MM
351410	GT COMPOSITE FRONT HOLDER FOR BODY POSTS
351420	GT COMPOSITE BODY POSTS (2)
351430	GT COMPOSITE REAR HOLDER FOR BODY POSTS
351450	GT COMPOSITE CENTER BODY POST HOLDER
352010	GT ALU FRONT BULKHEAD - RIGHT - SWISS 7075 T6
352011	GT ALU FRONT BULKHEAD - LEFT - SWISS 7075 T6
352012	GT ALU FRONT ANTI-ROLL BAR BULKHEAD - RIGHT - SWISS 7075 T6
352013	GT ALU FRONT ANTI-ROLL BAR BULKHEAD - LEFT - SWISS 7075 T6
352014	GT ALU ADAPTER FOR CENTER JOINT - SWISS 7075 T6
352043	GT‘23 GRAPHITE FRONT SHOCK TOWER 4MM
352072	GT ALU ADJUSTMENT BALL-BEARING HUB - SWISS 7075 T6 (2)
352088	COMPOSITE FRONT BRACE
352121	XB8 C-HUB COMPOSITE FRONT LOWER SUSPENSION ARM - MEDIUM
352121-G	XB8 C-HUB COMPOSITE FRONT LOWER SUSPENSION ARM - GRAPHITE
352121-H	XB8 C-HUB COMPOSITE FRONT LOWER SUSPENSION ARM - HARD
352121-S	XB8 C-HUB COMPOSITE FRONT LOWER SUSPENSION ARM - SHORT - SOFT
352170	STEEL ECCENTRIC BUSHING 0° (2)
352174	STEEL ECCENTRIC BUSHING 1° - V2 (2)
352175	STEEL ECCENTRIC BUSHING 2° - V2 (2)
352179	COMPOSITE BUSHING & BALL MOUNT SET (2+2)
352180	BALL MOUNT (2)
352245	XB8 C-HUB STEERING BLOCK LB WITH ALU INSERTS
352254	ALU STEERING BLOCK - SWISS 7075 T6
352273	ALU CASTER BLOCK 18° RIGHT - SWISS 7075 T6
352277	COMPOSITE C-HUB 16° RIGHT
352278	ALU CASTER BLOCK 6° RIGHT - SWISS 7075 T6
352279	COMPOSITE C-HUB 6° RIGHT
352283	ALU CASTER BLOCK 18° LEFT - SWISS 7075 T6
352287	COMPOSITE C-HUB 16° LEFT
352288	ALU CASTER BLOCK 6° LEFT - SWISS 7075 T6
352289	COMPOSITE C-HUB 6° LEFT
352290	COMPOSITE BUSHING FOR ALU STEERING BLOCK (4)
352292	STEEL STEERING BLOCK PIVOT PIN (2)
352293	STEEL C-HUB BUSHING (2)
352294	COMPOSITE BUSHING FOR ALU CASTER BLOCK (2)
352314	COMPOSITE SQUARE ADJ. ROLL-CENTER BUSHINGS - V2 (2)
352326	GT‘22 ALU FRONT LOWER SUSP. HOLDER - REAR - SQUARE ADJ. ROLL-C.
352327	GT‘23 ALU FRONT LOWER SUSP. HOLDER - FRONT - SQUARE ADJ. ROLL-C.
352369	GT GRAPHITE STEERING PLATE 3MM (2)
352390	GT ALU SHOCK PLATE - SWISS 7075 T6 (L+R)
352392	GT ALU SHOCK PLATE - SWISS 7075 T6 (L+R)
352460	PIVOT BALL 5.8 (10)
352470	COMPOSITE BALL JOINT 5.8 (8)
352489	XB8 FRONT ANTI-ROLL BAR 1.8MM
352490	XB8 FRONT ANTI-ROLL BAR 2.0MM
352492	XB8 FRONT ANTI-ROLL BAR 2.2MM
352493	XB8 FRONT ANTI-ROLL BAR 2.3MM
352494	XB8 FRONT ANTI-ROLL BAR 2.4MM
352495	XB8 FRONT ANTI-ROLL BAR 2.5MM
352496	XB8 FRONT ANTI-ROLL BAR 2.6MM
352498	XB8 FRONT ANTI-ROLL BAR 2.8MM
352506	SERVO SAVER WITH CHASSIS LOCK & HARD SPRING - GRAPHITE - SET
352514	XB8 COMPOSITE SERVO SAVER - GRAPHITE
352561	SERVO SAVER SPRING PROGRESSIVE
352576	STEERING PLATE BUSHING (2)
352581	GT‘23 ALU STEERING PLATE - SWISS 7075 T6
352652	BALL STUD 6.8MM (4)
352653	BALL STUD 6.8MM WITH BACKSTOP - M3 (2)
352655	BALL STUD 6.8MM WITH BACKSTOP L=6MM - M4 (2)
352664	COMPOSITE STEERING BALL JOINT 6.8MM - V3 (2)
352666	XB8 COMPOSITE RELIEF STEERING BALL JOINT 6.8MM - V2 (2)
352670	SERVO BALL JOINT 5.8MM (4)
353010	GT ALU REAR BULKHEAD - RIGHT - SWISS 7075 T6
353011	GT ALU REAR BULKHEAD - LEFT - SWISS 7075 T6
353012	GT ALU REAR ANTI-ROLL BAR BULKHEAD - RIGHT - SWISS 7075 T6
353013	GT ALU REAR ANTI-ROLL BAR BULKHEAD - LEFT - SWISS 7075 T6
353022	GT ALU REAR BRACE HOLDER - SWISS 7075 T6
353043	GT‘23 GRAPHITE REAR SHOCK TOWER 4MM
353082	COMPOSITE REAR BRACE - MEDIUM - M
353115	COMPOSITE REAR LOWER SUSPENSION ARM - MEDIUM
353116	COMPOSITE REAR LOWER SUSPENSION ARM - HARD
353116-G	COMPOSITE REAR LOWER SUSPENSION ARM - GRAPHITE
353116-XH	COMPOSITE REAR LOWER SUSPENSION ARM - X-HARD
353124-G	COMPOSITE SUSPENSION REAR ARM - LSM - RIGHT - GRAPHITE
353124-H	COMPOSITE SUSPENSION REAR ARM - LSM - RIGHT - HARD
353125-G	COMPOSITE SUSPENSION REAR ARM - LSM - LEFT - GRAPHITE
353125-H	COMPOSITE SUSPENSION REAR ARM - LSM - LEFT - HARD
353131	REAR UPPER INNER CAMBER LINK BALL JOINT - V3 (2)
353160	MOUNTING BALL 6.8 (4)
353170	PIVOT BALL 6.8 (4)
353191	XB8 GRAPHITE REAR LOWER ARM PLATE 1.6 MM (2)
353193	XB8 COMPOSITE REAR MUD PROTECTOR (L+R)
353280	GRAPHITE INSERT FOR MEDIUM REAR COMPOSITE BRACE - SET
353330	GT‘22 ALU REAR LOWER SUSP. HOLDER - FRONT - SQUARE ADJ. ROLL-C.
353332	GT‘23 ALU REAR LOWER SUSP. HOLDER - REAR - SQUARE ADJ. ROLL-C.
353354	XB8 COMPOSITE REAR UPRIGHT LB
353354-G	XB8 COMPOSITE REAR UPRIGHT LB - GRAPHITE
353354-H	XB8 COMPOSITE REAR UPRIGHT LB - HARD
353370	SET OF COMPOSITE REAR HUB CARRIER SHIMS
353371	SET OF COMPOSITE LOWER ARM SHIMS
353380	ALU SHIM 4x7.5x1 (4)
353381	ALU SHIM 4x7.5x2 (4)
353391	GT GRAPHITE REAR ROLL CENTER UPRIGHT PLATE 4MM - V2 (2)
353420	REAR ANTI-ROLL BAR 2.0MM
353422	REAR ANTI-ROLL BAR 2.2MM
353424	REAR ANTI-ROLL BAR 2.4MM
353425	REAR ANTI-ROLL BAR 2.5MM
353426	REAR ANTI-ROLL BAR 2.6MM
353428	REAR ANTI-ROLL BAR 2.8MM
353430	REAR ANTI-ROLL BAR 3.0MM
353432	REAR ANTI-ROLL BAR 3.2MM
353523	GT COMPOSITE REAR HOLDER POST (2)
353561	ALU REAR WING SHIM (2)
353565	COMPOSITE REAR WING SHIM - BLACK (2)
354011	CENTER DIFF MOUNTING PLATE SET - HIGHER
354011-G	CENTER DIFF MOUNTING PLATE SET - HIGHER - GRAPHITE
354230	GTXE ALU CENTER SPUR GEAR (1st) COLLAR - 7075 T6
354231	GTXE ALU CENTER SPUR GEAR (2nd) COLLAR - 7075 T6
354251	GTXE GRAPHITE CENTER MOUNTING PLATE 2.2MM
354813	BEVEL DRIVE PINION GEAR 13T - MATCHED FOR 46T LARGE BEVEL GEAR
354846	FRONT/REAR DIFF LARGE BEVEL GEAR 46T - MATCHED FOR 13T PINION GEAR
355006	DIFFERENTIAL 46T - MATCHED FOR 13T PINION GEAR - SET
355022	DIFFERENTIAL CASE - V2
355022-G	DIFFERENTIAL CASE - V2 - GRAPHITE
355031	STEEL DIFF BEVEL & SATELLITE GEARS - V2 (2+4)
355084	F/R DIFF PIN (2)
355086	EXTREME HEAT RESISTANT F/R ALU DIFF PIN WITH INSERTS (2+4)
355091	F/R DIFF GASKET (4)
355212	ALU CVD DRIVE AXLE - SWISS 7075 T6 - HARD COATED (4)
355250	ALU WHEEL AXLE - BLACK COATED (2)
355251	ALU WHEEL AXLE OFFSET „+1MM“ - HARD COATED (2)
355252	ALU WHEEL AXLE OFFSET „+2MM“ - HARD COATED (2)
355261	WHEEL NUT - RIBBED - HARD COATED (2)
355265	WHEEL NUT WITH COVER - HARD COATED (2)
355292	PIN WITH FLAT SPOT 3 x 16.8 (2)
355819	ALU PINION GEAR - HARD COATED 19T
355820	ALU PINION GEAR - HARD COATED 20T
355821	ALU PINION GEAR - HARD COATED 21T
355822	ALU PINION GEAR - HARD COATED 22T
355823	ALU PINION GEAR - HARD COATED 23T
355824	ALU PINION GEAR - HARD COATED 24T
356109	XB8E/GTXE/XT8E SADDLE PACK GRAPHITE SERVO HOLDER - V2
356140	COMPOSITE SERVO MOUNT - SMALL (2)
356153	XB8E/GTXE/XT8E BATTERY BOX FOR STANDARD & SHORT BATTERY PACK (2)
356154	COMPOSITE SPEEDO PLATE
356161	SELF-ADHESIVE RUBBER 1.5x13x51.5MM (2)
356194	ALU MOUNT FOR RECEIVER BOX
356200	BRAKE/THROTTLE ARMS & STEERING SERVO ARMS - SET
356241	GTX8E GRAPHITE FAN HOLDER 2.5MM
357212	LOWER INNER PIVOT PIN F+R EUROS‘05 TQ (2)
357230	FRONT LOWER OUTER PIVOT PIN (2)
357256	PIVOT BALL CAMBER ALU SHIM 6x13x1 (2)
357331	REAR LOWER OUTER PIVOT PIN SCREW 3MM (2)
358018	COMPOSITE SET OF SHIMS FOR SHOCKS - DELRIN (2)
358020	COMPOSITE SHOCK PARTS
358027	2-WAY FLOW DELRIN SHOCK PISTON 5-H. (1.5MM) & 2-H. (1.0MM) (2)
358028	2-WAY FLOW DELRIN SHOCK PISTON 6-H. (1.3MM) & 2-H. (1.1MM) (2)
358029	2-WAY FLOW DELRIN SHOCK PISTON 6-H. (1.4MM) & 2-H. (1.1MM) (2)
358030	2-WAY FLOW DELRIN SHOCK PISTON 8-H. (1.2MM) & 2-H. (1.2MM) (2)
358031	2-WAY FLOW DELRIN SHOCK PISTON 8-H. (1.3MM) & 2-H. (1.2MM) (2)
358032	SHOCK PISTON SET 8-HOLE (1.2; 1.3) 10-H. (1.1MM) - DELRIN - V3
358033	SHOCK PISTON SET 6-HOLE (1.2; 1.3; 1.4MM) - DELRIN - V3
358040	HARDENED SHOCK SHIMS (4)
358041	STEEL SHOCK BUSHING (2)
358043	COMPOSITE SHOCK BUSHING & SHIM (2+2)
358047	STEEL SCREW SHOCK PIVOT BALL WITH HEX (2)
358054-K	XB8/GT ALU SHOCK CAP NUT VENT HOLE - SWISS 7075 T6 - BLACK COATED (2)
358055	XB8 ALU SHOCK CAP NUT 4x BLEED HOLE - BLACK COATED (2)
358082	SHOCK RUBBER MEMBRANE (4)
358083	SHOCK RUBBER MEMBRANE RIBBED (4)
358084-S	XB8 SHOCK RUBBER MEMBRANE BOTTOM RIBBED - SOFT (4)
358085	XB8 SHOCK RUBBER VALVE (4)
358087-M	XB8 SHOCK RUBBER MEMBRANE CELL - MEDIUM (4)
358087-S	XB8 SHOCK RUBBER MEMBRANE CELL - SOFT (4)
358090	SHOCK FOAM INSERT (4)
358106	GTX8 SHOCK ABSORBERS - V2 (2)
358130	GT ALU SHOCK BODY - V2 (2)
358142	ALU SHOCK BODY NUT FOR SHOCK BOOT (2)
358150	ALU SHOCK BODY ADJ. NUT (2)
358163	GT SHOCK SHAFT 43MM (2)
358166	GT SHOCK SHAFT 46MM (2)
358194	XRAY GT PROGRESSIVE SPRING SET C=4.1-4.7, 2-DOTS WITH STRIPE (2)
358195	XRAY GT PROGRESSIVE SPRING SET C=5.2-5.8, 3-DOTS WITH STRIPE (2)
358196	XRAY GT SPRING SET C=6.0, 3 DOTS (2)
358783	ALU MOTOR MOUNT PLATE
358785	GTXE ALU MOTOR MOUNT
359730	XRAY GT 1/8 ON-ROAD BODY
359731	XRAY GT 1/8 ON-ROAD BODY - AERO
389135	CONNECTING CABLE RECEIVER/BATT. PACK
397311	XRAY STICKER FOR BODY - WHITE

Screws, bearings, o-rings and hardware (72)

Part #	Description
901303	HEX SCREW SB M3x3 (10)
901305	HEX SCREW SB M3x5 (10)
901306	HEX SCREW SB M3x6 (10)
901312	HEX SCREW SB M3x12 (10)
901314	HEX SCREW SB M3x14 (10)
901404	HEX SCREW SB M4x4 (10)
901405	HEX SCREW SB M4x5 (10)
901410	HEX SCREW SB M4x10 (10)
901412	HEX SCREW SB M4x12 (10)
901504	HEX SCREW SB M5x4 (10)
901505	HEX SCREW SB M5x5 (10)
902305	HEX SCREW SH M3x5 (10)
902308	HEX SCREW SH M3x8 (10)
902310	HEX SCREW SH M3x10 (10)
902312	HEX SCREW SH M3x12 (10)
902314	HEX SCREW SH M3x14 (10)
902316	HEX SCREW SH M3x16 (10)
902318	HEX SCREW SH M3x18 (10)
902325	HEX SCREW SH M3x25 (10)
902330	HEX SCREW SH M3x30 (10)
902412	HEX SCREW SH M4x12 (10)
903306	HEX SCREW SFH M3x6 (10)
903308	HEX SCREW SFH M3x8 (10)
903310	HEX SCREW SFH M3x10 (10)
903312	HEX SCREW SFH M3x12 (10)
903316	HEX SCREW SFH M3x16 (10)
903318	HEX SCREW SFH M3x18 (10)
903320	HEX SCREW SFH M3x20 (10)
903410	HEX SCREW SFH M4x10 (10)
903412	HEX SCREW SFH M4x12 (10)
903414	HEX SCREW SFH M4x14 (10)
908203	HEX SCREW SOCKET HEAD CAP M2x3 (10)
908312	HEX SCREW SOCKET HEAD CAP M3x12 (10)
908314	HEX SCREW SOCKET HEAD CAP M3x14 (10)
908412	HEX SCREW SOCKET HEAD CAP M4x12 (10)
930508	BALL-BEARING 5x8x2.5 STEEL SEALED - OIL (2)
930610	BALL-BEARING 6x10x3 STEEL SEALED - OIL (2)
930816	BALL-BEARING 8x16x5 STEEL SEALED - GREASE (2)
930817	BALL-BEARING 8x16x5 STEEL SEALED - OIL (2)
931318	BALL-BEARING 13x19x4 STEEL SEALED - GREASE (2)
931319	BALL-BEARING 13x19x4 STEEL SEALED - OIL (2)
940508	BALL-BEARING 5x8x2.5 RUBBER SEALED - OIL (2)
940610	BALL-BEARING 6x10x3 RUBBER SEALED - OIL (2)
940611	BALL-BEARING 6x10x3 LOW RADIAL PLAY RUBBER SEALED - OIL (2)
940816	BALL-BEARING 8x16x5 RUBBER SEALED - GREASE (2)
940817	BALL-BEARING 8x16x5 RUBBER SEALED - OIL (2)
941318	BALL-BEARING 13x19x4 RUBBER SEALED - GREASE (2)
941319	BALL-BEARING 13x19x4 RUBBER SEALED - OIL (2)
941320	BALL-BEARING 13x19x4 RUBBER & STEEL SEALED - GREASE (2)
960026	NUT M2.5 - SHORT (10)
960030	NUT M3 (10)
960031	ALU NUT M3 (10)
960040	NUT M4 (10)
961032	WASHER S 3.2 (10)
962041	WASHER S 4x8x0.5 (10)
962130	WASHER S 13x16x0.2 (10)
962131	WASHER S 13x16x0.1 (10)
964030	WASHER S 3.5x12x0.2 (10)
964060	WASHER S 6x18x0.2 (10)
964061	WASHER S 6x18x0.3 (10)
964062	WASHER S 6x18x0.5 (10)
964063	WASHER S 6x10x0.2 (10)
964064	WASHER S 6x10x0.3 (10)
970100	O-RING 10 x 1.5 (10)
970121	O-RING 12.1 x 1.6 (10)
970180	O-RING 18 x 1.8 (10)
971034	SILICONE O-RING 3.4x2 (10)
971061	SILICONE O-RING 6x1.55 (10)
980261	PIN 2.5x11.5 (10)
980263	PIN 2.5x13 (10)
980314	PIN 3x14 (10)
980317	PIN 3x17 (10)

Tools, oils and setup equipment (211)

Part #	Description
104005	HUDY AIR VAC - VACUUM PUMP - 1/8 OFF-ROAD
105500	HUDY UNIVERSAL TIRE BALANCING STATION
105510	WHEEL ADAPTER FOR 1/8 OFF-ROAD CAR, TRUGGY & RALLY GAME
105590	HUDY WHEEL BALANCING PUTTY
106000	HUDY DRIVE PIN REPLACEMENT TOOL (FOR 3MM PINS)
106050	SET OF REPLACEMENT DRIVE SHAFT PINS 3x14 (10)
106200	HUDY MAGIC CLEANING GUM
106210	HUDY GRAPHITE GREASE
106213	HUDY JOINT GREASE
106220	HUDY BEARING GREASE
106221	HUDY BEARING GREASE - EXTRA
106222	HUDY BEARING GREASE - PREMIUM
106230	HUDY BEARING OIL
106232	HUDY BEARING OIL - PREMIUM
106245	HUDY AIR FILTER SEALANT
106281	HUDY BODY FIX 28g/1oz
106290	HUDY ULTIMATE SOLDER 3M LENGTH
106361	HUDY PREMIUM SILICONE OIL 600 cSt - 100ML
106363	HUDY PREMIUM SILICONE OIL 625 cSt - 100ML
106366	HUDY PREMIUM SILICONE OIL 650 cSt - 100ML
106368	HUDY PREMIUM SILICONE OIL 675 cSt - 100ML
106371	HUDY PREMIUM SILICONE OIL 700 cSt - 100ML
106376	HUDY PREMIUM SILICONE OIL 750 cSt - 100ML
106380	HUDY ULTIMATE SILICONE OIL 800 cSt - 50ML
106381	HUDY PREMIUM SILICONE OIL 800 cSt - 100ML
106391	HUDY PREMIUM SILICONE OIL 900 cSt - 100ML
106411	HUDY PREMIUM SILICONE OIL 1000 cSt - 100ML
106421	HUDY PREMIUM SILICONE OIL 2000 cSt - 100ML
106431	HUDY PREMIUM SILICONE OIL 3000 cSt - 100ML
106441	HUDY PREMIUM SILICONE OIL 4000 cSt - 100ML
106451	HUDY PREMIUM SILICONE OIL 5000 cSt - 100ML
106461	HUDY PREMIUM SILICONE OIL 6000 cSt - 100ML
106471	HUDY PREMIUM SILICONE OIL 7000 cSt - 100ML
106481	HUDY PREMIUM SILICONE OIL 8000 cSt - 100ML
106491	HUDY PREMIUM SILICONE OIL 9000 cSt - 100ML
106493	HUDY PREMIUM SILICONE OIL 11 000 cSt - 100ML
106511	HUDY PREMIUM SILICONE OIL 10 000 cSt - 100ML
106513	HUDY PREMIUM SILICONE OIL 12 000 cSt - 100ML
106516	HUDY PREMIUM SILICONE OIL 15 000 cSt - 100ML
106521	HUDY PREMIUM SILICONE OIL 20 000 cSt - 100ML
106531	HUDY PREMIUM SILICONE OIL 30 000 cSt - 100ML
106541	HUDY PREMIUM SILICONE OIL 40 000 cSt - 100ML
106550	HUDY ULTIMATE SILICONE OIL 50 000 cSt - 50ML
106551	HUDY PREMIUM SILICONE OIL 50 000 cSt - 100ML
106561	HUDY PREMIUM SILICONE OIL 60 000 cSt - 100ML
106581	HUDY PREMIUM SILICONE OIL 80 000 cSt - 100ML
106611	HUDY PREMIUM SILICONE OIL 100 000 cSt - 100ML
106616	HUDY PREMIUM SILICONE OIL 150 000 cSt - 100ML
106621	HUDY PREMIUM SILICONE OIL 200 000 cSt - 100ML
106630	HUDY PREMIUM SILICONE OIL 300 000 cSt - 50ML
106631	HUDY PREMIUM SILICONE OIL 300 000 cSt - 100ML
106900	HUDY OIL BOTTLE, NOSE, STEEL NEEDLE & SAFETY LOCK - 5ML (3)
107090	HUDY BEARING CHECK TOOL
107570	HUDY 17MM OFF-ROAD WHEEL NUT TOOL
107581	WRENCH-GLOWPLUG / CLUTCHNUT 10 MM - LONG
107602	LIMITED EDITION - REAMER FOR BODY + COVER - LARGE
107612	LIMITED EDITION - EXHAUST SPRING / CASTER CLIP REMOVER
107643	LIMITED EDITION - ARM REAMER 3.0 MM
107644	LIMITED EDITION - ARM REAMER 4.0 MM
107704	CHASSIS DROOP GAUGE SUPPORT BLOCKS 30MM FOR 1/8 OFF-ROAD - LW (2)
107717	CHASSIS DROOP GAUGE 0 TO -13 MM FOR 1/8 OFF-ROAD & TRUGGY
107720	CHASSIS RIDE HEIGHT GAUGE 17MM TO 30MM FOR 1/8 & 1/10 OFF-ROAD
107742	HUDY RIDE HEIGHT TOOL 20-30MM
107751	HUDY QUICK CAMBER GAUGE 1/8 OFF-ROAD 1°; 2°; 3°
107761	HUDY ADJUSTABLE CAMBER GAUGE 80MM
107762	HUDY ADJUSTABLE CAMBER GAUGE 110MM
107763	HUDY ADJUSTABLE RIDE HEIGHT GAUGE 5-40MM
107780	HUDY ADJUSTABLE DROOP GAUGE 80~140MM
107783	HUDY DROOP GAUGE 70~140MM
107840	CLEANING BRUSH LARGE - SOFT
107841	CLEANING BRUSH LARGE - MEDIUM
107842	CLEANING BRUSH LARGE - STIFF
107846	CLEANING BRUSH SMALL - SOFT
107847	CLEANING BRUSH SMALL - MEDIUM
107848	CLEANING BRUSH SMALL - STIFF
107850	HUDY PERSONAL RACING DISPLAY
107855	HUDY PIT LED
107861	HUDY PROFFESIONAL RACING STOPWATCH XL DISPLAY
107865	HUDY ULTIMATE DIGITAL SCALE 300g/0.01g
107871	SELF-ADHESIVE FOAM STRIP (2)
107873	HUDY BUMPER & BODY SPACE SPONGE SET
107875	HUDY ULTRA DOUBLE-SIDED TAPE
107876	HUDY ULTRA THIN DOUBLE-SIDED TAPE - SINGLE STRIP (5)
107880	CHASSIS BALANCING SIMPLE TOOL (2 PCS.)
108170	HUDY OFF-ROAD & TRUGGY CAR STAND
108190	HUDY ALU PARTS TRAY
108202	FLAT SET-UP BOARD FOR 1/8 OFF-ROAD & TRUGGY
108212	PLASTIC SET-UP BOARD DECAL FOR 1/8 OFF-ROAD & TRUGGY
108213	PLASTIC SET-UP BOARD DECAL 449x562mm - 1/8 OFF-ROAD & TRUGGY
108701	FLAT SET-UP BOARD FOR 1/8 OFF-ROAD & GT - GREY
108702	FLAT SET-UP BOARD FOR 1/8 OFF-ROAD & GT - SILVER GREY
108703	FLAT SET-UP BOARD FOR 1/8 OFF-ROAD & GT - DARK GREY
108704	FLAT SET-UP BOARD FOR 1/8 OFF-ROAD & GT - TITAN
108705	FLAT SET-UP BOARD FOR 1/8 OFF-ROAD & GT - BLACK
108760	PLASTIC SET-UP BOARD DECAL 399x545mm - 1/8 OFF-ROAD & GT
108860	ALU NUT FOR 1/8 OFF-ROD SYSTEM (4)
109601	HUDY SET-UP STATION FOR 1/8 GT
109672	ALU SET-UP WHEEL FOR 1/8 GT (4)
109802	HUDY ALU TRAY FOR 1/8 OFF-ROAD DIFF & SHOCKS
109841	HUDY ALU TRAY FOR 1/8 OFF-ROAD DIFF ASSEMBLY
109860	HUDY ALU TRAY FOR SET-UP SYSTEM
109880	HUDY ALU TRAY FOR ACCESSORIES & PIT LED
111030	PIN ADAPTER 3.0MM FOR EL. SCREWDRIVER
111035	PIN ADAPTER 3.5MM FOR EL. SCREWDRIVER
111063	LIMITED EDITION - UNIVERSAL HANDLE FOR EL. SCREWDRIVER PINS
111545	LIMITED EDITION - ALLEN WRENCH 1.5 MM
112045	LIMITED EDITION - ALLEN WRENCH 2.0 MM
112545	LIMITED EDITION - ALLEN WRENCH 2.5 MM
113045	LIMITED EDITION - ALLEN WRENCH 3.0 MM
132545	LIMITED EDITION - BALL ALLEN WRENCH 2.5 MM
165045	LIMITED EDITION - PHILLIPS SCREWDRIVER 5.0 MM
175035	LIMITED EDITION - SOCKET DRIVER 5.0 MM
175535	LIMITED EDITION - SOCKET DRIVER 5.5 MM
181034	HUDY SPRING STEEL TURNBUCKLE WRENCH 3 & 4MM
181035	HUDY SPRING STEEL TURNBUCKLE WRENCH 3.5MM
181091	HUDY TURNBUCKLE WRENCH 3 & 4MM - V2
181110	HUDY BALL JOINT WRENCH
182016	HUDY WHEEL NUT & 3/4 SHOE FLYWHEEL MULTI-TOOL 1/8 BUGGY & GT
183011	HUDY PROFESSIONAL MULTI TOOL
188980	HUDY BLADE HOBBY KNIFE WITH ALU HANDLE
188981	HUDY POCKET HOBBY KNIFE
188984	HUDY REPLACEABLE HOBBY KNIFE BLADES (10PCS)
188985	HUDY REPLACEABLE HOBBY KNIFE BLADES (5PCS)
188990	HUDY ULTIMATE BODY SCISSORS
189000	HUDY MICRO RC PLIERS SET + CARRYING BAG
190003	SET OF TOOLS + CARRYING BAG - FOR 1/8 OFF-ROAD CARS
190005	HUDY LIMITED EDITION TOOL SET + CARRYING BAG
190070	SET OF POWER TOOL TIPS 2.0, 2.5, 3.00MM + 4.0, 5.8 PHILLIPS
199011-H	HUDY HARD CASE - 230x180x45MM - TOOL BAG SMALL
199060	HUDY ALU TOOL STAND
199120	HUDY 1/10 & 1/8 CARRYING BAG + TOOL BAG - EXCLUSIVE EDITION
199140	HUDY 1/8 OFF-ROAD & TRUGGY CARRYING BAG + TOOL BAG - EXCLUSIVE EDITION
199150	HUDY CARGO BAG - EXCLUSIVE EDITION
199155L	HUDY TRAVEL BAG - LARGE
199157L	HUDY HAND BAG - LARGE
199157M	HUDY HAND BAG - MEDIUM
199160	HUDY STARTER BAG - EXCLUSIVE EDITION
199160-H	HUDY HARD CASE - 355x150x109MM - STARTER BOX OFF-ROAD
199170	HUDY TRANSMITTER BAG - LARGE - EXCLUSIVE EDITION
199171	HUDY TRANSMITTER BAG - COMPACT - EXCLUSIVE EDITION
199171-H	HUDY HARD CASE - 185x220x145MM - TRANSMITTER SANWA MT4, MT44 & M17
199175	HUDY RADIO WINTER BAG - EXCLUSIVE EDITION
199176	HUDY HEAT PACK GEL
199184	HUDY CAR BAG - 1/8 OFF-ROAD
199190	HUDY TEAM RUCKSACK
199199	HUDY EURO POUCH
199213	HUDY SET-UP BOARD BAG 1/8 OFF-ROAD & GT
199240	HUDY SET-UP BAG FOR 1/8 OFF-ROAD CARS - EXCLUSIVE EDITION
199270	HUDY LIPO SAFETY BAG
199280L	HUDY OIL BAG - LARGE
199280L-H	HUDY HARD CASE - 180x140x120MM - OIL BAG LARGE
199280M	HUDY OIL BAG - MEDIUM
199280M-H	HUDY HARD CASE - 140x110x95MM - OIL BAG MEDIUM
199290	HUDY ACCESSORIES BAG
199290-H	HUDY HARD CASE - 235x190x75MM
199291-H	HUDY HARD CASE - 135x85x75MM - ACCESSORIES / AIR VAC ON-ROAD
199292-H	HUDY HARD CASE - 175x85x75MM - ACCESSORIES / AIR VAC 1/10 OFF-ROAD
199293-H	HUDY HARD CASE - 175x110x75MM
199294-H	HUDY HARD CASE - 215x90x85MM - ACCESSORIES / AIR VAC 1/8 OFF-ROAD
199295-H	HUDY HARD CASE - 280x150x85MM - ACCESSORIES BAG LARGE
199296-H	HUDY HARD CASE - 120x85x46MM - ACCESSORIES / STOP WATCH
199297-H	HUDY HARD CASE - 320x220x145MM - ELECTRONICS
199310	HUDY PIT BAG
199380	HUDY PIT FOAM
199390	HUDY PIT APRON
199910	HUDY PIT MAT 750x1200MM
199911	HUDY PIT MAT ROLL 750x1200MM
199912	HUDY PIT MAT ROLL 600x950MM
209065	HUDY COMPACT CLEANING TOWEL (10)
209073	HUDY EXCLUSIVE PIT TOWEL 1100 x 700
209080	HUDY LANYARD
209103	HUDY STICKERS FOR BODIES
286990	HUDY FACE MASK
293081	HUDY PURE TUNGSTEN WEIGHT 5g
293082	HUDY PURE TUNGSTEN WEIGHT 10g
293083	HUDY PURE TUNGSTEN WEIGHT 15g
293111	HUDY BRUSHLESS RC FAN 40MM - WITH EXTERNAL SOLDERING TABS
293113	HUDY BRUSHLESS RC FAN 40MM - WITH INTERNAL SOLDERING TABS
293560	HUDY ALU WHEEL NUT WITH COVER - RIBBED (2)
293561	HUDY ALU REAR WING SHIM (2)
293561-K	HUDY ALU REAR WING SHIM - BLACK (2)
293561-O	HUDY ALU REAR WING SHIM - ORANGE (2)
293576	HUDY OFF-ROAD SPRING SET PROGRESSIVE SOFT-MEDIUM, ID 20.1mm, L=69mm (2)
293577	HUDY OFF-ROAD SPRING SET PROGRESSIVE MEDIUM, ID 20.1mm, L=69mm (2)
298010	HUDY HARDWARE BOX - DOUBLE-SIDED
298011	HUDY HARDWARE BOX - DOUBLE-SIDED - COMPACT
298012	HUDY PARTS BOX - 10-COMPARTMENTS
298013	HUDY SPRINGS BOX - 10-COMPARTMENTS
298014	HUDY PARTS BOX - 8-COMPARTMENTS
298015	HUDY PARTS CASE - 290 x 195mm
298016	HUDY TINY HARDWARE BOX - 4-COMPARTMENTS
298017	HUDY TINY ONE-PIECE HARDWARE BOX - 8-COMPARTMENTS
298018	HUDY TINY HARDWARE BOX - 8-COMPARTMENTS
298019	HUDY DIFF BOX - 8-COMPARTMENTS
298100	HUDY TIN ROUND BOX 80x30MM
302630	ADJ. TURNBUCKLE L/R 20 MM - HUDY SPRING STEEL™ (2)
352611	ADJ. TURNBUCKLE M4 L/R 52.5 MM - HUDY SPRING STEEL™ - V3 (2)
352625	ADJ. TURNBUCKLE M5 L/R 46 MM - HUDY SPRING STEEL™ (2)
354211	GTXE CENTRAL SOLID SHAFT - HUDY SPRING STEEL™
354261	GT CENTRAL TRANSMISSION OUTDRIVE ADAPTER - V2 - HUDY SPRING STEEL™ (2)
355064	FRONT DIFF OUTDRIVE ADAPTER LONG - V2 - HUDY SPRING STEEL™ (2)
355065	REAR DIFF OUTDRIVE ADAPTER - V2 - HUDY SPRING STEEL“ (2)
355211	CVD DRIVE AXLE - HUDY SPRING STEEL™
355215	CVD ADJUSTABLE DRIVE AXLE - HUDY SPRING STEEL™ (2)
355221	CVD UNIVERSAL DRIVE SHAFT 94mm - HUDY SPRING STEEL™
355223	CVD UNIVERSAL DRIVE SHAFT 93mm - HUDY SPRING STEEL™
355237	CVD DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
355415	CENTRAL DOGBONE SHAFT UNIVERSAL JOINT - HUDY SPRING STEEL™ (2)
355434	FRONT CENTRAL DOGBONE DRIVE SHAFT 80MM - HUDY SPRING STEEL™
355634	REAR CENTRAL DOGBONE DRIVE SHAFT 105MM - HUDY SPRING STEEL™
803500	HUDY 41MM WHEELS STARBURST - WHITE (4)
