Commonly replaced parts
The arms, uprights, driveline and shock parts that go first on a race car, with the full list below.
Parts listSource: XRAY

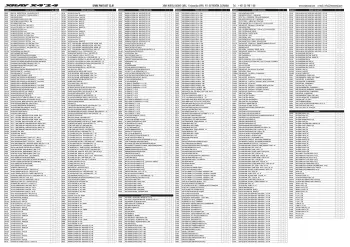

XRAY X4 '24 Parts list
More option parts for this car
Every part XRAY lists for the XRAY X4 '24, from XRAY's own parts list, including the spares, the option parts and the hardware. Part numbers link to AMain Hobbies where the part is still sold; parts with no current match are listed as plain text.
Full parts list
Car parts (319)
| Part # | Description |
|---|---|
| 293080 | LEAD WEIGHTS 4x5g & 4x10g WITH 3M GLUE |
| 293084 | PRECISION BALANCING CHASSIS WEIGHT 10g (4) |
| 293311 | GRAPHITE REAR WING SIDE PLATE 0.5mm - 1/10 ELECTRIC (2) |
| 293401 | ALU CLAMP SERVO HORN - KO PROPO, JR, SANWA, AIRTRONICS - OFFSET - 23T |
| 293402 | ALU CLAMP SERVO HORN - HITEC - OFFSET- 24T |
| 293403 | ALU CLAMP SERVO HORN - FUTABA - OFFSET - 25T |
| 293404 | ALU CLAMP SERVO HORN - KO PROPO, SANWA - 2-HOLE M3 - 23T |
| 293405 | ALU CLAMP SERVO HORN - HITEC - 2-HOLE M3 - 24T |
| 293406 | ALU CLAMP SERVO HORN - FUTABA, SAVÖX - 2-HOLE M3 - 25T |
| 293407 | ALU CLAMP SERVO HORN - KO PROPO, SANWA - 3-HOLE M3 - 23T |
| 293408 | ALU CLAMP SERVO HORN - HITEC - 3-HOLE M3 - 24T |
| 293409 | ALU CLAMP SERVO HORN - FUTABA, SAVÖX - 3-HOLE M3 - 25T |
| 293411 | ALU CLAMP SERVO HORN - KO PROPO, SANWA - OFFSET - 2-HOLE - M3 - 23T |
| 293412 | ALU CLAMP SERVO HORN - HITEC - OFFSET - 2-HOLE - M3 - 24T |
| 293413 | ALU CLAMP SERVO HORN - FUTABA, SAVÖX - OFFSET - 2-HOLE - M3 - 25T |
| 293491 | ALU SERVO HORN - KO PROPO, JR, SANWA, AIRTRONICS - OFFSET - 23T |
| 293492 | ALU SERVO HORN - HITEC - OFFSET- 24T |
| 293493 | ALU SERVO HORN - FUTABA - OFFSET - 25T - V2 |
| 293497 | ALU SERVO HORN - KO PROPO, SANWA - 2-HOLE M3 - 23T |
| 293498 | ALU SERVO HORN - HITEC - 2-HOLE M3 - 24T |
| 293499 | ALU SERVO HORN - FUTABA, SAVÖX - 2-HOLE M3 - 25T |
| 293501 | ALU SERVO HORN - KO PROPO, JR, SANWA, AIRTRONICS - 23T |
| 293502 | ALU SERVO HORN - HITEC - 24T |
| 293503 | ALU SERVO HORN - FUTABA - 25T - V2 |
| 296509 | ALU COUNTERSUNK SERVO SHIM (10) |
| 296509-K | ALU COUNTERSUNK SERVO SHIM - BLACK (10) |
| 296509-O | ALU COUNTERSUNK SERVO SHIM - ORANGE (10) |
| 296510 | ALU COUNTERSUNK SHIM (10) |
| 296510-B | ALU COUNTERSUNK SHIM - BLUE (10) |
| 296510-K | ALU COUNTERSUNK SHIM - BLACK (10) |
| 296510-O | ALU COUNTERSUNK SHIM - ORANGE (10) |
| 296510-V | ALU COUNTERSUNK SHIM - VIOLET (10) |
| 296530-B | ALU NUT M3 - BLUE (10) |
| 296530-K | ALU NUT M3 - BLACK (10) |
| 296530-O | ALU NUT M3 - ORANGE (10) |
| 301018 | X4‘24 GRAPHITE CHASSIS 2.2mm |
| 301019 | X4‘24 ALU FLEX CHASSIS 2.0mm - SWISS 7075 T6 |
| 301020 | X4‘24 ALU FLEX CHASSIS 1.5mm - SWISS 7075 T6 |
| 301070 | X4 GRAPHITE UPPER DECK 2.0mm |
| 301071 | X4 GRAPHITE UPPER DECK 1.6mm |
| 301072 | X4 GRAPHITE UPPER DECK - SPLIT FRONT - 2.0mm |
| 301073 | X4 GRAPHITE UPPER DECK - SPLIT REAR - 2.0mm |
| 301077 | X4‘23 GRAPHITE UPPER DECK - SPLIT FRONT OPEN - 2.0mm |
| 301078 | X4‘23 GRAPHITE UPPER DECK - SPLIT REAR - 2.0mm |
| 301078-L | X4‘23 GRAPHITE UPPER DECK - SPLIT REAR - 1.6mm |
| 301079 | X4‘23 GRAPHITE UPPER DECK - SPLIT FRONT WAVE - 2.0mm |
| 301079-L | X4‘23 GRAPHITE UPPER DECK - SPLIT FRONT WAVE - 1.6mm |
| 301159 | ALU COUNTERSUNK SHIM (4) |
| 301159-O | ALU COUNTERSUNK SHIM - ORANGE (4) |
| 301203 | IMPACT ABSORBING FRONT BUMPER |
| 301204 | COMPOSITE BUMPER FOR ADJUSTABLE BODY MOUNTS |
| 301205 | X4 COMPOSITE LONGER BUMPER UPPER HOLDER BRACE |
| 301210 | GRAPHITE BUMPER UPPER HOLDER FOR ADJUSTABLE BODY MOUNTS 2.5mm |
| 301219 | COMPOSITE UPPER HOLDER FOR BUMPER FOR ADJUSTABLE BODY MOUNTS |
| 301231 | FOAM BUMPER FOR ADJUSTABLE BODY MOUNTS - LIGHT - V2 |
| 301232 | FOAM BUMPER FOR ADJUSTABLE BODY MOUNTS - HARD |
| 301322 | FRONT BODY MOUNT SET 6mm |
| 301322-H | HARD COMPOSITE HORIZONTAL REAR BODY MOUNT POST - SET |
| 301323 | FRONT BODY MOUNT SET +1mm HEIGHT |
| 301324 | FRONT BODY MOUNT SET +2mm HEIGHT |
| 301325 | T4 COMPOSITE BRACE FOR BUMPER - LOW (2) |
| 301326 | COMPOSITE FRONT ECCENTRIC 6mm BODY MOUNT SET |
| 301327 | COMPOSITE FRONT ECCENTRIC 6mm BODY MOUNT SET +1mm HEIGHT |
| 301328 | COMPOSITE FRONT ECCENTRIC 6mm BODY MOUNT SET +2mm HEIGHT |
| 301336 | COMPOSITE REAR 6mm ADJUSTABLE BODY MOUNT SET |
| 301337 | COMPOSITE REAR 6mm ADJUSTABLE BODY MOUNT SET +1mm HEIGHT |
| 301338 | COMPOSITE REAR 6mm ADJUSTABLE BODY MOUNT SET +2mm HEIGHT |
| 301349 | X4 HORIZONTAL BODY POST MOUNTING GAUGE |
| 301351-K | ALU ADJUSTABLE BODY POST STOP - BLACK (2) |
| 301351-O | ALU ADJUSTABLE BODY POST STOP - ORANGE (2) |
| 301352-O | ALU ADJUSTABLE BODY POST STOP NUT (2) |
| 301383 | X4 GRAPHITE BODY POST & BODY POST HOLDER - 1PC - 4.0mm |
| 301390 | GRAPHITE SHIM FOR REAR BODY POST ADJUSTMENT 3.0mm (4) |
| 301576 | X4 ALU UPPER CLAMP - INNER SHOCK POSITION - SWISS 7075 T6 (L+R) |
| 301972 | X4 ALU SHOCK HOLDER FRONT FIXED - SWISS 7075 T6 (2) |
| 302062 | T4 COMPOSITE ADJUSTMENT BALL-BEARING HUB (4) |
| 302063-K | T4 ALU ADJUSTMENT BALL-BEARING HUB - BLACK (2) |
| 302064-K | ALU ADJUSTMENT BALL-BEARING HUB +1mm - BLACK (2) |
| 302121 | X4 FRONT ROLL-CENTER SPACER (2) |
| 302122 | X4 REAR ROLL-CENTER SPACER (2) |
| 302134-M | X4 CFF™ UPPER ARM - INNER SHOCK POSITION - MEDIUM - FR/RL |
| 302134-S | X4 CFF™ UPPER ARM - INNER SHOCK POSITION - SOFT - FR/RL |
| 302144-M | X4 CFF™ UPPER ARM - INNER SHOCK POSITION - MEDIUM - FL/RR |
| 302144-S | X4 CFF™ UPPER ARM - INNER SHOCK POSITION - SOFT - FL/RR |
| 302182-H | X4 CFF™ FRONT LOWER ARM - INNER SHOCK POSITION - HARD - RIGHT |
| 302182-M | X4 CFF™ FRONT LOWER ARM - INNER SHOCK POSITION - MEDIUM - RIGHT |
| 302183-H | X4 CFF™ FRONT LOWER ARM - INNER SHOCK POSITION - HARD - LEFT |
| 302183-M | X4 CFF™ FRONT LOWER ARM - INNER SHOCK POSITION - MEDIUM - LEFT |
| 302240-G | X4 COMPOSITE HUB - GRAPHITE |
| 302240-H | X4 COMPOSITE HUB - HARD |
| 302241 | X4 ALU HUB - SWISS 7075 T6 |
| 302310 | X4 ALU CASTER BUSHING FRONT 3° / REAR 0.5°/5.5° - 1 DOT (4) |
| 302311 | X4 ALU CASTER BUSHING FRONT 4° / REAR 1.5°/4.5° - 2 DOTS (4) |
| 302312 | X4 ALU CASTER BUSHING FRONT 5° / REAR 2.5°/3.5° - 3 DOTS (4) |
| 302386 | X4 ALU FRONT STEERING PLATE - INNER SHOCK POSITION - SWISS 7075 T6 (L+R) |
| 302387 | X4 ALU REAR ARS PLATE - INNER SHOCK POSITION - SWISS 7075 T6 (L+R) |
| 302433 | ANTI-ROLL BAR STEEL BALL END 3.8Mm WITH 4mm THREAD (2) |
| 302517-K | X4 ALU DUAL STEERING ARM - BLACK + BALL-BEARINGS (2) |
| 302539 | X4 ALU STEERING POST FOR DUAL SERVO SAVER (2) |
| 302544 | ALU SHIM FOR RADIAL PLAY ADJUSTMENT OF STEERING ARM (2) |
| 302544-O | ALU SHIM FOR RADIAL PLAY ADJUSTMENT OF STEERING ARM - ORANGE (2) |
| 302552 | X4 ALU STEERING PLATE FOR DUAL STEERING |
| 302553 | X4 ALU STEERING PLATE WITH 7.5Mm SPACING |
| 302571 | X4 GRAPHITE STEERING PLATE SET |
| 302590 | ALU DUAL STEERING ARM SCREW M3x7 - SWISS 7075 T6 (2) |
| 302612 | ALU ADJ. TURNBUCKLE M3 L/R 39 mm - SWISS 7075 T6 (2) |
| 302612-O | ALU ADJ. TURNBUCKLE M3 L/R 39 mm - ORANGE - SWISS 7075 T6 (2) |
| 302663 | COMPOSITE BALL JOINT 4.9mm - OPEN - V2 (8) |
| 302664 | COMPOSITE BALL JOINT 4.9mm UNIDIRECTIONAL - OPEN (4) |
| 302665 | COMPOSITE BALL JOINT 4.9mm - CLOSED WITH HOLE (4) |
| 302666 | X4 COMPOSITE BALL JOINT 4.9mm F+R - OPEN (2+2) |
| 302776 | X4‘24 ALU LOWER BULKHEAD - FRONT RIGHT - 7075 T6 |
| 302777 | X4‘24 ALU LOWER BULKHEAD - FRONT LEFT - 7075 T6 |
| 302778 | X4‘24 ALU LOWER BULKHEAD - REAR RIGHT - 7075 T6 |
| 302779 | X4‘24 ALU LOWER BULKHEAD - REAR LEFT - 7075 T6 |
| 302831 | X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - FRONT 1.1 mm |
| 302832 | X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - FRONT 1.2 mm |
| 302833 | X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - FRONT 1.3 mm |
| 302972 | X4 ALU SHOCK HOLDER REAR FIXED - SWISS 7075 T6 (2) |
| 302973 | X4 ALU SHOCK HOLDER REAR ACTIVE - SWISS 7075 T6 (2) |
| 303075 | BELT TENSIONER STEEL BUSHING (2) |
| 303118-K | ALU SHIM 3x9x1.0mm - BLACK (10) |
| 303119-K | ALU SHIM 3x9x2.0mm - BLACK (10) |
| 303120 | SET OF ALU SHIM (0.5mm, 1.5mm, 2.5mm) |
| 303121 | SET OF ALU SHIM (1.0mm, 2.0mm, 3.0mm) |
| 303121-K | ALU SHIM 3x6x0.5mm - BLACK (10) |
| 303121-O | ALU SHIM 3x6x0.5mm - ORANGE (10) |
| 303122 | ALU SHIM 3x6x1.0mm (10) |
| 303122-K | ALU SHIM 3x6x1.0mm - BLACK (10) |
| 303122-O | ALU SHIM 3x6x1.0mm - ORANGE (10) |
| 303123 | ALU SHIM 3x6x2.0mm (10) |
| 303123-K | ALU SHIM 3x6x2.0mm - BLACK (10) |
| 303123-O | ALU SHIM 3x6x2.0mm - ORANGE (10) |
| 303125 | ALU SHIM 3x6x3.0mm (10) |
| 303125-K | ALU SHIM 3x6x3.0mm - BLACK (10) |
| 303125-O | ALU SHIM 3x6x3.0mm - ORANGE (10) |
| 303126 | ALU SHIM 3x6x5.0mm (10) |
| 303126-K | ALU SHIM 3x6x5.0mm - BLACK (10) |
| 303127 | ALU SHIM 3x6x4.0mm (10) |
| 303127-K | ALU SHIM 3x6x4.0mm - BLACK (10) |
| 303128 | ALU SHIM 3x6x6.0mm (10) |
| 303128-K | ALU SHIM 3x6x6.0mm - BLACK (10) |
| 303129 | COMPOSITE SET OF SHIMS 3x 3x6x1mm; 1x 3x6x2mm (2) |
| 303136 | ALU SHIM 3x7x1.0mm (10) |
| 303136-O | ALU SHIM 3x7x1.0mm - ORANGE (10) |
| 303137-K | ALU SHIM 3x7.5x2.0mm - BLACK (10) |
| 303138-K | ALU SHIM 3x7x2.0mm - BLACK (10) |
| 303138-O | ALU SHIM 3x7x2.0mm - ORANGE (10) |
| 303139-K | ALU SHIM 3x6x7.0mm - BLACK (10) |
| 303140-K | ALU SHIM 3x5x2.0mm - BLACK (10) |
| 303140-O | ALU SHIM 3x5x2.0mm - ORANGE (10) |
| 303141 | ALU SHIM 3x5x1.0mm (10) |
| 303141-O | ALU SHIM 3x5x1.0mm - ORANGE (10) |
| 303142-K | ALU SHIM 3x5x0.5mm - BLACK (10) |
| 303142-O | ALU SHIM 3x5x0.5mm - ORANGE (10) |
| 303143 | ALU SHIM 3x5x0.25mm (10) |
| 303144 | ALU SHIM 3x5x4.0mm (10) |
| 303144-O | ALU SHIM 3x5x4.0mm - ORANGE (10) |
| 303182-H | X4 CFF™ REAR LOWER ARM - INNER SHOCK POSITION - HARD - RIGHT |
| 303182-M | X4 CFF™ REAR LOWER ARM - INNER SHOCK POSITION - MEDIUM - RIGHT |
| 303183-H | X4 CFF™ REAR LOWER ARM - INNER SHOCK POSITION - HARD - LEFT |
| 303183-M | X4 CFF™ REAR LOWER ARM - INNER SHOCK POSITION - MEDIUM - LEFT |
| 303211 | ALU ADJUSTABLE TURNBUCKLE L/R 30 mm - SWISS 7075 T6 (2) |
| 303211-O | ALU ADJ. TURNBUCKLE L/R 30 mm - SWISS 7075 T6 (2) |
| 303433 | ALU ANTI-ROLL BAR BUSHING o1.7mm - 6mm (2) |
| 303435 | ALU ANTI-ROLL BAR BALL END 3.9mm - SWISS 7075 T6 (2) |
| 303454 | BALL JOINT 4.9mm - OPEN (4) |
| 303458 | COMPOSITE ANTI-ROLL BAR BALL JOINT 3.9mm (4) |
| 303755 | X4 ALU MOTOR MOUNT WITH 3Mm CENTERING PINS |
| 303767 | X4 BRASS CHASSIS T-BRACE 8g |
| 303768 | X4 ALU CHASSIS T-BRACE - SWISS 7075 T6 |
| 303831 | X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - REAR 1.1 mm |
| 303832 | X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - REAR 1.2 mm |
| 303833 | X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - REAR 1.3 mm |
| 304902 | X4 BB GEAR DIFFERENTIAL - SET |
| 304911 | X4 COMPOSITE GEAR DIFF. CASE WITH 38T PULLEY & COVER |
| 304930 | COMPOSITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4) |
| 304932 | GRAPHITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4) - LOW |
| 304970 | ALU GEAR DIFF OUTDRIVE ADAPTER - 7075 T6 (2) |
| 304972 | ALU GEAR DIFF BB DRIVESHAFT ADAPTER - SWISS 7075 T6 (2) |
| 304980 | COMPOSITE GEAR DIFF CROSS PIN |
| 304990 | DIFF GASKET (4) |
| 305135 | COMPOSITE SOLID AXLE DRIVESHAFT ADAPTERS - V2 (2) |
| 305136 | ALU SOLID AXLE DRIVESHAFT ADAPTERS - HARD COATED (2) |
| 305178 | X4 COMPOSITE SOLID AXLE 38T |
| 305241 | DRIVE SHAFT REPLACEMENT PLASTIC CAP 3.5 mm (4) |
| 305242 | DRIVE SHAFT REPLACEMENT PLASTIC CAP 3.5 mm - ORANGE - STRONG (4) |
| 305256 | ECS BB SC ALU DRIVE SHAFT SLEEVE - SWISS 7075 T6 |
| 305354 | X4 ALU WHEEL HUB - SPRING CLIP - OFFSET -0.5mm - SWISS 7075 T6 (2) |
| 305356 | X4 ALU WHEEL HUB - SPRING CLIP - SWISS 7075 T6 (2) |
| 305359 | X4 ALU WHEEL HUB - SPRING CLIP - OFFSET +0.5mm - SWISS 7075 T6 (2) |
| 305370 | X4 ALU DRIVE SHAFT 54mm - SWISS 7075 T6 - HARD COATED |
| 305380 | ALU WHEEL SHIM OFFSET 0.75mm (2) |
| 305381 | ALU WHEEL SHIM OFFSET 1.0mm (2) |
| 305382 | ALU WHEEL SHIM OFFSET 0.5mm (2) |
| 305392 | DRIVE SHAFT PIN 2 x 10 WITH FLAT SPOT (2) |
| 305395 | ECS BB SC DRIVE SHAFT PIN 2 x 8.4 (2) |
| 305435 | HIGH-PERFORMANCE DRIVE BELT 3 x 351mm |
| 305436 | HIGH-PERFORMANCE LOW FRICTION KEVLAR DRIVE BELT 3 x 351mm |
| 305524 | X4 ALU SOLID LAYSHAFT & BEARINGS |
| 305579 | X4 COMPOSITE PULLEY FOR LAYSHAFT 20T |
| 305772 | OFFSET SPUR GEAR 72T / 48P - HARD |
| 305776 | OFFSET SPUR GEAR 76T / 48P - HARD |
| 305778 | OFFSET SPUR GEAR 78T / 48P - HARD |
| 305779 | OFFSET SPUR GEAR 79T / 48P - HARD |
| 305781 | OFFSET SPUR GEAR 81T / 48P - HARD |
| 305784 | SPUR GEAR 84T / 48P |
| 305784-O | SPUR GEAR „H“ 84T / 48P - ORANGE |
| 305860 | OFFSET SPUR GEAR 90T / 64P |
| 305862 | OFFSET SPUR GEAR 92T / 64P |
| 305866 | OFFSET SPUR GEAR 96T / 64P |
| 305866-O | OFFSET SPUR GEAR 96T / 64P - ORANGE |
| 305869 | OFFSET SPUR GEAR 99T / 64P |
| 305870 | OFFSET SPUR GEAR 100T / 64P |
| 305870-O | OFFSET SPUR GEAR 100T / 64P - ORANGE |
| 305874 | OFFSET SPUR GEAR 104T / 64P |
| 305876 | OFFSET SPUR GEAR 106T / 64P |
| 305878 | OFFSET SPUR GEAR 108T / 64P |
| 305880 | OFFSET SPUR GEAR 110T / 64P |
| 305880-O | OFFSET SPUR GEAR 110T / 64P - ORANGE |
| 305882 | OFFSET SPUR GEAR 112T / 64P |
| 305884 | OFFSET SPUR GEAR 114T / 64P |
| 305912 | NARROW ALU PINION GEAR - HARD COATED 12T / 48P |
| 305913 | NARROW ALU PINION GEAR - HARD COATED 13T / 48P |
| 305914 | NARROW ALU PINION GEAR - HARD COATED 14T / 48P |
| 305915 | NARROW ALU PINION GEAR - HARD COATED 15T / 48P |
| 305916 | NARROW ALU PINION GEAR - HARD COATED 16T / 48P |
| 305918 | NARROW ALU PINION GEAR - HARD COATED 18T / 48P |
| 305925 | NARROW ALU PINION GEAR - HARD COATED 25T / 48P |
| 305926 | NARROW ALU PINION GEAR - HARD COATED 26T / 48P |
| 305927 | NARROW ALU PINION GEAR - HARD COATED 27T / 48P |
| 305928 | NARROW ALU PINION GEAR - HARD COATED 28T / 48P |
| 305929 | NARROW ALU PINION GEAR - HARD COATED 29T / 48P |
| 305931 | NARROW ALU PINION GEAR - HARD COATED 31T / 48P |
| 305932 | NARROW ALU PINION GEAR - HARD COATED 32T / 48P |
| 305934 | NARROW ALU PINION GEAR - HARD COATED 34T / 48P |
| 305968 | NARROW ALU PINION GEAR - HARD COATED 18T / 64P |
| 305969 | NARROW ALU PINION GEAR - HARD COATED 19T / 64P |
| 305970 | NARROW ALU PINION GEAR - HARD COATED 20T / 64P |
| 305971 | NARROW ALU PINION GEAR - HARD COATED 21T / 64P |
| 305972 | NARROW ALU PINION GEAR - HARD COATED 22T / 64P |
| 305973 | NARROW ALU PINION GEAR - HARD COATED 23T / 64P |
| 305974 | NARROW ALU PINION GEAR - HARD COATED 24T / 64P |
| 305975 | NARROW ALU PINION GEAR - HARD COATED 25T / 64P |
| 305984 | NARROW ALU PINION GEAR - HARD COATED 34T / 64P |
| 305985 | NARROW ALU PINION GEAR - HARD COATED 35T / 64P |
| 306165 | T4 GRAPHITE BATTERY STRAP FOR LiPo - SET |
| 306176 | GRAPHITE BATTERY ADJ. WIDTH PLATE (2) |
| 306177 | GRAPHITE BATTERY PLATE SHIM (2) |
| 306192 | COMPOSITE ADJUSTABLE BATTERY HOLDER & BACKSTOP (2+2) |
| 306192-O | ALU ADJUSTABLE BATTERY HOLDER (2) |
| 306201 | ALU SERVO MOUNT - LONG |
| 306206-L | X4 ALU SERVO MOUNT - BLACK - V2 |
| 306219 | COMPOSITE SET OF SERVO SHIMS (4) |
| 306237 | X4 GRAPHITE FLOATING SERVO HOLDER 3.0mm |
| 306301 | ANTENNA MOUNT - THIN |
| 306310 | ANTENNA (2) |
| 306410 | ALU UNIVERSAL MOUNT |
| 306551 | XRAY PURE TUNGSTEN CHASSIS WEIGHT 12g |
| 308026 | XLP PROGRESSIVE 2-HOLE 0.8Mm DELRIN PISTON (4) |
| 308027 | XLP 4-HOLE 1.1-1.2Mm DELRIN PISTON (2+2) |
| 308029 | XLP/ULP ALU PROGRESSIVE SHOCK SYSTEM - SET (2) |
| 308033-K | XLP ALU XRAY SHOCK SPRING RETAINING COLLAR - BLACK (4) |
| 308046-K | XLP ALU SHOCK ADJUSTABLE NUT - BLACK (2) |
| 308083 | XLP SHOCK ABSORBER MEMBRANE (4) |
| 308092 | T4 SHOCK FOAM INSERT (4) |
| 308164 | XLP SPRING-SET PROGRESSIVE C=2.4-2.7 (2) |
| 308165 | XLP SPRING-SET PROGRESSIVE C=2.5-2.8 (2) |
| 308166 | XLP SPRING-SET PROGRESSIVE C=2.6-2.9 (2) |
| 308175 | XLP SPRING-SET C=2.5 (2) |
| 308176 | XLP SPRING-SET C=2.6 (2) |
| 308177 | XLP SPRING-SET C=2.7 (2) |
| 308178 | XLP SPRING-SET C=2.8 (2) |
| 308179 | XLP SPRING-SET C=2.9 (2) |
| 308263 | XRAY 4S SPRING-SET PROGRESSIVE C=2.3-2.6 (2) |
| 308264 | XRAY 4S SPRING-SET PROGRESSIVE C=2.5-2.8 (2) |
| 308274 | XRAY 4S SPRING-SET C=2.3 (2) |
| 308275 | XRAY 4S SPRING-SET C=2.5 (2) |
| 308276 | XRAY 4S SPRING-SET C=2.7 (2) |
| 308277 | XRAY 4S SPRING-SET C=2.9 (2) |
| 308286 | XRAY 4S SPRING-SET C=2.6 (2) |
| 308290 | XRAY 4S SPRING-SET C=3.0 (2) |
| 308309-K | XLP ALU SHOCK ABSORBER-SET - BLACK (2) |
| 308325 | XLP ALU SHOCK BODY (2) |
| 308328-K | XLP ALU CAP FOR SHOCK BODY - BLACK (2) |
| 308336 | XLP COMPOSITE SHOCK PARTS WITH 2 HOLES |
| 308355-K | XLP ALU SHOCK CAP-NUT - BLACK (2) |
| 308365 | XLP HARDENED SHOCK SHAFT (2) |
| 309004 | X4 SET OF BALL-BEARINGS (25) |
| 309301 | MOUNTING HARDWARE PACKAGE - SET |
| 309319 | UNIVERSAL SET OF PLASTIC SHIMS |
| 309402 | BODY CLIP FOR 6Mm BODY POST (4) |
| 309612 | TIRES XXT-M W/O BELT FOR LOW GRIP ASPHALT (2) |
| 309617 | TIRES XXT-M W/O BELT FOR ASPHALT (2) |
| 309852 | X4 BRASS WEIGHT NICKEL COATED FOR MOTOR MOUNT 4g+4g+8g |
| 309861 | SHORT LiPo BALANCING CHASSIS WEIGHT 40G (2) |
| 309862 | XRAY STAINLESS STEEL WEIGHT FOR NARROW BATTERY PACK 35G |
| 309950 | HOBBYWING XRS MOTOR JUSTOCK G2 - 13.5 |
| 309980 | HOBBYWING XRS XERUN XR10 JUSTOCK SPEEDO |
| 309981 | HOBBYWING XRS XERUN XR10 PRO SPEEDO |
| 326177 | COMPOSITE BATTERY CLAMP (2) |
| 326181 | STAINLESS STEEL BATTERY WEIGHT 35G |
| 353561 | ALU REAR WING SHIM (2) |
| 362647 | BALL END 4.9mm WITH THREAD 3mm (2) |
| 362648 | BALL END 4.9mm WITH THREAD 4mm (2) - (replacement for #302652) |
| 362649 | BALL END 4.9mm WITH THREAD 5mm (2) |
| 362650 | BALL END 4.9mm WITH THREAD 6mm (2) |
| 362651 | BALL END 4.9mm WITH THREAD 8mm (2) |
| 362652 | BALL END 4.9mm WITH THREAD 10mm (2) |
| 372503 | COMPOSITE SERVO SAVER - X-STIFF - SET - V2 |
| 372649 | BALL END 4.2mm WITH 4mm THREAD (2) |
| 372661 | COMPOSITE STEERING BALL JOINT OPEN 4.2 mm (4) |
| 397311 | XRAY STICKER FOR BODY - WHITE |
| 397312 | XRAY STICKER FOR BODY - METALIC SILVER |
| 397313 | XRAY STICKER FOR BODY - PURPLE |
| 397314 | XRAY STICKER FOR BODY - NEON RED |
| 397315 | XRAY STICKER FOR BODY - NEON YELLOW |
| 397316 | XRAY STICKER FOR BODY - NEON ORANGE |
| 397320 | XRAY STICKERS FOR BODY - 5 DIFFERENT COLORS |
Screws, bearings, o-rings and hardware (53)
| Part # | Description |
|---|---|
| 901302 | HEX SCREW SB M3x2.5 (10) |
| 901305 | HEX SCREW SB M3x5 (10) |
| 901308 | HEX SCREW SB M3x8 (10) |
| 901313 | HEX SCREW CENTERING SB M3x12 (10) |
| 901408 | HEX SCREW SB M4x8 (10) |
| 902303 | HEX SCREW SH M3x4 SMALL HEAD - STAINLESS (10) |
| 902304 | HEX SCREW SH M3x4 - STAINLESS (10) |
| 902305 | HEX SCREW SH M3x5 (10) |
| 902306 | HEX SCREW SH M3x6 (10) |
| 902308 | HEX SCREW SH M3x8 (10) |
| 902310 | HEX SCREW SH M3x10 (10) |
| 902312 | HEX SCREW SH M3x12 (10) |
| 902320 | HEX SCREW SH M3x20 (10) |
| 903258 | HEX SCREW SFH M2.5x8 (10) |
| 903305 | HEX SCREW SFH M3x5 (10) |
| 903306 | HEX SCREW SFH M3x6 (10) |
| 903308 | HEX SCREW SFH M3x8 (10) |
| 903310 | HEX SCREW SFH M3x10 (10) |
| 903312 | HEX SCREW SFH M3x12 (10) |
| 903318 | HEX SCREW SFH M3x18 (10) |
| 930154 | BALL-BEARING 1.5x4x2 STEEL SEALED - OIL (4) |
| 930306 | BALL-BEARING 3x6x2.5 STEEL SEALED - OIL (2) |
| 930308 | BALL-BEARING 3x8x4 STEEL SEALED - OIL (2) |
| 930407 | BALL-BEARING 4x7x2.5 STEEL SEALED - OIL (2) |
| 930508 | BALL-BEARING 5x8x2.5 STEEL SEALED - OIL (2) |
| 940508 | BALL-BEARING 5x8x2.5 RUBBER SEALED - OIL (2) |
| 940611 | BALL-BEARING 6x10x3 LOW RADIAL PLAY RUBBER SEALED - OIL (2) |
| 941014 | BALL-BEARING 10x15x4 RUBBER SEALED - GREASE (2) |
| 941015 | BALL-BEARING 10x15x4 RUBBER SEALED - OIL (2) |
| 960030 | NUT M3 (10) |
| 960031 | ALU NUT M3 (10) |
| 960140 | NUT M4 WITH FLANGE (10) |
| 960240 | NUT M4 WITH SERRATED FLANGE (10) |
| 960241-K | ALU NUT M4 WITH SERRATED FLANGE - BLACK (10) |
| 960241-O | ALU NUT M4 WITH SERRATED FLANGE - ORANGE (10) |
| 962042 | WASHER S 4x6x0.1 (10) |
| 962043 | WASHER S 4x6x0.2 (10) |
| 962061 | WASHER S 6x7.5x1.0 (10) |
| 964031 | WASHER S 3.5x10x0.2 (10) |
| 964050 | WASHER S 5x15x0.3 (10) |
| 965012 | E-CLIP 1.2 (10) |
| 965023 | E-CLIP 2.3 (10) |
| 966081 | CH-CLIP 8 (10) |
| 968037 | C-CLIP 3.7 (10) |
| 968071 | C-CLIP 7.1 (10) |
| 970050 | O-RING 5x1 (10) |
| 970131 | O-RING 13 x 1.0 (10) |
| 971240 | SILICONE O-RING 24x0.7 (10) |
| 972030 | SILICONE O-RING 3x2 (10) |
| 972050 | SILICONE O-RING 5x2 (10) |
| 980157 | PIN 1.5x7.3 (10) |
| 980210 | PIN 2x9.8 (10) |
| 981212 | PIN 2x12 (10) |
Tools, oils and setup equipment (297)
| Part # | Description |
|---|---|
| 104002 | HUDY AIR VAC - VACUUM PUMP - ON-ROAD 1/8, 1/10, 1/12 |
| 104003 | HUDY AIR VAC - VACUUM PUMP WITH TRAY - ON-ROAD 1/8, 1/10, 1/12 |
| 105500 | HUDY UNIVERSAL TIRE BALANCING STATION |
| 105520 | WHEEL ADAPTER FOR 1/10 TOURING CAR |
| 105590 | HUDY WHEEL BALANCING PUTTY |
| 106200 | HUDY MAGIC CLEANING GUM |
| 106205 | HUDY WASH BOX |
| 106210 | HUDY GRAPHITE GREASE |
| 106213 | HUDY JOINT GREASE |
| 106230 | HUDY BEARING OIL |
| 106232 | HUDY BEARING OIL - PREMIUM |
| 106260 | HUDY TIRE ADDITIVE - CARPET GRIPPER - 65ML |
| 106261 | HUDY TIRE ADDITIVE - TIRE GRIPPER RED - 50ML |
| 106262 | HUDY TIRE ADDITIVE - TIRE GRIPPER ASPHALT - 50ML |
| 106281 | HUDY BODY FIX 28g/1oz |
| 106290 | HUDY ULTIMATE SOLDER 3M LENGTH |
| 106310 | HUDY PREMIUM SILICONE OIL 100 cSt - 50ML |
| 106315 | HUDY PREMIUM SILICONE OIL 150 cSt - 50ML |
| 106320 | HUDY PREMIUM SILICONE OIL 200 cSt - 50ML |
| 106325 | HUDY PREMIUM SILICONE OIL 250 cSt - 50ML |
| 106330 | HUDY PREMIUM SILICONE OIL 300 cSt - 50ML |
| 106335 | HUDY PREMIUM SILICONE OIL 350 cSt - 50ML |
| 106337 | HUDY PREMIUM SILICONE OIL 375 cSt - 50ML |
| 106340 | HUDY PREMIUM SILICONE OIL 400 cSt - 50ML |
| 106342 | HUDY PREMIUM SILICONE OIL 425 cSt - 50ML |
| 106345 | HUDY PREMIUM SILICONE OIL 450 cSt - 50ML |
| 106347 | HUDY PREMIUM SILICONE OIL 475 cSt - 50ML |
| 106350 | HUDY PREMIUM SILICONE OIL 500 cSt - 50ML |
| 106352 | HUDY PREMIUM SILICONE OIL 525 cSt - 50ML |
| 106355 | HUDY PREMIUM SILICONE OIL 550 cSt - 50ML |
| 106357 | HUDY PREMIUM SILICONE OIL 575 cSt - 50ML |
| 106360 | HUDY PREMIUM SILICONE OIL 600 cSt - 50ML |
| 106362 | HUDY PREMIUM SILICONE OIL 625 cSt - 50ML |
| 106365 | HUDY PREMIUM SILICONE OIL 650 cSt - 50ML |
| 106367 | HUDY PREMIUM SILICONE OIL 675 cSt - 50ML |
| 106370 | HUDY PREMIUM SILICONE OIL 700 cSt - 50ML |
| 106375 | HUDY PREMIUM SILICONE OIL 750 cSt - 50ML |
| 106380 | HUDY PREMIUM SILICONE OIL 800 cSt - 50ML |
| 106390 | HUDY PREMIUM SILICONE OIL 900 cSt - 50ML |
| 106410 | HUDY PREMIUM SILICONE OIL 1000 cSt - 50ML |
| 106420 | HUDY PREMIUM SILICONE OIL 2000 cSt - 50ML |
| 106430 | HUDY PREMIUM SILICONE OIL 3000 cSt - 50ML |
| 106440 | HUDY PREMIUM SILICONE OIL 4000 cSt - 50ML |
| 106450 | HUDY ULTIMATE SILICONE OIL 5000 cSt - 50ML |
| 106460 | HUDY PREMIUM SILICONE OIL 6000 cSt - 50ML |
| 106470 | HUDY PREMIUM SILICONE OIL 7000 cSt - 50ML |
| 106480 | HUDY PREMIUM SILICONE OIL 8000 cSt - 50ML |
| 106510 | HUDY PREMIUM SILICONE OIL 10 000 cSt - 50ML |
| 106512 | HUDY PREMIUM SILICONE OIL 9000 cSt - 50ML |
| 106515 | HUDY PREMIUM SILICONE OIL 15 000 cSt - 50ML |
| 106520 | HUDY PREMIUM SILICONE OIL 20 000 cSt - 50ML |
| 106530 | HUDY PREMIUM SILICONE OIL 30 000 cSt - 50ML |
| 106540 | HUDY PREMIUM SILICONE OIL 40 000 cSt - 50ML |
| 106550 | HUDY PREMIUM SILICONE OIL 50 000 cSt - 50ML |
| 106560 | HUDY PREMIUM SILICONE OIL 60 000 cSt - 50ML |
| 106580 | HUDY PREMIUM SILICONE OIL 80 000 cSt - 50ML |
| 106610 | HUDY PREMIUM SILICONE OIL 100 000 cSt - 50ML |
| 106615 | HUDY PREMIUM SILICONE OIL 150 000 cSt - 50ML |
| 106620 | HUDY PREMIUM SILICONE OIL 200 000 cSt - 50ML |
| 106630 | HUDY PREMIUM SILICONE OIL 300 000 cSt - 50ML |
| 106650 | HUDY PREMIUM SILICONE OIL 500 000 cSt - 50ML |
| 106692 | HUDY PREMIUM SILICONE OIL 1 000 000 cSt - 50ML |
| 106694 | HUDY PREMIUM SILICONE OIL 2 000 000 cSt - 50ML |
| 106900 | HUDY OIL BOTTLE, NOSE, STEEL NEEDLE & SAFETY LOCK - 5ML (3) |
| 107150 | HUDY GRAPHITE PINION CADDY |
| 107152 | SET OF 18 ALU PINIONS 48P WITH CADDY 12T ~ 29T |
| 107153 | SET OF 18 ALU PINIONS 64P WITH CADDY 18T ~ 35T |
| 107602 | LIMITED EDITION - REAMER FOR BODY + COVER - LARGE |
| 107702 | CHASSIS DROOP GAUGE SUPPORT BLOCKS (10mm) FOR 1/10 (2) |
| 107712 | CHASSIS DROOP GAUGE -3 TO 10mm FOR 1/10 CARS (10mm) |
| 107713 | CHASSIS RIDE HEIGHT GAUGE 0mm TO 15mm (1mm STEPPED) |
| 107714 | ULTRA-FINE CHASSIS DROOP GAUGE 4.0-6.6mm |
| 107715 | CHASSIS RIDE HEIGHT GAUGE 0mm TO 15mm (BEVELED) |
| 107716 | ULTRA-FINE CHASSIS RIDE HEIGHT GAUGE |
| 107719 | QUICK DOWNSTOP GAUGE TOOL 1.0 ~ 6.5mm |
| 107750 | HUDY GRAPHITE QUICK CAMBER GAUGE 1/10 TOURING 1.5°; 2°; 2.5° |
| 107761 | HUDY ADJUSTABLE CAMBER GAUGE 80mm |
| 107771 | HUDY BODY GAUGE 1/10 ELECTRIC TOURING CARS |
| 107772 | HUDY PROFESSIONAL 1/10 TC WHEEL ARCH MARKER |
| 107839 | HUDY CLEANING BRUSH - CHEMICAL RESISTANT - 2.5“ |
| 107840 | CLEANING BRUSH LARGE - SOFT |
| 107841 | CLEANING BRUSH LARGE - MEDIUM |
| 107842 | CLEANING BRUSH LARGE - STIFF |
| 107843 | HUDY CLEANING BRUSH - CHEMICAL RESISTANT - 2.0“ |
| 107846 | CLEANING BRUSH SMALL - SOFT |
| 107847 | CLEANING BRUSH SMALL - MEDIUM |
| 107848 | CLEANING BRUSH SMALL - STIFF |
| 107850 | HUDY PERSONAL RACING DISPLAY |
| 107855 | HUDY PIT LED |
| 107861 | HUDY PROFFESIONAL RACING STOPWATCH XL DISPLAY |
| 107865 | HUDY ULTIMATE DIGITAL SCALE 300g/0.01g |
| 107866 | HUDY PROFFESIONAL DIGITAL POCKET SCALE 3000g/0.1g |
| 107870 | HUDY FIBRE-REINFORCED TAPE - BLACK |
| 107871 | SELF-ADHESIVE FOAM STRIP (2) |
| 107873 | HUDY BUMPER & BODY SPACE SPONGE SET |
| 107875 | HUDY ULTRA DOUBLE-SIDED TAPE |
| 107876 | HUDY ULTRA THIN DOUBLE-SIDED TAPE - SINGLE STRIP (5) |
| 107880 | CHASSIS BALANCING SIMPLE TOOL (2 PCS.) |
| 107904 | HUDY QUICK-TWEAK STATION + ALU CARRY CASE |
| 107905 | HUDY TWEAK BOARD SET |
| 108150 | HUDY TOURING CAR STAND |
| 108190 | HUDY ALU PARTS TRAY |
| 108192 | HUDY ALU PARTS TRAY NARROW 215x50mm |
| 108193 | HUDY ALU PARTS TRAY LARGE 215x100mm |
| 108301 | FLAT SET-UP BOARD 1/10 & 1/12 ON-ROAD - LIGHTWEIGHT - GREY |
| 108302 | FLAT SET-UP BOARD 1/10 & 1/12 ON-ROAD - LIGHTWEIGHT - SILVER GREY |
| 108303 | FLAT SET-UP BOARD 1/10 & 1/12 ON-ROAD - LIGHTWEIGHT - DARK GREY |
| 108304 | FLAT SET-UP BOARD 1/10 & 1/12 ON-ROAD - LIGHTWEIGHT - TITAN |
| 108305 | FLAT SET-UP BOARD 1/10 & 1/12 ON-ROAD - LIGHTWEIGHT - BLACK |
| 108360 | PLASTIC SET-UP BOARD DECAL 282x386mm - 1/10 TC |
| 109301 | HUDY SET-UP STATION FOR 1/10 TOURING CARS |
| 109351 | SET-UP STATION & SET-UP TOOLS + CARRYING BAG FOR 1/10 TOURING CARS |
| 109360 | ALU NUT FOR 1/10 TOURING SET-UP SYSTEM (4) |
| 109370 | ALU SET-UP WHEEL FOR 1/10 RUBBER TIRES (4) |
| 109800 | HUDY ALU TRAY FOR ON-ROAD DIFF & SHOCKS |
| 109860 | HUDY ALU TRAY FOR SET-UP SYSTEM |
| 109880 | HUDY ALU TRAY FOR ACCESSORIES & PIT LED |
| 111030 | PIN ADAPTER 3.0mm FOR EL. SCREWDRIVER |
| 111035 | PIN ADAPTER 3.5mm FOR EL. SCREWDRIVER |
| 111063 | LIMITED EDITION - UNIVERSAL HANDLE FOR EL. SCREWDRIVER PINS |
| 111545 | LIMITED EDITION - ALLEN WRENCH 1.5mm |
| 112045 | LIMITED EDITION - ALLEN WRENCH 2.0mm |
| 113045 | LIMITED EDITION - ALLEN WRENCH 3.0mm |
| 133045 | LIMITED EDITION - BALL ALLEN WRENCH 3.0mm |
| 153055 | LIMITED EDITION - SLOTTED SCREWDRIVER 3.0mm - LONG |
| 170007 | LIMITED EDITION - ALU 1-PIECE SOCKET DRIVER 7.0mm |
| 175535 | LIMITED EDITION - SOCKET DRIVER 5.5mm |
| 177035 | LIMITED EDITION - SOCKET DRIVER 7.0mm |
| 181030 | HUDY SPRING STEEL TURNBUCKLE WRENCH 3mm |
| 181034 | HUDY SPRING STEEL TURNBUCKLE WRENCH 3 & 4mm |
| 181040 | HUDY SPRING STEEL TURNBUCKLE WRENCH 4mm |
| 181090 | HUDY SPECIAL TOOL FOR TURNBUCKLES & NUTS |
| 181091 | HUDY TURNBUCKLE WRENCH 3 & 4Mmm |
| 181110 | HUDY BALL JOINT WRENCH |
| 183011 | HUDY PROFESSIONAL MULTI TOOL |
| 188980 | HUDY BLADE HOBBY KNIFE WITH ALU HANDLE |
| 188981 | HUDY POCKET HOBBY KNIFE |
| 188984 | HUDY REPLACEABLE HOBBY KNIFE BLADES (10PCS) |
| 188985 | HUDY REPLACEABLE HOBBY KNIFE BLADES (5PCS) |
| 188990 | HUDY ULTIMATE BODY SCISSORS |
| 189000 | HUDY MICRO RC PLIERS SET + CARRYING BAG |
| 190001 | SET OF TOOLS + CARRYING BAG - FOR ELECTRIC TOURING CARS |
| 190005 | HUDY LIMITED EDITION TOOL SET + CARRYING BAG |
| 190006 | PT SET OF TOOLS + CARRYING BAG - FOR ALL CARS |
| 190070 | SET OF POWER TOOL TIPS 2.0, 2.5, 3.0mm ALLEN + 4.0, 5.8mm PHILLIPS |
| 199011-H | HUDY HARD CASE - 230x180x45mm - TOOL BAG SMALL |
| 199060 | HUDY ALU TOOL STAND |
| 199100 | HUDY 1/10 TOURING CARRYING BAG + TOOL BAG - V2 - EXCLUSIVE EDITION |
| 199110 | HUDY 1/10 CARRYING BAG - COMPACT |
| 199150 | HUDY CARGO BAG - EXCLUSIVE EDITION |
| 199155L | HUDY TRAVEL BAG - LARGE |
| 199157L | HUDY HAND BAG - LARGE |
| 199170 | HUDY TRANSMITTER BAG - LARGE - EXCLUSIVE EDITION |
| 199171 | HUDY TRANSMITTER BAG - COMPACT - EXCLUSIVE EDITION |
| 199171-H | HUDY HARD CASE - 185x220x145mm - TRANSMITTER SANWA MT4, MT44 & M17 |
| 199175 | HUDY RADIO WINTER BAG - EXCLUSIVE EDITION |
| 199176 | HUDY HEAT PACK GEL |
| 199181 | HUDY CAR BAG - 1/10 ON-ROAD - TOURING - PAN CAR |
| 199181-H | HUDY HARD CASE - 440x220x115mm - 1/10 ON-ROAD CAR |
| 199190 | HUDY TEAM RUCKSACK |
| 199191 | HUDY TEAM BACKPACK XL |
| 199199 | HUDY EURO POUCH |
| 199210 | HUDY SET-UP BOARD BAG 1/10 & 1/12 ON-ROAD |
| 199221 | HUDY SET-UP BAG FOR 1/10 TOURING CARS, 1/10 & 1/12 PAN CARS, 1/10 FORMULA |
| 199260 | HUDY PIT LED BAG |
| 199270 | HUDY LIPO SAFETY BAG |
| 199280L | HUDY OIL BAG - LARGE |
| 199280L-H | HUDY HARD CASE - 180x140x120mm - OIL BAG LARGE |
| 199280M | HUDY OIL BAG - MEDIUM |
| 199280M-H | HUDY HARD CASE - 140x110x95mm - OIL BAG MEDIUM |
| 199290 | HUDY ACCESSORIES BAG |
| 199290-H | HUDY HARD CASE - 235x190x75mm |
| 199291-H | HUDY HARD CASE - 135x85x75mm - ACCESSORIES / AIR VAC ON-ROAD |
| 199292-H | HUDY HARD CASE - 175x85x75mm - ACCESSORIES / AIR VAC 1/10 OFF-ROAD |
| 199293-H | HUDY HARD CASE - 175x110x75mm |
| 199294-H | HUDY HARD CASE - 215x90x85mm - ACCESSORIES / AIR VAC 1/8 OFF-ROAD |
| 199295-H | HUDY HARD CASE - 280x150x85mm - ACCESSORIES BAG LARGE |
| 199296-H | HUDY HARD CASE - 120x85x46mm - ACCESSORIES / STOP WATCH |
| 199297-H | HUDY HARD CASE - 320x220x145mm - ELECTRONICS |
| 199910 | HUDY PIT MAT 750x1200mm |
| 199911 | HUDY PIT MAT ROLL 750x1200mm |
| 199912 | HUDY PIT MAT ROLL 600x950mm |
| 199913L | HUDY PIT MAT FULL COLOR 650x1200mm |
| 199913M | HUDY PIT MAT FULL COLOR 650x950mm |
| 209065 | HUDY COMPACT CLEANING TOWEL (10) |
| 209073 | HUDY EXCLUSIVE PIT TOWEL 1100 x 700 |
| 209200 | HUDY CHASSIS PROTECTOR VINYL STICKER 360x125mm |
| 286990 | HUDY FACE MASK |
| 293010 | HUDY STAINLESS STEEL BATTERY WEIGHT 50G |
| 293011 | HUDY STAINLESS STEEL BATTERY WEIGHT 35G |
| 293012 | HUDY STAINLESS STEEL BATTERY WEIGHT FOR NARROW BATTERY PACK 35G |
| 293081 | HUDY PURE TUNGSTEN WEIGHT 5g |
| 293082 | HUDY PURE TUNGSTEN WEIGHT 10g |
| 293083 | HUDY PURE TUNGSTEN WEIGHT 15g |
| 293085 | HUDY PURE TUNGSTEN WEIGHT THIN ROUND 15mm WITH M3 - 10g |
| 293086 | HUDY PURE TUNGSTEN WEIGHT THIN - 24.5x24.5mm - 15g |
| 293087 | HUDY PURE TUNGSTEN WEIGHT THIN - 31x26mm - 20g |
| 293100 | HUDY ALU RC FAN 30mm - BOTTOM MOUNT 2 HOLE |
| 293101 | HUDY ALU RC FAN 30mm - SIDE MOUNT 2 HOLE |
| 293102 | HUDY ALU RC FAN 30mm - TOP/SIDE MOUNT 4 HOLE |
| 293110 | HUDY BRUSHLESS RC FAN 30mm - WITH EXTERNAL SOLDERING TABS |
| 293112 | HUDY BRUSHLESS RC FAN 30mm - WITH INTERNAL SOLDERING TABS |
| 293561 | HUDY ALU REAR WING SHIM (2) |
| 293561-K | HUDY ALU REAR WING SHIM - BLACK (2) |
| 293561-O | HUDY ALU REAR WING SHIM - ORANGE (2) |
| 294017 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 17T / 48P |
| 294019 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 19T / 48P |
| 294020 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 20T / 48P |
| 294021 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 21T / 48P |
| 294022 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 22T / 48P |
| 294023 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 23T / 48P |
| 294024 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 24T / 48P |
| 294030 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 30T / 48P |
| 294033 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 33T / 48P |
| 294035 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 35T / 48P |
| 294126 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 26T / 64P |
| 294127 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 27T / 64P |
| 294128 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 28T / 64P |
| 294129 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 29T / 64P |
| 294130 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 30T / 64P |
| 294131 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 31T / 64P |
| 294132 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 32T / 64P |
| 294133 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 33T / 64P |
| 294136 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 36T / 64P |
| 294137 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 37T / 64P |
| 294138 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 38T / 64P |
| 294139 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 39T / 64P |
| 294140 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 40T / 64P |
| 294141 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 41T / 64P |
| 294142 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 42T / 64P |
| 294143 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 43T / 64P |
| 294144 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 44T / 64P |
| 294145 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 45T / 64P |
| 294146 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 46T / 64P |
| 294147 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 47T / 64P |
| 294148 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 48T / 64P |
| 294149 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 49T / 64P |
| 294150 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 50T / 64P |
| 294151 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 51T / 64P |
| 294152 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 52T / 64P |
| 294153 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 53T / 64P |
| 294154 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 54T / 64P |
| 294155 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 55T / 64P |
| 294156 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 56T / 64P |
| 294157 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 57T / 64P |
| 294158 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 58T / 64P |
| 294159 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 59T / 64P |
| 294160 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 60T / 64P |
| 294162 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 62T / 64P |
| 294164 | HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 64T / 64P |
| 298010 | HUDY HARDWARE BOX - DOUBLE-SIDED |
| 298011 | HUDY HARDWARE BOX - DOUBLE-SIDED - COMPACT |
| 298012 | HUDY PARTS BOX - 10-COMPARTMENTS |
| 298013 | HUDY SPRINGS BOX - 10-COMPARTMENTS |
| 298014 | HUDY PARTS BOX - 8-COMPARTMENTS |
| 298015 | HUDY PARTS CASE - 290 x 195mm |
| 298016 | HUDY TINY HARDWARE BOX - 4-COMPARTMENTS |
| 298017 | HUDY TINY ONE-PIECE HARDWARE BOX - 8-COMPARTMENTS |
| 298018 | HUDY TINY HARDWARE BOX - 8-COMPARTMENTS |
| 298019 | HUDY DIFF BOX - 8-COMPARTMENTS |
| 298021 | HUDY HARDWARE BOX - DOUBLE-SIDED - SMALL |
| 298022 | HUDY TINY HARDWARE BOX - 10-COMPARTMENTS |
| 298025 | HUDY PARTS CASE - 275 x 180mm |
| 298100 | HUDY TIN ROUND BOX 80x30mm |
| 301158 | X4 TOP DECK HEX SCREW M3x5.5 - HUDY SPRING STEEL™ (2) |
| 302640 | X4 ADJUSTABLE CAMBER SCREW 14mm M4 L/R - HUDY SPRING STEEL™ (2) |
| 303210 | REAR TURNBUCKLE L/R 26 mm - HUDY SPRING STEEL™ (2) |
| 303232 | X4 UPPER ARM BALL UNIVERSAL 4.9mm - HUDY SPRING STEEL™ (2) |
| 303250 | X4 LOWER ARM BALL UNIVERSAL 6.0mm WITH HEX - HUDY SPRING STEEL™ (2) |
| 303260 | X4 PIVOT BALL 6.0mm WITH M3x5.5mm THREAD - HUDY SPRING STEEL™ (2) |
| 303261 | X4 PIVOT BALL 6.0mm WITH M3x6.5mm THREAD - HUDY SPRING STEEL™ (2) |
| 304971 | GEAR DIFF OUTDRIVE ADAPTER - HUDY SPRING STEEL™ (2) |
| 304973 | STEEL GEAR DIFF BB DRIVESHAFT ADAPTER - HUDY SPRING STEEL™ (2) |
| 305134 | STEEL SOLID AXLE DRIVESHAFT ADAPTER - HUDY SPRING STEEL™ (2) |
| 305137 | STEEL SOLID AXLE DRIVESHAFT ADAPTER - LIGHTWEIGHT - HUDY SPRING STEEL™ (2) |
| 305138 | SOLID AXLE ECS BB DRIVESHAFT ADAPTER - HUDY SPRING STEEL™ (2) |
| 305231 | DRIVE SHAFT COUPLING - HUDY SPRING STEEL™ |
| 305245 | ECS BB DRIVE SHAFT ADAPTER - HUDY SPRING STEEL™ (2) |
| 305255 | ECS BB SC DRIVE SHAFT CASE - HUDY SPRING STEEL™ |
| 305257 | ECS BB SC DRIVE SHAFT COUPLING - HUDY SPRING STEEL™ |
| 305260 | X4 ECS DRIVE SHAFT 58mm - HUDY SPRING STEEL™ (1) |
| 305306 | X4 ECS BB DRIVE SHAFT 58mm - HUDY SPRING STEEL™ - SET |
| 305307 | X4 ECS BB DRIVE SHAFT 59mm - HUDY SPRING STEEL™ - SET |
| 305316 | X4 ECS BB DRIVE SHAFT 58mm - HUDY SPRING STEEL™ (2) |
| 305317 | X4 ECS BB DRIVE SHAFT 59mm - HUDY SPRING STEEL™ (2) |
| 305335 | X4 ECS BB SC DRIVE SHAFT 58mm - HUDY SPRING STEEL™ - COMPLETE SET |
| 305337 | X4 CVD BB DRIVE SHAFT 52mm - HUDY SPRING STEEL™ (2) |
| 305338 | X4 CVD BB DRIVE SHAFT 54mm - HUDY SPRING STEEL™ (2) |
| 305348 | X4 CVD DRIVE AXLE SCS - SPRING CLIP SYSTEM - HUDY SPRING STEEL™ |
| 305349 | X4 ECS DRIVE AXLE SCS - SPRING CLIP SYSTEM - HUDY SPRING STEEL™ |
| 305360 | X4 ECS DRIVE SHAFT 58mm - HUDY SPRING STEEL™ - SET |
| 305407 | X4 CVD BB DRIVE SHAFT 52mm - HUDY SPRING STEEL™ - SET |
| 305408 | X4 CVD BB DRIVE SHAFT 54mm - HUDY SPRING STEEL™ - SET |
| 372651 | PIVOT BALL UNIVERSAL 4.9 mm - HUDY SPRING STEEL™ (2) |
| 803041 | HUDY 1/10 PRE-CUT SLICK BELTED TIRES RIGHT & LEFT (2+2) |
| 803053 | HUDY 1/10 TC CARPET TIRES C3-28 (4) |
| 803062 | HUDY 1/10 TC TIRES A1-36 - ASPHALT (4) |
