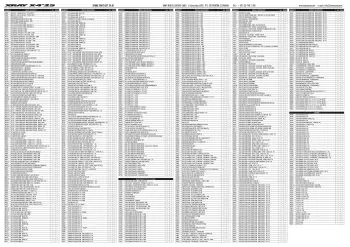

XRAY X4 '25 Parts List

X4 '25

XRAY

X4 '25

Setup sheets →

Spring chartShock oil chart
X4 '25 parts & upgrades at AMain →AD (opens in new tab)
For this car:ADESCsMotors:StockMod

Commonly replaced parts

The arms, uprights, driveline and shock parts that go first on a race car, with the full list below.

Part #Description
305241 (opens in new tab)DRIVE SHAFT REPLACEMENT PLASTIC CAP 3.5MM (4)
305135 (opens in new tab)COMPOSITE SOLID AXLE DRIVESHAFT ADAPTERS - V2 (2)
308329 (opens in new tab)XLP2 ALU SHOCK BODY (2)
308084 (opens in new tab)XLP2 SILICONE HYPER RESISTANT SHOCK ABSORBER MEMBRANE (4)
302663 (opens in new tab)COMPOSITE BALL JOINT 4.9MM - OPEN - V2 (8)
302612 (opens in new tab)ALU ADJ. TURNBUCKLE M3 L/R 39MM - SWISS 7075 T6 (2)
304990 (opens in new tab)DIFF GASKET (4)
301203 (opens in new tab)IMPACT ABSORBING FRONT BUMPER

More option parts for this car

Parts & upgrades at AMainAD (opens in new tab)Spring chartShock oil chart

Every part XRAY lists for the XRAY X4 '25, from XRAY's own parts list, including the spares, the option parts and the hardware. Part numbers link to AMain Hobbies where the part is still sold; parts with no current match are listed as plain text.

Full parts list

Car parts (323)

Part #Description
293080LEAD WEIGHTS 4x5g & 4x10g WITH 3M GLUE
293084PRECISION BALANCING CHASSIS WEIGHT 10g (4)
293311GRAPHITE REAR WING SIDE PLATE 0.5MM - 1/10 ELECTRIC (2)
293401ALU CLAMP SERVO HORN - KO PROPO, JR, SANWA, AIRTRONICS - OFFSET - 23T
293402ALU CLAMP SERVO HORN - HITEC - OFFSET- 24T
293403ALU CLAMP SERVO HORN - FUTABA - OFFSET - 25T
293404ALU CLAMP SERVO HORN - KO PROPO, SANWA - 2-HOLE M3 - 23T
293405ALU CLAMP SERVO HORN - HITEC - 2-HOLE M3 - 24T
293406ALU CLAMP SERVO HORN - FUTABA, SAVÖX - 2-HOLE M3 - 25T
293407ALU CLAMP SERVO HORN - KO PROPO, SANWA - 3-HOLE M3 - 23T
293408ALU CLAMP SERVO HORN - HITEC - 3-HOLE M3 - 24T
293409ALU CLAMP SERVO HORN - FUTABA, SAVÖX - 3-HOLE M3 - 25T
293411ALU CLAMP SERVO HORN - KO PROPO, SANWA - OFFSET - 2-HOLE - M3 - 23T
293412ALU CLAMP SERVO HORN - HITEC - OFFSET - 2-HOLE - M3 - 24T
293413ALU CLAMP SERVO HORN - FUTABA, SAVÖX - OFFSET - 2-HOLE - M3 - 25T
293414ALU ADJUSTABLE CLAMP STEERING SERVO HORN - KO, SANWA - 23T
293416ALU ADJUSTABLE CLAMP STEERING SERVO HORN - FUTABA, SAVÖX - 25T
293491ALU SERVO HORN - KO PROPO, JR, SANWA, AIRTRONICS - OFFSET - 23T
293492ALU SERVO HORN - HITEC - OFFSET- 24T
293493ALU SERVO HORN - FUTABA - OFFSET - 25T - V2
293497ALU SERVO HORN - KO PROPO, SANWA - 2-HOLE M3 - 23T
293498ALU SERVO HORN - HITEC - 2-HOLE M3 - 24T
293499ALU SERVO HORN - FUTABA, SAVÖX - 2-HOLE M3 - 25T
293501ALU SERVO HORN - KO PROPO, JR, SANWA, AIRTRONICS - 23T
293502ALU SERVO HORN - HITEC - 24T
293503ALU SERVO HORN - FUTABA - 25T - V2
296509ALU COUNTERSUNK SERVO SHIM (10)
296509-KALU COUNTERSUNK SERVO SHIM - BLACK (10)
296509-OALU COUNTERSUNK SERVO SHIM - ORANGE (10)
296510ALU COUNTERSUNK SHIM (10)
296510-BALU COUNTERSUNK SHIM - BLUE (10)
296510-KALU COUNTERSUNK SHIM - BLACK (10)
296510-OALU COUNTERSUNK SHIM - ORANGE (10)
296510-VALU COUNTERSUNK SHIM - VIOLET (10)
296530-BALU NUT M3 - BLUE (10)
296530-KALU NUT M3 - BLACK (10)
296530-OALU NUT M3 - ORANGE (10)
301018 (opens in new tab)X4‘24 GRAPHITE CHASSIS 2.2MM
301019 (opens in new tab)X4‘24 ALU FLEX CHASSIS 2.0MM - SWISS 7075 T6
301020 (opens in new tab)X4‘24 ALU FLEX CHASSIS 1.5MM - SWISS 7075 T6
301070 (opens in new tab)X4 GRAPHITE UPPER DECK 2.0MM
301071 (opens in new tab)X4 GRAPHITE UPPER DECK 1.6MM
301072 (opens in new tab)X4 GRAPHITE UPPER DECK - SPLIT FRONT - 2.0MM
301073 (opens in new tab)X4 GRAPHITE UPPER DECK - SPLIT REAR - 2.0MM
301077X4‘23 GRAPHITE UPPER DECK - SPLIT FRONT OPEN - 2.0MM
301078X4‘23 GRAPHITE UPPER DECK - SPLIT REAR - 2.0MM
301078-K (opens in new tab)X4 GLASS FIBER UPPER DECK - SPLIT REAR
301078-L (opens in new tab)X4‘23 GRAPHITE UPPER DECK - SPLIT REAR - 1.6MM
301079X4‘23 GRAPHITE UPPER DECK - SPLIT FRONT WAVE - 2.0MM
301079-K (opens in new tab)X4 GLASS FIBER UPPER DECK - SPLIT FRONT WAVE
301079-LX4‘23 GRAPHITE UPPER DECK - SPLIT FRONT WAVE - 1.6MM
301159ALU COUNTERSUNK SHIM (4)
301159-O (opens in new tab)ALU COUNTERSUNK SHIM - ORANGE (4)
301203 (opens in new tab)IMPACT ABSORBING FRONT BUMPER
301204 (opens in new tab)COMPOSITE BUMPER FOR ADJUSTABLE BODY MOUNTS
301238 (opens in new tab)X4 RUBBER BUMPER 3D LOW PROFILE
301250 (opens in new tab)COMPOSITE ONE-PIECE LOW PROFILE UPPER HOLDER FOR BUMPER
301322 (opens in new tab)FRONT BODY MOUNT SET 6MM
301322-H (opens in new tab)HARD COMPOSITE HORIZONTAL REAR BODY MOUNT POST - SET
301323 (opens in new tab)FRONT BODY MOUNT SET +1MM HEIGHT
301324 (opens in new tab)FRONT BODY MOUNT SET +2MM HEIGHT
301325 (opens in new tab)T4 COMPOSITE BRACE FOR BUMPER - LOW (2)
301336 (opens in new tab)COMPOSITE REAR 6MM ADJUSTABLE BODY MOUNT SET
301337 (opens in new tab)COMPOSITE REAR 6MM ADJUSTABLE BODY MOUNT SET +1MM HEIGHT
301338 (opens in new tab)COMPOSITE REAR 6MM ADJUSTABLE BODY MOUNT SET +2MM HEIGHT
301349 (opens in new tab)X4 HORIZONTAL BODY POST MOUNTING GAUGE
301351-K (opens in new tab)ALU ADJUSTABLE BODY POST STOP - BLACK (2)
301351-O (opens in new tab)ALU ADJUSTABLE BODY POST STOP - ORANGE (2)
301352-OALU ADJUSTABLE BODY POST STOP NUT (2)
301383 (opens in new tab)X4 GRAPHITE BODY POST & BODY POST HOLDER - 1PC - 4.0MM
301576 (opens in new tab)X4 ALU UPPER CLAMP - INNER SHOCK POSITION - SWISS 7075 T6 (L+R)
301578 (opens in new tab)X4 ALU UPPER CLAMP -1MM - INNER SHOCK POSITION - SWISS 7075 T6 (L+R)
301973 (opens in new tab)X4 ALU SHOCK HOLDER FRONT FIXED - LOWER - SWISS 7075 T6 (2)
302062T4 COMPOSITE ADJUSTMENT BALL-BEARING HUB (4)
302063-K (opens in new tab)T4 ALU ADJUSTMENT BALL-BEARING HUB - BLACK (2)
302064-K (opens in new tab)ALU ADJUSTMENT BALL-BEARING HUB +1MM - BLACK (2)
302121 (opens in new tab)X4 FRONT ROLL-CENTER SPACER (2)
302122 (opens in new tab)X4 REAR ROLL-CENTER SPACER (2)
302134-C (opens in new tab)X4 COMPOSITE UPPER ARM - INNER SHOCK POSITION - FR/RL
302134-M (opens in new tab)X4 CFF™ UPPER ARM - INNER SHOCK POSITION - MEDIUM - FR/RL
302134-S (opens in new tab)X4 CFF™ UPPER ARM - INNER SHOCK POSITION - SOFT - FR/RL
302134-XS (opens in new tab)X4 CFF™ UPPER ARM - INNER SHOCK POSITION - EXTRA SOFT - FR/RL
302144-C (opens in new tab)X4 COMPOSITE UPPER ARM - INNER SHOCK POSITION - FL/RR
302144-M (opens in new tab)X4 CFF™ UPPER ARM - INNER SHOCK POSITION - MEDIUM - FL/RR
302144-S (opens in new tab)X4 CFF™ UPPER ARM - INNER SHOCK POSITION - SOFT - FL/RR
302144-XS (opens in new tab)X4 CFF™ UPPER ARM - INNER SHOCK POSITION - EXTRA SOFT - FL/RR
302182-G (opens in new tab)X4 CFF™ FRONT LOWER ARM - INNER SHOCK POSITION - GRAPHITE - RIGHT
302182-H (opens in new tab)X4 CFF™ FRONT LOWER ARM - INNER SHOCK POSITION - HARD - RIGHT
302182-M (opens in new tab)X4 CFF™ FRONT LOWER ARM - INNER SHOCK POSITION - MEDIUM - RIGHT
302183-G (opens in new tab)X4 CFF™ FRONT LOWER ARM - INNER SHOCK POSITION - GRAPHITE - LEFT
302183-H (opens in new tab)X4 CFF™ FRONT LOWER ARM - INNER SHOCK POSITION - HARD - LEFT
302183-M (opens in new tab)X4 CFF™ FRONT LOWER ARM - INNER SHOCK POSITION - MEDIUM - LEFT
302240-G (opens in new tab)X4 COMPOSITE HUB - GRAPHITE
302240-HX4 COMPOSITE HUB - HARD
302240-M (opens in new tab)X4 COMPOSITE HUB - MEDIUM
302241X4 ALU HUB - SWISS 7075 T6
302310 (opens in new tab)X4 ALU CASTER BUSHING FRONT 3° / REAR 0.5°/5.5° - 1 DOT (4)
302311 (opens in new tab)X4 ALU CASTER BUSHING FRONT 4° / REAR 1.5°/4.5° - 2 DOTS (4)
302312 (opens in new tab)X4 ALU CASTER BUSHING FRONT 5° / REAR 2.5°/3.5° - 3 DOTS (4)
302386 (opens in new tab)X4 ALU FRONT STEERING PLATE - INNER SHOCK POSITION - SWISS 7075 T6 (L+R)
302387 (opens in new tab)X4 ALU REAR ARS PLATE - INNER SHOCK POSITION - SWISS 7075 T6 (L+R)
302390 (opens in new tab)X4 COMPOSITE CASTER GAUGE (2)
302433 (opens in new tab)ANTI-ROLL BAR STEEL BALL END 3.8MM WITH 4MM THREAD (2)
302517-K (opens in new tab)X4 ALU DUAL STEERING ARM - BLACK + BALL-BEARINGS (2)
302539 (opens in new tab)X4 ALU STEERING POST FOR DUAL SERVO SAVER (2)
302544ALU SHIM FOR RADIAL PLAY ADJUSTMENT OF STEERING ARM (2)
302544-O (opens in new tab)ALU SHIM FOR RADIAL PLAY ADJUSTMENT OF STEERING ARM - ORANGE (2)
302552 (opens in new tab)X4 ALU STEERING PLATE FOR DUAL STEERING
302553 (opens in new tab)X4 ALU STEERING PLATE WITH 7.5MM SPACING
302571 (opens in new tab)X4 GRAPHITE STEERING PLATE SET
302590 (opens in new tab)ALU DUAL STEERING ARM SCREW M3x7 - SWISS 7075 T6 (2)
302612 (opens in new tab)ALU ADJ. TURNBUCKLE M3 L/R 39MM - SWISS 7075 T6 (2)
302612-O (opens in new tab)ALU ADJ. TURNBUCKLE M3 L/R 39MM - ORANGE - SWISS 7075 T6 (2)
302640-T (opens in new tab)X4 ADJUSTABLE CAMBER SCREW 14MM M4 L/R - TITANIUM (2)
302663 (opens in new tab)COMPOSITE BALL JOINT 4.9MM - OPEN - V2 (8)
302664COMPOSITE BALL JOINT 4.9MM UNIDIRECTIONAL - OPEN (4)
302665 (opens in new tab)COMPOSITE BALL JOINT 4.9MM - CLOSED WITH HOLE (4)
302666 (opens in new tab)X4 COMPOSITE BALL JOINT 4.9MM F+R - OPEN (2+2)
302670 (opens in new tab)X4 COMPOSITE UPPER ARM LINKS 4.9MM (1+1+1+1)
302776 (opens in new tab)X4‘24 ALU LOWER BULKHEAD - FRONT RIGHT - 7075 T6
302777 (opens in new tab)X4‘24 ALU LOWER BULKHEAD - FRONT LEFT - 7075 T6
302778 (opens in new tab)X4‘24 ALU LOWER BULKHEAD - REAR RIGHT - 7075 T6
302779 (opens in new tab)X4‘24 ALU LOWER BULKHEAD - REAR LEFT - 7075 T6
302831 (opens in new tab)X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - FRONT 1.1MM
302832 (opens in new tab)X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - FRONT 1.2MM
302833 (opens in new tab)X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - FRONT 1.3MM
302834 (opens in new tab)X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - FRONT 1.4MM
302975 (opens in new tab)X4 ALU SHOCK HOLDER REAR FIXED - LOWER - SWISS 7075 T6 (2)
302976 (opens in new tab)X4 ALU SHOCK HOLDER REAR ACTIVE - LOWER - SWISS 7075 T6 (2)
303075 (opens in new tab)BELT TENSIONER STEEL BUSHING (2)
303118-K (opens in new tab)ALU SHIM 3x9x1.0MM - BLACK (10)
303119-K (opens in new tab)ALU SHIM 3x9x2.0MM - BLACK (10)
303120 (opens in new tab)SET OF ALU SHIM (0.5MM, 1.5MM, 2.5MM)
303121SET OF ALU SHIM (1.0MM, 2.0MM, 3.0MM)
303121-K (opens in new tab)ALU SHIM 3x6x0.5MM - BLACK (10)
303121-OALU SHIM 3x6x0.5MM - ORANGE (10)
303122ALU SHIM 3x6x1.0MM (10)
303122-K (opens in new tab)ALU SHIM 3x6x1.0MM - BLACK (10)
303122-O (opens in new tab)ALU SHIM 3x6x1.0MM - ORANGE (10)
303123 (opens in new tab)ALU SHIM 3x6x2.0MM (10)
303123-KALU SHIM 3x6x2.0MM - BLACK (10)
303123-O (opens in new tab)ALU SHIM 3x6x2.0MM - ORANGE (10)
303125 (opens in new tab)ALU SHIM 3x6x3.0MM (10)
303125-K (opens in new tab)ALU SHIM 3x6x3.0MM - BLACK (10)
303125-O (opens in new tab)ALU SHIM 3x6x3.0MM - ORANGE (10)
303126ALU SHIM 3x6x5.0MM (10)
303126-K (opens in new tab)ALU SHIM 3x6x5.0MM - BLACK (10)
303127 (opens in new tab)ALU SHIM 3x6x4.0MM (10)
303127-K (opens in new tab)ALU SHIM 3x6x4.0MM - BLACK (10)
303128ALU SHIM 3x6x6.0MM (10)
303128-K (opens in new tab)ALU SHIM 3x6x6.0MM - BLACK (10)
303129 (opens in new tab)COMPOSITE SET OF SHIMS 3x 3x6x1MM; 1x 3x6x2MM (2)
303136ALU SHIM 3x7x1.0MM (10)
303136-O (opens in new tab)ALU SHIM 3x7x1.0MM - ORANGE (10)
303137-K (opens in new tab)ALU SHIM 3x7.5x2.0MM - BLACK (10)
303138-K (opens in new tab)ALU SHIM 3x7x2.0MM - BLACK (10)
303138-O (opens in new tab)ALU SHIM 3x7x2.0MM - ORANGE (10)
303139-K (opens in new tab)ALU SHIM 3x6x7.0MM - BLACK (10)
303140-K (opens in new tab)ALU SHIM 3x5x2.0MM - BLACK (10)
303140-O (opens in new tab)ALU SHIM 3x5x2.0MM - ORANGE (10)
303141ALU SHIM 3x5x1.0MM (10)
303141-O (opens in new tab)ALU SHIM 3x5x1.0MM - ORANGE (10)
303142-K (opens in new tab)ALU SHIM 3x5x0.5MM - BLACK (10)
303142-O (opens in new tab)ALU SHIM 3x5x0.5MM - ORANGE (10)
303143 (opens in new tab)ALU SHIM 3x5x0.25MM (10)
303144ALU SHIM 3x5x4.0MM (10)
303144-O (opens in new tab)ALU SHIM 3x5x4.0MM - ORANGE (10)
303146 (opens in new tab)ALU BUSHING 3x5x6.0MM (2)
303182-G (opens in new tab)X4 CFF™ REAR LOWER ARM - INNER SHOCK POSITION - GRAPHITE - RIGHT
303182-H (opens in new tab)X4 CFF™ REAR LOWER ARM - INNER SHOCK POSITION - HARD - RIGHT
303182-M (opens in new tab)X4 CFF™ REAR LOWER ARM - INNER SHOCK POSITION - MEDIUM - RIGHT
303183-G (opens in new tab)X4 CFF™ REAR LOWER ARM - INNER SHOCK POSITION - GRAPHITE - LEFT
303183-H (opens in new tab)X4 CFF™ REAR LOWER ARM - INNER SHOCK POSITION - HARD - LEFT
303183-M (opens in new tab)X4 CFF™ REAR LOWER ARM - INNER SHOCK POSITION - MEDIUM - LEFT
303211 (opens in new tab)ALU ADJUSTABLE TURNBUCKLE L/R 30MM - SWISS 7075 T6 (2)
303211-O (opens in new tab)ALU ADJ. TURNBUCKLE L/R 30MM - SWISS 7075 T6 (2)
303212ALU ADJ. TURNBUCKLE L/R 26MM - SWISS 7075 T6 (2)
303433 (opens in new tab)ALU ANTI-ROLL BAR BUSHING o1.7mm - 6MM (2)
303435 (opens in new tab)ALU ANTI-ROLL BAR BALL END 3.9MM - SWISS 7075 T6 (2)
303454 (opens in new tab)COMPOSITE BALL JOINT 4.9MM - OPEN (4)
303458 (opens in new tab)COMPOSITE ANTI-ROLL BAR BALL JOINT 3.9MM (4)
303755 (opens in new tab)X4 ALU MOTOR MOUNT WITH 3MM CENTERING PINS
303767 (opens in new tab)X4 BRASS CHASSIS T-BRACE 8g
303768 (opens in new tab)X4 ALU CHASSIS T-BRACE - SWISS 7075 T6
303831 (opens in new tab)X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - REAR 1.1MM
303832 (opens in new tab)X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - REAR 1.2MM
303833 (opens in new tab)X4 ANTI-ROLL BAR UAM - UNDER ARM MOUNT - REAR 1.3MM
304902X4 BB GEAR DIFFERENTIAL - SET
304911 (opens in new tab)X4 COMPOSITE GEAR DIFF. CASE WITH 38T PULLEY & COVER
304930 (opens in new tab)COMPOSITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4)
304932 (opens in new tab)GRAPHITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4) - LOW
304970ALU GEAR DIFF OUTDRIVE ADAPTER - 7075 T6 (2)
304972 (opens in new tab)ALU GEAR DIFF BB DRIVESHAFT ADAPTER - SWISS 7075 T6 (2)
304980 (opens in new tab)COMPOSITE GEAR DIFF CROSS PIN
304990 (opens in new tab)DIFF GASKET (4)
305135 (opens in new tab)COMPOSITE SOLID AXLE DRIVESHAFT ADAPTERS - V2 (2)
305136ALU SOLID AXLE DRIVESHAFT ADAPTERS - HARD COATED (2)
305178 (opens in new tab)X4 COMPOSITE SOLID AXLE 38T
305241 (opens in new tab)DRIVE SHAFT REPLACEMENT PLASTIC CAP 3.5MM (4)
305242 (opens in new tab)DRIVE SHAFT REPLACEMENT PLASTIC CAP 3.5MM - ORANGE - STRONG (4)
305256 (opens in new tab)ECS BB SC ALU DRIVE SHAFT SLEEVE - SWISS 7075 T6
305354X4 ALU WHEEL HUB - SPRING CLIP - OFFSET -0.5MM - SWISS 7075 T6 (2)
305356X4 ALU WHEEL HUB - SPRING CLIP - SWISS 7075 T6 (2)
305359X4 ALU WHEEL HUB - SPRING CLIP - OFFSET +0.5MM - SWISS 7075 T6 (2)
305370X4 ALU DRIVE SHAFT 54MM - SWISS 7075 T6 - HARD COATED
305380 (opens in new tab)ALU WHEEL SHIM OFFSET 0.75MM (2)
305381 (opens in new tab)ALU WHEEL SHIM OFFSET 1.0MM (2)
305382 (opens in new tab)ALU WHEEL SHIM OFFSET 0.5MM (2)
305392 (opens in new tab)DRIVE SHAFT PIN 2 x 10 WITH FLAT SPOT (2)
305395 (opens in new tab)ECS BB SC DRIVE SHAFT PIN 2 x 8.4 (2)
305435 (opens in new tab)HIGH-PERFORMANCE DRIVE BELT 3 x 351MM
305436 (opens in new tab)HIGH-PERFORMANCE LOW FRICTION KEVLAR DRIVE BELT 3 x 351MM
305524 (opens in new tab)X4 ALU SOLID LAYSHAFT & BEARINGS
305579 (opens in new tab)X4 COMPOSITE PULLEY FOR LAYSHAFT 20T
305772OFFSET SPUR GEAR 72T / 48 - HARD
305776OFFSET SPUR GEAR 76T / 48 - HARD
305778 (opens in new tab)OFFSET SPUR GEAR 78T / 48 - HARD
305779OFFSET SPUR GEAR 79T / 48 - HARD
305781 (opens in new tab)OFFSET SPUR GEAR 81T / 48 - HARD
305784SPUR GEAR 84T / 48
305784-O (opens in new tab)SPUR GEAR „H“ 84T / 48 - ORANGE
305860 (opens in new tab)OFFSET SPUR GEAR 90T / 64
305862 (opens in new tab)OFFSET SPUR GEAR 92T / 64
305866OFFSET SPUR GEAR 96T / 64
305866-O (opens in new tab)OFFSET SPUR GEAR 96T / 64 - ORANGE
305869 (opens in new tab)OFFSET SPUR GEAR 99T / 64
305870OFFSET SPUR GEAR 100T / 64
305870-O (opens in new tab)OFFSET SPUR GEAR 100T / 64 - ORANGE
305874 (opens in new tab)OFFSET SPUR GEAR 104T / 64
305876 (opens in new tab)OFFSET SPUR GEAR 106T / 64
305878 (opens in new tab)OFFSET SPUR GEAR 108T / 64
305880OFFSET SPUR GEAR 110T / 64
305880-O (opens in new tab)OFFSET SPUR GEAR 110T / 64 - ORANGE
305882 (opens in new tab)OFFSET SPUR GEAR 112T / 64
305884 (opens in new tab)OFFSET SPUR GEAR 114T / 64
305912 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 12T / 48
305913NARROW ALU PINION GEAR - HARD COATED 13T / 48
305914 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 14T / 48
305915NARROW ALU PINION GEAR - HARD COATED 15T / 48
305916NARROW ALU PINION GEAR - HARD COATED 16T / 48
305918 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 18T / 48
305925NARROW ALU PINION GEAR - HARD COATED 25T / 48
305926NARROW ALU PINION GEAR - HARD COATED 26T / 48
305927NARROW ALU PINION GEAR - HARD COATED 27T / 48
305928NARROW ALU PINION GEAR - HARD COATED 28T / 48
305929NARROW ALU PINION GEAR - HARD COATED 29T / 48
305931 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 31T / 48
305932 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 32T / 48
305934NARROW ALU PINION GEAR - HARD COATED 34T / 48
305968 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 18T / 64
305969 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 19T / 64
305970 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 20T / 64
305971 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 21T / 64
305972 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 22T / 64
305973 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 23T / 64
305974 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 24T / 64
305975 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 25T / 64
305984 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 34T / 64
305985 (opens in new tab)NARROW ALU PINION GEAR - HARD COATED 35T / 64
306165 (opens in new tab)T4 GRAPHITE BATTERY STRAP FOR LiPo - SET
306176 (opens in new tab)GRAPHITE BATTERY ADJ. WIDTH PLATE (2)
306177GRAPHITE BATTERY PLATE SHIM (2)
306192 (opens in new tab)COMPOSITE ADJUSTABLE BATTERY HOLDER & BACKSTOP (2+2)
306192-OALU ADJUSTABLE BATTERY HOLDER (2)
306219 (opens in new tab)COMPOSITE SET OF SERVO SHIMS (4)
306222 (opens in new tab)X4 ALU SERVO MOUNT - BLACK - ONE-PIECE - SWISS 7075 T6
306280 (opens in new tab)X4 ALU SERVO MOUNT HOLDER - REARWARD - SWISS 7075 T6
306281 (opens in new tab)X4 ALU SERVO MOUNT HOLDER - FORWARD - SWISS 7075 T6
306301 (opens in new tab)ANTENNA MOUNT - THIN
306310 (opens in new tab)ANTENNA (2)
306410 (opens in new tab)ALU UNIVERSAL MOUNT
306551XRAY PURE TUNGSTEN CHASSIS WEIGHT 12g
306552 (opens in new tab)XRAY PURE TUNGSTEN CHASSIS WEIGHT 10g
308026XLP PROGRESSIVE 2-HOLE 0.8MM DELRIN PISTON (4)
308027XLP 4-HOLE 1.1-1.2MM DELRIN PISTON (2+2)
308033-K (opens in new tab)XLP ALU XRAY SHOCK SPRING RETAINING COLLAR - BLACK (4)
308047 (opens in new tab)XLP2 ALU SHOCK ADJUSTABLE NUT - BLACK (2)
308084 (opens in new tab)XLP2 SILICONE HYPER RESISTANT SHOCK ABSORBER MEMBRANE (4)
308129 (opens in new tab)XLP2 ALU PROGRESSIVE SHOCK SYSTEM - SET (2)
308164XLP SPRING-SET PROGRESSIVE C=2.4-2.7 (2)
308165XLP SPRING-SET PROGRESSIVE C=2.5-2.8 (2)
308166XLP SPRING-SET PROGRESSIVE C=2.6-2.9 (2)
308175XLP SPRING-SET C=2.5 (2)
308176XLP SPRING-SET C=2.6 (2)
308177XLP SPRING-SET C=2.7 (2)
308178XLP SPRING-SET C=2.8 (2)
308179XLP SPRING-SET C=2.9 (2)
308180 (opens in new tab)XLP SPRING-SET C=3.0 (2)
308311 (opens in new tab)XLP2 ALU SHOCK ABSORBER-SET - BLACK (2)
308328-KXLP ALU CAP FOR SHOCK BODY - BLACK (2)
308329 (opens in new tab)XLP2 ALU SHOCK BODY (2)
308337 (opens in new tab)XLP2 COMPOSITE SHOCK PARTS WITH 2 HOLES
308366 (opens in new tab)XLP2 HARDENED SHOCK SHAFT (2)
309003SET OF CERAMIC BALL-BEARINGS (12)
309004 (opens in new tab)X4 SET OF BALL-BEARINGS (25)
309301 (opens in new tab)MOUNTING HARDWARE PACKAGE - SET
309319UNIVERSAL SET OF PLASTIC SHIMS
309402 (opens in new tab)BODY CLIP FOR 6MM BODY POST (4)
309612TIRES XXT-M W/O BELT FOR LOW GRIP ASPHALT (2)
309617TIRES XXT-M W/O BELT FOR ASPHALT (2)
309852 (opens in new tab)X4 BRASS WEIGHT NICKEL COATED FOR MOTOR MOUNT 4g+4g+8g
309861 (opens in new tab)SHORT LiPo BALANCING CHASSIS WEIGHT 40G (2)
309862 (opens in new tab)XRAY STAINLESS STEEL WEIGHT FOR NARROW BATTERY PACK 35G
326177 (opens in new tab)COMPOSITE BATTERY CLAMP (2)
326181 (opens in new tab)STAINLESS STEEL BATTERY WEIGHT 35G
353561 (opens in new tab)ALU REAR WING SHIM (2)
362647 (opens in new tab)BALL END 4.9MM WITH THREAD 3MM (2)
362648 (opens in new tab)BALL END 4.9MM WITH THREAD 4MM (2) - (replacement for #302652)
362649 (opens in new tab)BALL END 4.9MM WITH THREAD 5MM (2)
362650 (opens in new tab)BALL END 4.9MM WITH THREAD 6MM (2)
362651 (opens in new tab)BALL END 4.9MM WITH THREAD 8MM (2)
362652 (opens in new tab)BALL END 4.9MM WITH THREAD 10MM (2)
372503 (opens in new tab)COMPOSITE SERVO SAVER - X-STIFF - SET - V2
372649 (opens in new tab)BALL END 4.2MM WITH 4MM THREAD (2)
372661 (opens in new tab)COMPOSITE STEERING BALL JOINT OPEN 4.2MM (4)
397311 (opens in new tab)XRAY STICKER FOR BODY - WHITE
397312XRAY STICKER FOR BODY - METALIC SILVER
397313XRAY STICKER FOR BODY - PURPLE
397314XRAY STICKER FOR BODY - NEON RED
397315XRAY STICKER FOR BODY - NEON YELLOW
397316XRAY STICKER FOR BODY - NEON ORANGE
397320XRAY STICKERS FOR BODY - 5 DIFFERENT COLORS
803054RAIN TIRE 1/10 TOURING (4)

Screws, bearings, o-rings and hardware (53)

Part #Description
901305 (opens in new tab)HEX SCREW SB M3x5 (10)
901308 (opens in new tab)HEX SCREW SB M3x8 (10)
901313HEX SCREW CENTERING SB M3x12 (10)
901408 (opens in new tab)HEX SCREW SB M4x8 (10)
902303 (opens in new tab)HEX SCREW SH M3x4 SMALL HEAD - STAINLESS (10)
902304HEX SCREW SH M3x4 - STAINLESS (10)
902305 (opens in new tab)HEX SCREW SH M3x5 (10)
902306 (opens in new tab)HEX SCREW SH M3x6 (10)
902308 (opens in new tab)HEX SCREW SH M3x8 (10)
902310 (opens in new tab)HEX SCREW SH M3x10 (10)
902320 (opens in new tab)HEX SCREW SH M3x20 (10)
903258 (opens in new tab)HEX SCREW SFH M2.5x8 (10)
903304 (opens in new tab)HEX SCREW SFH M3x4 (10)
903305 (opens in new tab)HEX SCREW SFH M3x5 (10)
903306 (opens in new tab)HEX SCREW SFH M3x6 (10)
903308 (opens in new tab)HEX SCREW SFH M3x8 (10)
903310 (opens in new tab)HEX SCREW SFH M3x10 (10)
903312 (opens in new tab)HEX SCREW SFH M3x12 (10)
903318HEX SCREW SFH M3x18 (10)
930154 (opens in new tab)BALL-BEARING 1.5x4x2 STEEL SEALED - OIL (4)
930306 (opens in new tab)BALL-BEARING 3x6x2.5 STEEL SEALED - OIL (2)
930308 (opens in new tab)BALL-BEARING 3x8x4 STEEL SEALED - OIL (2)
930407 (opens in new tab)BALL-BEARING 4x7x2.5 STEEL SEALED - OIL (2)
930508 (opens in new tab)BALL-BEARING 5x8x2.5 STEEL SEALED - OIL (2)
940508 (opens in new tab)BALL-BEARING 5x8x2.5 RUBBER SEALED - OIL (2)
940611 (opens in new tab)BALL-BEARING 6x10x3 LOW RADIAL PLAY RUBBER SEALED - OIL (2)
941014 (opens in new tab)BALL-BEARING 10x15x4 RUBBER SEALED - GREASE (2)
941015 (opens in new tab)BALL-BEARING 10x15x4 RUBBER SEALED - OIL (2)
960030 (opens in new tab)NUT M3 (10)
960031 (opens in new tab)ALU NUT M3 (10)
960140 (opens in new tab)NUT M4 WITH FLANGE (10)
960240 (opens in new tab)NUT M4 WITH SERRATED FLANGE (10)
960241-KALU NUT M4 WITH SERRATED FLANGE - BLACK (10)
960241-O (opens in new tab)ALU NUT M4 WITH SERRATED FLANGE - ORANGE (10)
962042 (opens in new tab)WASHER S 4x6x0.1 (10)
962043 (opens in new tab)WASHER S 4x6x0.2 (10)
962045 (opens in new tab)WASHER S 4x5x0.2 (10)
962061 (opens in new tab)WASHER S 6x7.5x1.0 (10)
964031 (opens in new tab)WASHER S 3.5x10x0.2 (10)
964050 (opens in new tab)WASHER S 5x15x0.3 (10)
965012 (opens in new tab)E-CLIP 1.2 (10)
965023 (opens in new tab)E-CLIP 2.3 (10)
966081 (opens in new tab)CH-CLIP 8 (10)
968037C-CLIP 3.7 (10)
968071C-CLIP 7.1 (10)
970050 (opens in new tab)O-RING 5x1 (10)
970141 (opens in new tab)O-RING 14 x 1.0 (10)
971240 (opens in new tab)SILICONE O-RING 24x0.7 (10)
972030 (opens in new tab)SILICONE O-RING 3x2 (10)
972050 (opens in new tab)SILICONE O-RING 5x2 (10)
980157 (opens in new tab)PIN 1.5x7.3 (10)
980210 (opens in new tab)PIN 2x9.8 (10)
981212 (opens in new tab)PIN 2x12 (10)

Tools, oils and setup equipment (314)

Part #Description
101600HUDY STEEL MINI CLAMP – EXTRA HARD STEEL
104002 (opens in new tab)HUDY AIR VAC - VACUUM PUMP - ON-ROAD 1/8, 1/10, 1/12
104003 (opens in new tab)HUDY AIR VAC - VACUUM PUMP WITH TRAY - ON-ROAD 1/8, 1/10, 1/12
105500 (opens in new tab)HUDY UNIVERSAL TIRE BALANCING STATION
105520WHEEL ADAPTER FOR 1/10 TOURING CAR
105590 (opens in new tab)HUDY WHEEL BALANCING PUTTY
106200 (opens in new tab)HUDY MAGIC CLEANING GUM
106205 (opens in new tab)HUDY WASH BOX
106210 (opens in new tab)HUDY GRAPHITE GREASE
106213 (opens in new tab)HUDY JOINT GREASE
106230 (opens in new tab)HUDY BEARING OIL
106232HUDY BEARING OIL - PREMIUM
106260HUDY TIRE ADDITIVE - CARPET GRIPPER - 65ML
106261HUDY TIRE ADDITIVE - TIRE GRIPPER RED - 50ML
106262HUDY TIRE ADDITIVE - TIRE GRIPPER ASPHALT - 50ML
106263HUDY TIRE ADDITIVE - TIRE GRIPPER HYBRID - 50ML
106281HUDY BODY FIX 28g/1oz
106290HUDY ULTIMATE SOLDER 3M LENGTH
106310HUDY PREMIUM SILICONE OIL 100 cSt - 50ML
106315HUDY PREMIUM SILICONE OIL 150 cSt - 50ML
106320HUDY PREMIUM SILICONE OIL 200 cSt - 50ML
106325HUDY PREMIUM SILICONE OIL 250 cSt - 50ML
106330HUDY PREMIUM SILICONE OIL 300 cSt - 50ML
106335HUDY PREMIUM SILICONE OIL 350 cSt - 50ML
106337HUDY PREMIUM SILICONE OIL 375 cSt - 50ML
106340HUDY PREMIUM SILICONE OIL 400 cSt - 50ML
106342HUDY PREMIUM SILICONE OIL 425 cSt - 50ML
106345HUDY PREMIUM SILICONE OIL 450 cSt - 50ML
106347HUDY PREMIUM SILICONE OIL 475 cSt - 50ML
106350HUDY PREMIUM SILICONE OIL 500 cSt - 50ML
106352HUDY PREMIUM SILICONE OIL 525 cSt - 50ML
106355HUDY PREMIUM SILICONE OIL 550 cSt - 50ML
106357HUDY PREMIUM SILICONE OIL 575 cSt - 50ML
106360HUDY PREMIUM SILICONE OIL 600 cSt - 50ML
106362HUDY PREMIUM SILICONE OIL 625 cSt - 50ML
106365HUDY PREMIUM SILICONE OIL 650 cSt - 50ML
106367HUDY PREMIUM SILICONE OIL 675 cSt - 50ML
106370HUDY PREMIUM SILICONE OIL 700 cSt - 50ML
106375HUDY PREMIUM SILICONE OIL 750 cSt - 50ML
106380HUDY PREMIUM SILICONE OIL 800 cSt - 50ML
106390HUDY PREMIUM SILICONE OIL 900 cSt - 50ML
106410HUDY PREMIUM SILICONE OIL 1000 cSt - 50ML
106420HUDY PREMIUM SILICONE OIL 2000 cSt - 50ML
106430HUDY PREMIUM SILICONE OIL 3000 cSt - 50ML
106440HUDY PREMIUM SILICONE OIL 4000 cSt - 50ML
106450HUDY ULTIMATE SILICONE OIL 5000 cSt - 50ML
106460 (opens in new tab)HUDY PREMIUM SILICONE OIL 6000 cSt - 50ML
106470HUDY PREMIUM SILICONE OIL 7000 cSt - 50ML
106480HUDY PREMIUM SILICONE OIL 8000 cSt - 50ML
106510HUDY PREMIUM SILICONE OIL 10 000 cSt - 50ML
106512HUDY PREMIUM SILICONE OIL 9000 cSt - 50ML
106515HUDY PREMIUM SILICONE OIL 15 000 cSt - 50ML
106520HUDY PREMIUM SILICONE OIL 20 000 cSt - 50ML
106530HUDY PREMIUM SILICONE OIL 30 000 cSt - 50ML
106540HUDY PREMIUM SILICONE OIL 40 000 cSt - 50ML
106550HUDY PREMIUM SILICONE OIL 50 000 cSt - 50ML
106560HUDY PREMIUM SILICONE OIL 60 000 cSt - 50ML
106580HUDY PREMIUM SILICONE OIL 80 000 cSt - 50ML
106610HUDY PREMIUM SILICONE OIL 100 000 cSt - 50ML
106615HUDY PREMIUM SILICONE OIL 150 000 cSt - 50ML
106620HUDY PREMIUM SILICONE OIL 200 000 cSt - 50ML
106630HUDY PREMIUM SILICONE OIL 300 000 cSt - 50ML
106650HUDY PREMIUM SILICONE OIL 500 000 cSt - 50ML
106692HUDY PREMIUM SILICONE OIL 1 000 000 cSt - 50ML
106694HUDY PREMIUM SILICONE OIL 2 000 000 cSt - 50ML
106900 (opens in new tab)HUDY OIL BOTTLE, NOSE, STEEL NEEDLE & SAFETY LOCK - 5ML (3)
107150 (opens in new tab)HUDY GRAPHITE PINION CADDY
107152SET OF 18 ALU PINIONS 48P WITH CADDY 12T ~ 29T
107153SET OF 18 ALU PINIONS 64P WITH CADDY 18T ~ 35T
107602LIMITED EDITION - REAMER FOR BODY + COVER - LARGE
107702CHASSIS DROOP GAUGE SUPPORT BLOCKS (10 MM) FOR 1/10 (2)
107712CHASSIS DROOP GAUGE -3 TO 10 MM FOR 1/10 CARS (10 MM)
107713CHASSIS RIDE HEIGHT GAUGE 0 MM TO 15 MM (1 MM STEPPED)
107714ULTRA-FINE CHASSIS DROOP GAUGE 4.0-6.6MM
107715CHASSIS RIDE HEIGHT GAUGE 0 MM TO 15 MM (BEVELED)
107716ULTRA-FINE CHASSIS RIDE HEIGHT GAUGE
107719QUICK DOWNSTOP GAUGE TOOL 1.0 ~ 6.5MM
107750 (opens in new tab)HUDY GRAPHITE QUICK CAMBER GAUGE 1/10 TOURING 1.5°; 2°; 2.5°
107761 (opens in new tab)HUDY ADJUSTABLE CAMBER GAUGE 80MM
107771HUDY BODY GAUGE 1/10 ELECTRIC TOURING CARS
107772 (opens in new tab)HUDY PROFESSIONAL 1/10 TC WHEEL ARCH MARKER
107839 (opens in new tab)HUDY CLEANING BRUSH - CHEMICAL RESISTANT - 2.5”
107840CLEANING BRUSH LARGE - SOFT
107841CLEANING BRUSH LARGE - MEDIUM
107842CLEANING BRUSH LARGE - STIFF
107843 (opens in new tab)HUDY CLEANING BRUSH - CHEMICAL RESISTANT - 2.0”
107846CLEANING BRUSH SMALL - SOFT
107847CLEANING BRUSH SMALL - MEDIUM
107848CLEANING BRUSH SMALL - STIFF
107850 (opens in new tab)HUDY PERSONAL RACING DISPLAY
107855HUDY PIT LED
107861HUDY PROFFESIONAL RACING STOPWATCH XL DISPLAY
107865 (opens in new tab)HUDY ULTIMATE DIGITAL SCALE 300g/0.01g
107866HUDY PROFFESIONAL DIGITAL POCKET SCALE 3000g/0.1g
107870 (opens in new tab)HUDY FIBRE-REINFORCED TAPE - BLACK
107871SELF-ADHESIVE FOAM STRIP (2)
107873HUDY BUMPER & BODY SPACE SPONGE SET
107875HUDY ULTRA DOUBLE-SIDED TAPE
107876 (opens in new tab)HUDY ULTRA THIN DOUBLE-SIDED TAPE - SINGLE STRIP (5)
107880CHASSIS BALANCING SIMPLE TOOL (2 PCS.)
107904 (opens in new tab)HUDY QUICK-TWEAK STATION + ALU CARRY CASE
107905 (opens in new tab)HUDY TWEAK BOARD SET
108150 (opens in new tab)HUDY TOURING CAR STAND
108190HUDY ALU PARTS TRAY
108192 (opens in new tab)HUDY ALU PARTS TRAY NARROW 215x50mm
108193 (opens in new tab)HUDY ALU PARTS TRAY LARGE 215x100mm
108195HUDY ALU PARTS TRAY COMPACT - MAGNETIC & ANTI-SLIP
108301FLAT SET-UP BOARD 1/10 & 1/12 ON-ROAD - LIGHTWEIGHT - GREY
108302FLAT SET-UP BOARD 1/10 & 1/12 ON-ROAD - LIGHTWEIGHT - SILVER GREY
108303FLAT SET-UP BOARD 1/10 & 1/12 ON-ROAD - LIGHTWEIGHT - DARK GREY
108304FLAT SET-UP BOARD 1/10 & 1/12 ON-ROAD - LIGHTWEIGHT - TITAN
108305FLAT SET-UP BOARD 1/10 & 1/12 ON-ROAD - LIGHTWEIGHT - BLACK
108360PLASTIC SET-UP BOARD DECAL 282x386mm - 1/10 TC
109301 (opens in new tab)HUDY SET-UP STATION FOR 1/10 TOURING CARS
109351SET-UP STATION & SET-UP TOOLS + CARRYING BAG FOR 1/10 TOURING CARS
109360ALU NUT FOR 1/10 TOURING SET-UP SYSTEM (4)
109370ALU SET-UP WHEEL FOR 1/10 RUBBER TIRES (4)
109800 (opens in new tab)HUDY ALU TRAY FOR ON-ROAD DIFF & SHOCKS
109860 (opens in new tab)HUDY ALU TRAY FOR SET-UP SYSTEM
109880 (opens in new tab)HUDY ALU TRAY FOR ACCESSORIES & PIT LED
111030PIN ADAPTER 3.0MM FOR EL. SCREWDRIVER
111035PIN ADAPTER 3.5MM FOR EL. SCREWDRIVER
111063LIMITED EDITION - UNIVERSAL HANDLE FOR EL. SCREWDRIVER PINS
111545LIMITED EDITION - ALLEN WRENCH 1.5 MM
112045LIMITED EDITION - ALLEN WRENCH 2.0 MM
113045LIMITED EDITION - ALLEN WRENCH 3.0 MM
133045LIMITED EDITION - BALL ALLEN WRENCH 3.0 MM
153055LIMITED EDITION - SLOTTED SCREWDRIVER 3.0MM - LONG
170007LIMITED EDITION - ALU 1-PIECE SOCKET DRIVER 7.0 MM
175535LIMITED EDITION - SOCKET DRIVER 5.5 MM
177035LIMITED EDITION - SOCKET DRIVER 7.0 MM
181030 (opens in new tab)HUDY SPRING STEEL TURNBUCKLE WRENCH 3MM
181031ALU TURNBUCKLE WRENCH 3MM - SWISS 7075 T6
181034HUDY SPRING STEEL TURNBUCKLE WRENCH 3 & 4MM
181040 (opens in new tab)HUDY SPRING STEEL TURNBUCKLE WRENCH 4MM
181041ALU TURNBUCKLE WRENCH 4MM - SWISS 7075 T6
181090 (opens in new tab)HUDY SPECIAL TOOL FOR TURNBUCKLES & NUTS
181091 (opens in new tab)HUDY TURNBUCKLE WRENCH 3 & 4MM
181110 (opens in new tab)HUDY BALL JOINT WRENCH
183011HUDY PROFESSIONAL MULTI TOOL
188980HUDY BLADE HOBBY KNIFE WITH ALU HANDLE
188981HUDY POCKET HOBBY KNIFE
188984HUDY REPLACEABLE HOBBY KNIFE BLADES (10PCS)
188985HUDY REPLACEABLE HOBBY KNIFE BLADES (5PCS)
188990 (opens in new tab)HUDY ULTIMATE BODY SCISSORS
189000HUDY MICRO RC PLIERS SET + CARRYING BAG
190001SET OF TOOLS + CARRYING BAG - FOR ELECTRIC TOURING CARS
190005 (opens in new tab)HUDY LIMITED EDITION TOOL SET + CARRYING BAG
190006PT SET OF TOOLS + CARRYING BAG - FOR ALL CARS
190070SET OF POWER TOOL TIPS (HEX 2, 2.5, 3MM + PHILLIPS 4, 5.8MM)
199011-H (opens in new tab)HUDY HARD CASE - 230x180x45MM - TOOL BAG SMALL
199060 (opens in new tab)HUDY ALU TOOL STAND
199100 (opens in new tab)HUDY 1/10 TOURING CARRYING BAG + TOOL BAG - V2 - EXCLUSIVE EDITION
199110 (opens in new tab)HUDY 1/10 CARRYING BAG - COMPACT
199150HUDY CARGO BAG - EXCLUSIVE EDITION
199155L (opens in new tab)HUDY TRAVEL BAG - LARGE
199157LHUDY HAND BAG - LARGE
199170 (opens in new tab)HUDY TRANSMITTER BAG - LARGE - EXCLUSIVE EDITION
199171 (opens in new tab)HUDY TRANSMITTER BAG - COMPACT - EXCLUSIVE EDITION
199171-HHUDY HARD CASE - 185x220x145MM - TRANSMITTER SANWA MT4, MT44 & M17
199175 (opens in new tab)HUDY RADIO WINTER BAG - EXCLUSIVE EDITION
199176 (opens in new tab)HUDY HEAT PACK GEL
199181HUDY CAR BAG - 1/10 ON-ROAD - TOURING - PAN CAR
199181-H (opens in new tab)HUDY HARD CASE - 440x220x115MM - 1/10 ON-ROAD CAR
199190 (opens in new tab)HUDY TEAM RUCKSACK
199191HUDY TEAM BACKPACK XL
199199HUDY EURO POUCH
199210 (opens in new tab)HUDY SET-UP BOARD BAG 1/10 & 1/12 ON-ROAD
199221 (opens in new tab)HUDY SET-UP BAG FOR 1/10 TOURING CARS, 1/10 & 1/12 PAN CARS, 1/10 FORMULA
199260 (opens in new tab)HUDY PIT LED BAG
199270 (opens in new tab)HUDY LIPO SAFETY BAG
199271HUDY LIPO SAFETY BAG - COMPACT
199280L (opens in new tab)HUDY OIL BAG - LARGE
199280L-HHUDY HARD CASE - 180x140x120MM - OIL BAG LARGE
199280M (opens in new tab)HUDY OIL BAG - MEDIUM
199280M-HHUDY HARD CASE - 140x110x95MM - OIL BAG MEDIUM
199290 (opens in new tab)HUDY ACCESSORIES BAG
199290-H (opens in new tab)HUDY HARD CASE - 235x190x75MM
199291-H (opens in new tab)HUDY HARD CASE - 135x85x75MM - ACCESSORIES / AIR VAC ON-ROAD
199292-H (opens in new tab)HUDY HARD CASE - 175x85x75MM - ACCESSORIES / AIR VAC 1/10 OFF-ROAD
199293-H (opens in new tab)HUDY HARD CASE - 175x110x75MM
199294-H (opens in new tab)HUDY HARD CASE - 215x90x85MM - ACCESSORIES / AIR VAC 1/8 OFF-ROAD
199295-H (opens in new tab)HUDY HARD CASE - 280x150x85MM - ACCESSORIES BAG LARGE
199296-H (opens in new tab)HUDY HARD CASE - 120x85x46MM - ACCESSORIES / STOP WATCH
199297-H (opens in new tab)HUDY HARD CASE - 320x220x145MM - ELECTRONICS
199910 (opens in new tab)HUDY PIT MAT 750x1200MM
199911 (opens in new tab)HUDY PIT MAT ROLL 750x1200MM
199912 (opens in new tab)HUDY PIT MAT ROLL 600x950MM
199913L (opens in new tab)HUDY PIT MAT FULL COLOR 650x1200MM
199913M (opens in new tab)HUDY PIT MAT FULL COLOR 650x950MM
209065HUDY COMPACT CLEANING TOWEL (10)
209073 (opens in new tab)HUDY EXCLUSIVE PIT TOWEL 1100 x 700
209200 (opens in new tab)HUDY CHASSIS PROTECTOR VINYL STICKER 360x125mm
209240 (opens in new tab)HUDY BODY POST HOLE PROTECTOR VINYL STICKER 7x16x0.5MM (8)
286990HUDY FACE MASK
293010HUDY STAINLESS STEEL BATTERY WEIGHT 50G
293011 (opens in new tab)HUDY STAINLESS STEEL BATTERY WEIGHT 35G
293012HUDY STAINLESS STEEL BATTERY WEIGHT FOR NARROW BATTERY PACK 35G
293081 (opens in new tab)HUDY PURE TUNGSTEN WEIGHT 5g
293082 (opens in new tab)HUDY PURE TUNGSTEN WEIGHT 10g
293083 (opens in new tab)HUDY PURE TUNGSTEN WEIGHT 15g
293085 (opens in new tab)HUDY PURE TUNGSTEN WEIGHT THIN ROUND 15mm WITH M3 - 10g
293086 (opens in new tab)HUDY PURE TUNGSTEN WEIGHT THIN - 24.5x24.5MM - 15g
293087 (opens in new tab)HUDY PURE TUNGSTEN WEIGHT THIN - 31x26MM - 20g
293100HUDY ALU RC FAN 30MM - BOTTOM MOUNT 2 HOLE
293101HUDY ALU RC FAN 30MM - SIDE MOUNT 2 HOLE
293102HUDY ALU RC FAN 30MM - TOP/SIDE MOUNT 4 HOLE
293110 (opens in new tab)HUDY BRUSHLESS RC FAN 30MM - WITH EXTERNAL SOLDERING TABS
293112 (opens in new tab)HUDY BRUSHLESS RC FAN 30MM - WITH INTERNAL SOLDERING TABS
293352HUDY ALU FIXED SERVO SAVER 1/10 TC & FWD - SET
293561HUDY ALU REAR WING SHIM (2)
293561-K (opens in new tab)HUDY ALU REAR WING SHIM - BLACK (2)
293561-OHUDY ALU REAR WING SHIM - ORANGE (2)
294017HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 17T / 48
294019 (opens in new tab)HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 19T / 48
294020HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 20T / 48
294021HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 21T / 48
294022HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 22T / 48
294023HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 23T / 48
294024 (opens in new tab)HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 24T / 48
294030HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 30T / 48
294033HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 33T / 48
294035HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 35T / 48
294126HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 26T / 64
294127HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 27T / 64
294128HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 28T / 64
294129HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 29T / 64
294130HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 30T / 64
294131HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 31T / 64
294132HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 32T / 64
294133HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 33T / 64
294136HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 36T / 64
294137HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 37T / 64
294138HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 38T / 64
294139HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 39T / 64
294140HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 40T / 64
294141HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 41T / 64
294142HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 42T / 64
294143HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 43T / 64
294144HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 44T / 64
294145HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 45T / 64
294146HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 46T / 64
294147HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 47T / 64
294148HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 48T / 64
294149HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 49T / 64
294150HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 50T / 64
294151 (opens in new tab)HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 51T / 64
294152HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 52T / 64
294153 (opens in new tab)HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 53T / 64
294154HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 54T / 64
294155 (opens in new tab)HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 55T / 64
294156HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 56T / 64
294157 (opens in new tab)HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 57T / 64
294158HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 58T / 64
294159 (opens in new tab)HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 59T / 64
294160HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 60T / 64
294162 (opens in new tab)HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 62T / 64
294164 (opens in new tab)HUDY ALU ULTRA-LIGHT PINION GEAR - HARD COATED - 64T / 64
298010HUDY HARDWARE BOX - DOUBLE-SIDED
298011 (opens in new tab)HUDY HARDWARE BOX - DOUBLE-SIDED - COMPACT
298012 (opens in new tab)HUDY PARTS BOX - 10-COMPARTMENTS
298013 (opens in new tab)HUDY SPRINGS BOX - 10-COMPARTMENTS
298014 (opens in new tab)HUDY PARTS BOX - 8-COMPARTMENTS
298015 (opens in new tab)HUDY PARTS CASE - 290 x 195mm
298016 (opens in new tab)HUDY TINY HARDWARE BOX - 4-COMPARTMENTS
298017 (opens in new tab)HUDY TINY ONE-PIECE HARDWARE BOX - 8-COMPARTMENTS
298018 (opens in new tab)HUDY TINY HARDWARE BOX - 8-COMPARTMENTS
298019 (opens in new tab)HUDY DIFF BOX - 8-COMPARTMENTS
298021HUDY HARDWARE BOX - DOUBLE-SIDED - SMALL
298022HUDY TINY HARDWARE BOX - 10-COMPARTMENTS
298025HUDY PARTS CASE - 275 x 180mm
298100 (opens in new tab)HUDY TIN ROUND BOX 80x30MM
301158X4 TOP DECK HEX SCREW M3x5.5 - HUDY SPRING STEEL™ (2)
302640X4 ADJUSTABLE CAMBER SCREW 14MM M4 L/R - HUDY SPRING STEEL™ (2)
303210REAR TURNBUCKLE L/R 26MM - HUDY SPRING STEEL™ (2)
303232X4 UPPER ARM BALL UNIVERSAL 4.9MM - HUDY SPRING STEEL™ (2)
303250X4 LOWER ARM BALL UNIVERSAL 6.0MM WITH HEX - HUDY SPRING STEEL™ (2)
303260X4 PIVOT BALL 6.0MM WITH M3x5.5MM THREAD - HUDY SPRING STEEL™ (2)
303261X4 PIVOT BALL 6.0MM WITH M3x6.5MM THREAD - HUDY SPRING STEEL™ (2)
304973STEEL GEAR DIFF BB DRIVESHAFT ADAPTER - HUDY SPRING STEEL™ (2)
305134STEEL SOLID AXLE DRIVESHAFT ADAPTER - HUDY SPRING STEEL™ (2)
305137STEEL SOLID AXLE DRIVESHAFT ADAPTER - LIGHTWEIGHT - HUDY SPRING STEEL™ (2)
305138SOLID AXLE ECS BB DRIVESHAFT ADAPTER - HUDY SPRING STEEL™ (2)
305231DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
305245ECS BB DRIVE SHAFT ADAPTER - HUDY SPRING STEEL™ (2)
305255ECS BB SC DRIVE SHAFT CASE - HUDY SPRING STEEL™
305257ECS BB SC DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
305260X4 ECS DRIVE SHAFT 58MM - HUDY SPRING STEEL™ (1)
305306X4 ECS BB DRIVE SHAFT 58MM - HUDY SPRING STEEL™ - SET
305307X4 ECS BB DRIVE SHAFT 59MM - HUDY SPRING STEEL™ - SET
305316X4 ECS BB DRIVE SHAFT 58MM - HUDY SPRING STEEL™ (2)
305317X4 ECS BB DRIVE SHAFT 59MM - HUDY SPRING STEEL™ (2)
305335X4 ECS BB SC DRIVE SHAFT 58MM - HUDY SPRING STEEL™ - COMPLETE SET
305337X4 CVD BB DRIVE SHAFT 52MM - HUDY SPRING STEEL™ (2)
305338X4 CVD BB DRIVE SHAFT 54MM - HUDY SPRING STEEL™ (2)
305348X4 CVD DRIVE AXLE SCS - SPRING CLIP SYSTEM - HUDY SPRING STEEL™
305349X4 ECS DRIVE AXLE SCS - SPRING CLIP SYSTEM - HUDY SPRING STEEL™
305360X4 ECS DRIVE SHAFT 58MM - HUDY SPRING STEEL™ - SET
305407X4 CVD BB DRIVE SHAFT 52MM - HUDY SPRING STEEL™ - SET
305408X4 CVD BB DRIVE SHAFT 54MM - HUDY SPRING STEEL™ - SET
372651PIVOT BALL UNIVERSAL 4.9MM - HUDY SPRING STEEL™ (2)
803041HUDY 1/10 PRE-CUT SLICK BELTED TIRES RIGHT & LEFT (2+2)
803053HUDY 1/10 TC CARPET TIRES C3-28 (4)
803062HUDY 1/10 TC TIRES A1-36 - ASPHALT (4)
913300HEX SCREW 110° FOR 301020 X4 CHASSIS - HUDY SPRING STEEL™ (33)
913305HEX SCREW 110° SFH M3x5 - CNC MACHINED - HUDY SPRING STEEL™ (4)
913308HEX SCREW 110° SFH M3x8 - CNC MACHINED - HUDY SPRING STEEL™ (4)
913312HEX SCREW 110° SFH M3x12 - CNC MACHINED - HUDY SPRING STEEL™ (4)
990004 (opens in new tab)HUDY TITAN BALL STUD D=4.9 / L=4 / S=3.5 / 2mm HEX (2)
990006 (opens in new tab)HUDY TITAN BALL STUD D=4.9 / L=6 / S=3.5 / 2mm HEX (2)
990008 (opens in new tab)HUDY TITAN BALL STUD D=4.9 / L=8 / S=3.5 / 2mm HEX (2)
990010 (opens in new tab)HUDY TITAN BALL STUD D=4.9 / L=10 / S=3.5 / 2mm HEX (2)
990101 (opens in new tab)HUDY TITAN PIVOT BALL D=4.9 / S=5 / 3mm HEX (2)
990102 (opens in new tab)HUDY TITAN PIVOT BALL D=4.9 / S=3.5 / 3mm HEX (2)

Source document

XRAY X4 '25 Parts ListOpen Document

X4 '25 alerts

Email me about new:

RC Setup App icon

Free to start · iOS & Android

RC Setup App

Your XRAY X4 '25 is in the RC Setup App

Save every setup change you make to your XRAY X4 '25, get AI tuning answers for that exact car, and log your races — at the track or back in the pits.

  • Setup Tracking
  • AI Mechanic answers
  • Find & Share Setups
  • Race Log
  • Gear Ratio Calculator
  • Free to use
Download on the App StoreGet it on Google Play
See what it does →
← Back to Setup Guides
