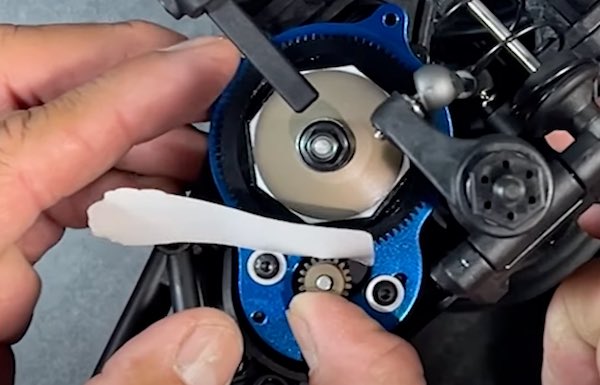

Gearing
Stock gearing for the Team Associated DR10M, with common pinions and their ratios.
| Pinion | Spur ÷ pinion | FDR |
|---|---|---|
| 18T | 4.33 | 11.27 |
| 19T | 4.11 | 10.67 |
| 20T | 3.90 | 10.14 |
| 21T | 3.71 | 9.66 |
| 22T | 3.55 | 9.22 |
| 23T | 3.39 | 8.82 |
| 24T | 3.25 | 8.45 |
| 25T | 3.12 | 8.11 |
| 26T | 3.00 | 7.80 |
| 27T | 2.89 | 7.51 |
| 28T | 2.79 | 7.24 |
| 29T | 2.69 | 6.99 |
| 30T | 2.60 | 6.76 |
| 31T | 2.52 | 6.54 |
| 32T | 2.44 | 6.34 |
Shaded rows are the pinions most 1/10 2WD drag setups run on the stock spur.
What pinion should I run?
Tell us your motor and track and get a starting pinion for the Team Associated DR10M, with the range racers in the class run.
Get a recommendation →Shop pinion gears at AMain →What pinion gear should I use on the Team Associated DR10M?
It depends on your motor and the track. Racers in the 1/10 2WD drag class run a 20–30 tooth pinion in most setups, usually on a 83T spur for a final drive ratio near 9.47. Hotter motors (lower turns, higher KV) take a smaller pinion; tight tracks gear down, open tracks gear up. For a starting pinion matched to your motor, use the So Dialed Pinion Recommender with the DR10M selected.
What is the internal ratio (transmission ratio) of the Team Associated DR10M?
The DR10M has an internal ratio of 2.6:1. Final drive ratio = spur ÷ pinion × 2.6. With the stock 78T spur, a 18T pinion gives an FDR of 11.27 and a 32T gives 6.34.
How many teeth is the stock spur gear on the Team Associated DR10M?
78 teeth. Changing the spur moves every pinion's ratio at once; most racers leave the spur and tune with the pinion.
Kit setup
Kit shock setup. Part numbers link to AMain.
- Front
- 30 wt
- Rear
- 30 wt
What shock oil does the Team Associated DR10M come with?
Out of the box the DR10M runs 30 wt front, 30 wt rear (Team Associated oil), on 2 x 1.6mm (#91444) front, 2 x 1.6mm (#91444) rear pistons. That is the kit setup; you will need to adjust it for your track conditions. The RC Setup App can help dial it in.
What springs does the Team Associated DR10M come with?
The kit springs are 44mm 5.1lb Orange (#91836) front, 44mm 5.1lb Orange (#91836) rear. Stiffer springs suit high grip and big jumps; softer springs add grip on slick or bumpy tracks.
