RC10 B84.1/D

Team Associated RC10 B84.1/D

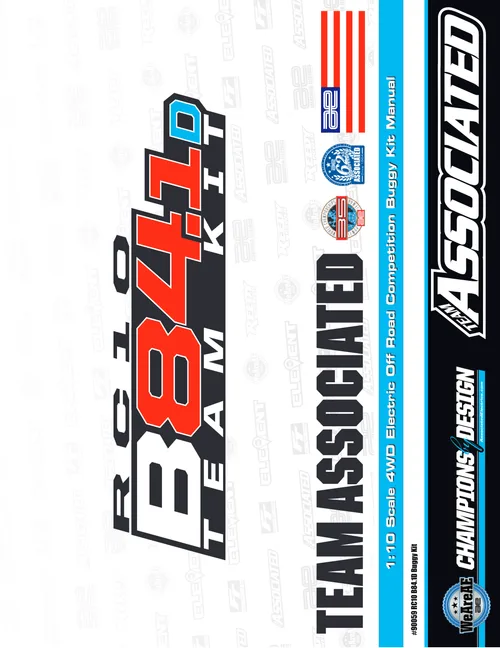

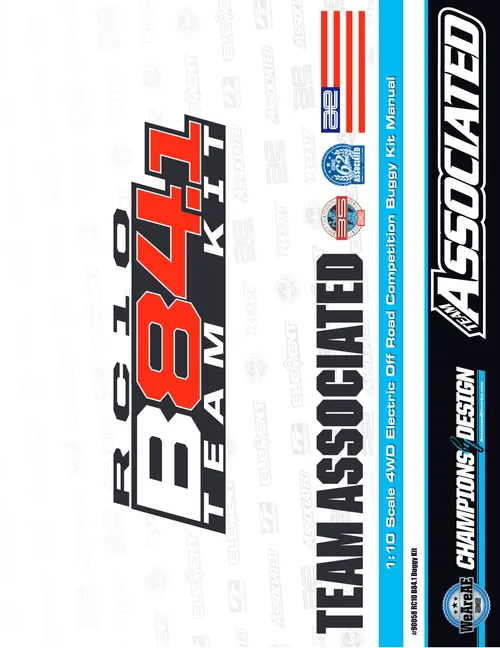

Q&A, setups, gearing, kit settings, manual, and guides

Off-road•Buggy•1/10 scale•4WD

Ask Miles, our Setup AI that’s been trained on the RC10 B84.1/D.

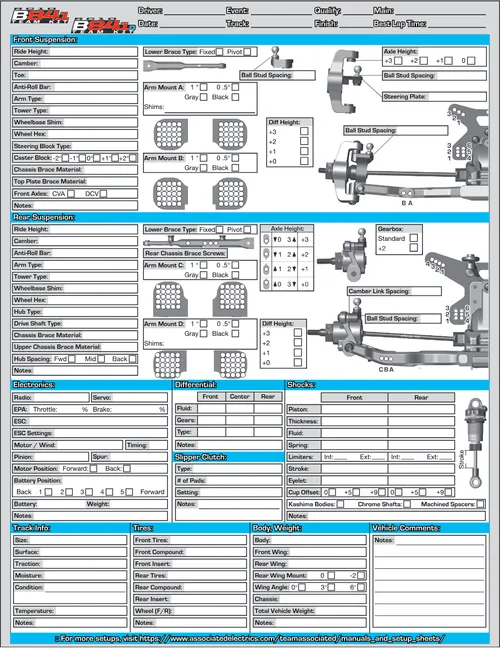

Setups

Get RC10 B84.1/D alerts

Gearing

Stock gearing for the Team Associated RC10 B84.1/D, with common pinions and their ratios.

Stock spur
78T
Internal ratio
2.5:1
Typical pinion
≤6T ≈ 18T · 7.5–8.5T ≈ 20T · 13.5T ≈ 25T
Class medians on the stock spur. For your motor and track →
PinionSpur ÷ pinionFDR
16T4.8812.19
17T4.5911.47
18T4.3310.83
19T4.1110.26
20T3.909.75
21T3.719.29
22T3.558.86
23T3.398.48
24T3.258.13
25T3.127.80
26T3.007.50
27T2.897.22
28T2.796.96

Shaded rows are the pinions most 1/10 4WD buggy setups run on the stock spur.

What pinion should I run?

Tell us your motor and track and get a starting pinion for the Team Associated RC10 B84.1/D, with the range racers in the class run.

Get a recommendation →Shop pinion gears at AMain → (opens in new tab)

What pinion gear should I use on the Team Associated RC10 B84.1/D?

It depends on your motor and the track. In the 1/10 4WD buggy class, racers gear by final drive ratio: 6T and below near 10.66, 7.5–8.5T near 10.00, 13.5T near 7.95. On the RC10 B84.1/D's stock 78T spur that is about 18T for 6T and below, 20T for 7.5–8.5T, 25T for 13.5T. Tight tracks gear down, open tracks gear up. For a starting pinion matched to your motor, use the So Dialed Pinion Recommender with the RC10 B84.1/D selected.

What is the internal ratio (transmission ratio) of the Team Associated RC10 B84.1/D?

The RC10 B84.1/D has an internal ratio of 2.5:1. Final drive ratio = spur ÷ pinion × 2.5. With the stock 78T spur, a 16T pinion gives an FDR of 12.19 and a 28T gives 6.96.

How many teeth is the stock spur gear on the Team Associated RC10 B84.1/D?

78 teeth. Changing the spur moves every pinion's ratio at once; most racers leave the spur and tune with the pinion.

Kit setup

Kit shock setup (Dirt). Part numbers link to AMain.

Shock oil
Front
35 wt
Rear
30 wt
Springs
Front
4.0lb Red #91944 →
Rear
2.3lb Yellow #91951 →
Pistons
Front
2 x 1.7mm
Rear
2 x 1.9mm

What shock oil does the Team Associated RC10 B84.1/D come with?

Out of the box the RC10 B84.1/D runs 35 wt front, 30 wt rear, on 2 x 1.7mm front, 2 x 1.9mm rear pistons. That is the kit setup; you will need to adjust it for your track conditions. The RC Setup App can help dial it in.

What springs does the Team Associated RC10 B84.1/D come with?

The kit springs are 4.0lb Red (#91944) front, 2.3lb Yellow (#91951) rear. Stiffer springs suit high grip and big jumps; softer springs add grip on slick or bumpy tracks.
