Gearing
Stock gearing for the XRAY XB8E '20-'22, with common pinions and their ratios.
| Pinion | Spur ÷ pinion | FDR |
|---|---|---|
| 12T | 3.83 | 12.61 |
| 13T | 3.54 | 11.64 |
| 14T | 3.29 | 10.81 |
| 15T | 3.07 | 10.09 |
| 16T | 2.88 | 9.46 |
| 17T | 2.71 | 8.90 |
| 18T | 2.56 | 8.41 |
| 19T | 2.42 | 7.97 |
Shaded rows are the pinions most 1/8 4WD buggy setups run on the stock spur.
What pinion should I run?
Tell us your motor and track and get a starting pinion for the XRAY XB8E '20-'22, with the range racers in the class run.
Get a recommendation →Shop pinion gears at AMain →What pinion gear should I use on the XRAY XB8E '20-'22?
It depends on your motor and the track. In the 1/8 4WD buggy class, racers gear by final drive ratio: 1800–2300 kV near 10.06. On the XB8E '20-'22's stock 46T spur that is about 15T for 1800–2300 kV. Tight tracks gear down, open tracks gear up. For a starting pinion matched to your motor, use the So Dialed Pinion Recommender with the XB8E '20-'22 selected.
What is the internal ratio (transmission ratio) of the XRAY XB8E '20-'22?
The XB8E '20-'22 has an internal ratio of 3.29:1. Final drive ratio = spur ÷ pinion × 3.29. With the stock 46T spur, a 12T pinion gives an FDR of 12.61 and a 19T gives 7.97.
How many teeth is the stock spur gear on the XRAY XB8E '20-'22?
46 teeth. Changing the spur moves every pinion's ratio at once; most racers leave the spur and tune with the pinion.
Kit setup

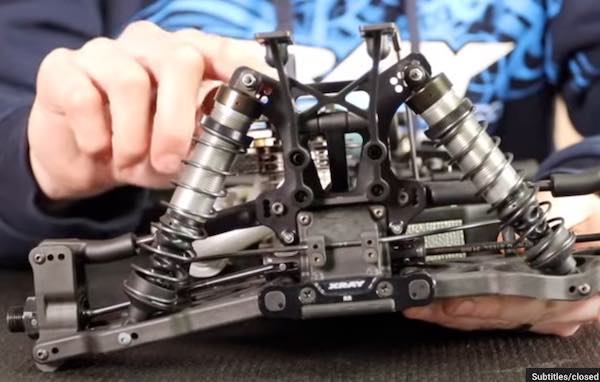

Kit shock setup (Pivot ball '20). Part numbers link to AMain.
- Front
- 550 cst
- Rear
- 600 cst
- Front
- 7,000 cst
- Center
- 7,000 cst
- Rear
- 3,000 cst
What shock oil does the XRAY XB8E '20-'22 come with?
Out of the box the XB8E '20-'22 runs 550 cst front, 600 cst rear (XRAY oil), on 6 x 1.3mm (#358033) front, 6 x 1.3mm (#358033) rear pistons. That is the kit setup; you will need to adjust it for your track conditions. The RC Setup App can help dial it in.
What springs does the XRAY XB8E '20-'22 come with?
The kit springs are Prog 69mm 4 dot C0.8-0.83 (#358316) front, Prog 85mm 3 dot C0.68-0.7 (#358335) rear. Stiffer springs suit high grip and big jumps; softer springs add grip on slick or bumpy tracks.
What diff fluid does the XRAY XB8E '20-'22 come with?
The kit diff fluid is 7,000 cst front, 7,000 cst center, 3,000 cst rear. Thicker front adds steering on power; thicker center sends more drive rearward; thicker rear stabilizes the car under throttle.
