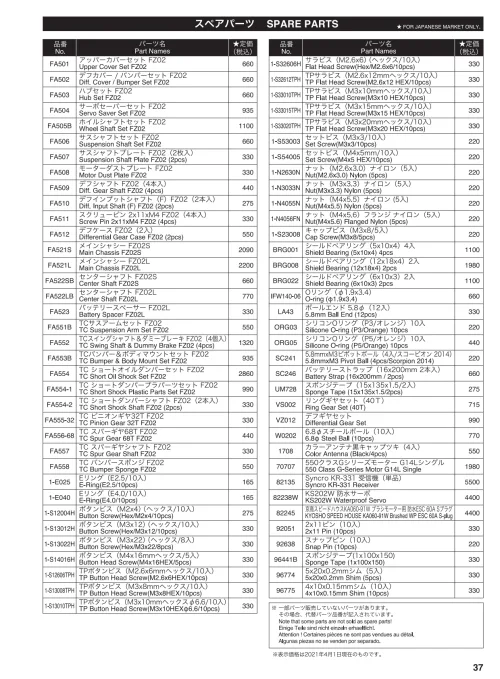

| Part number | Part name |
|---|---|
| FA501 | Upper Cover Set FZ02 |
| FA502 | Diff. Cover / Bumper Set FZ02 |
| FA503 | Hub Set FZ02 |
| FA504 | Servo Saver Set FZ02 |
| FA505B | Wheel Shaft Set FZ02 |
| FA506 | Suspension Shaft Set FZ02 |
| FA507 | Suspension Shaft Plate FZ02 (2pcs) |
| FA508 | Motor Dust Plate FZ02 |
| FA509 | Diff. Gear Shaft FZ02 (4pcs) |
| FA510 | Diff. Input Shaft (F) FZ02 (2pcs) |
| FA511 | Screw Pin 2x11xM4 FZ02 (4pcs) |
| FA512 | Differential Gear Case FZ02 (2pcs) |
| FA521S | Main Chassis FZ02S |
| FA521L | Main Chassis FZ02L |
| FA522SB | Center Shaft FZ02S |
| FA522LB | Center Shaft FZ02L |
| FA523 | Battery Spacer FZ02L |
| FA551B | TC Suspension Arm Set FZ02 |
| FA552 | TC Swing Shaft & Dummy Brake FZ02 (4pcs) |
| FA553B | TC Bumper & Body Mount Set FZ02 |
| FA554 | TC Short Oil Shock Set FZ02 |
| FA554-1 | TC Short Shock Plastic Parts Set FZ02 |
| FA554-2 | TC Short Shock Shaft FZ02 (2pcs) |
| FA555-32 | TC Pinion Gear 32T FZ02 |
| FA556-68 | TC Spur Gear 68T FZ02 |
| FA557 | TC Spur Gear Shaft FZ02 |
| FA558 | TC Bumper Sponge FZ02 |
| 1-E025 | E-Ring(E2.5/10pcs) |
| 1-E040 | E-Ring(E4.0/10pcs) |
| 1-S12004H | Button Screw(Hex/M2x4/10pcs) |
| 1-S13012H | Button Screw(Hex/M3x12/10pcs) |
| 1-S13022H | Button Screw(Hex/M3x22/8pcs) |
| 1-S14016H | Button Head Screw(M4x16HEX/5pcs) |
| 1-S12606TPH | TP Button Head Screw(M2.6x6HEX/10pcs) |
| 1-S13008TPH | TP Button Head Screw(M3x8HEX/10pcs) |
| 1-S13010TPH | TP Button Head Screw(M3x10HEXφ6.6/10pcs) |
| 1-S32606H | Flat Head Screw(Hex/M2.6x6/10pcs) |
| 1-S32612TPH | TP Flat Head Screw(M2.6x12 HEX/10pcs) |
| 1-S33010TPH | TP Flat Head Screw(M3x10 HEX/10pcs) |
| 1-S33015TPH | TP Flat Head Screw(M3x15 HEX/10pcs) |
| 1-S33020TPH | TP Flat Head Screw(M3x20 HEX/10pcs) |
| 1-S53003 | Set Screw(M3x3/10pcs) |
| 1-S54005 | Set Screw(M4x5mm/10pcs) |
| 1-N2630N | Nut(M2.6x3.0) Nylon (5pcs) |
| 1-N3033N | Nut(M3x3.3) Nylon (5pcs) |
| 1-N4055N | Nut(M4x5.5) Nylon (5pcs) |
| 1-N4056FN | Nut(M4x5.6) Flanged Nylon (5pcs) |
| 1-S23008 | Cap Screw(M3x8/5pcs) |
| BRG001 | Shield Bearing (5x10x4) 4pcs |
| BRG008 | Shield Bearing (12x18x4) 2pcs |
| BRG022 | Shield Bearing (6x10x3) 2pcs |
| IFW140-06 | O-ring (φ1.9x3.4) |
| LA43 | 5.8mm Ball End (12pcs) |
| ORG03 | Silicone O-ring (P3/Orange) 10pcs |
| ORG05 | Silicone O-ring (P5/Orange) 10pcs |
| SC241 | 5.8mmxM3 Pivot Ball (4pcs/Scorpion 2014) |
| SC246 | Battery Strap (16x200mm / 2pcs) |
| UM728 | Sponge Tape (15x135x1.5/2pcs) |
| VS002 | Ring Gear Set (40T) |
| VZ012 | Differential Gear Set |
| W0202 | 6.8φ Steel Ball (10pcs) |
| 1708 | Color Antenna (Black/4pcs) |
| 70707 | 550 Class G-Series Motor G14L Single |
| 82135 | Syncro KR-331 Receiver |
| 82238W | KS202W Waterproof Servo |
| 82245 | KYOSHO SPEED HOUSE KA060-91W Brushed WP ESC 60A S-plug |
| 92051 | 2x11 Pin (10pcs) |
| 92638 | Snap Pin (10pcs) |
| 96441B | Sponge Tape (1x100x150) |
| 96774 | 5x20x0.2mm Shim (5pcs) |
| 96775 | 4x10x0.15mm Shim (10pcs) |
