Every factory spare part for the Kyosho Inferno MP11 is listed below, straight from Kyosho’s official spare parts pages — including shared MP9/MP10-platform parts that also fit those chassis where noted. Each part number links to that part at AMain Hobbies where a live match was found; parts with no current match are listed as plain text. The full factory manual, with exploded parts views, is still available on this page via the Open Document button above.

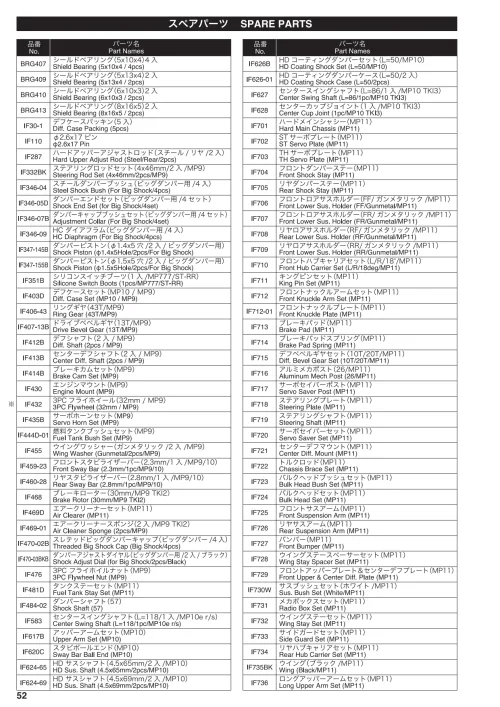

Inferno MP11 — Factory Spare Parts
| Part # | Part |
|---|---|
| BRG407 | Shield Bearing (5x10x4/4pcs) |
| BRG409 | Shield Bearing (5x13x4/2pcs) |
| BRG410 | Shield Bearing (6x10x3/2pcs) |
| BRG413 | Shield Bearing (8x16x5/2pcs) |
| IF30-1 | Diff. Case Packing (5pcs) |
| IF110 | 2.6x17mm Pin |
| IF287 | Hard Upper Adjust Rod (Steel/Rear/2pcs) |
| IF332BK | Steering Rod Set (4x46mm/2pcs/MP9) |
| IF346-04 | Steel Shock Bush (For Big Shock/4pcs) |
| IF346-05D | Shock End Set (for Big Shock/4set) |
| IF346-07B | Adjustment Collar (For Big Shock/4sets) |
| IF346-09 | HC Diaphragm (For Big Shock/4pcs) |
| IF347-145B | Shock Piston (1.4x5 Hole/2pcs/For Big Shock) |
| IF347-155B | Shock Piston (1.5x5 Hole/2pcs/For Big Shock) |
| IF351B | Silicone Switch Boots (1pcs/MP777/ST-RR) |
| IF403C | Diff. Case Set (MP10/MP9) |
| IF406-43 | Ring Gear (43T/MP9) |
| IF407-13B | Drive Bevel Gear (13T/MP9) |
| IF412B | Diff. Shaft (2pcs/MP9) |
| IF413B | Center Diff. Shaft (2pcs/MP9) |
| IF414B | Brake Cam Set (MP9) |
| IF430 | Engine Mount (MP9) |
| IF432 | 3PC Flywheel (32mm/MP9) |
| IF435B | Servo Horn Set (MP9) |
| IF444D-01 | Fuel Tank Bush Set (MP9) |
| IF455 | Wing Washer (Gunmetal/2pcs/MP9) |
| IF459-23 | Front Sway Bar (2.3mm/1pc/MP9/10) |
| IF460-28 | Rear Sway Bar (2.8mm/1pc/MP9/10) |
| IF468 | Brake Rotor (30mm/MP9 TKI2) |
| IF469D | Air Cleaner (MP11) |
| IF469-01 | Air Cleaner Sponge (2pcs/MP9 TKI2) |
| IF470-02B | Threaded Big Shock Cap (Big Shock/4pcs) |
| IF470-03BKB | Shock Adjust Dial (for Big Shock/2pcs/Black) |
| IF476 | 3PC Flywheel Nut (MP9) |
| IF481D | Fuel Tank Stay Set (MP11) |
| IF484-02 | Shock Shaft (57) |
| IF583 | Center Swing Shaft (L=118/1pc/MP10e r/s) |
| IF617B | Upper Arm Set (MP10) |
| IF620C | Sway Bar Ball End (MP10) |
| IF624-65 | HD Sus. Shaft (4.5x65mm/2pcs/MP10) |
| IF624-69 | HD Sus. Shaft (4.5x69mm/2pcs/MP10) |
| IF626B | HD Coating Shock Set (L=50/MP10) |
| IF626-01 | HD Coating Shock Case (L=50/2pcs) |
| IF627 | Center Swing Shaft (L=86/1pc/MP10 TKI3) |
| IF628 | Center Cup Joint (1pc/MP10 TKI3) |
| IF701 | Hard Main Chassis (MP11) |
| IF702 | ST Servo Plate (MP11) |
| IF703 | TH Servo Plate (MP11) |
| IF704 | Front Shock Stay (MP11) |
| IF705 | Rear Shock Stay (MP11) |
| IF706 | Front Lower Sus. Holder (FF/Gunmetal/MP11) |
| IF707 | Front Lower Sus. Holder (FR/Gunmetal/MP11) |
| IF708 | Rear Lower Sus. Holder (RF/Gunmetal/MP11) |
| IF709 | Rear Lower Sus. Holder (RR/Gunmetal/MP11) |
| IF710 | Front Hub Carrier Set (L/R/18deg/MP11) |
| IF711 | King Pin Set (MP11) |
| IF712 | Front Knuckle Arm Set (MP11) |
| IF712-01 | Front Knuckle Plate (MP11) |
| IF713 | Brake Pad (MP11) |
| IF714 | Brake Pad Spring (MP11) |
| IF715 | Diff. Bevel Gear Set (10T/20T/MP11) |
| IF716 | Aluminum Mech Post (26/MP11) |
| IF717 | Servo Saver Post (MP11) |
| IF718 | Steering Plate (MP11) |
| IF719 | Steering Shaft (MP11) |
| IF720 | Servo Saver Set (MP11) |
| IF721 | Center Diff. Mount (MP11) |
| IF722 | Chassis Brace Set (MP11) |
| IF723 | Bulk Head Bush Set (MP11) |
| IF724 | Bulk Head Set (MP11) |
| IF725 | Front Suspension Arm (MP11) |
| IF726 | Rear Suspension Arm (MP11) |
| IF727 | Front Bumper (MP11) |
| IF728 | Wing Stay Spacer Set (MP11) |
| IF729 | Front Upper Plate & Center Diff. Plate (MP11) |
| IF730W | Sus. Bush Set (White/MP11) |
| IF731 | Radio Box Set (MP11) |
| IF732 | Wing Stay Set (MP11) |
| IF733 | Side Guard Set (MP11) |
| IF734 | Rear Hub Carrier Set (MP11) |
| IF735BK | Wing (Black/MP11) |
| IF736 | Long Upper Arm Set (MP11) |
| IF737 | Fuel Tank (125cc/MP11) |
| IF738 | Linkage Set (MP11) |
| IF739 | 7.8x12mm Ball Stopper (2pcs/MP11) |
| IF740 | 7.8x11mm Ball (2pcs/MP11) |
| IF741 | 6.8x12.3mm Flange Ball (2pcs/MP11) |
| IF742 | 5.8mm Ball Joint (3.0mm Hole/4pcs/MP11) |
| IF743 | 5.8mm Flanged Hard Ball (2pcs/MP9) |
| IF744 | Rebound Adjust Screw (4pcs/MP11) |
| IF745 | 6.5x26mm Shaft (4pcs/MP11) |
| IF746 | Cap Universal Swing Shaft (2pcs/92/MP11) |
| IF746-01 | HD Swing Shaft (Cap Universal/1pc/L=92) |
| IF746-02 | Wheel Shaft (for Cap Universal/1pc) |
| IF746-03GM | Wheel Shaft Cover (for Cap Universal/Gunmetal/1pc) |
| IF747 | Sway Bar Stopper Set (MP11) |
| IF748 | Hard Front Lower Sus. Shaft Screw (3x44mm/2pcs/MP11) |
| IF749 | Body Mount Set (MP11/MP10) |
| IF750 | Engine Mount Plate (Gunmetal/MP11) |
| IF751 | Diff. Bevel Shaft (2pcs/MP11) |
| IFB027 | INFERNO MP11 Non-Decoration Body Set |
| IFS005-916 | Big Shock Spring (Navy Blue/9-1.6/L=72) |
| IFS006-1116 | Big Shock Spring (Brown/11-1.6/L=86) |
| IFW140-05B | O-ring Set (MP11) |
| IFW140-06 | O-ring (1.9x3.4mm) |
| IFW143B | Fly Wheel Tapered Collet Set |
| IFW154 | Shock Boots |
| IFW324-01 | Disk Plate Bolt (16.5mm/for AC Brake/4pcs) |
| IFW332-01B | Bush (for Aluminum Knuckle Arm/4pcs) |
| IFW415B | Hard Rear Lower Sus. Shaft Screw (3.5x49mm/2pcs/MP9) |
| IFW419-03 | Joint Block Set (Cap Universal/2set) |
| IFW472GM | Wheel Nut (Gunmetal/4pcs/for Serration) |
| IFW625B | Wheel Hub (Gunmetal/2pcs/MP10) |
| IFW636 | 3PC HD LW Aluminum Clutch Shoe |
| IFW637-09 | 3PC Clutch Spring (LW/0.90) |
| IFW639-59S | Light Weight Spur Gear (0.8M/59T/MP10/w/IF403C) |
| IFW648 | SP Fuel Filter |
| IS053C | 6.8mm Ball End (Offset Type/8pcs) |
| IS215B | HD Coating Shock Set (L=58/MP10T) |
| IS215-01 | HD Coating Shock Case (L=58/2pcs) |
| IS215-02 | Shock Shaft (L=66) |
| ORG06B | Silicone O-Ring (P6/Orange/15pcs) |
| UM729 | Magic Tape (20x100/1pc) |
| W0142GM | Aluminum Collar (3x6x2mm/Gunmetal/6pcs) |
| W0201B | 5.8mm Steel Ball (10pcs) |
| 1-W451005 | Washer (M4.5x10x0.5/10pcs) |
| 1-W501005 | Washer (M5x10x0.5/10pcs) |
| 1-S63004 | Flat Head Cap Screw (M3x4) (Hex/8pcs) |
| 1-S63005 | Flat Head Cap Screw (M3x5) (Hex/8pcs) |
| 1708B | Color Antenna (Black/4pcs) |
| 92213B | Fuel Tube (2.4x6x1000mm) |
| 92511 | Muffler Stay |
| 92638 | Snap Pin (10pcs) |
| 96641 | 3x5mm Shim Set |
| 96772 | 13x16x0.15mm Shim SUS (10pcs) |
| 96773 | 8x12x0.2mm Shim (5pcs) |
| 96774 | 5x20x0.2mm Shim (5pcs) |
| 96776 | 5x8x0.2mm Shim (10pcs) |
| 97002 | Body Pin (1.6mm/10pcs/FM29) |
| 97008-15B | Adjust Rod (3x15mm/2pcs) |
| 97011-128B | Pin (2.5x12.8mm/6pcs) |
| 97038B | 5.8mm Ball End (L=12/4pcs) |
| 97049GM | Linkage Stopper (2mm/Gunmetal/5pcs) |
| 97051B | 6.8mm Ball End (HG/8pcs) |
| 97058LW-16 | One Piece Clutch Bell (0.8M/16T/Light Weight) |
| 97059-01BK | Aluminum Collar (3x7x1mm/Black/6pcs) |
| 97059-02BK | Aluminum Collar (3x7x2mm/Black/6pcs) |
Springs for this platform are covered in depth on the Kyosho 1/8 shock spring chart. Option parts (wings, bodies, aluminum upgrades) are listed on the PDF manual’s Optional Parts pages.
Part numbers from Kyosho’s official MP11 spare parts list. Some links above are affiliate links that support the site.
