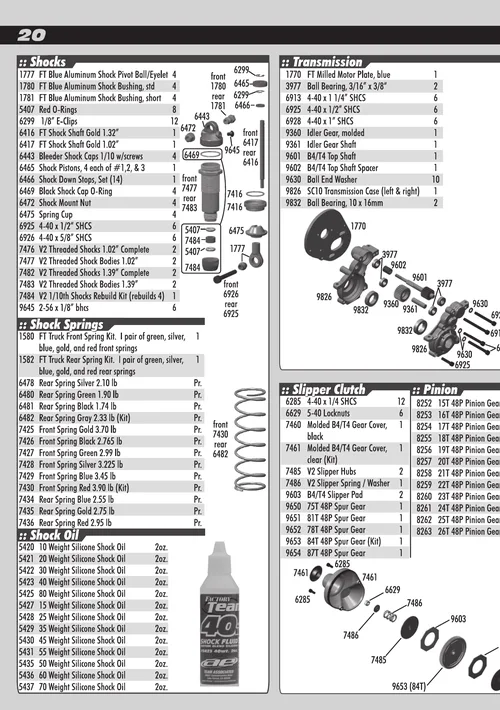

Team Associated SC10 Parts List

SC10

Team Associated

SC10

Setup sheets →

Diff oil chartShock oil chartSC10 parts & upgrades at AMain →Ad

Commonly replaced parts

The suspension, driveline and shock parts a short course truck goes through, with the full list below.

Part #DescriptionQty
7449T4 Rear A-Arm, CarbonPr.
6416FT Shock Shaft Gold 1.32"1
9831Gear Diff O-Ring Set1
7485V2 Slipper Hubs2
1408FT Blue Titanium Turnbuckles, 2.65"Pr.
9817SC10 RR Bumper and Brace, Includes Bumper, Braces (left, right, upper, and lower)1

More option parts for this car

Parts & upgrades at AMainAdDiff oil chartShock oil chart

Every part Team Associated lists for the SC10, from AE's own SC10 Factory Team parts list and exploded views, in the sections and order AE prints them. Part numbers link to AMain Hobbies where the part is still sold; discontinued and unmatched parts are listed as plain text.

Full parts list

Ball Differential (11)

Part #DescriptionQty
6573Diff Thrust Washer & Bolt2
6574Precision Diff Thrust Balls, 5/64"6
6575Locking T-Nut, Diff Thrust Bolt, & Cover1
65813/32" Carbide Diff Balls12
6582Diff Thrust Spring1
6589Ball Bearing, 5/32 x 5/16" unflanged2
7664Diff Gear 52T1
7666Diff Drive Rings, 2.60:12
7677B4 / T4 / GT Diff Rebuild Kit1
9852SC10 Ball Diff Outdrives1
9853SC10 Complete Ball Differential1

Front Bumper / Shock Tower (16)

Part #DescriptionQty
1780FT Blue Aluminum Shock Bushing, std4
3897Pivoting Body Mounts, Set1
6272Foam Ballend Dust Covers28
6277Ballstud .30 Silver (short)4
62924-40 x 3/8" FHCS6
6332Body Clips6
6860FT 4-40 x 3/8" SHCS, Blue Aluminum6
69154-40 x 5/8" FHCS6
69244-40 x 3/8" SHCS6
69254-40 x 1/2" SHCS6
77384-40 x 7/8" SHCS6
9630.030" Ballstud Washer10
9816SC10 Front Skid, Bumper Set1
9820SC10 Front Body Mount1
9821SC10 Front Body Posts, Set1
9825SC10 Front Shock Tower1

Front Arms / Steering (14)

Part #DescriptionQty
3977Ball Bearing 3/16" x 3/8"2
3983Ballstud .30" Black (short)6
4187.030 Nylon Washers12
44494-40 x 3/16" Aluminum Locknut6
62991/8" E-Clip12
66295-40 Locknut6
7446T4 Front A-Arm (left & right)Pr.
792230 degree Caster Blocks (left & right)Pr.
9580Caster Block Spacers, Set1
9581Trailing Steering BlockPr.
9613B4 Trailing Axle2
9621B4 Inner Hinge Pin Set1
9622B4 Outer Hinge Pin Set1
96452-56 x 1/8" BHCS8

Front Bulkhead (12)

Part #DescriptionQty
22214-40 x 7/16" BHCS6
3971.125 x .250 x .109" Bearings4
3981Ballstud .20 Black, short6
6276Ballstud .20" Silver (short)6
69224-40 x 1/2" FHCS6
9566B4 / T4 Top Plate1
9610Servo Saver / Steering Hardware1
9610BServo Saver Bolt, Blue1
9640B4 / T4 Steering Bolt, left & right1
9657B4 / T4 HD Servo Saver Spring1
9659B4 / T4 Steering Set. Includes Rack, Bellcrank, Servo Saver, Steering Brace1
89229Blue Countersunk Washers10

Turnbuckles / Servo (10)

Part #DescriptionQty
1408FT Blue Titanium Turnbuckles, 2.65"Pr.
1417FT Blue Titanium Turnbuckles, 2.80"Pr.
1779FT Servo Mount, Blue AluminumPr.
69174-40 x 3/8" BHCS6
7230Ballcups, large12
7336Servo Mount Set1
7337Gold Washer4
9170B4 / T4 Servo Link1
9180Servo Horns Set1
89007Steering Servo Ring1

Battery Strap (3)

Part #DescriptionQty
9814Battery Strap and Hardware. Includes Battery Strap, Adhesive Foam, Thumb Knobs, Strap Pivots, & Hardware1
9815SC10 Foam Battery Spacer1
9851SC10 Battery Strap, Carbon Fiber1

Shocks (17)

Part #DescriptionQty
1777FT Blue Aluminum Shock Pivot Ball/Eyelet4
1781FT Blue Aluminum Shock Bushing, short4
5407Red O-Rings8
6416FT Shock Shaft Gold 1.32"1
6417FT Shock Shaft Gold 1.02"1
6443Bleeder Shock Caps 1/10 w/screws4
6465Shock Pistons, 4 each of #1, 2, & 31
6466Shock Down Stops, Set (14)1
6469Black Shock Cap O-Ring4
6472Shock Mount Nut4
6475Spring Cup4
69264-40 x 5/8" SHCS6
7476V2 Threaded Shocks 1.02" Complete2
7477V2 Threaded Shock Bodies 1.02"2
7482V2 Threaded Shocks 1.39" Complete2
7483V2 Threaded Shock Bodies 1.39"2
7484V2 1/10th Shocks Rebuild Kit (rebuilds 4)1

Shock Springs (15)

Part #DescriptionQty
1580FT Truck Front Spring Kit. 1 pair of green, silver, blue, gold, and red front springs1
1582FT Truck Rear Spring Kit. 1 pair of green, silver, blue, gold, and red rear springs1
6478Rear Spring Silver 2.10 lbPr.
6480Rear Spring Green 1.90 lbPr.
6481Rear Spring Black 1.74 lbPr.
6482Rear Spring Gray 2.33 lb (Kit)Pr.
7425Front Spring Gold 3.70 lbPr.
7426Front Spring Black 2.765 lbPr.
7427Front Spring Green 2.99 lbPr.
7428Front Spring Silver 3.225 lbPr.
7429Front Spring Blue 3.45 lbPr.
7430Front Spring Red 3.90 lb (Kit)Pr.
7434Rear Spring Blue 2.55 lbPr.
7435Rear Spring Gold 2.75 lbPr.
7436Rear Spring Red 2.95 lbPr.

Shock Oil (13)

Part #DescriptionQty
542010 Weight Silicone Shock Oil2oz.
542120 Weight Silicone Shock Oil2oz.
542230 Weight Silicone Shock Oil2oz.
542340 Weight Silicone Shock Oil2oz.
542580 Weight Silicone Shock Oil2oz.
542715 Weight Silicone Shock Oil2oz.
542825 Weight Silicone Shock Oil2oz.
542935 Weight Silicone Shock Oil2oz.
543045 Weight Silicone Shock Oil2oz.
543155 Weight Silicone Shock Oil2oz.
543550 Weight Silicone Shock Oil2oz.
543660 Weight Silicone Shock Oil2oz.
543770 Weight Silicone Shock Oil2oz.

Transmission (9)

Part #DescriptionQty
1770FT Milled Motor Plate, blue1
69134-40 x 1 1/4" SHCS6
69284-40 x 1" SHCS6
9360Idler Gear, molded1
9361Idler Gear Shaft1
9601B4/T4 Top Shaft1
9602B4/T4 Top Shaft Spacer1
9826SC10 Transmission Case (left & right)1
9832Ball Bearing, 10 x 16mm2

Slipper Clutch (11)

Part #DescriptionQty
62854-40 x 1/4 SHCS12
7460Molded B4/T4 Gear Cover, black1
7461Molded B4/T4 Gear Cover, clear (Kit)1
7485V2 Slipper Hubs2
7486V2 Slipper Spring / Washer1
9603B4/T4 Slipper Pad2
965075T 48P Spur Gear1
965181T 48P Spur Gear1
965278T 48P Spur Gear1
965384T 48P Spur Gear (Kit)1
965487T 48P Spur Gear1

Pinion (12)

Part #DescriptionQty
825215T 48P Pinion Gear1
825316T 48P Pinion Gear1
825417T 48P Pinion Gear1
825518T 48P Pinion Gear1
825619T 48P Pinion Gear1
825720T 48P Pinion Gear1
825821T 48P Pinion Gear1
825922T 48P Pinion Gear1
826023T 48P Pinion Gear1
826124T 48P Pinion Gear1
826225T 48P Pinion Gear1
826326T 48P Pinion Gear1

Chassis (15)

Part #DescriptionQty
38625-40 x 1/8" Set Screw6
43342-56 x 5/16" BHCS8
6278Ballstud .40" Silver (long)6
6338Antenna Tube (black)1
69194-40 x 5/16" BHCS6
7487Arm Mounts, 2.5, 3, 3.5, 41
92695-40 x 1/2" FHCS6
9563B4 / T4 / GT2 Front Bulkhead1
9564RR Chassis / Fr Hinge Pin Brace Set1
96435-40 x 7/16" SHCS6
9665FT Hinge Pin Brace, blue1
9818SC10 Arm Mount / Chassis Plate1
9819SC10 Rear Motor Guard1
9822SC10 Nerf BarsPr.
9823SC10 Chassis1

Rear Arms / Hubs (12)

Part #DescriptionQty
69528-32 Steel Locknut (silver)6
73683/16" Axle Shims14
73691/16" Axle Roll Pins4
7377Axle Spacer Crush Tubes2
7381CVD Rebuild Kit (builds 2)1
7448SC10 / T4 Rear A-ArmsPr.
9584SC10 / T4 RR Hub Carrier (left & right)Pr.
9596SC10 / T4 CVA Bone, requires #97612
9608BRR Axle Wheel Spacer (blue)2
9678SC10 / T4 CVA Set1
9761CVA Input Shaft, requires #9596Pr.
31286Aluminum Ballstud Washer Set1

Rear Shock Tower (3)

Part #DescriptionQty
69274-40 x 3/4" SHCS6
96445-40 x 9/16" SHCS6
9824T4 / SC10 Rear Shock Tower1

Rear Bumper / Braces (4)

Part #DescriptionQty
9817SC10 RR Bumper and Brace, Includes Bumper, Braces (left, right, upper, and lower)1
98334-40 x 1 3/4" SHCS6
892183x8mm washer10
89430Mud FlapsPr.

Wheels / Tires (9)

Part #DescriptionQty
9805SC10 KMC Wheel FR (silver)2
9806SC10 KMC Wheel RR (silver)2
9807SC10 KMC Wheel FR (black) (Kit)2
9808SC10 KMC Wheel RR (black) (Kit)2
9809SC10 Tire with Foam Insert (Kit, front)2
9810SC10 Tire / Wheel FR (silver)2
9811SC10 Tire / Wheel RR (silver)2
9812SC10 Tire / Wheel FR (black)2
9813SC10 Tire / Wheel RR (black)2

Factory Team and Option Parts (36)

Part #DescriptionQty
1283FT T4 Ti Turnbuckle Set1
1409FT Ti Turnbuckle, 1" (sway bar) (blue)Pr.
1585FT B4 Aluminum Trailing AxlePr.
1598FT Blue Aluminum Shock Caps, (blue) see also #64394
1654FT Solid Axle Pins4
1734FT Blue Body Clip, 4 long, 6 short10
1735FT Blue Body Clip, long4
1736FT Blue Body Clip, short6
1778FT Milled Aluminum Motor Plate, (black)1
1787FT Battery Strap Thumbscrews, Set1
34388-32 LP Locknuts (blue)3
6439FT Blue Aluminum Shock Caps, (blue) see also #15981
6463Shock Pistons, Blank8
6906Ball Bearing, PTFE Sealed 3/16 x 3/8"2
6937FT 4-40 Aluminum Locknuts (blue)6
6943FT 8-32 Aluminum Locknuts (blue)6
7416FT Threaded Shock Collar & O-RingsPr.
7447T4 Front A-Arm, CarbonPr.
7449T4 Rear A-Arm, CarbonPr.
7453CVD Axle Bone T4 (black), requires #9598Pr.
7455CVD Set T4Pr.
7990Aluminum Front Bulkhead (blue)1
9565B4 / T4 Chassis Brace, Hinge Pin Brace, Carbon1
9567B4 / T4 Top Plate, Carbon1
9592B4 / T4 Caster Block 20 deg, (left & right)Pr.
9598CVD Axles T4, requires #7453Pr.
9600BFT B4 / T4 Aluminum Motor Plate (blue)1
9608RR Axle Wheel Spacer (silver)Pr.
9635B4 / T4 Sway Bar Kit. Includes color coded bars, soft (black), med (silver), hard (gold)1
9674T4 Shiny CVD Dogbone, requires #9598Pr.
9789SC10 / B4 FT Titanium Front Axles, Set1
9795Ti Nitride Ballstuds 4-40 x .20 - longPr.
9796Ti Nitride Ballstuds 4-40 x .30 - longPr.
9797Ti Nitride Ballstuds 4-40 x .40 - longPr.
9798Ti Nitride Ballstuds 4-40 x .20 - shortPr.
9799Ti Nitride Ballstuds 4-40 x .30 - shortPr.

Lubes and Adhesives (7)

Part #DescriptionQty
1105Green Slime Shock Lube4cc
1596FT Locking Compound10ml
1597FT Tire Adhesive.70oz
6588Black Grease4cc
6591Diff Lube4cc
6636Silicone Lube4cc
6727Servo Tape Strips2

Gear Diff Transmission Option (11)

Part #DescriptionQty
5450Silicone Diff Fluid 1000CST1
5451Silicone Diff Fluid 2000CST1
5452Silicone Diff Fluid 3000CST1
5453Silicone Diff Fluid 5000CST1
5454Silicone Diff Fluid 7000CST1
5455Silicone Diff Fluid 10000CST1
9827Complete Gear Diff1
9828Diff Gear and Cover1
9829Gear Diff Rebuild1
9830Gear Diff Outdrives, Set1
9831Gear Diff O-Ring Set1

Bodies and Decals (23)

Part #DescriptionQty
9836SC10 Clear Body1
9837SC10 '09 Clear Body (Kit)1
9838SC10 KMC Body, pre-painted & detailed1
9839SC10 Lucas Oil Body, pre-painted & detailed1
9840SC10 Bully Dog Body, pre-painted & detailed1
9841SC10 Pro Comp Body, pre-painted & detailed1
9842SC10 AE Body, pre-painted & detailed1
9843SC10 KMC Decal Sheet1
9844SC10 Lucas Oil Decal Sheet1
9845SC10 Bully Dog Decal Sheet1
9846SC10 Pro Comp Decal Sheet1
9847SC10 AE Decal Sheet1
9848SC10 Ready Lift Body, pre-painted & detailed1
9849SC10 Ready Lift Decal Sheet1
9850SC10 Number Plate & Decals1
9856SC10 '09 Lucas Oil Body, pre-painted & detailed1
9857SC10 '09 Lucas Oil Decal Sheet1
9858SC10 '09 Pro Comp Body, pre-painted & detailed1
9859SC10 '09 Pro Comp Decal Sheet1
9860SC10 '09 Speed Tech Body, pre-painted & detailed1
9861SC10 '09 Speed Tech Decal Sheet1
9862SC10 '09 Rockstar / Makita Body, pre-painted & detailed1
9863SC10 '09 Rockstar / Makita Decal Sheet1

Tools (33)

Part #DescriptionQty
1111FT Turnbuckle Wrench1
1449Offroad Ride Height Gauge1
1450FT Ride Height Gauge1
1541FT Hex Driver Set, (7 pcs)1
1542FT .050" Silver Hex Driver1
1543FT 1/16" Black Hex Driver1
1544FT 1.5mm Purple Hex Driver1
1545FT 5/64" Blue Hex Driver1
1546FT 3/32" Gold Hex Driver1
1547FT 2.5mm Green Hex Driver1
1548FT 3mm Red Hex Driver1
1551FT Screwdriver Set1
1553FT Phillips Silver Screwdriver1
1554FT Silver Spring Hook Tool1
1561FT Nut Driver Set, (6 pcs)1
1562FT 3/16" Black Nut Driver1
1563FT 1/4" Red Nut Driver1
1564FT 5.5mm Red Nut Driver1
1565FT 11/32" Green Nut Driver1
1566FT 7.7mm Silver Nut Driver1
1567FT 8mm Gold Nut Driver1
1589FT 5/64" Blue Ball Hex Driver1
1590FT 3/32" Gold Ball Hex Driver1
1592FT Ball Hex Driver Set, (3 pcs)1
1719FT Camber + Track Width Tool1
1737FT Body Scissors1
371812 Inch Nylon Wire Ties12
37196 Inch Nylon Wire Ties12
37208 Inch Nylon Wire Ties12
3987FT Droop Gauge1
6429Shock Building Tool1
6956Molded Tools, Set1
77094 Inch Nylon Wire Ties12

Source document

Team Associated SC10 Parts ListOpen Document

SC10 alerts

Email me about new:

RC Setup App icon

Free to start · iOS & Android

Setup App & Race Log

Your Team Associated SC10 is in the RC Setup App

Save every setup change you make to your Team Associated SC10, get AI tuning answers for that exact car, and log your races — at the track or back in the pits.

  • Setup Tracking
  • AI Mechanic answers
  • Find & Share Setups
  • Race Log
  • Gear Ratio Calculator
  • Free to use
Download on the App StoreGet it on Google Play
See what it does →
← Back to Setup Guides
