Tekno NB48 2.1 Manual

Commonly replaced parts

What gets replaced most often — full list below.

Part #	Description
TKR9142B (opens in new tab)	Spindle Carriers (L/R, aluminum, 18 degree)
TKR9054A (opens in new tab)	Rear Hubs and Bearing Spacers (adj. roll center, L/R)
TKR9018 (opens in new tab)	Front Bumper (2pcs)
TKR9087 (opens in new tab)	Universal Driveshaft Set (f/r, 96.5mm, 2 pcs)
TKR9363B (opens in new tab)	Air Filter Foams (red oil, inner, outer, 3pcs each)
TKR5351 (opens in new tab)	Clutch Shoes (7075, 4pcs)
TKR9314 (opens in new tab)	Metallic Brake Pads (2pcs)
TKRBB08165F (opens in new tab)	Ball Bearing (8X16x5mm, flanged, shielded, 4pcs)
TKR6009 (opens in new tab)	Shock O-Ring and Bladder Set (for 2 shocks)
TKR5187B (opens in new tab)	Rod Ends (hard, 6.8mm, 8pcs)
TKR9150B (opens in new tab)	Differential Gear Set (internal gears only, all 2.x, 20/10T)

See all 150 parts →

More option parts for this car

Parts & upgrades at AMainAD Diff oil chart Spring chart 1/8 buggy tire chart Shock oil chart

Free to start · iOS & Android

Your Tekno NB48 2.1 is in the RC Setup App

Save every setup change you make to your Tekno NB48 2.1, get AI tuning answers for that exact car, and log your races — at the track or back in the pits.

See what it does →

Tekno

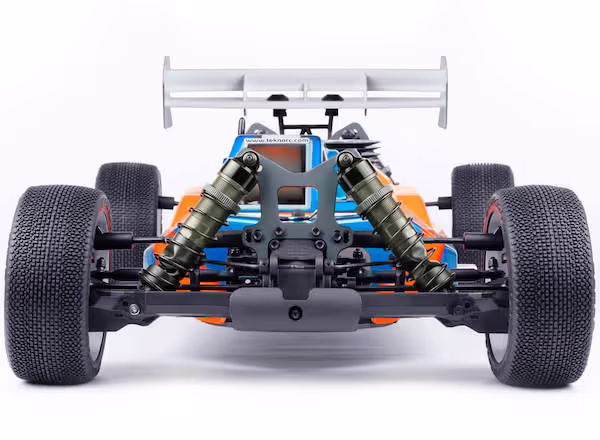

NB48 2.1

Setup sheets →

NB48 2.1 parts & upgrades at AMain →AD

For this car:ADEngines

Email me about new:

SetupsKit & part deals

Dial in your setup

Diff oil chart Spring chart 1/8 buggy tire chart Shock oil chart

Manuals for other versions of this car:

NB48 2.0 NB48 2.2

Full parts list

Front End

Part #	Description
TKR9018 (opens in new tab)	Front Bumper (2pcs)
TKR9043 (opens in new tab)	Spindle Carrier Hinge Pins (steel, 4pcs)
TKR9057 (opens in new tab)	Spindle Pin/Sleeve Set (short/long)
TKR9083 (opens in new tab)	Sway Bar (front, 2.3mm)
TKR9141	Adjustable Ackerman Spindles (requires TKR9047, TKR9142)
TKR9142B (opens in new tab)	Spindle Carriers (L/R, aluminum, 18 degree)
TKR9268B (opens in new tab)	Shock Tower (front, revised links, 7075 CNC, GM ano)
TKR9286XT	Suspension Arms (front, extra tough)

Rear End

Part #	Description
TKR9054A (opens in new tab)	Rear Hubs and Bearing Spacers (adj. roll center, L/R)
TKR9056 (opens in new tab)	Rear Outer Hinge Pin Bushings (4pcs)
TKR9194 (opens in new tab)	Sway Bar (rear, 2.5mm)
TKR9269B (opens in new tab)	Shock Tower (rear, adj. wing/shock, 7075 CNC, GM ano)
TKR9284	Suspension Arms (rear)

Suspension

Part #	Description
TKR5049A (opens in new tab)	Pivot Balls (6.8mm, no flng, sway bar, shck ends, almnm, 4pcs)
TKR5079A (opens in new tab)	Stabilizer Balls (6.8mm, sway bars, aluminum, 4pcs)
TKR5165 (opens in new tab)	V2 Hinge Pin Inserts, Wheelbase Shims
TKR5187B (opens in new tab)	Rod Ends (hard, 6.8mm, 8pcs)
TKR6140C (opens in new tab)	Locking Shock Rod End and Spring Perch Set (revised)
TKR6252 (opens in new tab)	Turnbuckle (M3 thread, 40mm length, 2pcs)
TKR8052A (opens in new tab)	Pivot Balls (6.8mm, camber, str links, almnm, centered, 4pcs)
TKR9017	Sway Bar and Bulkhead Acc
TKR9020 (opens in new tab)	Hinge Pins (inner, front/rear)
TKR9055 (opens in new tab)	Hinge Pin Bushings (8pcs)
TKR9059B (opens in new tab)	Rod End Set (camber/steering/sway bar linkage)
TKR9093 (opens in new tab)	Turnbuckle (M5 thread, 70mm length, 4mm adjustment, 2pcs)
TKR9123 (opens in new tab)	Turnbuckle (M4 thread, 50mm length, 4mm adjustment, 2pcs)
TKR9134 (opens in new tab)	Hinge Pins (outer, rear, 58mm)
TKR9161B (opens in new tab)	Hinge Pin Brace (CNC, 7075, -1mm LRC, A Block)
TKR9162B (opens in new tab)	Hinge Pin Brace (CNC, 7075, -1mm LRC, B Block)
TKR9163B (opens in new tab)	Hinge Pin Brace (CNC, 7075, -1mm LRC, C Block)
TKR9164B (opens in new tab)	Hinge Pin Brace (CNC, 7075, -1mm LRC, D Block)

Steering

Part #	Description
TKR5101X (opens in new tab)	Servo Saver Spring (HD)
TKR5103 (opens in new tab)	Servo Saver Post (aluminum, gun metal ano)
TKR5122 (opens in new tab)	Steering Rack Bushings (aluminum, gun metal ano, 2pcs)
TKR5231 (opens in new tab)	Servo Saver Nut and Spring
TKR8100B (opens in new tab)	Ackerman Plate (7075)
TKR9102A (opens in new tab)	Steering Posts (aluminum, gun metal ano)
TKR9104 (opens in new tab)	Bell Cranks and Top Plate
TKR9553M (opens in new tab)	Metal Servo Horn (25T spline)

Drivetrain

Part #	Description
TKR9087 (opens in new tab)	Universal Driveshaft Set (f/r, 96.5mm, 2 pcs)
TKR9295 (opens in new tab)	Universal Driveshaft (center, rear, 109mm)
TKR9296 (opens in new tab)	Universal Driveshaft (center, front, 87.5mm)
TKR9412 (opens in new tab)	Gearbox (front)
TKR9416	Gearbox (rear)
TKR9419 (opens in new tab)	Spur Gear (48t, steel, CNC, lightened)

Differentials

Part #	Description
TKR5144B (opens in new tab)	Differential O-Rings (6pcs)
TKR5145B (opens in new tab)	Differential Shims (revised, 6x17mm, 6pcs)
TKR9112 (opens in new tab)	Differential Outdrives (center, 2pcs)
TKR9114 (opens in new tab)	Differential Outdrives (F/R NB/NT48 2.0, F/C/R EB/ET48 2.0, 2pcs)
TKR9115B (opens in new tab)	Differential Case (F/R/C, all 2.x)
TKR9143 (opens in new tab)	Differential Seals (3pcs)
TKR9149 (opens in new tab)	Differential Cross Pins (6pcs)
TKR9150B (opens in new tab)	Differential Gear Set (internal gears only, all 2.x, 20/10T)
TKR9151 (opens in new tab)	Differential Ring Gear (CNC, 40t, use with TKR9153)
TKR9153 (opens in new tab)	Diff Pinion (12t, CNC, use with TKR9151)
TKR9310B (opens in new tab)	Split Center Diff Mount

Brakes

Part #	Description
TKR5058A (opens in new tab)	Pivot Balls (5.8mm, no flange, brake/steering link, aluminum, 4pcs)
TKR5345B (opens in new tab)	Brake Disc (steel, revised, 1pc)
TKR5368B (opens in new tab)	Brake Post Spring (revised, 4pcs)
TKR9213 (opens in new tab)	Brake Posts (steel, 4pcs)
TKR9215B (opens in new tab)	Brake Cam Set (f/r, 10 degree offset, steel, 2pcs)
TKR9314 (opens in new tab)	Metallic Brake Pads (2pcs)
TKR9392 (opens in new tab)	Throttle, Brake Linkage

Engine & Fuel

Part #	Description
TKR4213 (opens in new tab)	Clutch Bell (13t)
TKR5331 (opens in new tab)	Throttle Pivot Ball Assembly (CNC)
TKR5350 (opens in new tab)	Flywheel (4-shoe)
TKR5351 (opens in new tab)	Clutch Shoes (7075, 4pcs)
TKR5353 (opens in new tab)	Clutch Springs and Hardware Set
TKR9317 (opens in new tab)	Radio Box and Throttle Servo Mount
TKR9321 (opens in new tab)	Exhaust Wire Mount Set (CNC)
TKR9323 (opens in new tab)	Engine Mounts (CNC, 7075)
TKR9340B (opens in new tab)	Fuel Tank and Accessories (revised, IFMAR legal)
TKR9344 (opens in new tab)	Air Filter Set (hose, filter, housing)
TKR9363B (opens in new tab)	Air Filter Foams (red oil, inner, outer, 3pcs each)

Wheels & Hubs

Part #	Description
TKR5116 (opens in new tab)	Wheel Nuts (17mm, serrated, gun metal ano, M12x1.0, 4pcs)
TKR9674 (opens in new tab)	Wheel Hubs (+1mm offset, 17mm, gun metal ano, w/pins, 2pcs)

Chassis & Body

Part #	Description
TKR1235 (opens in new tab)	Body Clips (10pcs)
TKR8292W (opens in new tab)	Lightweight Wing (ROAR/IFMAR legal, white)
TKR9181T (opens in new tab)	Tall Wing Mount and Body Mounts
TKR9303B (opens in new tab)	Chassis (7075, 3mm, hard anodized, lightened)
TKR9324 (opens in new tab)	Mud Guard and Battery Box Set (L/R)
TKR9328B (opens in new tab)	Chassis Brace Set (revised)
TKR9345B (opens in new tab)	Body (w/ window mask)
TKR9348 (opens in new tab)	Decal Sheet

Electronics

Part #	Description
TKR5126 (opens in new tab)	Antenna tube (universal, w/ caps, 5pcs)

Shocks

Part #	Description
TKR1240 (opens in new tab)	Lower Shock Mount Screws (2 CW thread, 2 CCW thread)
TKR6009 (opens in new tab)	Shock O-Ring and Bladder Set (for 2 shocks)
TKR6013 (opens in new tab)	Shock Adjustment Nuts (aluminum, gun metal ano, 2pcs)
TKR6015 (opens in new tab)	Shock Cartridge Caps (aluminum, gun metal ano, 2pcs)
TKR6016 (opens in new tab)	Shock Body (rear, aluminum, hard ano, 2pcs)
TKR6017 (opens in new tab)	Shock Shafts (rear, steel, 2pcs)
TKR6060 (opens in new tab)	Shock Body (x-long, aluminum, hard ano, 2pcs)
TKR6061 (opens in new tab)	Shock Shafts (x-long, rear, steel, 2pcs)
TKR6144 (opens in new tab)	Shock Boots (long length, 2pcs)
TKR6146	Shock Cartridge Set (CNC, Delrin)
TKR6146B (opens in new tab)	Shock Cartridge Set (revised, CNC, Delrin)
TKR6181 (opens in new tab)	Shock Piston (CNC, flat/taper, split config, 1.3/1.6, 2pcs)
TKR6182 (opens in new tab)	Shock Piston (CNC, flat/taper, split config, 1.2/1.6, 2pcs)
TKR8702 (opens in new tab)	Shock Caps (7075, emulsion/vented/standard, black ano, 2pcs)
TKR8725 (opens in new tab)	Emulsion O-ring Set (4x cap seals, 8x emulsion o-rings, for 16mm shocks)
TKR8727	Shock Standoffs (2pcs, requires TKR8730)
TKR8730 (opens in new tab)	Shock Cap Bushings (4pcs, requires TKR8727)

Bearings

Part #	Description
TKR12215 (opens in new tab)	Ball Bearing (12x21x5, shielded, 4pcs)
TKRBB050825RS (opens in new tab)	Ball Bearing (5x8x2.5mm, rubber shielded, 4pcs)
TKRBB05104 (opens in new tab)	Ball Bearing (5x10x4, 4pcs)
TKRBB05114 (opens in new tab)	Ball Bearing (5x11x4, 4pcs)
TKRBB05134 (opens in new tab)	Ball Bearing (5x13x4, 4pcs)
TKRBB05145 (opens in new tab)	Ball Bearing (5x14x5, shielded, 4pcs)
TKRBB06103 (opens in new tab)	Ball Bearing (6x10x3, 4pcs)
TKRBB08165 (opens in new tab)	Ball Bearing (8x16x5, 4pcs)
TKRBB08165F (opens in new tab)	Ball Bearing (8X16x5mm, flanged, shielded, 4pcs)

Hardware

Part #	Description
TKR1200 (opens in new tab)	M2.5 Locknuts (zinc finish, 10pcs)
TKR1201 (opens in new tab)	M3 Locknuts (black, 10pcs)
TKR1211 (opens in new tab)	M3 Locknuts (flanged, black, 10pcs)
TKR1212 (opens in new tab)	M4 Locknuts (flanged, black, serrated, 10pcs)
TKR1220 (opens in new tab)	M3 Countersunk Washers (aluminum, natural, 10pcs)
TKR1221 (opens in new tab)	M3x8mm Washer (black, 10pcs)
TKR1226 (opens in new tab)	5x7x.2mm shims (10pcs)
TKR1228 (opens in new tab)	M4 Countersunk Washer (black, 10pcs)
TKR1238 (opens in new tab)	Droop Adjustment Screws (M4x10mm, 8pcs)
TKR1248 (opens in new tab)	M2x4mm Cap Head Screws (black, 10pcs)
TKR1301 (opens in new tab)	M2.5x6mm Flat Head Screws (black, 10pcs)
TKR1323 (opens in new tab)	M3x10mm Flat Head Screws (black, 10pcs)
TKR1324 (opens in new tab)	M3x12mm Flat Head Screws (black, 10pcs)
TKR1325 (opens in new tab)	M3x14mm Flat Head Screws (black, 10pcs)
TKR1341 (opens in new tab)	M4x6mm Flat Head Screws (black, 10pcs)
TKR1343 (opens in new tab)	M4x10mm Flat Head Screws (black, 10pcs)
TKR1344 (opens in new tab)	M4x12mm Flat Head Screws (black, 10pcs)
TKR1346 (opens in new tab)	M4x15mm Flat Head Screws (black, 10pcs)
TKR1349 (opens in new tab)	M4x20mm Flat Head Screws (black, 10pcs)
TKR1401 (opens in new tab)	M3x6mm Button Head Screws (black, 10pcs)
TKR1402 (opens in new tab)	M3x8mm Button Head Screws (black, 10pcs)
TKR1403 (opens in new tab)	M3x10mm Button Head Screws (black, 10pcs)
TKR1404 (opens in new tab)	M3x12mm Button Head Screws (black, 10pcs)
TKR1420 (opens in new tab)	M3x5mm Button Head Screws (black, 10pcs)
TKR1443 (opens in new tab)	M4x10mm Button Head Screws (black, 10pcs)
TKR1444 (opens in new tab)	M4x12mm Button Head Screws (black, 10pcs)
TKR1445 (opens in new tab)	M4x14mm Button Head Screws (black, 10pcs)
TKR1522 (opens in new tab)	M3x8mm Cap Head Screws (black, 10pcs)
TKR1523 (opens in new tab)	M3x10mm Cap Head Screws (black, 10pcs)
TKR1525 (opens in new tab)	M3x14mm Cap Head Screws (black, 10pcs)
TKR1528 (opens in new tab)	M3x18mm Cap Head Screws (black, 10pcs)
TKR1529 (opens in new tab)	M3x20mm Cap Head Screws (black, 10pcs)
TKR1530 (opens in new tab)	M3x25mm Cap Head Screws (black, 10pcs)
TKR1532 (opens in new tab)	M3x35mm Cap Head Screws (black, 10pcs)
TKR1534 (opens in new tab)	M3x22mm Cap Head Screws (black, 10pcs)
TKR1601 (opens in new tab)	M3x4mm Set Screws (black, 10pcs)
TKR1603 (opens in new tab)	M5x4mm Set Screws (black, 10pcs)
TKR1605 (opens in new tab)	M3x10mm Set Screws (black, 10pcs)
TKR1609 (opens in new tab)	M3x3mm Set Screws (black, 10pcs)
