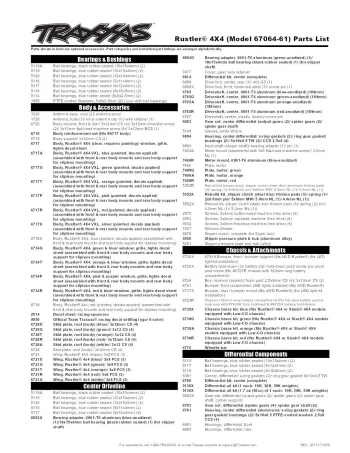

Traxxas Rustler 4X4 Parts List

Rustler 4X4/VXL

Traxxas

Rustler 4X4/VXL

Setup sheets →

Shop Rustler 4X4/VXL parts & upgrades at AMain →Ad

The upgrades Rustler 4X4 owners actually buy, none of them made by Traxxas. RPM makes the nylon suspension and bumpers that survive what the stock parts don’t, Hot Racing the metal drivetrain pieces, Pro-Line the bodies and tyres. Most fit the Slash 4X4, Stampede 4X4 and the Hoss as well — each row says which. Traxxas’ own spares are in the full list below.

PartWhy you buy it
RPM Caster & Spindle Block Set (4X4)RPM nylon takes the hit the stock blocks don’t. Also fits Slash 4X4 and Stampede 4X4
RPM Front Shock TowerFlexes instead of snapping on a nose-in landing. Shared with the Hoss
RPM Rear Shock TowerThe rear half of the same fix
RPM Wide Front BumperWider than stock, so the A-arms stop taking head-on hits
RPM Body Saver SetStops body posts tearing through the shell
RPM Wheelie Bar MountFor anyone who has looped it on a 3S launch
Hot Racing Aluminum Front Shock TowerThe stiff alternative to the RPM tower — holds geometry, gives less
Hot Racing HD Bearing Motor MountBearing-supported mount for high-power setups. Also fits LCG Slash 4X4
Pro-Line Extended Body Mount KitNeeded to clear most aftermarket bodies
Pro-Line 2017 Ford F-150 Raptor BodyPre-cut for the Rustler 4X4, sold clear to paint
Pro-Line Badlands MX28 2.8" Pre-Mounted TiresAll-terrain tread on Raid wheels with removable hexes
Pro-Line Trencher 2.8" Pre-Mounted TiresThe loose-dirt and grass option, same removable-hex wheel

See all 638 factory Rustler 4X4 parts →

Every stock spare part and optional accessory for the Traxxas Rustler 4X4 (model 67064-61), from the official Traxxas parts list. Part numbers link to AMain Hobbies where a match was found.

Rustler 4X4 — Parts & Accessories

Bearings & Bushings

Part #Part
5119ABall bearings, black rubber sealed (10x15x4mm) (2)
5119Ball bearings, blue rubber sealed (10x15x4mm) (2)
5120Ball bearings, blue rubber sealed (12x18x4mm) (2)
5116Ball bearings, blue rubber sealed (5x11x4mm) (2)
5117Ball bearings, blue rubber sealed (6x12x4mm) (2)
5118Ball bearings, blue rubber sealed (8x16x5mm) (2)
5114Ball bearings, blue rubber shield (5x8x2.5mm) (2)
1985PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings)

Body & Accessories

Part #Part
1926Antenna caps, vinyl (2)/ antenna spool
1726Antenna, tube (1)/ vinyl antenna cap (1)/ wire retainer (1)
6720Body mounts, front & rear/ 3x12mm CS (4)/ 3x12mm shoulder screw (2)/ 3x10mm flat-head machine screw (8)/ 3x12mm BCS (1)
6710Body reinforcement set (fits #6717 body)
6719Body support/ 3x12mm CS (4)
6717Body, Rustler® 4X4 (clear, requires painting)/ window, grille, lights decal sheet
6717ABody, Rustler® 4X4 VXL, blue (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting)
6717GBody, Rustler® 4X4 VXL, green (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting)
6717TBody, Rustler® 4X4 VXL, orange (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting)
6717PBody, Rustler® 4X4 VXL, pink (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting)
6717RBody, Rustler® 4X4 VXL, red (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting)
6717XBody, Rustler® 4X4 VXL, silver (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting)
6718XBody, Rustler® 4X4, blue (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting)
6734GBody, Rustler® 4X4, green & blue/ window, grille, lights decal sheet (assembled with front & rear body mounts and rear body support for clipless mounting)
6734TBody, Rustler® 4X4, orange & blue/ window, grille, lights decal sheet (assembled with front & rear body mounts and rear body support for clipless mounting)
6734PBody, Rustler® 4X4, pink & purple/ window, grille, lights decal sheet (assembled with front & rear body mounts and rear body support for clipless mounting)
6734RBody, Rustler® 4X4, red & blue/ window, grille, lights decal sheet (assembled with front & rear body mounts and rear body support for clipless mounting)
6718Body, Rustler® 4x4, red (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting)
2514Decal sheet, racing sponsors
9950Official Team Traxxas® racing decal set(flag logo/ 6-color)
6728XSkid plate, roof (body) (blue)/ 3x12mm CS (4)
6728GSkid plate, roof (body) (green)/ 3x12 CS (4)
6728TSkid plate, roof (body) (orange)/ 3x12 CS (4)
6728RSkid plate, roof (body) (red)/ 3x12mm CS (4)
6728ASkid plate, roof (body) (white)/ 3x12 CS (4)
6728Skid plate, roof (body)/ 3x12mm CS (4)
6721Wing, Rustler® 4X4 (black)/ 3x8 FCS (3)
6721XWing, Rustler® 4x4 (blue)/ 3x8 FCS (3)
6721GWing, Rustler® 4x4 (green)/ 3x8 FCS (3)
6721TWing, Rustler® 4x4 (orange)/ 3x8 FCS (3)
6721RWing, Rustler® 4x4 (red)/ 3x8 FCS (3)
6721AWing, Rustler® 4x4 (white)/ 3x8 FCS (3)

Center Driveline

Part #Part
5119ABall bearings, black rubber sealed (10x15x4mm) (2)
5119Ball bearings, blue rubber sealed (10x15x4mm) (2)
5120Ball bearings, blue rubber sealed (12x18x4mm) (2)
5116Ball bearings, blue rubber sealed (5x11x4mm) (2)
5117Ball bearings, blue rubber sealed (6x12x4mm) (2)
6893XBearing adapter, 6061-T6 aluminum (blue-anodized) (1)/10x15x4mm ball bearing (black rubber sealed) (1) (for slipper shaft)
6893GBearing adapter, 6061-T6 aluminum (green-anodized) (1)/ 10x15x4mm ball bearing (black rubber sealed) (1) (for slipper shaft)
7477Cover, gear/ wire retainer
6814Differential kit, center (complete)
6888Drive hub, center, rear (1)/ 4x3 GS (1)
6888XDrive hub, front, hardened steel (1)/ screw pin (1)
6765Driveshaft, center, 6061-T6 aluminum (blue-anodized) (189mm)
6765GDriveshaft, center, 6061-T6 aluminum (green-anodized) (189mm)
6765ADriveshaft, center, 6061-T6 aluminum (orange-anodized) (189mm)
6765RDriveshaft, center, 6061-T6 aluminum (red-anodized) (189mm)
6767Driveshaft, center, plastic, (black)/ screw pin
6883Gear set, center differential (output gears (2)/ spider gears (2)/ spider gear shaft)
5148Grease, white lithium
6884Housing, center differential/ x-ring gaskets (2)/ ring gear gasket/ bushings (2)/ 5x10x0.5 TW (2)/ CCS 2.5x8 (4)
6893Input shaft (slipper shaft)/ bearing adapter (1)/ pin (1)
7460AMotor mount (assembled with 3x6 flat-head machine screw)/ 3.0mm NL (1)
7460RMotor mount, 6061-T6 aluminum (blue-anodized)
7490Plate, motor
7490GPlate, motor, green
7490APlate, motor, orange
7490RPlate, motor, red
5352RRebuild kit (heavy duty), slipper clutch (steel disc/ aluminum friction pads (3)/ spring (1)/ 2x9.8mm pin/ 5x8mm MW/ 5.0mm NL (1)/ 4.0mm NL (1))
5352XRebuild kit, slipper clutch (steel disc/ friction pads (3)/ spring (1)/ 2x9.8mm pin/ 5x8mm MW/ 5.0mm NL (1)/ 4.0mm NL (1))
5552XRebuild kit, slipper clutch (steel disc/ friction pads (3)/ spring (2)/ pin/ 4.0mm NL (1)/ 5.0mm NL (1))
2575Screws, 3x6mm button-head machine (hex drive) (6)
2554Screws, 3x6mm caphead machine (hex drive) (6)
3932Screws, 3x6mm flat-head machine (hex drive) (6)
1647Silicone Grease
6878Slipper clutch, complete (for Slash 4x4)
5556Slipper pressure plate & hub (aluminum alloy)
5351Slipper pressure plate and hub (alloy)

Chassis & Attachments

Part #Part
6736X6736X Bumper, front / bumper support (fits 4WD Rustler®) (for LED light kit installation)
6726XBattery hold-down (3)/ battery clip/ hold-down post/ screw pin/ pivot post screw (fits #6723R chassis with 162mm long battery compartment)
6724Box, receiver (sealed)/ foam pad/ 2.5x8mm CS (4)/ 3x10mm CS (2)
6791Bumper, front (assembled, LED lights installed) (fits 4WD Rustler®)
6737XBumper, rear / bumper mount (fits 4WD Rustler®) (for LED light kit installation)
6723RChassis (162mm long battery compartment) (fits flat style battery packs) (use only with #7430R front bulkhead & #6726X battery hold-down)
6730XChassis brace kit, blue (fits Rustler® 4X4 or Slash® 4X4 models equipped with Low-CG chassis)
6730GChassis brace kit, green (fits Rustler® 4X4 or Slash® 4X4 models equipped with Low-CG chassis)
6730AChassis brace kit, orange (fits Rustler® 4X4 or Slash® 4X4 models equipped with Low-CG chassis)
6730RChassis brace kit, red (fits Rustler® 4X4 or Slash® 4X4 models equipped with Low-CG chassis)
6776Wheelie bar

Differential Components

Part #Part
5119Ball bearings, blue rubber sealed (10x15x4mm) (2)
5117Ball bearings, blue rubber sealed (6x12x4mm) (2)
5118Ball bearings, blue rubber sealed (8x16x5mm) (2)
5381Carrier, differential/ x-ring gaskets (2)/ ring gear gasket/ 6x10x0.5 TW
6780Differential kit, center (complete)
5136XDifferential oil kit (1 each: 10K, 30K, 50K weights)
5136XDifferential oil kit (1.7 oz (50cc) of 1 each: 10K, 30K, 50K weights)
6882XGear set, differential (output gears (2)/ spider gears (2)/ spider gear shaft, carrier support)
6783Gear set, differential (spider gears (4)/ spider gear shaft (2))
6781Housing, center differential (aluminum)/ x-ring gaskets (2)/ ring gear gasket/ bushings (2)/ 5x10x0.5 PTFE-coated washer/ 2.5x8 CCS (4)
6881Housings, differential, front
6880Housings, differential, rear
6782Output gears, center differential, hardened steel (2)
5379XRing gear, differential/ pinion gear, differential
6778Ring gear, differential/ pinion gear, differential (12/47 ratio) (front)
6779Ring gear, differential/ pinion gear, differential (12/47 ratio) (rear)
5379RRing gear, differential/ pinion gear, differential (machined, spiral cut) (front)
6879RRing gear, differential/ pinion gear, differential (machined, spiral cut) (rear)
6879Ring gear, differential/ pinion gear, differential (rear)
3965Screws, 2.5x8mm cap-head machine (6)
1647Silicone Grease

Driveline Components

Part #Part
5119ABall bearings, black rubber sealed (10x15x4mm) (2)
5119Ball bearings, blue rubber sealed (10x15x4mm) (2)
5116Ball bearings, blue rubber sealed (5x11x4mm) (2)
9059XCross pin (2)/ drive pin (2) (repairs 1 axle shaft)
9057XDifferential output shafts, steel-splined constant-velocity (2)
6758Differential output shafts, steel-splined constant-velocity (2)
6828ADifferential output yoke assembly, extreme heavy duty (2) (left or right, front or rear) (assembled with external-splined half shaft)/ screw pin (2)
6851ADriveshaft assembly, front, extreme heavy duty (1) (left or right) (fully assembled, ready to install)/ screw pin (1)
6852ADriveshaft assembly, rear, extreme heavy duty (1) (left or right) (fully assembled, ready to install)/ screw pin (1)
6765Driveshaft, center, 6061-T6 aluminum (blue-anodized) (189mm)
6765GDriveshaft, center, 6061-T6 aluminum (green-anodized) (189mm)
6765ADriveshaft, center, 6061-T6 aluminum (orange-anodized) (189mm)
6765RDriveshaft, center, 6061-T6 aluminum (red-anodized) (189mm)
6767Driveshaft, center, plastic, (black)/ screw pin
9051XDriveshafts, front, steel-spline constant-velocity (complete assembly) (2)
6851RDriveshafts, front, steel-spline constant-velocity (complete assembly) (2)
6852RDriveshafts, rear, steel-spline constant-velocity (complete assembly) (2)
9052XDriveshafts, rear, steel-spline constant-velocity (complete assembly) (2)
9055XHalf shaft, external splined (steel-spline constant velocity) (1)
6750Half shaft, external splined (steel-spline constant velocity) (1)
9056XHalf shaft, internal splined (steel-spline constant velocity) (1)
6751Half shaft, internal splined (steel-spline constant velocity) (1)
9058XRebuild kit, steel-splined constant-velocity driveshafts (includes pins and hardware for one axle shaft)
6757Rebuild kit, steel-splined constant-velocity driveshafts (includes pins, dustboots, lube, and hardware)
6854AStub axle assembly, front, outer, extreme heavy duty (1) (left or right) (assembled with internal-splined half shaft)
6853AStub axle assembly, rear, outer, extreme heavy duty (1) (left or right) (assembled with internal-splined half shaft)
6754Stub axle, front, steel-splined constant velocity (1)
9054XStub axle, front, steel-splined constant velocity (1)
9053XStub axle, rear, steel-splined constant velocity (1)
6753Stub axle, rear, steel-splined constant velocity (1)

Extreme HD Upgrade Kit

Part #Part
9016Body mounts, front & rear, extreme heavy duty (for use with #9080 upgrade kit)
9050Carriers, stub axle, rear, extreme heavy duty, black (left & right)/ 3x41mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9050XCarriers, stub axle, rear, extreme heavy duty, blue (left & right)/ 3x41mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9050GCarriers, stub axle, rear, extreme heavy duty, green (left & right)/ 3x41mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9050TCarriers, stub axle, rear, extreme heavy duty, orange (left & right)/ 3x41mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9050RCarriers, stub axle, rear, extreme heavy duty, red (left & right)/ 3x41mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9032Caster blocks (c-hubs), extreme heavy duty, black (left & right)/ 3x32mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9032XCaster blocks (c-hubs), extreme heavy duty, blue (left & right)/ 3x32mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9032GCaster blocks (c-hubs), extreme heavy duty, green (left & right)/ 3x32mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9032TCaster blocks (c-hubs), extreme heavy duty, orange (left & right)/ 3x32mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9032RCaster blocks (c-hubs), extreme heavy duty, red (left & right)/ 3x32mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9057Differential output yoke assembly, extreme heavy duty (2) (left or right, front or rear) (assembled with external-splined half shaft) (for use with #9080 upgrade kit)
9051Driveshaft assembly, front, extreme heavy duty with 6mm axle (1)/ screw pin (1) (left or right) (fully assembled, ready to install) (for use with #9080 upgrade kit)
9052Driveshaft assembly, rear, extreme heavy duty with 6mm axle (1)/ screw pin (1) (left or right) (fully assembled, ready to install) (for use with #9080 upgrade kit)
9051RDriveshafts, front, extreme heavy duty, steel-spline constant- velocity with 6mm stub axles (complete assembly) (2) (for use with #9080 upgrade kit)
9052RDriveshafts, rear, extreme heavy duty, steel-spline constant- velocity with 6mm stub axles (complete assembly) (2) (for use with #9080 upgrade kit)
9080Outer Driveline & Suspension Upgrade Kit, extreme heavy duty, black
9080XOuter Driveline & Suspension Upgrade Kit, extreme heavy duty, blue
9080GOuter Driveline & Suspension Upgrade Kit, extreme heavy duty, green
9080TOuter Driveline & Suspension Upgrade Kit, extreme heavy duty, orange
9080ROuter Driveline & Suspension Upgrade Kit, extreme heavy duty, red
9043Screw pins, 3x16mm, extreme heavy duty (6) (for use with #9080 upgrade kit)
9038Shock tower, front, extreme heavy duty, black (for use with #9080 upgrade kit)
9038XShock tower, front, extreme heavy duty, blue (for use with #9080 upgrade kit)
9038GShock tower, front, extreme heavy duty, green (for use with #9080 upgrade kit)
9038TShock tower, front, extreme heavy duty, orange (for use with #9080 upgrade kit)
9038RShock tower, front, extreme heavy duty, red (for use with #9080 upgrade kit)
9039Shock tower, rear, extreme heavy duty, black (for use with #9080 upgrade kit)
9039XShock tower, rear, extreme heavy duty, blue (for use with #9080 upgrade kit)
9039GShock tower, rear, extreme heavy duty, green (for use with #9080 upgrade kit)
9039TShock tower, rear, extreme heavy duty, orange (for use with #9080 upgrade kit)
9039RShock tower, rear, extreme heavy duty, red (for use with #9080 upgrade kit)
9037Steering blocks, extreme heavy duty, black (left & right)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9037XSteering blocks, extreme heavy duty, blue (left & right)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9037GSteering blocks, extreme heavy duty, green (left & right)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9037TSteering blocks, extreme heavy duty, orange (left & right)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9037RSteering blocks, extreme heavy duty, red (left & right)/ 3x20mm BCS (2) (for use with #9080 upgrade kit)
9056Stub axle assembly, front, outer, extreme heavy duty (1) (left or right) (assembled with internal-splined half shaft) (for use with #9080 upgrade kit)
9055Stub axle assembly, rear, outer, extreme heavy duty (1) (left or right) (assembled with internal-splined half shaft) (for use with #9080 upgrade kit)
9054Stub axle, front, 6mm, extreme heavy duty (for use with #9051R steel CV driveshafts)
9053Stub axle, rear, 6mm, extreme heavy duty (for use with #9052R steel CV driveshafts)
9042Suspension pin set, extreme heavy duty, complete (front and rear) (3x52mm (4), 3x32mm (2), 3x40mm (2)) (for use with #9080 upgrade kit)
9042XSuspension pin set, extreme heavy duty, complete (front and rear) (hardened steel) (3x52mm (4), 3x32mm (2), 3x40mm (2))/ M2.5x0.45mm NL (8) (for use with #9080 upgrade kit)
9069Wheel hubs, 12mm hex (steel), extreme heavy duty (4)/ 2x9.8mm pin (4) (for use with #9080 upgrade kit and 6mm axles)
1654RWheel hubs, hex (steel) (2)/ axle pins (2)

Front Suspension & Steering

Part #Part
5114Ball bearings, blue rubber shield (5x8x2.5mm) (2)
6823Bulkhead tie bars, front & rear, aluminum (blue-anodized)
6823GBulkhead tie bars, front & rear, aluminum (green-anodized)
6823RBulkhead tie bars, front & rear, aluminum (red-anodized)
7430RBulkhead, front (for use only with #6723R chassis)
3641ACamber link set (plastic / non-adjustable ) ( front & rear) (grey)
3641Camber link set (plastic/ non-adjustable) (front & rear) (black)
3643XCamber links, front (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3643GCamber links, front (TUBES green-anodized, 7075-T6 aluminum, stronger than Titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3643RCamber links, front (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
6832XCaster blocks (c-hubs), 6061-T6 aluminum (blue-anodized), left & right
6832GCaster blocks (c-hubs), 6061-T6 aluminum (green-anodized), left & right
6832ACaster blocks (c-hubs), 6061-T6 aluminum (orange-anodized), left & right
6832RCaster blocks (c-hubs), 6061-T6 aluminum (red-anodized), left & right
6832Caster blocks (c-hubs), left & right
6845ADrag link, machined 6061-T6 aluminum (blue-anodized)
6845GDrag link, machined 6061-T6 aluminum (green-anodized)
6845TDrag link, machined 6061-T6 aluminum (orange-anodized)
6845RDrag link, machined 6061-T6 aluminum (red-anodized)
6851ADriveshaft assembly, front, extreme heavy duty (1) (left or right) (fully assembled, ready to install)/ screw pin (1)
6851RDriveshafts, front, steel-spline constant-velocity (complete assembly) (2)
7438Linkage, steering
2742Rod ends, long (6)/ hollow ball connectors (6)
5529Shim set, 3x7x1mm (2), 3x6x0.5mm (4), 3x7x2mm (2)/ hollow balls, captured (4)
6739Shock tower, front
6739XShock tower, front, 7075-T6 aluminum (blue-anodized) (1)/ body mount bracket (1)
6739GShock tower, front, 7075-T6 aluminum (green-anodized) (1)/ body mount bracket (1)
6739RShock tower, front, 7075-T6 aluminum (red-anodized) (1)/ body mount bracket (1)
6845XSteering bellcranks/ servo saver/ servo saver spring/ servo spring retainer/servo horn, steering
6837XSteering blocks, 6061-T6 aluminum (blue-anodized), left & right
6837GSteering blocks, 6061-T6 aluminum (green-anodized), left & right
6837ASteering blocks, 6061-T6 aluminum (orange-anodized), left & right
6837RSteering blocks, 6061-T6 aluminum (red-anodized), left & right
6837Steering blocks, left & right
6854AStub axle assembly, front, outer, extreme heavy duty (1) (left or right) (assembled with internal-splined half shaft)
6754Stub axle, front, steel-splined constant velocity (1)
6732Suspension arm guards, front (2)/ guard spacers (2)/ hollow balls (2)/ 3x18mm BCS (4)
3655PSuspension arms, blue, front/rear (left & right), heavy duty (2)
3655RSuspension arms, front/rear (left & right), heavy duty (2)
3655GSuspension arms, green, front/rear (left & right), heavy duty (2)
3655TSuspension arms, orange, front/rear (left & right), heavy duty (2)
3655LSuspension arms, red, front/rear (left & right), heavy duty (2)
6834Suspension pin set, complete (front and rear)
6898Sway bar kit (front and rear) (includes front and rear sway bars and adjustable linkage)
6742Toe link, front & rear (molded composite) (2)/ hollow balls (4) (87mm center to center)
6742XToe links (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1)
6742GToe links (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1)
6742RToe links (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1)

Hardware

Part #Part
15523x8mm Hex Cap Screws (6)/ Washers (6)/ Wrench (1)
1926Antenna caps, vinyl (2)/ antenna spool
1726Antenna, tube (1)/ vinyl antenna cap (1)/ wire retainer (1)
3642Attachment screws, shock (3x12mm shoulder screws) (6)
3935Body clip (mounting clip), angled, 90-degrees (10)
3935ABody clip (mounting clip), angled, 90-degrees (black) (10)
3934Body clips, heavy duty (12)
1589Double-sided adhesive tape (25mm x 25mm)
2745Nuts, 3mm nylon locking (12)
1747PNuts, 4mm flanged nylon locking (aluminum, pink anodized) (4)
3647Nuts, 4mm flanged nylon locking (steel, serrated) (8)
1747Nuts, 4mm nylon locking (10)
1747RNuts, aluminum, flanged, serrated (4mm) (blue-anodized) (4)
1747GNuts, aluminum, flanged, serrated (4mm) (green-anodized) (4)
1747TNuts, aluminum, flanged, serrated (4mm) (orange-anodized) (4)
1747ANuts, aluminum, flanged, serrated (4mm) (red-anodized) (4)
1985PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings)
5525Rod ends (12)/ hollow balls (12)
2742XRod ends, short (6)/ hollow balls (6)
3347Screws, 2.5x5mm button-head machine (hex drive) (6)
3215Screws, 2.5x6mm cap-head machine (hex drive) (6)
3965Screws, 2.5x8mm cap-head machine (6)
2577Screws, 3x10mm button-head machine (hex drive) (6)
2578Screws, 3x12mm button-head machine (hex drive) (6)
2552Screws, 3x12mm countersunk machine (6) (hex drive)
2579Screws, 3x15mm button-head machine (hex drive) (6)
2586Screws, 3x15mm cap-head machine (hex drive) (6)
3646Screws, 3x15mm flat-head machine (hex drive) (6)
2583Screws, 3x18 button-head machine (hex drive) (6)
2580Screws, 3x20mm button-head machine (hex drive) (6)
2591Screws, 3x23mm button-head machine (hex drive) (6)
2582Screws, 3x30mm button-head machine (hex drive) (6)
2592Screws, 3x40mm button-head machine (hex drive) (6)
2575Screws, 3x6mm button-head machine (hex drive) (6)
2554Screws, 3x6mm caphead machine (hex drive) (6)
2534Screws, 3x6mm countersunk machine (6) (hex drive)
3932Screws, 3x6mm flat-head machine (hex drive) (6)
2576Screws, 3x8mm button-head machine (hex drive) (6)
3931Screws, 3x8mm flat-head machine (hex drive) (6)
3937Screws, 4x12mm button-head machine (hex drive) (6)
2542Screws, 4x12mm countersunk machine (hex drive) (6)
2546Screws, 4x15mm countersunk machine (hex drive) (6)
2743Set (grub) screws, 3mm hardened (12)
3642XShoulder screws, Ultra Shocks (3x12 hex drive) (6)
2754Stub axle pins (4)
2746Washers, 3x6mm metal (12)

LED Lights

Part #Part
6588Accessory power supply (regulated, 3V, 3 amp)/ power tap connector (with cable)/ 3x10 BCS (2)/ 2.6x8 BCS (2)
6797Bumper, front (with LED lights) (replacement for #6736 front bumper)
6541XConnector, power tap (with cable)/ 2.6x8 BCS (2) (use #6549 power tap for telemetry voltage)
5893LED light harness, rear (requires #5838, 6737X, or 6836 rear bumper)
6795LED light set, complete (includes bumper with LED lights, roof skid plate with LED lights, 3-volt accessory power supply, and power tap connector (with cable) (fits #6717 body)
6793LED light set, complete (includes front and rear bumpers with LED light bar, rear LED harness, & BEC Y-harness) (fits 4WD Rustler®)
6796Skid plate, roof (body) (with LED lights) (fits #6717 body)
2263Y-harness, BEC to LED light set

Motors & Electronics

Part #Part
1726Antenna, tube (1)/ vinyl antenna cap (1)/ wire retainer (1)
2260BEC assembly (complete) (12.6 volts (3s LiPo) maximum input voltage)
6790Gear adapters, fixed, Rustler® 4x4
2053Gear set (for 2055, 2056 servos)
2072AGear set (for 2070, 2075 servos)
2252Gear set, metal (for 2250, 2255 servos)
7460AMotor mount (assembled with 3x6 flat-head machine screw)/ 3.0mm NL (1)
7460RMotor mount, 6061-T6 aluminum (blue-anodized)
3785Motor, Titan® 12T (12-Turn, 550 size)
3351RMotor, Velineon® 3500, brushless (assembled with 12-gauge wire and gold-plated bullet connectors)
7490Plate, motor
7490GPlate, motor, green
7490APlate, motor, orange
7490RPlate, motor, red
3347Screws, 2.5x5mm button-head machine (hex drive) (6)
3932Screws, 3x6mm flat-head machine (hex drive) (6)
2254Servo case, aluminum (middle) (blue-anodized) (for 2250 servo)
2253Servo case, aluminum (middle) (red-anodized) (for 2255 servo)
2251Servo case, plastic (top, middle, bottom)/ gaskets/ hardware (for 2250, 2255 servos)
2074Servo case/gaskets (for 2056 and 2075 waterproof servos)
2075RServo, digital high-speed, metal gear (ball bearing), waterproof
2075Servo, digital high-torque (ball bearing), waterproof
2250Servo, digital high-torque 300 coreless, metal gear (ball bearing), waterproof
2255Servo, digital high-torque 400 brushless, metal gear (ball bearing), waterproof
2075XServo, digital high-torque, metal gear (ball bearing), waterproof
2056Servo, high-torque, waterproof (blue case)
3350RVelineon® VXL-3s Brushless Power System, waterproof (includes VXL-3s waterproof ESC , Velineon® 3500 motor, and speed control mounting plate (part #3725))
3355RVXL-3s Waterproof Electronic Speed Control (brushless) (fwd/rev/brake)
3018RXL-5 Electronic Speed Control, waterproof (land version, low-voltage detection, fwd/rev/brake)

Radio System, Batteries & Chargers

Part #Part
2842X5000mah 7.4v 2-Cell 25C LiPo Battery
2843X5800mah 7.4v 2-Cell 25C LiPo Battery
2869X7600mah 7.4v 2-Cell 25C LiPo Battery
2914Battery, Power Cell AA Alkaline (4)
2976AC to DC adapter
2938XAdapter, Traxxas® iD® LiPo battery (adapts Traxxas® iD® batteries to separate balance ports)
2943Battery charge indicators, green (4), grey (4), blue (4)
6548Battery door, TQ 2.4 transmitter (replacement for #6516, 6517 transmitter)
2923XBattery, Power Cell, 3000mAh (NiMH, 7-C flat, 8.4V)
2940XBattery, Series 3 Power Cell, 3300mAh (NiMH, 7-C flat, 8.4V)
2950XBattery, Series 4 Power Cell, 4200mAh (NiMH, 7-C flat, 8.4V)
2960XBattery, Series 5 Power Cell, 5000mAh (NiMH, 7-C flat, 8.4V)
2992Battery/charger completer pack (includes #2970 iD® charger (1), #2843X 5800mAh 7.4V 2-cell 25C LiPo iD® battery (1))
2260BEC assembly (complete) (12.6 volts (3s LiPo) maximum input voltage)
2975Charger, D/C, 4 amp (6 - 7 cell, 7.2 - 8.4 volt, NiMH)
2972Charger, EZ-Peak Dual, 100W, NiMH/LiPo with iD Auto Battery Identification
2973Charger, EZ-Peak Live Dual, 200W, NiMH/LiPo with iD Auto Battery Identification
2970Charger, EZ-Peak Plus, 4 amp, NiMH/LiPo with iD Auto Battery Identification
2971Charger, EZ-Peak® Live, 100W, NiMH/LiPo with iD® Auto Battery Identification
2981Charger, EZ-Peak® Plus 4s, 8 amp, NiMH/LiPo with iD® Auto Battery Identification
6525Communication link, telemetry expander
2978Fuse, D/C charger, 5A (2) (for #2974, 2975, 2977)
2053Gear set (for 2055, 2056 servos)
2072AGear set (for 2070, 2075 servos)
2252Gear set, metal (for 2250, 2255 servos)
2968XLiPo cell voltage checker/balancer (includes #2938X adapter for Traxxas® iD® batteries)
2968LiPo cell voltage checker/balancer (requires #2938X adapter for Traxxas® iD® batteries)
6562Mount, telemetry expander (requires #6730 chassis brace kit)
6535Mount, temperature sensor (electric motors)/ wire tie/ thermal pad
6519Receiver, micro, TQ 2.4GHz (3-channel)
3932Screws, 3x6mm flat-head machine (hex drive) (6)
6552Seal kit, expander box (includes o-ring, seals, and silicone grease)
6526Sensor, auto-detectable, temperature
6527Sensor, auto-detectable, voltage
6520Sensor, RPM (long)/ 3x4mm BCS (1)/ 3x4 GS (1)
6521Sensor, temperature and voltage (long)
2254Servo case, aluminum (middle) (blue-anodized) (for 2250 servo)
2253Servo case, aluminum (middle) (red-anodized) (for 2255 servo)
2251Servo case, plastic (top, middle, bottom)/ gaskets/ hardware (for 2250, 2255 servos)
2074Servo case/gaskets (for 2056 and 2075 waterproof servos)
2075RServo, digital high-speed, metal gear (ball bearing), waterproof
2075Servo, digital high-torque (ball bearing), waterproof
2250Servo, digital high-torque 300 coreless, metal gear (ball bearing), waterproof
2255Servo, digital high-torque 400 brushless, metal gear (ball bearing), waterproof
2075XServo, digital high-torque, metal gear (ball bearing), waterproof
2056Servo, high-torque, waterproof (blue case)
6553XTelemetry Expander 2.0 and GPS module 2.0, TQi radio system
6550XTelemetry expander 2.0, TQi radio system (for use only with #6551X GPS module)
6551XTelemetry GPS module 2.0, TQi radio system (for use only with #6550X telemetry expander)
6539Telemetry trigger magnet holder, center differential/ magnet, 5x2mm (1)/ 3x8mm BCS (3) (for use with #6814 center differential)
6538Telemetry trigger magnet holders, spur gear/ magnet, 5x2mm (1)/ 3x8mm CCS (3)/ 3x10mm CCS (3)
6540Telemetry trigger magnet, 5X2mm (1)
6509RTQi 2.4 GHz High Output radio system, 2-channel, Traxxas® Link enabled, TSM® (2-ch transmitter, 5-ch micro receiver)
6507RTQi 2.4 GHz High Output radio system, 4-channel with Traxxas® Link Bluetooth® module, TSM® (4-ch transmitter, 5-ch micro receiver)
6516Transmitter, TQ 2.4GHz, 2-channel (transmitter only)
6528Transmitter, TQi Traxxas® Link enabled, 2.4GHz high output, 2- channel (transmitter only)
6529Transmitter, TQi Traxxas® Link enabled, 2.4GHz high output, 3- channel (transmitter only)
6530Transmitter, TQi Traxxas® Link enabled, 2.4GHz high output, 4- channel (transmitter only)
6511Traxxas® Link Bluetooth® module

Ready-To-Race Model

Part #Part

Rear Suspension

Part #Part
6823Bulkhead tie bars, front & rear, aluminum (blue-anodized)
6823GBulkhead tie bars, front & rear, aluminum (green-anodized)
6823RBulkhead tie bars, front & rear, aluminum (red-anodized)
7429Bulkhead, rear
3641ACamber link set (plastic / non-adjustable ) ( front & rear) (grey)
3641Camber link set (plastic/ non-adjustable) (front & rear) (black)
3644XCamber links, rear (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3644GCamber links, rear (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3644RCamber links, rear (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
1952XCarriers, stub axle (blue-anodized 6061-T6 aluminum) (rear) (left & right)/ 3x32mm hinge pins (2)/ e-clips (6)/ hardware
1952GCarriers, stub axle (green-anodized 6061-T6 aluminum) (rear) (left & right)/ 3x32mm hinge pins (2)/ e-clips (6)/ hardware
1952TCarriers, stub axle (orange-anodized 6061-T6 aluminum) (rear) (left & right)/ 3x32mm hinge pins (2)/ e-clips (6)/ hardware
1952Carriers, stub axle (rear) (2)
1952ACarriers, stub axle (red-anodized 6061-T6 aluminum) (rear) (left & right)/ 3x32mm hinge pins (2)/ e-clips (6)/ hardware
6852ADriveshaft assembly, rear, extreme heavy duty (1) (left or right) (fully assembled, ready to install)/ screw pin (1)
6852RDriveshafts, rear, steel-spline constant-velocity (complete assembly) (2)
5529Shim set, 3x7x1mm (2), 3x6x0.5mm (4), 3x7x2mm (2)/ hollow balls, captured (4)
6738Shock tower, rear
6738XShock tower, rear, 7075-T6 aluminum (blue-anodized) (1)/ body mount bracket (1)
6738GShock tower, rear, 7075-T6 aluminum (green-anodized) (1)/ body mount bracket (1)
6738RShock tower, rear, 7075-T6 aluminum (red-anodized) (1)/ body mount bracket (1)
6853AStub axle assembly, rear, outer, extreme heavy duty (1) (left or right) (assembled with internal-splined half shaft)
3655PSuspension arms, blue, front/rear (left & right), heavy duty (2)
3655RSuspension arms, front/rear (left & right), heavy duty (2)
3655GSuspension arms, green, front/rear (left & right), heavy duty (2)
3655TSuspension arms, orange, front/rear (left & right), heavy duty (2)
3655LSuspension arms, red, front/rear (left & right), heavy duty (2)
6834Suspension pin set, complete (front and rear)
6898Sway bar kit (front and rear) (includes front and rear sway bars and adjustable linkage)

Shock Oil

Part #Part
5031Oil, shock (20 wt, 200 cSt, 60cc) (silicone)
5032Oil, shock (30 wt, 350 cSt, 60cc) (silicone)
5033Oil, shock (40 wt, 500 cSt, 60cc) (silicone)
5034Oil, shock (50 wt, 600 cSt, 60cc) (silicone)
5035Oil, shock (60 wt, 700 cSt, 60cc) (silicone)
5036Oil, shock (70 wt, 900 cSt, 60cc) (silicone)
5037Oil, shock (80 wt, 1,000 cSt, 60cc) (silicone)
5029Shock oil bottle (60cc) (for mixing shock oil)
5038XShock oil set (includes 20 wt, 30 wt, 40 wt, 50 wt, 60 wt, 70 wt, & 80 wt premium shock oils with spinning carousel rack)
5038Spinning carousel rack

Shocks (GTR)

Part #Part
7466XBody, GTR long (hard-anodized, PTFE-coated aluminum) (1)
7466Body, GTR long shock, aluminum (blue-anodized) (PTFE-coated bodies) (1)
7466GBody, GTR long shock, aluminum (green-anodized) (PTFE- coated bodies) (1)
7466ABody, GTR long shock, aluminum (orange-anodized) (PTFE- coated bodies) (1)
7467XBody, GTR xx-long (hard-anodized, PTFE-coated aluminum) (1)
7467Body, GTR xx-long shock, aluminum (blue-anodized) (PTFE- coated bodies) (1)
7467GBody, GTR xx-long shock, aluminum (green-anodized) (PTFE- coated bodies) (1)
7467ABody, GTR xx-long shock, aluminum (orange-anodized) (PTFE- coated bodies) (1)
7468XCaps & spring retainers, GTR shock (upper cap (2)/ hollow balls (4)/ bottom cap (2)/ upper retainer (2)/ lower retainer (2))
7468Caps and spring retainers, GTR long/xx-long shock (upper cap (2)/ hollow balls (4)/ bottom cap (2)/ upper retainer (2)/ lower retainer (2))
5475Multi-tool (plastic)
5158Nuts, 2.5mm nylon locking (12)
7463Rebuild kit, GTR long/xx-long shocks (x-rings, bladders, pistons, piston nuts, shock rod ends, hollow balls) (renews 2 shocks)
5469Rod ends (GTR shocks)
7464TShaft, GTR long, TiN-coated (2)
7461Shocks, GTR long blue-anodized, PTFE-coated bodies with TiN shafts (fully assembled, without springs) (2)
7461GShocks, GTR long green-anodized, PTFE-coated bodies with TiN shafts (fully assembled, without springs) (2)
7461XShocks, GTR long, hard-anodized, PTFE-coated bodies with TiN shafts (assembled) (2) (without springs)
7462Shocks, GTR xx-long blue-anodized, PTFE-coated bodies with TiN shafts (fully assembled, without springs) (2)
7462GShocks, GTR xx-long green-anodized, PTFE-coated bodies with TiN shafts (fully assembled, without springs) (2)
7462XShocks, GTR xx-long, hard-anodized, PTFE-coated bodies with TiN shafts (assembled) (2) (without springs)
8459Spring retainers, lower (captured) (4)/ 2.5x10 CS (4)
7440Spring, shock, white (GTR long) (0.623 rate orange) (1 pair)
7441Spring, shock, white (GTR long) (0.653 rate green) (1 pair)
7444Spring, shock, white (GTR long) (0.767 rate black) (1 pair)
7445Spring, shock, white (GTR long) (0.810 rate pink) (1 pair)
7448Spring, shock, white (GTR long) (0.892 rate blue) (1 pair)
7442Spring, shock, white (GTR xx-long) (0.711 rate orange) (1 pair)
7443Spring, shock, white (GTR xx-long) (0.762 rate green) (1 pair)
7446Spring, shock, white (GTR xx-long) (0.874 rate black) (1 pair)
7447Spring, shock, white (GTR xx-long) (0.884 rate pink) (1 pair)
7449Spring, shock, white (GTR xx-long) (1.004 rate blue) (1 pair)

Shocks (Pro-level Aluminum)

Part #Part
2664Big Bore shock cylinder (long) (1)
5862Big Bore shocks (hard-anodized & PTFE-coated T6 aluminum) (assembled with TiN shafts and springs) (front & rear) (4)
2660Big-bore shocks (long) (hard-anodized & PTFE-coated T6 aluminum) (assembled with TiN shafts) w/o springs (rear) (2)
2662Big-bore shocks (xx-long) (hard-anodized & PTFE-coated T6 aluminum) (assembled with TiN shafts) w/o springs (rear) (2)
2669Piston head set (2-hole (2)/ 3-hole (2))/ shock mounting bushings & washers (2) (Big Bore Shocks)
1942Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2)
2742XRod ends, short (6)/ hollow balls (6)
2667Shock caps, aluminum (2) (Big Bore Shocks)
2362Shock rebuild kit (for 2 shocks)
1664TShock shafts, hardened steel, titanium nitride coated (long) (2)
2656TShock shafts, hardened steel, titanium nitride coated (xx-long) (2)
1664Shock shafts, steel, chrome finish (long) (2)
2656Shock shafts, steel, chrome finish (xx-long) (2)
1765Silicone diaphragms (4)
2668Spring retainers, upper & lower (2)/ spring pre-load spacers: 1mm (4)/ 1.5mm (2)/ 2mm (2)/ 4mm (2)/ 8mm (2) (Big Bore Shocks)
6863Springs, front (progressive, +10% rate, pink) (2)
6864Springs, front (progressive, +20% rate, blue) (2)
6862Springs, front (progressive, -10% rate, green) (2)
6861Springs, front (progressive, -20% rate, orange) (2)
6857Springs, front (white) (progressive rate) (2)
6867Springs, rear (progressive, +10% rate, pink) (2)
6868Springs, rear (progressive, +20% rate, blue) (2)
6866Springs, rear (progressive, -10% rate, green) (2)
6865Springs, rear (progressive, -20% rate, orange) (2)
6858Springs, rear (white) (progressive rate) (2)

Shocks (Ultra Shocks)

Part #Part
3642Attachment screws, shock (3x12mm shoulder screws) (6)
3765ABody, Ultra Shock (long) (grey) (2)
3766ABody, Ultra Shock (XXL) (grey) (2)
5475Multi-tool (plastic)
1942Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2)
2742XRod ends, short (6)/ hollow balls (6)
3767Shock caps (2)/ shock bottoms (2)
8361Shock caps (black) (4) (assembled with hollow balls)
3767AShock caps, aluminum (blue-anodized) (4) (fits all Ultra Shocks)
3767GShock caps, aluminum (green-anodized) (4) (fits all Ultra Shocks)
3767TShock caps, aluminum (orange-anodized) (4) (fits all Ultra Shocks)
3767PShock caps, aluminum (pink-anodized) (4) (fits all Ultra Shocks)
3767XShock caps, aluminum (red-anodized) (4) (fits all Ultra Shocks)
2362Shock rebuild kit (for 2 shocks)
1664TShock shafts, hardened steel, titanium nitride coated (long) (2)
2656TShock shafts, hardened steel, titanium nitride coated (xx-long) (2)
1765Silicone diaphragms (4)
3769Spring pre-load spacers: 1mm (4)/ 2mm (2)/ 4mm (2)/ 8mm (2)
3768Spring retainers, upper & lower (2)/ piston head set (2-hole (2)/ 3-hole (2))
3759Springs, front (2)
6863Springs, front (progressive, +10% rate, pink) (2)
6864Springs, front (progressive, +20% rate, blue) (2)
6862Springs, front (progressive, -10% rate, green) (2)
6861Springs, front (progressive, -20% rate, orange) (2)
6857Springs, front (white) (progressive rate) (2)
6867Springs, rear (progressive, +10% rate, pink) (2)
6868Springs, rear (progressive, +20% rate, blue) (2)
6866Springs, rear (progressive, -10% rate, green) (2)
6865Springs, rear (progressive, -20% rate, orange) (2)
6858Springs, rear (white) (progressive rate) (2)
3757XSprings, white (rear) (2)
3760Ultra Shocks (black) (long) (complete w/ spring pre-load spacers & springs) (front) (2)
3762Ultra Shocks (black) (xx-long) (complete w/ spring pre-load spacers & springs) (rear) (2)
3760AUltra Shocks (grey) (long) (complete w/ spring pre-load spacers & springs) (2)
3762AUltra Shocks (grey) (xx-long) (complete w/ spring pre-load spacers & springs) (rear) (2)

Slipper Clutch Components

Part #Part
5119ABall bearings, black rubber sealed (10x15x4mm) (2)
6893XBearing adapter, 6061-T6 aluminum (blue-anodized) (1)/10x15x4mm ball bearing (black rubber sealed) (1) (for slipper shaft)
6893GBearing adapter, 6061-T6 aluminum (green-anodized) (1)/ 10x15x4mm ball bearing (black rubber sealed) (1) (for slipper shaft)
6888Drive hub, center, rear (1)/ 4x3 GS (1)
6883Gear set, center differential (output gears (2)/ spider gears (2)/ spider gear shaft)
6884Housing, center differential/ x-ring gaskets (2)/ ring gear gasket/ bushings (2)/ 5x10x0.5 TW (2)/ CCS 2.5x8 (4)
6893Input shaft (slipper shaft)/ bearing adapter (1)/ pin (1)
5352RRebuild kit (heavy duty), slipper clutch (steel disc/ aluminum friction pads (3)/ spring (1)/ 2x9.8mm pin/ 5x8mm MW/ 5.0mm NL (1)/ 4.0mm NL (1))
5352XRebuild kit, slipper clutch (steel disc/ friction pads (3)/ spring (1)/ 2x9.8mm pin/ 5x8mm MW/ 5.0mm NL (1)/ 4.0mm NL (1))
5552XRebuild kit, slipper clutch (steel disc/ friction pads (3)/ spring (2)/ pin/ 4.0mm NL (1)/ 5.0mm NL (1))
2554Screws, 3x6mm caphead machine (hex drive) (6)
6878Slipper clutch, complete (for Slash 4x4)
5556Slipper pressure plate & hub (aluminum alloy)
5351Slipper pressure plate and hub (alloy)

Spur Gears & Pinion Gears

Part #Part
7477Cover, gear/ wire retainer
6790Gear adapters, fixed, Rustler® 4x4
6746Gear, 10-T pinion (32-p) (steel) (fits 3mm shaft)/ set screw
6747Gear, 11-T pinion (32-p) (steel) (fits 3mm shaft)/ set screw
3942XGear, 12-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw
3943XGear, 13-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw
3944XGear, 14-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw
3945XGear, 15-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw
3946XGear, 16-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw
3947XGear, 17-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw
3948XGear, 18-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw
3949XGear, 19-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw
3950XGear, 20-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw
3951XGear, 21-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw
3952XGear, 22-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw
6745Gear, 9-T pinion (32-p) (steel) (fits 3mm shaft)/ set screw
6842Spur gear, 50-tooth (0.8 metric pitch, compatible with 32-pitch)
6842RSpur gear, 50-tooth (0.8 metric pitch, compatible with 32-pitch) (for Slash 4x4 center differential)
6843Spur gear, 52-tooth (0.8 metric pitch, compatible with 32-pitch)
6843RSpur gear, 52-tooth (0.8 metric pitch, compatible with 32-pitch) (for Slash 4x4 center differential)
3956Spur gear, 54-tooth (0.8 metric pitch, compatible with 32-pitch)
3956RSpur gear, 54-tooth (0.8 metric pitch, compatible with 32-pitch) (for center differential)
3956XSpur gear, steel, 54-tooth (0.8 metric pitch, compatible with 32- pitch) (for center differential)

Steering Components

Part #Part
15523x8mm Hex Cap Screws (6)/ Washers (6)/ Wrench (1)
5114Ball bearings, blue rubber shield (5x8x2.5mm) (2)
6845ADrag link, machined 6061-T6 aluminum (blue-anodized)
6845GDrag link, machined 6061-T6 aluminum (green-anodized)
6845TDrag link, machined 6061-T6 aluminum (orange-anodized)
6845RDrag link, machined 6061-T6 aluminum (red-anodized)
7438Linkage, steering
2742XRod ends, short (6)/ hollow balls (6)
6845XSteering bellcranks/ servo saver/ servo saver spring/ servo spring retainer/servo horn, steering
6742Toe link, front & rear (molded composite) (2)/ hollow balls (4) (87mm center to center)
6742XToe links (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1)
6742GToe links (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1)
6742RToe links (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1)
2746Washers, 3x6mm metal (12)

Suspension Linkage

Part #Part
25373mm threaded rods: 1 each of 20mm,25mm&44mm
3641ACamber link set (plastic / non-adjustable ) ( front & rear) (grey)
3641Camber link set (plastic/ non-adjustable) (front & rear) (black)
3643XCamber links, front (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3643GCamber links, front (TUBES green-anodized, 7075-T6 aluminum, stronger than Titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3643RCamber links, front (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3644XCamber links, rear (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3644GCamber links, rear (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3644RCamber links, rear (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
5525Rod ends (12)/ hollow balls (12)
3739Screw pin set (Rustler®/ Bandit/ Stampede®)
6834Suspension pin set, complete (front and rear)
3644Turnbuckles, camber link, 39mm (69mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right)
3643Turnbuckles, camber link, 49mm (82mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right)
5539Turnbuckles, camber links, 58mm (assembled with rod ends and hollow balls) (2)

Team Traxxas Items

Part #Part
2514Decal sheet, racing sponsors
6160XDVD, Maxx® Power! Full Throttle Action (sleeve)
9950Official Team Traxxas® racing decal set(flag logo/ 6-color)
9909Traxxas® racing banner, red & black (3x7 feet)

Tires & Wheels

Part #Part
5116Ball bearings, blue rubber sealed (5x11x4mm) (2)
5854Hub retainer, 17mm hubs, M4 X 0.7 (4) (use with #5853X, #6856X, #6469)
1747PNuts, 4mm flanged nylon locking (aluminum, pink anodized) (4)
3647Nuts, 4mm flanged nylon locking (steel, serrated) (8)
1747RNuts, aluminum, flanged, serrated (4mm) (blue-anodized) (4)
1747GNuts, aluminum, flanged, serrated (4mm) (green-anodized) (4)
1747TNuts, aluminum, flanged, serrated (4mm) (orange-anodized) (4)
1985PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings)
1647Silicone Grease
2754Stub axle pins (4)
4175Tires & wheels, assembled, glued (2.8") (All-Star black chrome wheels, paddle tires, foam inserts) (nitro rear/electric front) (2) (TSM® rated)
3669ATires & wheels, assembled, glued (2.8") (All-Star black chrome wheels, Talon tires, foam inserts) (nitro rear/electric front) (2) (TSM® rated)
3669Tires & wheels, assembled, glued (2.8") (All-Star chrome wheels, Talon tires, foam inserts) (nitro rear/electric front) (2)
6775XTires & wheels, assembled, glued (2.8") (RXT black & chrome wheels, Anaconda tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated)
6773XTires & wheels, assembled, glued (2.8") (RXT black chrome wheels, Talon EXT tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated)
6775Tires & wheels, assembled, glued (2.8") (RXT black wheels, Anaconda tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated)
6773Tires & wheels, assembled, glued (2.8") (RXT black wheels, Talon EXT tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated)
6775GTires & wheels, assembled, glued (2.8") (RXT green wheels, Anaconda tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated)
6773GTires & wheels, assembled, glued (2.8") (RXT green wheels, Talon EXT tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated)
6775ATires & wheels, assembled, glued (2.8") (RXT orange wheels, Anaconda tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated)
6773ATires & wheels, assembled, glued (2.8") (RXT orange wheels, Talon EXT tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated)
6773RTires & wheels, assembled, glued (2.8") (RXT satin chrome wheels, Talon EXT tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated)
6792Tires & wheels, assembled, glued (black 2.8" wheels, Sledgehammer® tires, foam inserts) (2) (TSM® rated)
6771Tires and wheels, assembled, glued 2.8" (All-Star chrome wheels, Maxx® tires, foam inserts) (2)
6770Tires, Maxx® 2.8" (2)/ foam inserts (2)
3671Tires, Talon 2.8" (2)/ foam inserts (2)
6769Tires, Talon EXT 2.8" (2)/ foam inserts (2)
1654Wheel hubs, hex (2)/ stub axle pins (2)
1654XWheel hubs, hex (blue-anodized, lightweight aluminum) (2)/ axle pins(2)
6856XWheel hubs, splined, 17mm, short (blue-anodized) (4)/ wheel nuts, splined, 17mm (blue-anodized) (4)/ hub retainer M4 X 0.7 (4)/ axle pin (4) (Slash 4WD)
5353Wheel nuts, splined, 17mm (blue-anodized) (4)
5480XWheel wrench, splined, 17mm
5576AWheels, All-Star 2.8" (black chrome) (nitro rear / electric front) (2)
5576Wheels, All-Star 2.8" (chrome) (nitro rear / electric front) (2)
5572Wheels, Jato® twin-spoke 2.8" (chrome) (rear) (2)
6772Wheels, RXT 2.8" (black) (2)

Traxxas Tools

Part #Part
3433XBody reamer (aluminum handle)
3433Body reamer (plastic handle)
3436Cap, body reamer
3432Scissors, curved tip
3431Scissors, straight tip
8712Speed Bit Essentials Set, hex and nut driver, 7-piece, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm) and nut drivers (5.0mm, 5.5mm, 7.0mm, and 8.0mm), 1/4” drive
8720Speed bit handle, large (overmolded)
8721Speed bit handle, medium (one piece)
8722Speed bit handle, premium (rubber overmold)
8710Speed Bit Master Set, hex and nut driver, 13-piece, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm, 3.0mm), (ball-end: 2.0mm, 2.5mm, 3.0mm), and nut drivers (4.0mm, 4.5mm, 5.0mm, 5.5mm, 7.0mm, 8.0mm), 1/4” drive
8711Speed Bit Master Set, hex driver, 7-piece straight and ball end, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm, 3.0mm) (ball end: 2.0mm, 2.5mm, 3.0mm), 1/4" drive
8719Speed Bit Master Set, nut driver, 6-piece, includes premium handle (medium), travel pouch, and nut drivers (4.0mm, 4.5mm, 5.0mm, 5.5mm, 7.0mm, 8.0mm), 1/4" drive
8716Speed Bit Set, hex driver, 2-piece ball-end (2.0mm, 2.5mm), 1/4" drive
8716XSpeed Bit Set, hex driver, 3-piece ball-end (2.0mm, 2.5mm, 3.0mm) 1/4" drive
8715Speed Bit Set, hex driver, 3-piece straight (1.5mm, 2.0mm, 2.5mm), 1/4" drive
8715XSpeed Bit Set, hex driver, 4-piece straight (1.5mm, 2.0mm, 2.5mm, 3.0mm), 1/4" drive
2748RTool set (includes 1.5mm hex wrench / 2.0mm hex wrench / 2.5mm hex wrench/ 4-way wrench/ 8mm & 4mm wrench/ U-joint wrench)
3415Tool set with pouch (includes 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4mm drivers/4mm. 5mm, 5.5mm, 7mm, and 8mm nut drivers/ 2mm, 3mm, and 4mm slotted screwdrivers/ #00 Phillips, #0 Phillips, and #1 Phillips screwdrivers/ 4mm and 8mm wrenches/ driver handle)

Turnbuckles & Threaded Rods

Part #Part
3643XCamber links, front (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3643GCamber links, front (TUBES green-anodized, 7075-T6 aluminum, stronger than Titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3643RCamber links, front (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3644XCamber links, rear (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3644GCamber links, rear (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
3644RCamber links, rear (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation)
5525Rod ends (12)/ hollow balls (12)
3644Turnbuckles, camber link, 39mm (69mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right)
3643Turnbuckles, camber link, 49mm (82mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right)
5539Turnbuckles, camber links, 58mm (assembled with rod ends and hollow balls) (2)

Need different gearing for the pinion/spur combo above? Use the gear ratio calculator to dial in your final drive ratio.

Part numbers from Traxxas’ official Rustler 4X4 (Model 67064-61) Parts List, which covers the Rustler 4X4 and mixes stock spares with optional accessories. Some links above are affiliate links that support the site.

Source document

Traxxas Rustler 4X4 Parts ListOpen Document

Rustler 4X4/VXL alerts

Email me about new:

RC Setup App icon

Free to start · iOS & Android

Setup App & Race Log

Your Traxxas Rustler 4X4/VXL is in the RC Setup App

Save every setup change you make to your Traxxas Rustler 4X4/VXL, get AI tuning answers for that exact car, and log your races — at the track or back in the pits.

  • Setup Tracking
  • AI Mechanic answers
  • Find & Share Setups
  • Race Log
  • Gear Ratio Calculator
  • Free to use
Download on the App StoreGet it on Google Play

Learn more about...

Basher
Bashers
← Back to Setup Guides
