Every stock spare part and optional accessory for the Traxxas Rustler 4X4 VXL (model 67076-4) is listed below, straight from Traxxas’ official Rustler 4X4 VXL parts list — organized by category the way Traxxas groups them, so the same part can appear under more than one heading. Each part number links to that part at AMain Hobbies where a live match was found; parts with no current match are listed as plain text. The full factory parts PDF is still available on this page via the Open Document button above.

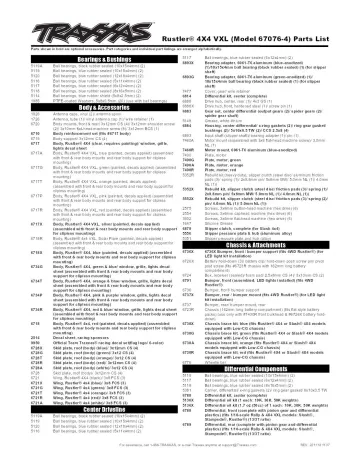

Rustler 4X4 VXL — Parts & Accessories
Bearings & Bushings
| Part # | Part |
|---|---|
| 5119A | Ball bearings, black rubber sealed (10x15x4mm) (2) |
| 5119 | Ball bearings, blue rubber sealed (10x15x4mm) (2) |
| 5120 | Ball bearings, blue rubber sealed (12x18x4mm) (2) |
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 5117 | Ball bearings, blue rubber sealed (6x12x4mm) (2) |
| 5118 | Ball bearings, blue rubber sealed (8x16x5mm) (2) |
| 5114 | Ball bearings, blue rubber shield (5x8x2.5mm) (2) |
| 1985 | PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings) |
Body & Accessories
| Part # | Part |
|---|---|
| 1926 | Antenna caps, vinyl (2)/ antenna spool |
| 1726 | Antenna, tube (1)/ vinyl antenna cap (1)/ wire retainer (1) |
| 6720 | Body mounts, front & rear/ 3x12mm CS (4)/ 3x12mm shoulder screw (2)/ 3x10mm flat-head machine screw (8)/ 3x12mm BCS (1) |
| 6710 | Body reinforcement set (fits #6717 body) |
| 6719 | Body support/ 3x12mm CS (4) |
| 6717 | Body, Rustler® 4X4 (clear, requires painting)/ window, grille, lights decal sheet |
| 6717A | Body, Rustler® 4X4 VXL, blue (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 6717G | Body, Rustler® 4X4 VXL, green (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 6717T | Body, Rustler® 4X4 VXL, orange (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 6717P | Body, Rustler® 4X4 VXL, pink (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 6717R | Body, Rustler® 4X4 VXL, red (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 6717X | Body, Rustler® 4X4 VXL, silver (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 6718R | Body, Rustler® 4x4 VXL, Solar Flare (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 6718X | Body, Rustler® 4X4, blue (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 6734G | Body, Rustler® 4X4, green & blue/ window, grille, lights decal sheet (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 6734T | Body, Rustler® 4X4, orange & blue/ window, grille, lights decal sheet (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 6734P | Body, Rustler® 4X4, pink & purple/ window, grille, lights decal sheet (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 6734R | Body, Rustler® 4X4, red & blue/ window, grille, lights decal sheet (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 6718 | Body, Rustler® 4x4, red (painted, decals applied) (assembled with front & rear body mounts and rear body support for clipless mounting) |
| 2514 | Decal sheet, racing sponsors |
| 9950 | Official Team Traxxas® racing decal set(flag logo/ 6-color) |
| 6728X | Skid plate, roof (body) (blue)/ 3x12mm CS (4) |
| 6728G | Skid plate, roof (body) (green)/ 3x12 CS (4) |
| 6728T | Skid plate, roof (body) (orange)/ 3x12 CS (4) |
| 6728R | Skid plate, roof (body) (red)/ 3x12mm CS (4) |
| 6728A | Skid plate, roof (body) (white)/ 3x12 CS (4) |
| 6728 | Skid plate, roof (body)/ 3x12mm CS (4) |
| 6721 | Wing, Rustler® 4X4 (black)/ 3x8 FCS (3) |
| 6721X | Wing, Rustler® 4x4 (blue)/ 3x8 FCS (3) |
| 6721G | Wing, Rustler® 4x4 (green)/ 3x8 FCS (3) |
| 6721T | Wing, Rustler® 4x4 (orange)/ 3x8 FCS (3) |
| 6721R | Wing, Rustler® 4x4 (red)/ 3x8 FCS (3) |
| 6721A | Wing, Rustler® 4x4 (white)/ 3x8 FCS (3) |
Center Driveline
| Part # | Part |
|---|---|
| 5119A | Ball bearings, black rubber sealed (10x15x4mm) (2) |
| 5119 | Ball bearings, blue rubber sealed (10x15x4mm) (2) |
| 5120 | Ball bearings, blue rubber sealed (12x18x4mm) (2) |
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 5117 | Ball bearings, blue rubber sealed (6x12x4mm) (2) |
| 6893X | Bearing adapter, 6061-T6 aluminum (blue-anodized) (1)/10x15x4mm ball bearing (black rubber sealed) (1) (for slipper shaft) |
| 6893G | Bearing adapter, 6061-T6 aluminum (green-anodized) (1)/ 10x15x4mm ball bearing (black rubber sealed) (1) (for slipper shaft) |
| 7477 | Cover, gear/ wire retainer |
| 6814 | Differential kit, center (complete) |
| 6888 | Drive hub, center, rear (1)/ 4x3 GS (1) |
| 6888X | Drive hub, front, hardened steel (1)/ screw pin (1) |
| 6883 | Gear set, center differential (output gears (2)/ spider gears (2)/ spider gear shaft) |
| 5148 | Grease, white lithium |
| 6884 | Housing, center differential/ x-ring gaskets (2)/ ring gear gasket/ bushings (2)/ 5x10x0.5 TW (2)/ CCS 2.5x8 (4) |
| 6893 | Input shaft (slipper shaft)/ bearing adapter (1)/ pin (1) |
| 7460A | Motor mount (assembled with 3x6 flat-head machine screw)/ 3.0mm NL (1) |
| 7460R | Motor mount, 6061-T6 aluminum (blue-anodized) |
| 7490 | Plate, motor |
| 7490G | Plate, motor, green |
| 7490A | Plate, motor, orange |
| 7490R | Plate, motor, red |
| 5352R | Rebuild kit (heavy duty), slipper clutch (steel disc/ aluminum friction pads (3)/ spring (1)/ 2x9.8mm pin/ 5x8mm MW/ 5.0mm NL (1)/ 4.0mm NL (1)) |
| 5352X | Rebuild kit, slipper clutch (steel disc/ friction pads (3)/ spring (1)/ 2x9.8mm pin/ 5x8mm MW/ 5.0mm NL (1)/ 4.0mm NL (1)) |
| 5552X | Rebuild kit, slipper clutch (steel disc/ friction pads (3)/ spring (2)/ pin/ 4.0mm NL (1)/ 5.0mm NL (1)) |
| 2575 | Screws, 3x6mm button-head machine (hex drive) (6) |
| 2554 | Screws, 3x6mm caphead machine (hex drive) (6) |
| 3932 | Screws, 3x6mm flat-head machine (hex drive) (6) |
| 1647 | Silicone Grease |
| 6878 | Slipper clutch, complete (for Slash 4x4) |
| 5556 | Slipper pressure plate & hub (aluminum alloy) |
| 5351 | Slipper pressure plate and hub (alloy) |
Chassis & Attachments
| Part # | Part |
|---|---|
| 6736X | 6736X Bumper, front / bumper support (fits 4WD Rustler®) (for LED light kit installation) |
| 6726X | Battery hold-down (3)/ battery clip/ hold-down post/ screw pin/ pivot post screw (fits #6723R chassis with 162mm long battery compartment) |
| 6724 | Box, receiver (sealed)/ foam pad/ 2.5x8mm CS (4)/ 3x10mm CS (2) |
| 6791 | Bumper, front (assembled, LED lights installed) (fits 4WD Rustler®) |
| 6736 | Bumper, front/ bumper support |
| 6737X | Bumper, rear / bumper mount (fits 4WD Rustler®) (for LED light kit installation) |
| 6737 | Bumper, rear/ bumper mount, rear |
| 6723R | Chassis (162mm long battery compartment) (fits flat style battery packs) (use only with #7430R front bulkhead & #6726X battery hold- down) |
| 6730X | Chassis brace kit, blue (fits Rustler® 4X4 or Slash® 4X4 models equipped with Low-CG chassis) |
| 6730G | Chassis brace kit, green (fits Rustler® 4X4 or Slash® 4X4 models equipped with Low-CG chassis) |
| 6730A | Chassis brace kit, orange (fits Rustler® 4X4 or Slash® 4X4 models equipped with Low-CG chassis) |
| 6730R | Chassis brace kit, red (fits Rustler® 4X4 or Slash® 4X4 models equipped with Low-CG chassis) |
| 6776 | Wheelie bar |
Differential Components
| Part # | Part |
|---|---|
| 5119 | Ball bearings, blue rubber sealed (10x15x4mm) (2) |
| 5117 | Ball bearings, blue rubber sealed (6x12x4mm) (2) |
| 5118 | Ball bearings, blue rubber sealed (8x16x5mm) (2) |
| 5381 | Carrier, differential/ x-ring gaskets (2)/ ring gear gasket/ 6x10x0.5 TW |
| 6780 | Differential kit, center (complete) |
| 5136X | Differential oil kit (1 each: 10K, 30K, 50K weights) |
| 5136X | Differential oil kit (1.7 oz (50cc) of 1 each: 10K, 30K, 50K weights) |
| 6788 | Differential, front (complete with pinion gear and differential plastics) (fits 1/10-scale Rally & 4X4 VXL models: Slash®, Stampede®, Rustler®) (13/37 ratio) |
| 6789 | Differential, rear (complete with pinion gear and differential plastics) (fits 1/10-scale Rally & 4X4 VXL models: Slash®, Stampede®, Rustler®) (13/37 ratio) |
| 6882X | Gear set, differential (output gears (2)/ spider gears (2)/ spider gear shaft, carrier support) |
| 6783 | Gear set, differential (spider gears (4)/ spider gear shaft (2)) |
| 6781 | Housing, center differential (aluminum)/ x-ring gaskets (2)/ ring gear gasket/ bushings (2)/ 5x10x0.5 PTFE-coated washer/ 2.5x8 CCS (4) |
| 6881 | Housings, differential, front |
| 6880 | Housings, differential, rear |
| 6782 | Output gears, center differential, hardened steel (2) |
| 5379X | Ring gear, differential/ pinion gear, differential |
| 5379R | Ring gear, differential/ pinion gear, differential (machined, spiral cut) (front) |
| 6879R | Ring gear, differential/ pinion gear, differential (machined, spiral cut) (rear) |
| 6879 | Ring gear, differential/ pinion gear, differential (rear) |
| 3965 | Screws, 2.5x8mm cap-head machine (6) |
| 1647 | Silicone Grease |
Driveline Components
| Part # | Part |
|---|---|
| 5119A | Ball bearings, black rubber sealed (10x15x4mm) (2) |
| 5119 | Ball bearings, blue rubber sealed (10x15x4mm) (2) |
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 9059X | Cross pin (2)/ drive pin (2) (repairs 1 axle shaft) |
| 6758 | Differential output shafts, steel-splined constant-velocity (2) |
| 9057X | Differential output shafts, steel-splined constant-velocity (2) |
| 6828A | Differential output yoke assembly, extreme heavy duty (2) (left or right, front or rear) (assembled with external-splined half shaft)/ screw pin (2) |
| 6851A | Driveshaft assembly, front, extreme heavy duty (1) (left or right) (fully assembled, ready to install)/ screw pin (1) |
| 6852A | Driveshaft assembly, rear, extreme heavy duty (1) (left or right) (fully assembled, ready to install)/ screw pin (1) |
| 6765 | Driveshaft, center, 6061-T6 aluminum (blue-anodized) (189mm) |
| 6765G | Driveshaft, center, 6061-T6 aluminum (green-anodized) (189mm) |
| 6765A | Driveshaft, center, 6061-T6 aluminum (orange-anodized) (189mm) |
| 6765R | Driveshaft, center, 6061-T6 aluminum (red-anodized) (189mm) |
| 6767 | Driveshaft, center, plastic, (black)/ screw pin |
| 9051X | Driveshafts, front, steel-spline constant-velocity (complete assembly) (2) |
| 6851R | Driveshafts, front, steel-spline constant-velocity (complete assembly) (2) |
| 6852R | Driveshafts, rear, steel-spline constant-velocity (complete assembly) (2) |
| 9052X | Driveshafts, rear, steel-spline constant-velocity (complete assembly) (2) |
| 9055X | Half shaft, external splined (steel-spline constant velocity) (1) |
| 6750 | Half shaft, external splined (steel-spline constant velocity) (1) |
| 9056X | Half shaft, internal splined (steel-spline constant velocity) (1) |
| 6751 | Half shaft, internal splined (steel-spline constant velocity) (1) |
| 9058X | Rebuild kit, steel-splined constant-velocity driveshafts (includes pins and hardware for one axle shaft) |
| 6757 | Rebuild kit, steel-splined constant-velocity driveshafts (includes pins, dustboots, lube, and hardware) |
| 6854A | Stub axle assembly, front, outer, extreme heavy duty (1) (left or right) (assembled with internal-splined half shaft) |
| 6853A | Stub axle assembly, rear, outer, extreme heavy duty (1) (left or right) (assembled with internal-splined half shaft) |
| 9054X | Stub axle, front, steel-splined constant velocity (1) |
| 6754 | Stub axle, front, steel-splined constant velocity (1) |
| 6753 | Stub axle, rear, steel-splined constant velocity (1) |
| 9053X | Stub axle, rear, steel-splined constant velocity (1) |
Extreme HD Upgrade Kit
| Part # | Part |
|---|---|
| 9016 | Body mounts, front & rear, extreme heavy duty (for use with #9080 upgrade kit) |
| 9050 | Carriers, stub axle, rear, extreme heavy duty, black (left & right)/ 3x41mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9050X | Carriers, stub axle, rear, extreme heavy duty, blue (left & right)/ 3x41mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9050G | Carriers, stub axle, rear, extreme heavy duty, green (left & right)/ 3x41mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9050T | Carriers, stub axle, rear, extreme heavy duty, orange (left & right)/ 3x41mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9050R | Carriers, stub axle, rear, extreme heavy duty, red (left & right)/ 3x41mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9032 | Caster blocks (c-hubs), extreme heavy duty, black (left & right)/ 3x32mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9032X | Caster blocks (c-hubs), extreme heavy duty, blue (left & right)/ 3x32mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9032G | Caster blocks (c-hubs), extreme heavy duty, green (left & right)/ 3x32mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9032T | Caster blocks (c-hubs), extreme heavy duty, orange (left & right)/ 3x32mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9032R | Caster blocks (c-hubs), extreme heavy duty, red (left & right)/ 3x32mm hinge pins (2)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9057 | Differential output yoke assembly, extreme heavy duty (2) (left or right, front or rear) (assembled with external-splined half shaft) (for use with #9080 upgrade kit) |
| 9051 | Driveshaft assembly, front, extreme heavy duty with 6mm axle (1)/ screw pin (1) (left or right) (fully assembled, ready to install) (for use with #9080 upgrade kit) |
| 9052 | Driveshaft assembly, rear, extreme heavy duty with 6mm axle (1)/ screw pin (1) (left or right) (fully assembled, ready to install) (for use with #9080 upgrade kit) |
| 9051R | Driveshafts, front, extreme heavy duty, steel-spline constant- velocity with 6mm stub axles (complete assembly) (2) (for use with #9080 upgrade kit) |
| 9052R | Driveshafts, rear, extreme heavy duty, steel-spline constant- velocity with 6mm stub axles (complete assembly) (2) (for use with #9080 upgrade kit) |
| 9080 | Outer Driveline & Suspension Upgrade Kit, extreme heavy duty, black |
| 9080X | Outer Driveline & Suspension Upgrade Kit, extreme heavy duty, blue |
| 9080G | Outer Driveline & Suspension Upgrade Kit, extreme heavy duty, green |
| 9080T | Outer Driveline & Suspension Upgrade Kit, extreme heavy duty, orange |
| 9080R | Outer Driveline & Suspension Upgrade Kit, extreme heavy duty, red |
| 9043 | Screw pins, 3x16mm, extreme heavy duty (6) (for use with #9080 upgrade kit) |
| 9038 | Shock tower, front, extreme heavy duty, black (for use with #9080 upgrade kit) |
| 9038X | Shock tower, front, extreme heavy duty, blue (for use with #9080 upgrade kit) |
| 9038G | Shock tower, front, extreme heavy duty, green (for use with #9080 upgrade kit) |
| 9038T | Shock tower, front, extreme heavy duty, orange (for use with #9080 upgrade kit) |
| 9038R | Shock tower, front, extreme heavy duty, red (for use with #9080 upgrade kit) |
| 9039 | Shock tower, rear, extreme heavy duty, black (for use with #9080 upgrade kit) |
| 9039X | Shock tower, rear, extreme heavy duty, blue (for use with #9080 upgrade kit) |
| 9039G | Shock tower, rear, extreme heavy duty, green (for use with #9080 upgrade kit) |
| 9039T | Shock tower, rear, extreme heavy duty, orange (for use with #9080 upgrade kit) |
| 9039R | Shock tower, rear, extreme heavy duty, red (for use with #9080 upgrade kit) |
| 9037 | Steering blocks, extreme heavy duty, black (left & right)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9037X | Steering blocks, extreme heavy duty, blue (left & right)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9037G | Steering blocks, extreme heavy duty, green (left & right)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9037T | Steering blocks, extreme heavy duty, orange (left & right)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9037R | Steering blocks, extreme heavy duty, red (left & right)/ 3x20mm BCS (2) (for use with #9080 upgrade kit) |
| 9056 | Stub axle assembly, front, outer, extreme heavy duty (1) (left or right) (assembled with internal-splined half shaft) (for use with #9080 upgrade kit) |
| 9055 | Stub axle assembly, rear, outer, extreme heavy duty (1) (left or right) (assembled with internal-splined half shaft) (for use with #9080 upgrade kit) |
| 9054 | Stub axle, front, 6mm, extreme heavy duty (for use with #9051R steel CV driveshafts) |
| 9053 | Stub axle, rear, 6mm, extreme heavy duty (for use with #9052R steel CV driveshafts) |
| 9042 | Suspension pin set, extreme heavy duty, complete (front and rear) (3x52mm (4), 3x32mm (2), 3x40mm (2)) (for use with #9080 upgrade kit) |
| 9042X | Suspension pin set, extreme heavy duty, complete (front and rear) (hardened steel) (3x52mm (4), 3x32mm (2), 3x40mm (2))/ M2.5x0.45mm NL (8) (for use with #9080 upgrade kit) |
| 9069 | Wheel hubs, 12mm hex (steel), extreme heavy duty (4)/ 2x9.8mm pin (4) (for use with #9080 upgrade kit and 6mm axles) |
| 1654R | Wheel hubs, hex (steel) (2)/ axle pins (2) |
Front Suspension & Steering
| Part # | Part |
|---|---|
| 5114 | Ball bearings, blue rubber shield (5x8x2.5mm) (2) |
| 6823 | Bulkhead tie bars, front & rear, aluminum (blue-anodized) |
| 7430R | Bulkhead, front (for use only with #6723R chassis) |
| 3643X | Camber links, front (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3643G | Camber links, front (TUBES green-anodized, 7075-T6 aluminum, stronger than Titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3643R | Camber links, front (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 6832X | Caster blocks (c-hubs), 6061-T6 aluminum (blue-anodized), left & right |
| 6832G | Caster blocks (c-hubs), 6061-T6 aluminum (green-anodized), left & right |
| 6832A | Caster blocks (c-hubs), 6061-T6 aluminum (orange-anodized), left & right |
| 6832R | Caster blocks (c-hubs), 6061-T6 aluminum (red-anodized), left & right |
| 6832 | Caster blocks (c-hubs), left & right |
| 6845A | Drag link, machined 6061-T6 aluminum (blue-anodized) |
| 6845G | Drag link, machined 6061-T6 aluminum (green-anodized) |
| 6845T | Drag link, machined 6061-T6 aluminum (orange-anodized) |
| 6845R | Drag link, machined 6061-T6 aluminum (red-anodized) |
| 6851A | Driveshaft assembly, front, extreme heavy duty (1) (left or right) (fully assembled, ready to install)/ screw pin (1) |
| 6851R | Driveshafts, front, steel-spline constant-velocity (complete assembly) (2) |
| 7438 | Linkage, steering |
| 6739 | Shock tower, front |
| 6739X | Shock tower, front, 7075-T6 aluminum (blue-anodized) (1)/ body mount bracket (1) |
| 6739G | Shock tower, front, 7075-T6 aluminum (green-anodized) (1)/ body mount bracket (1) |
| 6739R | Shock tower, front, 7075-T6 aluminum (red-anodized) (1)/ body mount bracket (1) |
| 6845X | Steering bellcranks/ servo saver/ servo saver spring/ servo spring retainer/servo horn, steering |
| 6837X | Steering blocks, 6061-T6 aluminum (blue-anodized), left & right |
| 6837G | Steering blocks, 6061-T6 aluminum (green-anodized), left & right |
| 6837A | Steering blocks, 6061-T6 aluminum (orange-anodized), left & right |
| 6837R | Steering blocks, 6061-T6 aluminum (red-anodized), left & right |
| 6837 | Steering blocks, left & right |
| 6854A | Stub axle assembly, front, outer, extreme heavy duty (1) (left or right) (assembled with internal-splined half shaft) |
| 6754 | Stub axle, front, steel-splined constant velocity (1) |
| 3655P | Suspension arms, blue, front/rear (left & right), heavy duty (2) |
| 3655R | Suspension arms, front/rear (left & right), heavy duty (2) |
| 3655G | Suspension arms, green, front/rear (left & right), heavy duty (2) |
| 3655T | Suspension arms, orange, front/rear (left & right), heavy duty (2) |
| 3655L | Suspension arms, red, front/rear (left & right), heavy duty (2) |
| 6834 | Suspension pin set, complete (front and rear) |
| 6898 | Sway bar kit (front and rear) (includes front and rear sway bars and adjustable linkage) |
| 3643 | Turnbuckles, camber link, 49mm (82mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right) |
| 5539 | Turnbuckles, camber links, 58mm (assembled with rod ends and hollow balls) (2) |
Hardware
| Part # | Part |
|---|---|
| 1552 | 3x8mm Hex Cap Screws (6)/ Washers (6)/ Wrench (1) |
| 1926 | Antenna caps, vinyl (2)/ antenna spool |
| 1726 | Antenna, tube (1)/ vinyl antenna cap (1)/ wire retainer (1) |
| 3935 | Body clip (mounting clip), angled, 90-degrees (10) |
| 3935A | Body clip (mounting clip), angled, 90-degrees (black) (10) |
| 3934 | Body clips, heavy duty (12) |
| 1589 | Double-sided adhesive tape (25mm x 25mm) |
| 2745 | Nuts, 3mm nylon locking (12) |
| 3647 | Nuts, 4mm flanged nylon locking (steel, serrated) (8) |
| 1747 | Nuts, 4mm nylon locking (10) |
| 1747A | Nuts, aluminum, flanged, serrated (4mm) (red-anodized) (4) |
| 1985 | PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings) |
| 5525 | Rod ends (12)/ hollow balls (12) |
| 2742X | Rod ends, short (6)/ hollow balls (6) |
| 3347 | Screws, 2.5x5mm button-head machine (hex drive) (6) |
| 3215 | Screws, 2.5x6mm cap-head machine (hex drive) (6) |
| 3965 | Screws, 2.5x8mm cap-head machine (6) |
| 2577 | Screws, 3x10mm button-head machine (hex drive) (6) |
| 2578 | Screws, 3x12mm button-head machine (hex drive) (6) |
| 2552 | Screws, 3x12mm countersunk machine (6) (hex drive) |
| 2579 | Screws, 3x15mm button-head machine (hex drive) (6) |
| 2586 | Screws, 3x15mm cap-head machine (hex drive) (6) |
| 3646 | Screws, 3x15mm flat-head machine (hex drive) (6) |
| 2583 | Screws, 3x18 button-head machine (hex drive) (6) |
| 2580 | Screws, 3x20mm button-head machine (hex drive) (6) |
| 2591 | Screws, 3x23mm button-head machine (hex drive) (6) |
| 2582 | Screws, 3x30mm button-head machine (hex drive) (6) |
| 2592 | Screws, 3x40mm button-head machine (hex drive) (6) |
| 2575 | Screws, 3x6mm button-head machine (hex drive) (6) |
| 2534 | Screws, 3x6mm countersunk machine (6) (hex drive) |
| 3932 | Screws, 3x6mm flat-head machine (hex drive) (6) |
| 2576 | Screws, 3x8mm button-head machine (hex drive) (6) |
| 3931 | Screws, 3x8mm flat-head machine (hex drive) (6) |
| 3936 | Screws, 4x10mm button-head machine (hex drive) (6) |
| 3937 | Screws, 4x12mm button-head machine (hex drive) (6) |
| 2542 | Screws, 4x12mm countersunk machine (hex drive) (6) |
| 3938 | Screws, 4x14mm button-head machine (hex drive) (6) |
| 2546 | Screws, 4x15mm countersunk machine (hex drive) (6) |
| 2743 | Set (grub) screws, 3mm hardened (12) |
| 3642X | Shoulder screws, Ultra Shocks (3x12 hex drive) (6) |
| 2754 | Stub axle pins (4) |
| 2746 | Washers, 3x6mm metal (12) |
LED Lights
| Part # | Part |
|---|---|
| 6588 | Accessory power supply (regulated, 3V, 3 amp)/ power tap connector (with cable)/ 3x10 BCS (2)/ 2.6x8 BCS (2) |
| 6797 | Bumper, front (with LED lights) (replacement for #6736 front bumper) |
| 6541X | Connector, power tap (with cable)/ 2.6x8 BCS (2) (use #6549 power tap for telemetry voltage) |
| 5893 | LED light harness, rear (requires #5838, 6737X, or 6836 rear bumper) |
| 6795 | LED light set, complete (includes bumper with LED lights, roof skid plate with LED lights, 3-volt accessory power supply, and power tap connector (with cable) (fits #6717 body) |
| 6793 | LED light set, complete (includes front and rear bumpers with LED light bar, rear LED harness, & BEC Y-harness) (fits 4WD Rustler®) |
| 6796 | Skid plate, roof (body) (with LED lights) (fits #6717 body) |
| 2263 | Y-harness, BEC to LED light set |
Motors & Electronics
| Part # | Part |
|---|---|
| 1726 | Antenna, tube (1)/ vinyl antenna cap (1)/ wire retainer (1) |
| 2260 | BEC assembly (complete) (12.6 volts (3s LiPo) maximum input voltage) |
| 3340 | Cooling fan, Velineon® VXL-3s ESC |
| 6790 | Gear adapters, fixed, Rustler® 4x4 |
| 2072A | Gear set (for 2070, 2075 servos) |
| 2072X | Gear set, metal (for 2070, 2075 servos) |
| 2252 | Gear set, metal (for 2250, 2255 servos) |
| 2272 | Gear set, metal (for 2270 waterproof servo) |
| 2072R | Gear set, metal, high-speed (for 2070, 2075 servos) |
| 3458 | Heat sink (fits #3351R and #3461 motors) |
| 3354R | Motor cover, endbell (Velineon® 3500) |
| 7460A | Motor mount (assembled with 3x6 flat-head machine screw)/ 3.0mm NL (1) |
| 7460R | Motor mount, 6061-T6 aluminum (blue-anodized) |
| 3351R | Motor, Velineon® 3500, brushless (assembled with 12-gauge wire and gold-plated bullet connectors) |
| 7490 | Plate, motor |
| 7490G | Plate, motor, green |
| 7490A | Plate, motor, orange |
| 7490R | Plate, motor, red |
| 3352R | Rebuild kit, Velineon® 3500 (includes plastic endbell, 5x11x4mm ball bearings (2), 2.5x5mm BCS (with threadlock) (4), rear bushing) |
| 3347 | Screws, 2.5x5mm button-head machine (hex drive) (6) |
| 3932 | Screws, 3x6mm flat-head machine (hex drive) (6) |
| 2254 | Servo case, aluminum (middle) (blue-anodized) (for 2250 servo) |
| 2253 | Servo case, aluminum (middle) (red-anodized) (for 2255 servo) |
| 2251 | Servo case, plastic (top, middle, bottom)/ gaskets/ hardware (for 2250, 2255 servos) |
| 2271 | Servo case/ gaskets (for 2270 waterproof servo) |
| 2074 | Servo case/gaskets (for 2056 and 2075 waterproof servos) |
| 2075R | Servo, digital high-speed, metal gear (ball bearing), waterproof |
| 2075 | Servo, digital high-torque (ball bearing), waterproof |
| 2250 | Servo, digital high-torque 300 coreless, metal gear (ball bearing), waterproof |
| 2255 | Servo, digital high-torque 400 brushless, metal gear (ball bearing), waterproof |
| 2075X | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 2270 | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 3350R | Velineon® VXL-3s Brushless Power System, waterproof (includes VXL-3s waterproof ESC , Velineon® 3500 motor, and speed control mounting plate (part #3725)) |
| 3355R | VXL-3s Waterproof Electronic Speed Control (brushless) (fwd/rev/brake) |
Radio System, Batteries & Chargers
| Part # | Part |
|---|---|
| 2849X | 4000mah 11.1v 3-Cell 25C LiPo Battery |
| 2872X | 5000mah 11.1v 3-Cell 25C LiPo Battery |
| 2842X | 5000mah 7.4v 2-Cell 25C LiPo Battery |
| 2843X | 5800mah 7.4v 2-Cell 25C LiPo Battery |
| 2857X | 6400mah 11.1v 3-Cell 25C LiPo Battery |
| 2869X | 7600mah 7.4v 2-Cell 25C LiPo Battery |
| 2914 | Battery, Power Cell AA Alkaline (4) |
| 2976 | AC to DC adapter |
| 2938X | Adapter, Traxxas® iD® LiPo battery (adapts Traxxas® iD® batteries to separate balance ports) |
| 2943 | Battery charge indicators, green (4), grey (4), blue (4) |
| 6548 | Battery door, TQ 2.4 transmitter (replacement for #6516, 6517 transmitter) |
| 2923X | Battery, Power Cell, 3000mAh (NiMH, 7-C flat, 8.4V) |
| 2940X | Battery, Series 3 Power Cell, 3300mAh (NiMH, 7-C flat, 8.4V) |
| 2950X | Battery, Series 4 Power Cell, 4200mAh (NiMH, 7-C flat, 8.4V) |
| 2960X | Battery, Series 5 Power Cell, 5000mAh (NiMH, 7-C flat, 8.4V) |
| 2983 | Battery/charger completer pack (includes #2969 2-amp NiMH peak detecting AC charger (1), #2923X 3000mAh 8.4V 7-cell NiMH iD® battery (1)) |
| 2992 | Battery/charger completer pack (includes #2970 iD® charger (1), #2843X 5800mAh 7.4V 2-cell 25C LiPo iD® battery (1)) |
| 2994 | Battery/charger completer pack (includes #2970 iD® charger (1), #2849X 4000mAh 11.1v 3-Cell 25C LiPo iD® battery (1)) |
| 2260 | BEC assembly (complete) (12.6 volts (3s LiPo) maximum input voltage) |
| 2975 | Charger, D/C, 4 amp (6 - 7 cell, 7.2 - 8.4 volt, NiMH) |
| 2972 | Charger, EZ-Peak Dual, 100W, NiMH/LiPo with iD Auto Battery Identification |
| 2973 | Charger, EZ-Peak Live Dual, 200W, NiMH/LiPo with iD Auto Battery Identification |
| 2970 | Charger, EZ-Peak Plus, 4 amp, NiMH/LiPo with iD Auto Battery Identification |
| 2971 | Charger, EZ-Peak® Live, 100W, NiMH/LiPo with iD® Auto Battery Identification |
| 2981 | Charger, EZ-Peak® Plus 4s, 8 amp, NiMH/LiPo with iD® Auto Battery Identification |
| 6525 | Communication link, telemetry expander |
| 2978 | Fuse, D/C charger, 5A (2) (for #2974, 2975, 2977) |
| 2072A | Gear set (for 2070, 2075 servos) |
| 2072X | Gear set, metal (for 2070, 2075 servos) |
| 2252 | Gear set, metal (for 2250, 2255 servos) |
| 2272 | Gear set, metal (for 2270 waterproof servo) |
| 2072R | Gear set, metal, high-speed (for 2070, 2075 servos) |
| 2968X | LiPo cell voltage checker/balancer (includes #2938X adapter for Traxxas® iD® batteries) |
| 2968 | LiPo cell voltage checker/balancer (requires #2938X adapter for Traxxas® iD® batteries) |
| 6562 | Mount, telemetry expander (requires #6730 chassis brace kit) |
| 6535 | Mount, temperature sensor (electric motors)/ wire tie/ thermal pad |
| 6533 | Receiver, micro, TQi 2.4GHz with telemetry & TSM® (5-channel) |
| 3932 | Screws, 3x6mm flat-head machine (hex drive) (6) |
| 6552 | Seal kit, expander box (includes o-ring, seals, and silicone grease) |
| 6526 | Sensor, auto-detectable, temperature |
| 6527 | Sensor, auto-detectable, voltage |
| 6520 | Sensor, RPM (long)/ 3x4mm BCS (1)/ 3x4 GS (1) |
| 6521 | Sensor, temperature and voltage (long) |
| 2254 | Servo case, aluminum (middle) (blue-anodized) (for 2250 servo) |
| 2253 | Servo case, aluminum (middle) (red-anodized) (for 2255 servo) |
| 2251 | Servo case, plastic (top, middle, bottom)/ gaskets/ hardware (for 2250, 2255 servos) |
| 2271 | Servo case/ gaskets (for 2270 waterproof servo) |
| 2074 | Servo case/gaskets (for 2056 and 2075 waterproof servos) |
| 2075R | Servo, digital high-speed, metal gear (ball bearing), waterproof |
| 2075 | Servo, digital high-torque (ball bearing), waterproof |
| 2250 | Servo, digital high-torque 300 coreless, metal gear (ball bearing), waterproof |
| 2255 | Servo, digital high-torque 400 brushless, metal gear (ball bearing), waterproof |
| 2270 | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 2075X | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 6553X | Telemetry Expander 2.0 and GPS module 2.0, TQi radio system |
| 6550X | Telemetry expander 2.0, TQi radio system (for use only with #6551X GPS module) |
| 6551X | Telemetry GPS module 2.0, TQi radio system (for use only with #6550X telemetry expander) |
| 6538 | Telemetry trigger magnet holders, spur gear/ magnet, 5x2mm (1)/ 3x8mm CCS (3)/ 3x10mm CCS (3) |
| 6540 | Telemetry trigger magnet, 5X2mm (1) |
| 6509R | TQi 2.4 GHz High Output radio system, 2-channel, Traxxas® Link enabled, TSM® (2-ch transmitter, 5-ch micro receiver) |
| 6507R | TQi 2.4 GHz High Output radio system, 4-channel with Traxxas® Link Bluetooth® module, TSM® (4-ch transmitter, 5-ch micro receiver) |
| 6528 | Transmitter, TQi Traxxas® Link enabled, 2.4GHz high output, 2- channel (transmitter only) |
| 6529 | Transmitter, TQi Traxxas® Link enabled, 2.4GHz high output, 3- channel (transmitter only) |
| 6530 | Transmitter, TQi Traxxas® Link enabled, 2.4GHz high output, 4- channel (transmitter only) |
| 6511 | Traxxas® Link Bluetooth® module |
| 3355R | VXL-3s Waterproof Electronic Speed Control (brushless) (fwd/rev/brake) |
Ready-To-Race Model
| Part # | Part |
|---|
Rear Suspension
| Part # | Part |
|---|---|
| 6823 | Bulkhead tie bars, front & rear, aluminum (blue-anodized) |
| 7429 | Bulkhead, rear |
| 3644X | Camber links, rear (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3644G | Camber links, rear (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3644R | Camber links, rear (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 1952X | Carriers, stub axle (blue-anodized 6061-T6 aluminum) (rear) (left & right)/ 3x32mm hinge pins (2)/ e-clips (6)/ hardware |
| 1952G | Carriers, stub axle (green-anodized 6061-T6 aluminum) (rear) (left & right)/ 3x32mm hinge pins (2)/ e-clips (6)/ hardware |
| 1952T | Carriers, stub axle (orange-anodized 6061-T6 aluminum) (rear) (left & right)/ 3x32mm hinge pins (2)/ e-clips (6)/ hardware |
| 1952 | Carriers, stub axle (rear) (2) |
| 1952A | Carriers, stub axle (red-anodized 6061-T6 aluminum) (rear) (left & right)/ 3x32mm hinge pins (2)/ e-clips (6)/ hardware |
| 6852A | Driveshaft assembly, rear, extreme heavy duty (1) (left or right) (fully assembled, ready to install)/ screw pin (1) |
| 6852R | Driveshafts, rear, steel-spline constant-velocity (complete assembly) (2) |
| 6738 | Shock tower, rear |
| 6738X | Shock tower, rear, 7075-T6 aluminum (blue-anodized) (1)/ body mount bracket (1) |
| 6738G | Shock tower, rear, 7075-T6 aluminum (green-anodized) (1)/ body mount bracket (1) |
| 6738R | Shock tower, rear, 7075-T6 aluminum (red-anodized) (1)/ body mount bracket (1) |
| 6853A | Stub axle assembly, rear, outer, extreme heavy duty (1) (left or right) (assembled with internal-splined half shaft) |
| 3655P | Suspension arms, blue, front/rear (left & right), heavy duty (2) |
| 3655R | Suspension arms, front/rear (left & right), heavy duty (2) |
| 3655G | Suspension arms, green, front/rear (left & right), heavy duty (2) |
| 3655T | Suspension arms, orange, front/rear (left & right), heavy duty (2) |
| 3655L | Suspension arms, red, front/rear (left & right), heavy duty (2) |
| 6834 | Suspension pin set, complete (front and rear) |
| 6898 | Sway bar kit (front and rear) (includes front and rear sway bars and adjustable linkage) |
| 3644 | Turnbuckles, camber link, 39mm (69mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right) |
Shock Oil
| Part # | Part |
|---|---|
| 5031 | Oil, shock (20 wt, 200 cSt, 60cc) (silicone) |
| 5032 | Oil, shock (30 wt, 350 cSt, 60cc) (silicone) |
| 5033 | Oil, shock (40 wt, 500 cSt, 60cc) (silicone) |
| 5034 | Oil, shock (50 wt, 600 cSt, 60cc) (silicone) |
| 5035 | Oil, shock (60 wt, 700 cSt, 60cc) (silicone) |
| 5036 | Oil, shock (70 wt, 900 cSt, 60cc) (silicone) |
| 5037 | Oil, shock (80 wt, 1,000 cSt, 60cc) (silicone) |
| 5029 | Shock oil bottle (60cc) (for mixing shock oil) |
| 5038X | Shock oil set (includes 20 wt, 30 wt, 40 wt, 50 wt, 60 wt, 70 wt, & 80 wt premium shock oils with spinning carousel rack) |
| 5038 | Spinning carousel rack |
Shocks (GTR)
| Part # | Part |
|---|---|
| 7466X | Body, GTR long (hard-anodized, PTFE-coated aluminum) (1) |
| 7466 | Body, GTR long shock, aluminum (blue-anodized) (PTFE-coated bodies) (1) |
| 7466G | Body, GTR long shock, aluminum (green-anodized) (PTFE- coated bodies) (1) |
| 7466A | Body, GTR long shock, aluminum (orange-anodized) (PTFE- coated bodies) (1) |
| 7467X | Body, GTR xx-long (hard-anodized, PTFE-coated aluminum) (1) |
| 7467 | Body, GTR xx-long shock, aluminum (blue-anodized) (PTFE- coated bodies) (1) |
| 7467G | Body, GTR xx-long shock, aluminum (green-anodized) (PTFE- coated bodies) (1) |
| 7467A | Body, GTR xx-long shock, aluminum (orange-anodized) (PTFE- coated bodies) (1) |
| 7468 | Caps and spring retainers, GTR long/xx-long shock (upper cap (2)/ hollow balls (4)/ bottom cap (2)/ upper retainer (2)/ lower retainer (2)) |
| 7463 | Rebuild kit, GTR long/xx-long shocks (x-rings, bladders, pistons, piston nuts, shock rod ends, hollow balls) (renews 2 shocks) |
| 5469 | Rod ends (GTR shocks) |
| 7464T | Shaft, GTR long, TiN-coated (2) |
| 7465T | Shaft, GTR xx-long, TiN-coated (2) |
| 7461 | Shocks, GTR long blue-anodized, PTFE-coated bodies with TiN shafts (fully assembled, without springs) (2) |
| 7461G | Shocks, GTR long green-anodized, PTFE-coated bodies with TiN shafts (fully assembled, without springs) (2) |
| 7461X | Shocks, GTR long, hard-anodized, PTFE-coated bodies with TiN shafts (assembled) (2) (without springs) |
| 7462 | Shocks, GTR xx-long blue-anodized, PTFE-coated bodies with TiN shafts (fully assembled, without springs) (2) |
| 7462G | Shocks, GTR xx-long green-anodized, PTFE-coated bodies with TiN shafts (fully assembled, without springs) (2) |
| 7462X | Shocks, GTR xx-long, hard-anodized, PTFE-coated bodies with TiN shafts (assembled) (2) (without springs) |
| 7440 | Spring, shock, white (GTR long) (0.623 rate orange) (1 pair) |
| 7441 | Spring, shock, white (GTR long) (0.653 rate green) (1 pair) |
| 7444 | Spring, shock, white (GTR long) (0.767 rate black) (1 pair) |
| 7445 | Spring, shock, white (GTR long) (0.810 rate pink) (1 pair) |
| 7448 | Spring, shock, white (GTR long) (0.892 rate blue) (1 pair) |
| 7442 | Spring, shock, white (GTR xx-long) (0.711 rate orange) (1 pair) |
| 7443 | Spring, shock, white (GTR xx-long) (0.762 rate green) (1 pair) |
| 7446 | Spring, shock, white (GTR xx-long) (0.874 rate black) (1 pair) |
| 7447 | Spring, shock, white (GTR xx-long) (0.884 rate pink) (1 pair) |
| 7449 | Spring, shock, white (GTR xx-long) (1.004 rate blue) (1 pair) |
Shocks (Pro-level Aluminum)
| Part # | Part |
|---|---|
| 2664 | Big Bore shock cylinder (long) (1) |
| 5862 | Big Bore shocks (hard-anodized & PTFE-coated T6 aluminum) (assembled with TiN shafts and springs) (front & rear) (4) |
| 2660 | Big-bore shocks (long) (hard-anodized & PTFE-coated T6 aluminum) (assembled with TiN shafts) w/o springs (rear) (2) |
| 2662 | Big-bore shocks (xx-long) (hard-anodized & PTFE-coated T6 aluminum) (assembled with TiN shafts) w/o springs (rear) (2) |
| 2669 | Piston head set (2-hole (2)/ 3-hole (2))/ shock mounting bushings & washers (2) (Big Bore Shocks) |
| 1942 | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 2742X | Rod ends, short (6)/ hollow balls (6) |
| 2667 | Shock caps, aluminum (2) (Big Bore Shocks) |
| 2362 | Shock rebuild kit (for 2 shocks) |
| 1664T | Shock shafts, hardened steel, titanium nitride coated (long) (2) |
| 2656T | Shock shafts, hardened steel, titanium nitride coated (xx-long) (2) |
| 1664 | Shock shafts, steel, chrome finish (long) (2) |
| 2656 | Shock shafts, steel, chrome finish (xx-long) (2) |
| 1765 | Silicone diaphragms (4) |
| 2668 | Spring retainers, upper & lower (2)/ spring pre-load spacers: 1mm (4)/ 1.5mm (2)/ 2mm (2)/ 4mm (2)/ 8mm (2) (Big Bore Shocks) |
| 6863 | Springs, front (progressive, +10% rate, pink) (2) |
| 6864 | Springs, front (progressive, +20% rate, blue) (2) |
| 6862 | Springs, front (progressive, -10% rate, green) (2) |
| 6861 | Springs, front (progressive, -20% rate, orange) (2) |
| 6857 | Springs, front (white) (progressive rate) (2) |
| 6867 | Springs, rear (progressive, +10% rate, pink) (2) |
| 6868 | Springs, rear (progressive, +20% rate, blue) (2) |
| 6866 | Springs, rear (progressive, -10% rate, green) (2) |
| 6865 | Springs, rear (progressive, -20% rate, orange) (2) |
| 6858 | Springs, rear (white) (progressive rate) (2) |
Shocks (Ultra Shocks)
| Part # | Part |
|---|---|
| 3642 | Attachment screws, shock (3x12mm shoulder screws) (6) |
| 3765A | Body, Ultra Shock (long) (grey) (2) |
| 3766A | Body, Ultra Shock (XXL) (grey) (2) |
| 5475 | Multi-tool (plastic) |
| 1942 | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 2742X | Rod ends, short (6)/ hollow balls (6) |
| 3767 | Shock caps (2)/ shock bottoms (2) |
| 8361 | Shock caps (black) (4) (assembled with hollow balls) |
| 3767A | Shock caps, aluminum (blue-anodized) (4) (fits all Ultra Shocks) |
| 3767G | Shock caps, aluminum (green-anodized) (4) (fits all Ultra Shocks) |
| 3767T | Shock caps, aluminum (orange-anodized) (4) (fits all Ultra Shocks) |
| 3767P | Shock caps, aluminum (pink-anodized) (4) (fits all Ultra Shocks) |
| 3767X | Shock caps, aluminum (red-anodized) (4) (fits all Ultra Shocks) |
| 2362 | Shock rebuild kit (for 2 shocks) |
| 1664T | Shock shafts, hardened steel, titanium nitride coated (long) (2) |
| 2656T | Shock shafts, hardened steel, titanium nitride coated (xx-long) (2) |
| 1664 | Shock shafts, steel, chrome finish (long) (2) |
| 2656 | Shock shafts, steel, chrome finish (xx-long) (2) |
| 1765 | Silicone diaphragms (4) |
| 3769 | Spring pre-load spacers: 1mm (4)/ 2mm (2)/ 4mm (2)/ 8mm (2) |
| 3768 | Spring retainers, upper & lower (2)/ piston head set (2-hole (2)/ 3-hole (2)) |
| 6863 | Springs, front (progressive, +10% rate, pink) (2) |
| 6864 | Springs, front (progressive, +20% rate, blue) (2) |
| 6862 | Springs, front (progressive, -10% rate, green) (2) |
| 6861 | Springs, front (progressive, -20% rate, orange) (2) |
| 6857 | Springs, front (white) (progressive rate) (2) |
| 6867 | Springs, rear (progressive, +10% rate, pink) (2) |
| 6868 | Springs, rear (progressive, +20% rate, blue) (2) |
| 6866 | Springs, rear (progressive, -10% rate, green) (2) |
| 6865 | Springs, rear (progressive, -20% rate, orange) (2) |
| 6858 | Springs, rear (white) (progressive rate) (2) |
| 3760 | Ultra Shocks (black) (long) (complete w/ spring pre-load spacers & springs) (front) (2) |
| 3762 | Ultra Shocks (black) (xx-long) (complete w/ spring pre-load spacers & springs) (rear) (2) |
| 3760A | Ultra Shocks (grey) (long) (complete w/ spring pre-load spacers & springs) (2) |
| 3762A | Ultra Shocks (grey) (xx-long) (complete w/ spring pre-load spacers & springs) (rear) (2) |
Slipper Clutch Components
| Part # | Part |
|---|---|
| 5119A | Ball bearings, black rubber sealed (10x15x4mm) (2) |
| 6893X | Bearing adapter, 6061-T6 aluminum (blue-anodized) (1)/10x15x4mm ball bearing (black rubber sealed) (1) (for slipper shaft) |
| 6893G | Bearing adapter, 6061-T6 aluminum (green-anodized) (1)/ 10x15x4mm ball bearing (black rubber sealed) (1) (for slipper shaft) |
| 6888 | Drive hub, center, rear (1)/ 4x3 GS (1) |
| 6888X | Drive hub, front, hardened steel (1)/ screw pin (1) |
| 6883 | Gear set, center differential (output gears (2)/ spider gears (2)/ spider gear shaft) |
| 6884 | Housing, center differential/ x-ring gaskets (2)/ ring gear gasket/ bushings (2)/ 5x10x0.5 TW (2)/ CCS 2.5x8 (4) |
| 6893 | Input shaft (slipper shaft)/ bearing adapter (1)/ pin (1) |
| 5352R | Rebuild kit (heavy duty), slipper clutch (steel disc/ aluminum friction pads (3)/ spring (1)/ 2x9.8mm pin/ 5x8mm MW/ 5.0mm NL (1)/ 4.0mm NL (1)) |
| 5352X | Rebuild kit, slipper clutch (steel disc/ friction pads (3)/ spring (1)/ 2x9.8mm pin/ 5x8mm MW/ 5.0mm NL (1)/ 4.0mm NL (1)) |
| 5552X | Rebuild kit, slipper clutch (steel disc/ friction pads (3)/ spring (2)/ pin/ 4.0mm NL (1)/ 5.0mm NL (1)) |
| 2554 | Screws, 3x6mm caphead machine (hex drive) (6) |
| 6878 | Slipper clutch, complete (for Slash 4x4) |
| 5556 | Slipper pressure plate & hub (aluminum alloy) |
| 5351 | Slipper pressure plate and hub (alloy) |
Spur Gears & Pinion Gears
| Part # | Part |
|---|---|
| 7477 | Cover, gear/ wire retainer |
| 6790 | Gear adapters, fixed, Rustler® 4x4 |
| 6747 | Gear, 11-T pinion (32-p) (steel) (fits 3mm shaft)/ set screw |
| 3942X | Gear, 12-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| 3943X | Gear, 13-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| 3944X | Gear, 14-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| 3945X | Gear, 15-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| 3946X | Gear, 16-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| 3947X | Gear, 17-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| 3948X | Gear, 18-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| 3949X | Gear, 19-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| 3950X | Gear, 20-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| 3951X | Gear, 21-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| 3952X | Gear, 22-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| 6745 | Gear, 9-T pinion (32-p) (steel) (fits 3mm shaft)/ set screw |
| 6842 | Spur gear, 50-tooth (0.8 metric pitch, compatible with 32-pitch) |
| 6842R | Spur gear, 50-tooth (0.8 metric pitch, compatible with 32-pitch) (for Slash 4x4 center differential) |
| 6843 | Spur gear, 52-tooth (0.8 metric pitch, compatible with 32-pitch) |
| 6843R | Spur gear, 52-tooth (0.8 metric pitch, compatible with 32-pitch) (for Slash 4x4 center differential) |
| 3956 | Spur gear, 54-tooth (0.8 metric pitch, compatible with 32-pitch) |
| 3956R | Spur gear, 54-tooth (0.8 metric pitch, compatible with 32-pitch) (for center differential) |
| 3956X | Spur gear, steel, 54-tooth (0.8 metric pitch, compatible with 32- pitch) (for center differential) |
Steering Components
| Part # | Part |
|---|---|
| 1552 | 3x8mm Hex Cap Screws (6)/ Washers (6)/ Wrench (1) |
| 5114 | Ball bearings, blue rubber shield (5x8x2.5mm) (2) |
| 6845A | Drag link, machined 6061-T6 aluminum (blue-anodized) |
| 6845G | Drag link, machined 6061-T6 aluminum (green-anodized) |
| 6845T | Drag link, machined 6061-T6 aluminum (orange-anodized) |
| 6845R | Drag link, machined 6061-T6 aluminum (red-anodized) |
| 7438 | Linkage, steering |
| 2742X | Rod ends, short (6)/ hollow balls (6) |
| 6845X | Steering bellcranks/ servo saver/ servo saver spring/ servo spring retainer/servo horn, steering |
| 6742 | Toe link, front & rear (molded composite) (2)/ hollow balls (4) (87mm center to center) |
| 6742X | Toe links (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1) |
| 6742G | Toe links (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1) |
| 6742R | Toe links (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1) |
| 2746 | Washers, 3x6mm metal (12) |
Suspension Linkage
| Part # | Part |
|---|---|
| 2537 | 3mm threaded rods: 1 each of 20mm,25mm&44mm |
| 3643X | Camber links, front (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3643G | Camber links, front (TUBES green-anodized, 7075-T6 aluminum, stronger than Titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3643R | Camber links, front (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3644X | Camber links, rear (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3644G | Camber links, rear (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3644R | Camber links, rear (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 5525 | Rod ends (12)/ hollow balls (12) |
| 3739 | Screw pin set (Rustler®/ Bandit/ Stampede®) |
| 6834 | Suspension pin set, complete (front and rear) |
| 6742 | Toe link, front & rear (molded composite) (2)/ hollow balls (4) (87mm center to center) |
| 6742X | Toe links (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1) |
| 6742G | Toe links (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1) |
| 6742R | Toe links (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1) |
| 3644 | Turnbuckles, camber link, 39mm (69mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right) |
| 3643 | Turnbuckles, camber link, 49mm (82mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right) |
| 5539 | Turnbuckles, camber links, 58mm (assembled with rod ends and hollow balls) (2) |
Team Traxxas Items
| Part # | Part |
|---|---|
| 2514 | Decal sheet, racing sponsors |
| 6160X | DVD, Maxx® Power! Full Throttle Action (sleeve) |
| 9950 | Official Team Traxxas® racing decal set(flag logo/ 6-color) |
| 9909 | Traxxas® racing banner, red & black (3x7 feet) |
Tires & Wheels
| Part # | Part |
|---|---|
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 3647 | Nuts, 4mm flanged nylon locking (steel, serrated) (8) |
| 1747R | Nuts, aluminum, flanged, serrated (4mm) (blue-anodized) (4) |
| 1985 | PTFE-coated Washers, 5x8x0.5mm (20) (use with ball bearings) |
| 1647 | Silicone Grease |
| 2754 | Stub axle pins (4) |
| 4175 | Tires & wheels, assembled, glued (2.8") (All-Star black chrome wheels, paddle tires, foam inserts) (nitro rear/electric front) (2) (TSM® rated) |
| 6775X | Tires & wheels, assembled, glued (2.8") (RXT black & chrome wheels, Anaconda tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated) |
| 6773X | Tires & wheels, assembled, glued (2.8") (RXT black chrome wheels, Talon EXT tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated) |
| 6775 | Tires & wheels, assembled, glued (2.8") (RXT black wheels, Anaconda tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated) |
| 6773 | Tires & wheels, assembled, glued (2.8") (RXT black wheels, Talon EXT tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated) |
| 6775G | Tires & wheels, assembled, glued (2.8") (RXT green wheels, Anaconda tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated) |
| 6773G | Tires & wheels, assembled, glued (2.8") (RXT green wheels, Talon EXT tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated) |
| 6775A | Tires & wheels, assembled, glued (2.8") (RXT orange wheels, Anaconda tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated) |
| 6773A | Tires & wheels, assembled, glued (2.8") (RXT orange wheels, Talon EXT tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated) |
| 6773R | Tires & wheels, assembled, glued (2.8") (RXT satin chrome wheels, Talon EXT tires, foam inserts) (4WD electric front/rear, 2WD electric front only) (2) (TSM rated) |
| 6792 | Tires & wheels, assembled, glued (black 2.8" wheels, Sledgehammer® tires, foam inserts) (2) (TSM® rated) |
| 6769 | Tires, Talon EXT 2.8" (2)/ foam inserts (2) |
| 1654 | Wheel hubs, hex (2)/ stub axle pins (2) |
| 1654X | Wheel hubs, hex (blue-anodized, lightweight aluminum) (2)/ axle pins(2) |
| 6772 | Wheels, RXT 2.8" (black) (2) |
Traxxas Tools
| Part # | Part |
|---|---|
| 3433X | Body reamer (aluminum handle) |
| 3433 | Body reamer (plastic handle) |
| 3436 | Cap, body reamer |
| 3432 | Scissors, curved tip |
| 3431 | Scissors, straight tip |
| 8712 | Speed Bit Essentials Set, hex and nut driver, 7-piece, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm) and nut drivers (5.0mm, 5.5mm, 7.0mm, and 8.0mm), 1/4” drive |
| 8720 | Speed bit handle, large (overmolded) |
| 8721 | Speed bit handle, medium (one piece) |
| 8722 | Speed bit handle, premium (rubber overmold) |
| 8710 | Speed Bit Master Set, hex and nut driver, 13-piece, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm, 3.0mm), (ball-end: 2.0mm, 2.5mm, 3.0mm), and nut drivers (4.0mm, 4.5mm, 5.0mm, 5.5mm, 7.0mm, 8.0mm), 1/4” drive |
| 8711 | Speed Bit Master Set, hex driver, 7-piece straight and ball end, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm, 3.0mm) (ball end: 2.0mm, 2.5mm, 3.0mm), 1/4" drive |
| 8719 | Speed Bit Master Set, nut driver, 6-piece, includes premium handle (medium), travel pouch, and nut drivers (4.0mm, 4.5mm, 5.0mm, 5.5mm, 7.0mm, 8.0mm), 1/4" drive |
| 8716 | Speed Bit Set, hex driver, 2-piece ball-end (2.0mm, 2.5mm), 1/4" drive |
| 8716X | Speed Bit Set, hex driver, 3-piece ball-end (2.0mm, 2.5mm, 3.0mm) 1/4" drive |
| 8715 | Speed Bit Set, hex driver, 3-piece straight (1.5mm, 2.0mm, 2.5mm), 1/4" drive |
| 8715X | Speed Bit Set, hex driver, 4-piece straight (1.5mm, 2.0mm, 2.5mm, 3.0mm), 1/4" drive |
| 2748R | Tool set (includes 1.5mm hex wrench / 2.0mm hex wrench / 2.5mm hex wrench/ 4-way wrench/ 8mm & 4mm wrench/ U-joint wrench) |
| 3415 | Tool set with pouch (includes 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4mm drivers/4mm. 5mm, 5.5mm, 7mm, and 8mm nut drivers/ 2mm, 3mm, and 4mm slotted screwdrivers/ #00 Phillips, #0 Phillips, and #1 Phillips screwdrivers/ 4mm and 8mm wrenches/ driver handle) |
Turnbuckles & Threaded Rods
| Part # | Part |
|---|---|
| 3643X | Camber links, front (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3643G | Camber links, front (TUBES green-anodized, 7075-T6 aluminum, stronger than Titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3643R | Camber links, front (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (83mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3644X | Camber links, rear (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3644G | Camber links, rear (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 3644R | Camber links, rear (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (73mm) (2)/ rod ends (4)/ aluminum wrench (1) (#2579 3x15 BCS (4) required for installation) |
| 5525 | Rod ends (12)/ hollow balls (12) |
| 6742 | Toe link, front & rear (molded composite) (2)/ hollow balls (4) (87mm center to center) |
| 6742X | Toe links (TUBES blue-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1) |
| 6742G | Toe links (TUBES green-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1) |
| 6742R | Toe links (TUBES red-anodized, 7075-T6 aluminum, stronger than titanium) (87mm) (2)/ rod ends (4) aluminum wrench (1) |
| 3644 | Turnbuckles, camber link, 39mm (69mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right) |
| 3643 | Turnbuckles, camber link, 49mm (82mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right) |
| 5539 | Turnbuckles, camber links, 58mm (assembled with rod ends and hollow balls) (2) |
Need different gearing for the pinion/spur combo above? Use the gear ratio calculator to dial in your final drive ratio.
Part numbers from Traxxas’ official Rustler 4X4 VXL (Model 67076-4) Parts List, which covers the Rustler 4X4 VXL and mixes stock spares with optional accessories. Some links above are affiliate links that support the site.
