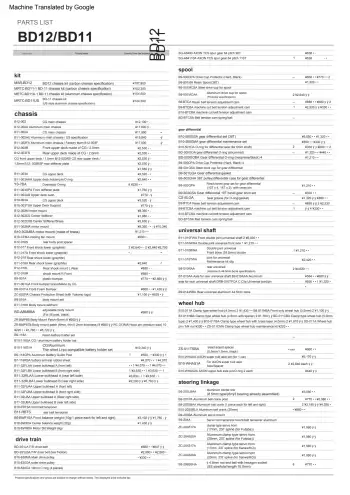

| Part number | Part name |
|---|---|
| MSR-BD12 | BD12 chassis kit (carbon chassis specification) |
| MRTC-BD11-1 | BD-11 chassis kit (carbon chassis specification) |
| MRTC-BD11A-1 | BD-11 chassis kit (aluminum chassis specification) |
| MRTC-BD11US | BD-11 chassis kit (US style aluminum chassis specification) |
| B12-002 | CG main chassis |
| B12-002A | Aluminum main chassis |
| B11-002A | CG main chassis |
| B11-002AU | Aluminum main chassis / US specification |
| B11-002FA | Aluminum main chassis / Factory team B12-003F |
| B12-003R | Front upper deck made of CG / 2.0mm |
| B12-003FS | Rear upper deck made of CG / 2.0mm |
| CG front upper deck / 1.5mm B12-003RS CG rear upper deck / 1.5mm B12-003RSP rear stiffener plate | |
| B11-003A | CG upper deck |
| B11-003AH | Upper deck holder/pin/O ring |
| YS-7BA | Downstop O-ring |
| B11-003SPA | Front stiffener plate |
| B11-003UB | Upper deck bush |
| B00-003A | CG upper deck |
| B11-003TSA | Upper Deck Support |
| B12-302M | motor mount |
| B12-302CS | Center Stiffener |
| B12-302CS2 | Center Stiffener/Brass |
| B11-302MA | motor mount |
| B10-302MBA | motor mount (made of brass) |
| B10-CFMA | CFMA cooling fan mount |
| B12-016S | rear body post spacer |
| B12-017 | Front shock tower (graphite) |
| B11-017A | Front shock tower (graphite) |
| B12-018 | Rear shock tower (graphite) |
| B11-018A | Rear shock tower (graphite) |
| B12-018L | Rear shock mount L Rear |
| B12-018R | shock mount R Front |
| B9-001A | plastic bumper |
| B11-001GA | Front bumper brace/Made by CG |
| B9-001FA | Front Foam Bumper |
| ZC-002PA | Chassis Protective Sheet (with Yokomo logo) |
| B9-016A | body mount set |
| B11-016H | Body mount set/hard adjustable body mount (For y6 post, black) |
| ZR-BMP6B | Body Mount Patch (6mm) |
| ZR-BMP6TB | Body mount patch (6mm, thin 0.2mm thickness) R-C3-313MA Hood pin (medium size) 10 |
| B9-118A | Resin battery holder set |
| B10-118GA1 | CG / aluminum battery holder set Thin short Li-po compatible battery holder set |
| B9-118GPA | Aluminum Battery Guide Post |
| B7-118RSA | Battery anti-slip rubber sheet |
| B11-32FLAA | Lower bulkhead A (front left) |
| B11-32FLBA | Lower bulkhead B (front right side) |
| B11-32RLA | Lower bulkhead A (rear left side) |
| B11-32RLBA | Lower bulkhead B (rear right side) |
| B11-32FUAA | Upper bulkhead A (front left) |
| B11-32FUBA | Upper bulkhead B (front right side) |
| B11-32UAA | Upper bulkhead A (Rear right side) |
| B11-32UBA | Upper bulkhead B (rear left side) |
| B10-FBTSA | front belt tensioner |
| B11-RBTS | rear belt tensioner |
| B9-BWF10A | Front balance weight (10g/1 piece each for left and right) |
| B10-BW20A | Center balance weight (20g) |
| B10-BWM5A | Motor Slit Weight (6g) |
| BD-351LA | F/R drive belt |
| BD-351LBA | F/R drive belt (low friction) |
| B10-630MA | Main drive pulley |
| B10-630OA | outer drive pulley |
| B10-630CA | 10mm C ring (4 pieces) |
| SG-A6490 | AXON TCS spur gear 64 pitch 90T |
| SG-A64110A | AXON TCS spur gear 64 pitch 110T |
| B9-500DPA | Drive Cup Protector (Hard, Black) |
| B9-501MA | Resin Spool (38T) |
| B9-501MCSA | Steel drive cup for spool |
| B9-501MCAA | Aluminum drive cup for spool (Protector specifications) |
| B9-BTCA | Resin belt tension adjustment cam |
| B9-BTCBA | machine cut belt tension adjustment cam |
| B10-BTCBA | machine cut belt tension adjustment cam |
| BD-BTCSA | Belt tension cam spring/ball |
| B10-500GSA | gear differential set (38T) |
| B10-500GMA | gear differential maintenance set |
| B10-501OA | O-ring for differential axle (for 5mm shaft) |
| BD-500GOA | Gear differential O-ring (silicon/rod) |
| BD-500GOBA | Gear differential O-ring (neoprene/black) 4 |
| B9-500DPA | Drive Cup Protector (Hard, Black) 4 |
| B9-501GSA | Steel drive cup for gear differential |
| B9-501GGA | Gear differential gasket |
| B9-503GHA | 38T pulley/differential case for gear differential |
| B9-503GPA | Resin bevel gear set for gear differential (10T x 4, 18T x 2), with cross pin |
| B9-503GSA | Gear differential 10T bevel gear shim set |
| CS-SLGA | Seal grease (for O-ring/gasket) |
| B9-BTCA | Resin belt tension adjustment cam |
| B9-BTCBA | machine cut belt tension adjustment cam |
| B10-BTCBA | machine cut belt tension adjustment cam |
| BD-BTCSA | Belt tension cam spring/ball |
| B11-010FWA | Front double joint universal shaft |
| B11-010AWA | Double joint universal front axle 1 |
| B11-010BWA | Double joint universal Front bone (39.5mm) double joint for universal Maintenance kit clip |
| B9-010RAA | rear universal (Aluminum 44.5mm bone specification) |
| B7-010AA | Axle for rear universal shaft B9-010AAA Aluminum axle for rear universal shaft DRB-010PCA C Clip Universal joint/pin |
| B9-01445BA | Rear universal aluminum 44.5mm bone |
| B10-011A | Clamp type wheel hub (4.0mm) 2 |
| B8-011NBA | Front only wheel hub (3.5mm) 2 |
| B7-011NBA | Clamp type wheel hub (4.5mm with spacer) 2 |
| B10-011BA | Clamp type wheel hub (5.0mm type) 2 |
| B10-011BA | Clamp type wheel hub with brass laser (4.0mm) 2 |
| SD-011A | Wheel hub pin / M4 nut 330 |
| ZS-011CMA | Clamp type wheel hub maintenance kit 220 |
| ZS-011TSBA | tread adjust spacer (0.5mm/1.0mm, black) 4 each |
| B10-WHASA | AXON super hub axle set (for 1 car) |
| B10-WHAS1A | For AXON super hub axle Axle/Spacer |
| B10-WHAS2A | AXON super hub axle pin/O ring 2 each |
| B9-201LBAA | aluminum center link (8.5mm type/y6xy3 bearing already assembled) |
| B9-201PA | Aluminum bell crank post |
| B9-202SBA | Aluminum bell crank (1 piece each for left and right) |
| B10-202SBLA | Aluminum bell crank (20mm) |
| B9-203BA | Aluminum servo mount |
| ZC-204517A | Servo horn/antenna mount/belt tensioner aluminum clamp type servo horn (17mm, 25T spline (for Futaba)) |
| ZC-204520A | Aluminum clamp type servo horn (20mm, 25T spline (for Futaba)) |
| ZC-204317A | Aluminum clamp type servo horn (17mm, 23T spline (for Sanwa/KO)) |
| ZC-204320A | Aluminum clamp type servo horn (20mm, 23T spline (for Sanwa/KO)) |
| B8-206SSHA | 4.8mm rod end ball with hexagon socket (SS size/total length 10.0mm) 6 |
| B8-206SHA | 4.8mm rod end ball with hexagon socket (S size/total length 11.5mm) 6 |
| B8-206MBA | 4.8mm rod end ball with hexagon socket (M size/total length 13.0mm) 6 |
| B9-207A | 4.8mm ball end cap (hard) 18 |
| B11-008FLA | Front lower suspension arm L (made of graphite) |
| B11-008FRA | Front lower suspension arm R (made of graphite) |
| B11-008FL1 | Front lower suspension arm L (made of graphite) + 0.5mm |
| B11-008FR1 | Front lower suspension arm R (made of graphite) / +0.5mm |
| B11-008RLA | Rear lower suspension arm L (made of graphite) |
| B11-008RRA | Rear lower suspension arm R (made of graphite) |
| B11-008RL1 | Rear lower suspension arm L (made of graphite) / - 1mm |
| B11-008RR1 | Rear lower suspension arm R (graphite) / - 1mm |
| B11-008FHA | Front suspension arm pin holder |
| B11-008RHA | Rear suspension arm pin holder |
| B11-008A | Suspension parts set (shock mount/set front outer suspension arm pin) |
| B9-009AFA | (y 3 x 23mm, stepped type) |
| B9-009AFTA | Titanium front outer suspension arm pin (y 3 x 23mm, stepped type) |
| B9-009ARA | Rear outer suspension arm pin (y 3 x 25mm, stepped type) |
| B9-009ARTA | Titanium rear outer suspension arm pin (y 3 x 25 mm, stepped type) |
| B11-B50A | Suspension ball y 5 mm 4 |
| ZC-411A | mm E-ring with |
| B8-206MHA | hexagon socket y 4.8 mm Rod end ball (M size/total length 13.0mm) |
| B8-206SHA | hexagon socket (S size/Total length |
| B9-207A | 4.8mm Ball end cap (hard) |
| B12-413G | Made of graphite Front steering hub carrier (4 degrees) made of graphite |
| B9-413GA | Front steering hub carrier (4 degrees) |
| B12-413SP | Body Stiffener Plate y 4.8mm |
| B9-414BA | Kingpin Ball |
| B9-414CSA | Kingpin Collar (S) B9-414CLA |
| B9-415SGA | Kingpin Collar (L) B9-415SGA Graphite |
| B9-415SA | Steering Block B9-415SA Steering Block B10-RTC-3A Aluminum Hub Carrier for RTC (2 degrees) |
| B11-RTC-3 | Aluminum hub carrier for RTC (4 degrees) |
| B10-RTC-4A | Aluminum Steering Block for RTC Graphite |
| B11-RTC-5A | Steering block plate for RTC B7-SS05A |
| B11-S9T | Suspension mount spacer (0.5mm L x 2 / S x 4) B7-SS10A Suspension mount spacer (1.0mm L x 2 / S x 4) B11-S9T Titanium lower shock mount |
| B10-SSS20A | Hibg Bore Short Shock (4 pieces per car) |
| B12-S2B | Shock shaft guide (4 pieces) |
| B11-S2BA | Shock shaft guide (4 pieces) |
| B12-S4S | Shock cylinder/HVF coat |
| B10-S4SA | shock cylinder (2 HVF coated) |
| B12-S5S | Shock shaft (19.1mm / 2 pieces) |
| B10-S5SA | Shock shaft (1 piece) 2.0 y Clip B10-ZC-410A S7SA Oil bleed O-ring (4 each M/L) B10-S8DA Shock diaphragm B9-S114A |
| B9-S116A | 1.1 x 4 holes Piston |
| B12-S3S | 1.1 x 6 holes Large diameter |
| B7-S3S16A | Piston Spring cup (bearing specification) |
| B12-S4C1 | Spring cup for SLF short |
| B12-S4C1 | Upper shock cap nut |
| B9-S4C1A | Shock Cap Nut (Laser Engraved) |
| B12-S4AJ | Adjust Nut / AJ O-ring |
| B11-S4CA | Adjust nut/O ring |
| B9-S4C2A | O-ring cap/adjust nut/ O-ring for adjustment nut |
| B12-S6 | Shock cap/shock end Shock cap/ |
| B9-S6A | end Shock cap/ball for |
| B7-S8HA | shock end Shock cap/ball for shock end (lubricating hard coat) |
| B7-S8HA | Silicone diaphragm for B7-8DS16A SLF Short II |
| B7-8DF16 | Fluororubber diaphragm for SLF Short II |
| B9-SSS192 | Short shock set |
| B10-SSP24A | Progressive F shock spring (2.40-2.90) 19.5 mm |
| B10-SSP23A | progressive R shock spring (2.30-3.00) 19.5mm shock |
| B9-SSL260A | spring (Linear 2.60 / Total length |
| B9-SSL265A | 20.0mm) Shock spring (Linear 2.65 / Total length |
| B9-SSL270A | 20.0mm) Shock spring (Linear 2.70 / Total length |
| B9-SLF260A | 20.0mm) Shock spring (Linear 2.60/For front/Total length 18.5mm) |
| B9-SLF270A | Shock spring (Linear 2.70/For front/Total length 18.5mm) |
| B9-SLF280A | Shock spring (Linear 2.80/For front/Total length 18.5mm) |
| B9-SSP240A | Shock spring (Progressive 2.40 ~ 2.70 / Total length 19.5mm) |
| B9-SSP245A | Shock spring (Progressive 2.45 ~ 2.75 / Total length 19.5mm) |
| B9-SSP250A | Shock spring (Progressive 2.50 to 2.80 / Total length 19.5mm) |
| B10-SSP20A | Shock spring (Progressive 2.00-2.30 20.0mm) |
| B11-412F1A | Front stabilizer wire y 1.1 B11-412F2A Front stabilizer wire y 1.1 B11-412F2A Front stabilizer wire y 1.1 3 B11-412F4A Front stabilizer wire y 1.4 |
| B11-412F2A | Front stabilizer wire hard y 1.2 B11-412F3H Front stabilizer wire hard y 1.3 B11-412F4H Front stabilizer wire hard y 1.4 B11-412R1A Rear stabilizer wire y 1.1 B11-412R2A Rear stabilizer wire y 1.2 B11-412R3A Rear stabilizer wire y 1.3 B11-412R4A Rear stabilizer wire y 1.4 B11-412R2H Rear stabilizer wire hard y 1.2 B11-412R3H Rear stabilizer wire hard y 1.3 B11-412R4H Rear stabilizer wire hard y 1.4 |
| B11-412MAA | Aluminum stabilizer mount A (Front left side/Rear right side) |
| B11-412MBA | Aluminum stabilizer mount B (Front right side / Rear left side) |
| B11-412OA | O-ring for stabilizer wire |
| B9-412REA | Stabilizer rod end plastic parts |
| B9-TB20AA | Aluminum Turnbuckle 20mm |
| B9-TB30AA | Aluminum Turnbuckle 20mm |
| B9-TB39AA | Aluminum Turnbuckle 39mm |
| SD-TB20A | turnbuckle (20mm, steel) |
| SD-TB30A | turnbuckle (30mm, steel) |
| SD-TB39A | turnbuckle (39mm, steel) |
| ZC-TBC30 | Titanium Turnbuckle 20mm |
| ZC-TBC30T | Titanium Turnbuckle 30mm |
| ZC-TBC39C | Titanium Turnbuckle 39mm |
| SD-TBLA | Turnbuckle wrench (for steel) |
| KLD-WA | Turnbuckle wrench (for aluminum) |
| BB-1280PA | super precision bearing 8 x 12.0 x 3.5mm |
| BB-730-4A | Bearing (y7xy3) |
| BB-850PA | Super Precision Bearing (y 8 x y 5) |
| BB-1050PA | Super Precision Bearing (y 10 x y 5) |
| BB-1050CBA | Ceramic ball bearing (y 10 x y 5) |
| BB-106-2A | Bearing (y 10 x y 6) |
| BB-106-4A | Bearing (y 10 x y 6) |
| BB-1060PA | Super Precision Bearing (y 10 x y 6) |
| BB-1510PA | super precision bearing (y15 x y10) |
| BB-1510CBA | Ceramic ball bearing (y 15 x y 10) |
| ZC-A3605BA | 3 x y 6 x 0.5mm aluminum shim |
| A3610BA | 3 x y 6 x 1.0mm aluminum shim |
| ZC-A3615BA | 3 x y 6 x 1.5mm Aluminum shim |
| A3620BA | 3 x y 6 x 2.0mm Aluminum shim |
| A3625BA | 3 x y 6 x 2.5mm Aluminum shim |
| A3815BA | 3 x y 8 x 1.5mm Aluminum shim |
| A3820BA | 3 x y 8 x 2.0mm Aluminum shim |
| S310A | 3.1 x 5.0 x 0.2mm Stainless steel shim ZC-S320A |
| ZC-S40SA | Stainless steel spacer shim inner diameter y 4.0mm (Thickness 0.05mm/0.10mm/0.20mm) |
| ZC-S50SA | Stainless steel spacer shim Inner diameter y 5.0mm (Thickness 0.05mm, 0.10mm, 0.20mm) |
| ZC-S60SA | Stainless steel spacer shim Inner diameter y 6.0mm (Thickness 0.05mm/0.10mm/0.20mm) |
| ZC-S100SA | Stainless steel spacer shim Inner diameter y 10.0mm (Thickness 0.05mm, 0.10mm, 0.20mm) |
| ZC-C25NA | M2 x 5mm cap screw (y 2.9mm head) M2 |
| ZC-F28TPHA | 8mm flat head Tapping screw (with hexagonal socket, for gear differential) ZC-BH26A Button head screw (M2 x 6mm) ZC-BH254A Button head screw (M2.5 x 4mm) ZC-BH256A Button head screw (M2.5 x 6mm) ZC-BH35A Button head screw (M3 x 5mm) ZC-BH36-A Button head screw (M3 x 6mm) ZC-BH38-A Button head screw (M3 x 8mm) ZC-BH310A Button head screw (M3 x 10mm) ZC-BH312A Button head Head Screw (M3 x 12mm) ZC-BH36AA Aluminum Button Head Screw (M3 x 6mm) ZC-BH38AA Aluminum Button Head Screw (M3 x 8mm) ZC-BH36TA Titanium Button Head Screw (M3 x 6mm) ZC-BH38TA Titanium Button head screw (M3 x 8mm) |
| ZC-BH310TA | Titanium button head screw (M3 x 10mm) |
| RP-041-06A | High precision cutting titanium button head screw (M3 x 6mm) |
| RP-041-08A | High precision milled titanium button head screw (M3 x 8mm) |
| RP-041-10A | High precision milled titanium button head screw (M3 x 10mm) |
| ZC-F26A | Flat head screw (M2 x 6mm) |
| ZC-F36A | Flat head screw (M3 x 6mm) Flat head screw (M3 x 8mm) Flat head screw (M3 x 10mm) Flat head screw (M3 x 12mm) Flat head screw (M3 x 15mm) Flat head screw (M3 x 18mm) |
| ZC-F36TA | Aluminum flat head screw (M3 x 6mm) |
| ZC-F38TA | Titanium flat head screw (M3 x 6mm) |
| ZC-F310TA | Titanium flat head screw (M3 x 10mm) |
| ZC-F312TA | Titanium flat head screw (M3 x 12mm) |
| ZC-F315TA | Titanium flat head screw (M3 x 15mm) |
| ZC-F318TA | Titanium flat head screw (M3 x 18mm) |
| RP-042-06A | High precision machined titanium flat head screw (M3 x 6mm) |
| RP-042-08A | High precision machined titanium flat head screw (M3 x 8mm) |
| RP-042-10A | High precision machined titanium flat head screw (M3 x 10mm) |
| RP-042-12A | High precision machined titanium flat head read screw (M3 x 12mm) |
| RP-042-15A | High precision machined titanium flat head screw (M3 x 15mm) |
| RP-042-18A | High precision machined titanium flat head screw (M3 x 18mm) |
| ZC-SS325LA | Set screw with thread locking agent (M3 x 2.5mm) |
| ZC-SS33A | Set screw (M3 x 3mm) |
| ZC-SS36A | Set screw (M3 x 6mm) |
| ZC-SS38A | Set screw (M3 x 8mm) |
| ZC-SS48A | Set screw (M4 x 8mm, round tip type) |
| ZC-N4FBLA | Aluminum M4 serrated flange nut (black) |
| ZC-N4FRA | Aluminum M4 serrated flange nut (blue) |
| ZC-N4FPA | Aluminum M4 serrated flange nut (red) |
| ZC-M3DWA | Aluminum Sara Washer 3mm 8 |
| B7-8DF16 | Fluororubber diaphragm for SLF Short II |
| B9-SSS192 | Short shock set |
| RP-105A | racing performer Ultra Bearing Oil (8ml) Racing Performer |
| RP-106A | Ultra Teflon oil (8ml) Black |
| CS-BGA | grease Seal |
| CS-SLGA | grease (for O-ring/gasket) |
| CS-5000B | Super Blend Silicone Oil (#5000) |
| CS-7500B | Super Blend Silicone Oil (#7500) |
| CS-10000B | Super Blend Silicone Oil (#10000) |
| CS-15000B | Super Blend Silicone Oil (#15000) |
| CS-20000B | Super Blend Silicone Oil (#20000) |
| CS-30000B | Super Blend Silicone Oil (#30000) |
| CS-50000B | Super Blend Silicone Oil (#50000) |
| YS-150B | Super blend shock oil (#150) |
| YS-200B | Super Blend Shock Oil (#200) |
| YS-250B | Super Blend Shock Oil (#250) |
| YS-300B | Super Blend Shock Oil (#300) |
| YS-350B | Super Blend Shock Oil (#350) |
| YS-400B | Super Blend Shock Oil (#400) |
| YS-450B | Super Blend Shock Oil (#450) |
| YS-500B | Super Blend Shock Oil (#500) |
| YS-500KB | Super Blend Shock Oil (#55000) |
| YS-550B | Super Blend Shock Oil (#550) Super Blend |
| YS-600B | Shock Oil (#600) |
| YS-650B | Super Blend Shock Oil (#650) |
| YS-700B | Super Blend Shock Oil (#700) |
| YS-1000B | Super Blend Shock Oil (#1000) |
| YS-1500A | Super Blend Shock Oil (#1500) |
| YS-2000B | Super Blend Shock Oil (#2000) |
| YS-3000D | Super Blend Shock Oil (#3000) Drift Oil |
| YT-300A | Cross |
| SD-TBLA | wrench Turnbuckle wrench (for steel) |
| KLD-WA | Turnbuckle wrench (for titanium) |
| YT-CGPA | Camber gauge PRO (black) |
| YT-CGPBA | Camber Gauge PRO (Blue) |
| YT-STBMA | Setting Board 3 |
| YT-HGTCA | Height gauge for touring cars |
| YT-25PB5A | Racing Pit Bag y |
| YT-PM26A | Yokomo pit mat (with logo, 600 x 1,200mm) |
| ZR-BMP6B | Body mount patch (6mm) ZR-BMP6TB |
| GW40SDA | Body mount patch (6mm, thin 0.2mm thick) B7-GW40LA Gokuraku Wing 4.0 B7-GW40SLA Side dam for Gokuraku Wing 4.0 |
| B7-GW40LA | Gokuraku Wing 4.0 (Lightweight specification for stock) Gokuraku Wing 4.0 for stock Side dam aluminum wing plate for lightweight specifications |
| B7-110A | lightweight specifications |
| YT-RWF5A | Steel Racing Weight (5g) |
| RP-031A | RP 30mm cooling fan |
| RP-032A | RP 40mm cooling fan |
| RP-033A | RP Hyper Cooling Fan (30mm compatible) |
| RP-053A | RP 24K plated battery connector (y 4mm) |
| RP-054A | RP 24K plated battery connector (y 5mm) double-sided tape |
| ZC-203A | Heat-resistant double-sided tape (25mm x 150mm) |
| TW-1012-2A | Super Precision Wheel (Medium Narrow) 4 Super Precision Wheel |
| TW-1012H2A | medium narrow) hard type |
| ZC-BD11-1A | BD11 Logo Decal |
.avif)
.avif)
