Every stock spare part and optional accessory for the Traxxas Slash 2WD (model 58024), from the official Traxxas parts list. Part numbers link to AMain Hobbies where a match was found.

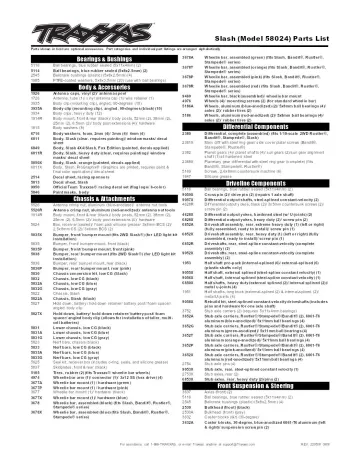

Slash 2WD — Parts & Accessories
Bearings & Bushings
| Part # | Part |
|---|---|
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 5114 | Ball bearings, blue rubber sealed (5x8x2.5mm) (2) |
| 2545 | Bellcrank bushings (plastic) (5x8x2.5mm) (4) |
| 1985 | PTFE-coated washers, 5x8x0.5mm (20) (use with ball bearings) |
Body & Accessories
| Part # | Part |
|---|---|
| 1926 | Antenna caps, vinyl (2)/ antenna spool |
| 1726 | Antenna, tube (1)/ vinyl antenna cap (1)/ wire retainer (1) |
| 3935 | Body clip (mounting clip), angled, 90-degrees (10) |
| 3935A | Body clip (mounting clip), angled, 90-degrees (black) (10) |
| 3934 | Body clips, heavy duty (12) |
| 1914R | Body mount, front & rear (black)/ body posts, 52mm (2), 38mm (2), 25mm (2), 6.5mm (2)/ body post extensions (4)/ hardware |
| 1815 | Body washers (8) |
| 6716 | Body washers, foam, 2mm (4)/ 3mm (4)/ 4mm (4) |
| 6811 | Body, Slash (clear, requires painting)/ window masks/ decal sheet |
| 6849 | Body, Slash 4X4/Slash, Fox Edition (painted, decals applied) |
| 6811R | Body, Slash, heavy duty (clear, requires painting)/ window masks/ decal sheet |
| 5850X | Body, Slash, orange (painted, decals applied) |
| 6811X | Body, Slash, ProGraphix® (Graphics are printed, requires paint & final color application)/ decal sheet |
| 2514 | Decal sheet, racing sponsors |
| 5813 | Decal sheet, Slash |
| 9950 | Official Team Traxxas® racing decal set (flag logo/ 6-color) |
| 5846 | Paint masks, body |
Chassis & Attachments
| Part # | Part |
|---|---|
| 5526 | Antenna crimp nut, aluminum (blue-anodized)/ antenna nut tools |
| 5526R | Antenna crimp nut, aluminum (red-anodized)/ antenna nut tools |
| 1914R | Body mount, front & rear (black)/ body posts, 52mm (2), 38mm (2), 25mm (2), 6.5mm (2)/ body post extensions (4)/ hardware |
| 5624 | Box, receiver (sealed)/ foam pad/ silicone grease/ 3x8mm BCS (2)/ 2.5x8mm CS (2)/ 3x6mm BCS (2) |
| 5835X | Bumper, front/ bumper mount (fits 2WD Slash®) (for LED light kit installation) |
| 5835 | Bumper, front/ bumper mount, front (black) |
| 5835P | Bumper, front/ bumper mount, front (pink) |
| 5838 | Bumper, rear/ bumper mount (fits 2WD Slash®) (for LED light kit installation) |
| 5836 | Bumper, rear/ bumper mount, rear (black) |
| 5836P | Bumper, rear/ bumper mount, rear (pink) |
| 5830 | Chassis conversion kit, low CG (Slash) |
| 5832 | Chassis, low CG (black) |
| 5832A | Chassis, low CG (blue) |
| 5832G | Chassis, low CG (gray) |
| 5822 | Chassis, Slash |
| 5822A | Chassis, Slash (black) |
| 5827 | Hold down, battery / hold down retainer/ battery post/ foam spacer/ angled body clip |
| 5827X | Hold down, battery/ hold down retainer/ battery post/ foam spacer/ angled body clip (allows for installation of taller, multi-cell batteries) |
| 5831 | Lower chassis, low CG (black) |
| 5831A | Lower chassis, low CG (blue) |
| 5831G | Lower chassis, low CG (gray) |
| 5823 | Nerf bars, chassis (black) |
| 5833 | Nerf bars, low CG (black) |
| 5833A | Nerf bars, low CG (blue) |
| 5833G | Nerf bars, low CG (gray) |
| 5625 | Seal kit, receiver box (includes o-ring, seals, and silicone grease) |
| 5837 | Skidplates, front & rear (black) |
| 5185 | Tires, rubber (2) (fits Traxxas® wheelie bar wheels) |
| 4974 | Wheelie bar arm (1)/ connector (1)/ 3x12 SS (hex drive) (4) |
| 3677A | Wheelie bar mount (1) / hardware (green) |
| 3677P | Wheelie bar mount (1) / hardware (pink) |
| 3677 | Wheelie bar mount (1)/ hardware (black) |
| 3677X | Wheelie bar mount (1)/ hardware (blue) |
| 3678 | Wheelie bar, assembled (black) (fits Slash, Bandit®, Rustler®, Stampede® series) |
| 3678X | Wheelie bar, assembled (blue) (fits Slash, Bandit®, Rustler®, Stampede® series) |
| 3678A | Wheelie bar, assembled (green) (fits Slash, Bandit®, Rustler®, Stampede® series) |
| 3678T | Wheelie bar, assembled (orange) (fits Slash, Bandit®, Rustler®, Stampede® series) |
| 3678P | Wheelie bar, assembled (pink) (fits Slash, Bandit®, Rustler®, Stampede® series) |
| 3678R | Wheelie bar, assembled (red) (fits Slash, Bandit®, Rustler®, Stampede® series) |
| 9460 | Wheelie bar, black (assembled)/ wheelie bar mount |
| 4976 | Wheels (4)/ mounting screws (2) (for standard wheelie bar) |
| 5186A | Wheels, aluminum (blue-anodized) (2)/ 5x8mm ball bearings (4)/ axles (2)/ rubber tires (2) |
| 5186 | Wheels, aluminum (red-anodized) (2)/ 5x8mm ball bearings (4)/ axles (2)/ rubber tires (2) |
Differential Components
| Part # | Part |
|---|---|
| 2380 | Differential, complete (assembled) (fits 1/10-scale 2WD Rustler®, Bandit®, Stampede®, Slash) |
| 2381X | Main diff with steel ring gear/ side cover plate/ screws (Bandit®, Stampede®, Rustler®) |
| 2382 | Planet gears (4)/ planet shafts (4)/ sun gears (2)/sun gear alignment shaft (1) all hardened steel |
| 2388X | Planetary gear differential with steel ring gear (complete) (fits Bandit®, Stampede®, Rustler®) |
| 5169 | Screws, 2.6x8mm countersunk machine (6) |
| 1647 | Silicone grease |
Driveline Components
| Part # | Part |
|---|---|
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 9059X | Cross pin (2)/ drive pin (2) (repairs 1 axle shaft) |
| 9057X | Differential output shafts, steel-splined constant-velocity (2) |
| 4628R | Differential output yokes, black (2)/ 3x5mm countersunk screws (2)/ screw pin (2) |
| 4628X | Differential output yokes, hardened steel (w/ U-joints) (2) |
| 6828X | Differential output yokes, heavy duty (2)/ screw pin (2) |
| 6852A | Driveshaft assembly, rear, extreme heavy duty (1) (left or right) (fully assembled, ready to install)/ screw pin (1) |
| 6852X | Driveshaft assembly, rear, heavy duty (1) (left or right) (fully assembled, ready to install)/ screw pin (1) |
| 6852R | Driveshafts, rear, steel-spline constant-velocity (complete assembly) (2) |
| 9052X | Driveshafts, rear, steel-spline constant-velocity (complete assembly) (2) |
| 1953 | Half shaft pro-pack (internal-splined (6)/ external-splined (6) (plastic shafts only) |
| 9055X | Half shaft, external splined (steel-spline constant velocity) (1) |
| 9056X | Half shaft, internal splined (steel-spline constant velocity) (1) |
| 6850X | Half shafts, heavy duty (external splined (2)/ internal splined (2))/ metal u-joints (4) |
| 1951 | Half shafts, long truck (external-splined (2) & internal-splined (2)/ metal U-joints (4) |
| 9058X | Rebuild kit, steel-splined constant-velocity driveshafts (includes pins and hardware for one axle shaft) |
| 3752 | Stub axle carriers (2) (requires 5x11x4mm bearings) |
| 3652A | Stub axle carriers, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (blue-anodized)/ 5x11mm ball bearings (4) |
| 3652G | Stub axle carriers, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (green-anodized)/ 5x11mm ball bearings (4) |
| 3652T | Stub axle carriers, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (orange-anodized)/ 5x11mm ball bearings (4) |
| 3652P | Stub axle carriers, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (pink-anodized)/ 5x11mm ball bearings (4) |
| 3652X | Stub axle carriers, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (red-anodized)/ 5x11mm ball bearings (4) |
| 2754 | Stub axle pins (4) |
| 9053X | Stub axle, rear, steel-splined constant velocity (1) |
| 2753X | Stub axles, rear (2) |
| 6853X | Stub axles, rear, heavy duty (2)/pins (2) |
Front Suspension & Steering
| Part # | Part |
|---|---|
| 3637 | Axles (front) (2) |
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 2545 | Bellcrank bushings (plastic) (5x8x2.5mm) (4) |
| 2530 | Bulkhead (front) (black) |
| 2530A | Bulkhead (front) (gray) |
| 3632 | Caster blocks (l&r) (30-degree) |
| 3632A | Caster blocks, 30-degree, blue-anodized 6061-T6 aluminum (left & right)/ suspension screw pin (2) |
| 3632G | Caster blocks, 30-degree, green-anodized 6061-T6 aluminum (left & right)/ suspension screw pin (2) |
| 3632T | Caster blocks, 30-degree, orange-anodized 6061-T6 aluminum (left & right)/ suspension screw pin (2) |
| 3632P | Caster blocks, 30-degree, pink-anodized 6061-T6 aluminum (left & right)/ suspension screw pin (2) |
| 3632X | Caster blocks, 30-degree, red-anodized 6061-T6 aluminum (left & right)/ suspension screw pin (2) |
| 5347 | Rod ends, Revo® (large) with hollow balls (12) |
| 3646 | Screws, 3x15mm flat-head machine (hex drive) (6) |
| 3744 | Servo saver w/adapters |
| 3639 | Shock tower (front) |
| 3743 | Steering bellcranks (l&r)/ draglink |
| 3743A | Steering bellcranks, drag link (blue-anodized 6061-T6 aluminum) / 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743G | Steering bellcranks, drag link (green-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743T | Steering bellcranks, drag link (orange-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743P | Steering bellcranks, drag link (pink-anodized 6061-T6 aluminum) / 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743X | Steering bellcranks, drag link (red-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 6845X | Steering bellcranks/ servo saver/ servo saver spring/ servo spring retainer/servo horn, steering |
| 3736 | Steering blocks, left & right (2) (requires 5x11x4mm bearings) |
| 3636A | Steering blocks, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (blue-anodized)/ 5x11mm ball bearings (4) |
| 3636G | Steering blocks, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (green-anodized)/ 5x11mm ball bearings (4) |
| 3636T | Steering blocks, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (orange-anodized)/ 5x11mm ball bearings (4) |
| 3636P | Steering blocks, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (pink-anodized)/ 5x11mm ball bearings (4) |
| 3636X | Steering blocks, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (red-anodized)/ 5x11mm ball bearings (4) |
| 3631 | Suspension arms (front) (2) |
| 3631X | Suspension arms, black, front, heavy duty (2) |
| 3631A | Suspension arms, blue, front, heavy duty (2) |
| 3631G | Suspension arms, green, front, heavy duty (2) |
| 3631T | Suspension arms, orange, front, heavy duty (2) |
| 3631R | Suspension arms, red, front, heavy duty (2) |
| 2640 | Suspension pins, 44mm (2) w/ e-clips |
| 3640 | Suspension screw pin set, steel (hex drive) (requires part #2640 for a complete suspension pin set) (Bandit®, Rustler®, Stampede®) |
| 2532 | Tie bar, fiberglass |
| 1935 | Turnbuckles, 36mm (2) |
| 3139A | Turnbuckles, aluminum (blue-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139G | Turnbuckles, aluminum (green-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139T | Turnbuckles, aluminum (orange-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139P | Turnbuckles, aluminum (pink-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139X | Turnbuckles, aluminum (red-anodized), toe links, 59mm (2) (assembled with rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3644 | Turnbuckles, camber link, 39mm (69mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right) (fits front & rear on Slash) |
| 3745 | Turnbuckles, toe link, 59mm (78mm center to center) (2) (assembled with rod ends and hollow balls) |
Hardware
| Part # | Part |
|---|---|
| 1926 | Antenna caps, vinyl (2)/ antenna spool |
| 1726 | Antenna, tube (1)/ vinyl antenna cap (1)/ wire retainer (1) |
| 3935 | Body clip (mounting clip), angled, 90-degrees (10) |
| 3935A | Body clip (mounting clip), angled, 90-degrees (black) (10) |
| 3934 | Body clips, heavy duty (12) |
| 1589 | Double-sided adhesive tape (25mm x 25mm) (2) |
| 1633 | E-clips/ C-rings |
| 2586 | Screws, 3x15mm cap-head machine (hex drive) (6) |
| 2745 | Nuts, 3mm nylon locking (12) |
| 3647 | Nuts, 4mm flanged nylon locking (steel, serrated) (8) |
| 1747 | Nuts, 4mm nylon locking (10) |
| 1747R | Nuts, aluminum, flanged, serrated (4mm) (blue-anodized) (4) |
| 1747G | Nuts, aluminum, flanged, serrated (4mm) (green-anodized) (4) |
| 1747T | Nuts, aluminum, flanged, serrated (4mm) (orange-anodized) (4) |
| 1747P | Nuts, aluminum, flanged, serrated (4mm) (pink-anodized) (4) |
| 1747A | Nuts, aluminum, flanged, serrated (4mm) (red-anodized) (4) |
| 1985 | PTFE-coated washers, 5x8x0.5mm (20) (use with ball bearings) |
| 5525 | Rod ends (12)/ hollow balls (12) |
| 5347 | Rod ends, Revo® (large) with hollow balls (12) |
| 2742X | Rod ends, short (6)/ hollow balls (6) |
| 3215 | Screws, 2.5x6mm cap-head machine (hex drive) (6) |
| 3965 | Screws, 2.5x8mm cap-head machine (6) |
| 2577 | Screws, 3x10mm button-head machine (hex drive) (6) |
| 4859 | Screws, 3x10mm flat-head machine (hex drive) (4) |
| 2578 | Screws, 3x12mm button-head machine (hex drive) (6) |
| 2552 | Screws, 3x12mm countersunk machine (6) (hex drive) |
| 2579 | Screws, 3x15mm button-head machine (hex drive) (6) |
| 3646 | Screws, 3x15mm flat-head machine (hex drive) (6) |
| 2583 | Screws, 3x18mm button-head machine (hex drive) (6) |
| 2580 | Screws, 3x20mm button-head machine (hex drive) (6) |
| 2591 | Screws, 3x23mm button-head machine (hex drive) (6) |
| 2582 | Screws, 3x30mm button-head machine (hex drive) (6) |
| 2592 | Screws, 3x40mm button-head machine (hex drive) (6) |
| 2575 | Screws, 3x6mm button-head machine (hex drive) (6) |
| 3932 | Screws, 3x6mm flat-head machine (hex drive) (6) |
| 2576 | Screws, 3x8mm button-head machine (hex drive) (6) |
| 3931 | Screws, 3x8mm flat-head machine (hex drive) (6) |
| 3937 | Screws, 4x12mm button-head machine (hex drive) (6) |
| 2542 | Screws, 4x12mm countersunk machine (hex drive) (6) |
| 2546 | Screws, 4x15mm countersunk machine (hex drive) (6) |
| 2743 | Set (grub) screws, 3mm hard ened (12) |
| 5529 | Shim set, 3x7x1mm (2), 3x6x0.5mm (4), 3x7x2mm (2)/ hollow balls, captured (4) |
| 3742 | Shoulder screws, steering bellcranks (3x30mm cap-head machine) (2)/ draglink shoulder screws (chrome) (2) |
| 3642X | Shoulder screws, Ultra Shocks (3x12 hex drive) (6) |
| 2754 | Stub axle pins (4) |
| 2746 | Washers, 3x6mm metal (12) |
LED Lights
| Part # | Part |
|---|---|
| 3690 | LED light bar, front (assembled)/ 3x8 BCS (2)/ 2.5x8 BCS (2) (requires front bumper #5835X for 2WD Slash®, #3635 for 2WD Stampede®, #3630 for 2WD Bigfoot® No. 1, #6835X for 4WD Slash®, or #6735 for 4WD Stampede®) |
| 5893 | LED light harness, rear (requires #5838, 6737X, 6777X, or 6836X rear bumper) |
| 5894 | LED light set, complete (includes front and rear bumpers with LED light bar, rear LED harness, & BEC Y-harness) (fits 2WD Slash®) |
| 2263 | Y-harness, BEC to LED light set |
Motors & Electronics
| Part # | Part |
|---|---|
| 1726 | Antenna, tube (1)/ vinyl antenna cap (1)/ wire retainer (1) |
| 2260 | BEC assembly (complete) (12.6 volts (3s LiPo) maximum input voltage) |
| 3790 | Gear adapter, fixed |
| 2072A | Gear set (for 2070, 2075 servos) |
| 2272 | Gear set (for 2270 waterproof servo) |
| 2252 | Gear set, metal (for 2250, 2255 servos) |
| 3785 | Motor, Titan® 12T (12-Turn, 550 size) |
| 3351R | Motor, Velineon® 3500, brushless (assembled with 12-gauge wire and gold-plated bullet connectors) |
| 3931 | Screws, 3x8mm flat-head machine (hex drive) (6) |
| 2254 | Servo case, aluminum (blue-anodized) (middle) (for 2250 servo) |
| 2253 | Servo case, aluminum (red-anodized) (middle) (for 2255 servo) |
| 2251 | Servo case, plastic (top, middle, bottom)/ gaskets/ hardware (for 2250, 2255 servos) |
| 2271 | Servo case/ gaskets (for 2270 waterproof servo) |
| 2074 | Servo case/gaskets (for 2056 and 2075 waterproof servos) |
| 2075R | Servo, digital high-speed, metal gear (ball bearing), waterproof |
| 2075 | Servo, digital high-torque (ball bearing), waterproof |
| 2250 | Servo, digital high-torque 330 coreless, metal gear (ball bearing), waterproof |
| 2255 | Servo, digital high-torque 400 brushless, metal gear (ball bearing), waterproof |
| 2075X | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 2270 | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 3350R | Velineon® VXL-3s Brushless Power System, waterproof (includes VXL-3s waterproof ESC, Velineon 3500 motor, and speed control mounting plate (part #3725R)) |
| 3355R | Velineon® VXL-3s Electronic Speed Control, waterproof (brushless) (fwd/rev/brake) |
| 3018R | XL-5 Electronic Speed Control, waterproof (land version, low-voltage detection, fwd/rev/brake) |
Radio System, Batteries & Chargers
| Part # | Part |
|---|---|
| 2842X | 5000mAh 7.4v 2-Cell 25C LiPo iD® Battery |
| 2843X | 5800mAh 7.4v 2-Cell 25C LiPo iD® Battery |
| 2869X | 7600mAh 7.4v 2-Cell 25C LiPo iD® Battery |
| 5526 | Antenna crimp nut, aluminum (blue-anodized)/ antenna nut tools |
| 5526R | Antenna crimp nut, aluminum (red-anodized)/ antenna nut tools |
| 2943 | Battery charge indicators (green (4), blue (4), gray (4)) |
| 6548 | Battery door, transmitter (replacement for #6516, 6517, 6528, 6529, 6530 transmitters) |
| 2923X | Battery, Power Cell iD®, 3000mAh (NiMH, 7-C flat, 8.4V) |
| 2926X | Battery, Power Cell iD®, 3000mAh (NiMH, 7-C hump, 8.4V) |
| 2940X | Battery, Series 3 Power Cell iD®, 3300mAh (NiMH, 7-C flat, 8.4V) |
| 2941X | Battery, Series 3 Power Cell iD®, 3300mAh (NiMH, 7-C hump, 8.4V) |
| 2950X | Battery, Series 4 Power Cell iD®, 4200mAh (NiMH, 7-C flat, 8.4V) |
| 2951X | Battery, Series 4 Power Cell iD®, 4200mAh (NiMH, 7-C hump, 8.4V) |
| 2960X | Battery, Series 5 Power Cell iD®, 5000mAh (NiMH, 7-C flat, 8.4V) |
| 2961X | Battery, Series 5 Power Cell iD®, 5000mAh (NiMH, 7-C hump, 8.4V) |
| 2983 | Battery/charger completer pack (includes #2969 2-amp NiMH peak detecting AC charger (1), #2923X 3000mAh 8.4V 7-cell NiMH iD® battery (1)) |
| 2260 | BEC assembly (complete) (12.6 volts (3s LiPo) maximum input voltage) |
| 2975 | Charger, DC, 4 amp (6 - 7 cell, 7.2 - 8.4 volt, NiMH) |
| 2972 | Charger, EZ-Peak® Dual, 100W, NiMH/LiPo with iD® Auto Battery Identification |
| 2973 | Charger, EZ-Peak® Live Dual, 200W, NiMH/LiPo with iD® Auto Battery Identification |
| 2971 | Charger, EZ-Peak® Live, 100W, NiMH/LiPo with iD® Auto Battery Identification |
| 2981 | Charger, EZ-Peak® Plus 4s, 8 amp, NiMH/LiPo with iD® Auto Battery Identification |
| 2970 | Charger, EZ-Peak® Plus, 4 amp, NiMH/LiPo with iD® Auto Battery Identification |
| 2978 | Fuse, charger, 5A (2) (for #2974, 2975, 2977) |
| 2072A | Gear set (for 2070, 2075 servos) |
| 2272 | Gear set (for 2270 waterproof servo) |
| 2252 | Gear set, metal (for 2250, 2255 servos) |
| 2968X | LiPo cell voltage checker/balancer (includes #2938X adapter for Traxxas® iD® batteries) |
| 2968 | LiPo cell voltage checker/bal ancer (requires #2938X adapter for Traxxas® iD® batteries) |
| 6554X | Mount, telemetry expander (fits Rustler®, Bandit®, Slash 2WD) |
| 6535 | Mount, temperature sensor (electric motors)/ wire tie/ thermal pad |
| 6519 | Receiver, micro, TQ 2.4GHz (3-channel) |
| 6526 | Sensor, auto-detectable, temperature |
| 6527 | Sensor, auto-detectable, voltage |
| 6520 | Sensor, RPM (long)/ 3x4mm BCS (2)/ 3x4 GS (1) |
| 6521 | Sensor, temperature and voltage (long) |
| 2254 | Servo case, aluminum (blue-anodized) (middle) (for 2250 servo) |
| 2253 | Servo case, aluminum (red-anodized) (middle) (for 2255 servo) |
| 2251 | Servo case, plastic (top, middle, bottom)/ gaskets/ hardware (for 2250, 2255 servos) |
| 2271 | Servo case/ gaskets (for 2270 waterproof servo) |
| 2074 | Servo case/gaskets (for 2056 and 2075 waterproof servos) |
| 2075R | Servo, digital high-speed, metal gear (ball bearing), waterproof |
| 2075 | Servo, digital high-torque (ball bearing), waterproof |
| 2250 | Servo, digital high-torque 330 coreless, metal gear (ball bearing), waterproof |
| 2255 | Servo, digital high-torque 400 brushless, metal gear (ball bearing), waterproof |
| 2075X | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 2270 | Servo, digital high-torque, metal gear (ball bearing), waterproof |
| 6553X | Telemetry expander 2.0 and GPS module 2.0, TQi radio system |
| 6550X | Telemetry expander 2.0, TQi radio system (for use only with #6551X GPS module) |
| 6551X | Telemetry GPS module 2.0, TQi radio system (for use only with #6550X telemetry expander) |
| 6538 | Telemetry trigger magnet holders, spur gear/ magnet, 5x2mm (1)/ 3x8mm CCS (3)/ 3x10mm CCS (3) |
| 6540 | Telemetry trigger magnet, 5X2mm (1) |
| 6509R | TQi 2.4 GHz High Output radio system, 2-channel, Traxxas Link™ enabled, TSM (2-ch transmitter, 5-ch micro receiver) |
| 6507R | TQi 2.4 GHz High Output radio system, 4-channel with Traxxas Link™ Wireless Module, TSM (4-ch transmitter, 5-ch micro receiver) |
| 6516 | Transmitter, TQ 2.4GHz, 2-channel (transmitter only) |
| 6528 | Transmitter, TQi Traxxas Link™ enabled, 2.4GHz high output, 2 - channel (transmitter only) |
| 6529 | Transmitter, TQi Traxxas Link™ enabled, 2.4GHz high output, 3 - channel (transmitter only) |
| 6530 | Transmitter, TQi Traxxas Link™ enabled, 2.4GHz high output, 4 - channel (transmitter only) |
| 6511 | Traxxas Link™ Wireless Module |
| 3355R | Velineon® VXL-3s Electronic Speed Control, waterproof (brushless) (fwd/rev/brake) |
| 6537 | Wire retainers, gear cover/ 3x4mm BCS (2) |
| 3018R | XL-5 Electronic Speed Control, waterproof (land version, low-voltage detection, fwd/rev/brake) |
Ready-To-Race Model
| Part # | Part |
|---|---|
| 58024 | Slash: 1/10-Scale 2WD Short Course Racing Truck with TQ™ 2.4GHz radio system |
Rear Suspension
| Part # | Part |
|---|---|
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 1951 | Half shafts, long truck (external-splined (2) & internal-splined (2)/ metal U-joints (4) |
| 3638 | Shock tower (rear) |
| 3752 | Stub axle carriers (2) (requires 5x11x4mm bearings) |
| 3652A | Stub axle carriers, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (blue-anodized)/ 5x11mm ball bearings (4) |
| 3652G | Stub axle carriers, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (green-anodized)/ 5x11mm ball bearings (4) |
| 3652T | Stub axle carriers, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (orange-anodized)/ 5x11mm ball bearings (4) |
| 3652P | Stub axle carriers, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (pink-anodized)/ 5x11mm ball bearings (4) |
| 3652X | Stub axle carriers, Rustler®/Stampede®/Bandit® (2), 6061-T6 aluminum (red-anodized)/ 5x11mm ball bearings (4) |
| 2753X | Stub axles, rear (2) |
| 2555 | Suspension arms, (rear) (2) |
| 2555X | Suspension arms, black, rear, heavy duty (2) |
| 2555A | Suspension arms, blue, rear, heavy duty (2) |
| 2555G | Suspension arms, green, rear, heavy duty (2) |
| 2555T | Suspension arms, orange, rear, heavy duty (2) |
| 2555R | Suspension arms, red, rear, heavy duty (2) |
| 3640 | Suspension screw pin set, steel (hex drive) (requires part #2640 for a complete suspension pin set) (Bandit®, Rustler®, Stampede®) |
| 3644 | Turnbuckles, camber link, 39mm (69mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right) (fits front & rear on Slash) |
Shock Oil
| Part # | Part |
|---|---|
| 5031 | Oil, shock (20 wt, 200 cSt, 60cc) (silicone) |
| 5032 | Oil, shock (30 wt, 350 cSt, 60cc) (silicone) |
| 5033 | Oil, shock (40 wt, 500 cSt, 60cc) (silicone) |
| 5034 | Oil, shock (50 wt, 600 cSt, 60cc) (silicone) |
| 5035 | Oil, shock (60 wt, 700 cSt, 60cc) (silicone) |
| 5036 | Oil, shock (70 wt, 900 cSt, 60cc) (silicone) |
| 5037 | Oil, shock (80 wt, 1,000 cSt, 60cc) (silicone) |
| 5029 | Shock oil bottle (60cc) (for mixing shock oil) |
| 5038X | Shock oil set (includes 20 wt, 30 wt, 40 wt, 50 wt, 60 wt, 70 wt, & 80 wt premium shock oils with spinning carousel rack) |
| 5038 | Spinning carousel rack |
Shocks (Pro-level Aluminum)
| Part # | Part |
|---|---|
| 2664 | Big Bore shock cylinder (long) (1) |
| 5862 | Big Bore shocks (hard-anodized & PTFE-coated T6 aluminum) (assembled with TiN shafts and springs) (front & rear) (4) |
| 2660 | Big Bore shocks (long) (hard-anodized & PTFE-coated T6 aluminum) (assembled with TiN shafts) w/o springs (front) (2) |
| 2662 | Big Bore shocks (XX-long) (hard-anodized & PTFE-coated T6 aluminum) (assembled with TiN shafts) w/o springs (rear) (2) |
| 2669 | Piston head set (2-hole (2)/ 3-hole (2))/ shock mounting bushings & washers (2) (Big Bore Shocks) |
| 2362 | Rebuild kit, Ultra shocks (for 2 shocks) |
| 1942 | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 2742X | Rod ends, short (6)/ hollow balls (6) |
| 2667 | Shock caps, aluminum (Big Bore Shocks) (2) |
| 1664T | Shock shafts, hardened steel, titanium nitride coated (long) (2) |
| 2656T | Shock shafts, hardened steel, titanium nitride coated (xx-long) (2) |
| 1664 | Shock shafts, steel, chrome finish (long) (2) |
| 2656 | Shock shafts, steel, chrome finish (xx-long) (2) |
| 1765 | Silicone diaphragms (4) |
| 2668 | Spring retainers, upper & lower (2)/ spring pre-load spacers: 1mm (4)/ 1.5mm (2)/ 2mm (2)/ 4mm (2)/ 8mm (2) (Big Bore Shocks) |
| 5860 | Springs, front (white) (progressive rate) (2) (fits #5862 aluminum Big Bore shocks) |
| 5859 | Springs, rear (white) (progressive rate) (2) (fits #5862 aluminum Big Bore shocks) |
Shocks (Ultra Shocks)
| Part # | Part |
|---|---|
| 3765A | Body, Ultra Shock(s) (long) (gray) (2) |
| 3766A | Body, Ultra Shock(s) (XXL) (gray) (2) |
| 2362 | Rebuild kit, Ultra shocks (for 2 shocks) |
| 1942 | Rod ends (16 long & 4 short)/ hollow ball connectors (18)/ ball screws (2) |
| 2742X | Rod ends, short (6)/ hollow balls (6) |
| 3767 | Shock caps (2)/ shock bottoms (2) |
| 8361 | Shock caps (black) (4) (assembled with hollow balls) |
| 2667 | Shock caps, aluminum (Big Bore Shocks) (2) |
| 3767A | Shock caps, aluminum (blue-anodized) (4) (fits all Ultra Shocks) |
| 3767G | Shock caps, aluminum (green-anodized) (4) (fits all Ultra Shocks) |
| 3767T | Shock caps, aluminum (orange-anodized) (4) (fits all Ultra Shocks) |
| 3767P | Shock caps, aluminum (pink-anodized) (4) (fits all Ultra Shocks) |
| 3767X | Shock caps, aluminum (red-anodized) (4) (fits all Ultra Shocks) |
| 1664T | Shock shafts, hardened steel, titanium nitride coated (long) (2) |
| 2656T | Shock shafts, hardened steel, titanium nitride coated (xx-long) (2) |
| 1664 | Shock shafts, steel, chrome finish (long) (2) |
| 2656 | Shock shafts, steel, chrome finish (xx-long) (2) |
| 3642X | Shoulder screws, Ultra Shocks (3x12 hex drive) (6) |
| 1765 | Silicone diaphragms (4) |
| 3769 | Spring pre-load spacers: 1mm (4)/ 2mm (2)/ 4mm (2)/ 8mm (2) |
| 3768 | Spring retainers, upper & lower (2)/ piston head set (2-hole (2)/ 3-hole (2)) |
| 2458 | Springs, front (black) (2) |
| 2458P | Springs, front (pink) (2) |
| 5857P | Springs, front (pink) (progressive rate) (2) |
| 2458A | Springs, front (white) (2) |
| 5857 | Springs, front (white) (progressive rate) (2) |
| 3757 | Springs, rear (black) (2) |
| 3757T | Springs, rear (blue) (2) |
| 3757A | Springs, rear (green) (2) |
| 3757P | Springs, rear (pink) (2) |
| 5858P | Springs, rear (pink) (progressive rate) (2) |
| 3757X | Springs, rear (white) (2) |
| 5858 | Springs, rear (white) (progressive rate) (2) |
| 4957 | Springs, red (for Ultra Shocks only) (2.5 rate) (f/r) (2) |
| 3760 | Ultra Shocks (black) (long) (complete w/ spring pre-load spacers & springs) (front) (2) |
| 3762 | Ultra Shocks (black) (xx-long) (complete w/ spring pre-load spacers & springs) (rear) (2) |
| 3760A | Ultra Shocks (gray) (long) (complete w/ spring pre-load spacers & springs) (2) |
| 3762A | Ultra Shocks (gray) (xx-long) (complete w/ spring pre-load spacers & springs) (rear) (2) |
Slipper Clutch Components
| Part # | Part |
|---|---|
| 3793 | Input shaft (slipper shaft) / spring pin |
| 5552X | Rebuild kit, slipper clutch (steel disc/ friction pads (3)/ spring (2)/ pin/ 4.0mm NL (1)/ 5.0mm NL (1)) |
| 2554 | Screws, 3x6mm cap-head machine (hex drive) (6) |
| 5556 | Slipper pressure plate & hub (aluminum alloy) |
Spur Gears & Pinion Gears
| Part # | Part |
|---|---|
| 3790 | Gear adapter, fixed |
| 2416 | Gear, 16-T pinion (48-pitch) / set screw |
| 1918 | Gear, 18-T pinion (48-pitch) / set screw |
| 2419 | Gear, 19-T pinion (48-pitch) / set screw |
| 2423 | Gear, 23-T pinion (48-pitch) (fits 3mm shaft)/ set screw |
| 2426 | Gear, 26-T pinion (48-pitch) (fits 3mm shaft)/ set screw |
| 2431 | Gear, 31-T pinion (48-pitch) (fits 3mm shaft)/ set screw |
| 4725 | Gear, pinion (25-tooth) (48-pitch) / set screw |
| 4728 | Gear, pinion (28-tooth) (48-pitch) (fits 3mm shaft)/ set screw |
| 4683 | Spur gear, 83-tooth (48-pitch) (for models with Torque-Control slipper clutch) |
| 4686 | Spur gear, 86-tooth (48-pitch) (for models with Torque-Control slipper clutch) |
| 4690 | Spur gear, 90-tooth (48-pitch) (for models with Torque-Control slipper clutch) |
Steering Components
| Part # | Part |
|---|---|
| 2545 | Bellcrank bushings (plastic) (5x8x2.5mm) (4) |
| 1985 | PTFE-coated washers, 5x8x0.5mm (20) (use with ball bearings) |
| 2742 | Rod ends, long (6)/ hollow ball connectors (6) |
| 5347 | Rod ends, Revo® (large) with hollow balls (12) |
| 3744 | Servo saver w/adapters |
| 3742 | Shoulder screws, steering bellcranks (3x30mm cap-head machine) (2)/ draglink shoulder screws (chrome) (2) |
| 3743 | Steering bellcranks (l&r)/ draglink |
| 3743A | Steering bellcranks, drag link (blue-anodized 6061-T6 aluminum) / 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743G | Steering bellcranks, drag link (green-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743T | Steering bellcranks, drag link (orange-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743P | Steering bellcranks, drag link (pink-anodized 6061-T6 aluminum) / 5x8mm ball bearings (4)/ hardware (assembled) |
| 3743X | Steering bellcranks, drag link (red-anodized 6061-T6 aluminum)/ 5x8mm ball bearings (4)/ hardware (assembled) |
| 6845X | Steering bellcranks/ servo saver/ servo saver spring/ servo spring retainer/servo horn, steering |
| 1935 | Turnbuckles, 36mm (2) |
| 3139A | Turnbuckles, aluminum (blue-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139G | Turnbuckles, aluminum (green-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139T | Turnbuckles, aluminum (orange-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139P | Turnbuckles, aluminum (pink-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139X | Turnbuckles, aluminum (red-anodized), toe links, 59mm (2) (assembled with rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3745 | Turnbuckles, toe link, 59mm (78mm center to center) (2) (assembled with rod ends and hollow balls) |
| 2746 | Washers, 3x6mm metal (12) |
Suspension Linkage
| Part # | Part |
|---|---|
| 5525 | Rod ends (12)/ hollow balls (12) |
| 5347 | Rod ends, Revo® (large) with hollow balls (12) |
| 3739 | Screw pin set (Rustler®, Bandit®, Stampede®) |
| 5529 | Shim set, 3x7x1mm (2), 3x6x0.5mm (4), 3x7x2mm (2)/ hollow balls, captured (4) |
| 2640 | Suspension pins, 44mm (2) w/ e-clips |
| 3640 | Suspension screw pin set, steel (hex drive) (requires part #2640 for a complete suspension pin set) (Bandit®, Rustler®, Stampede®) |
| 3139A | Turnbuckles, aluminum (blue-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139G | Turnbuckles, aluminum (green-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139T | Turnbuckles, aluminum (orange-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139P | Turnbuckles, aluminum (pink-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139X | Turnbuckles, aluminum (red-anodized), toe links, 59mm (2) (assembled with rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3644 | Turnbuckles, camber link, 39mm (69mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right) (fits front & rear on Slash) |
| 3745 | Turnbuckles, toe link, 59mm (78mm center to center) (2) (assembled with rod ends and hollow balls) |
Team Traxxas Items
| Part # | Part |
|---|---|
| 2514 | Decal sheet, racing sponsors |
| 6160X | DVD, Maxx® Power! Full Throttle Action (sleeve) |
| 9950 | Official Team Traxxas® racing decal set (flag logo/ 6-color) |
| 9909 | Traxxas® racing banner, red & black (3x7 feet) |
Tires & Wheels
| Part # | Part |
|---|---|
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 5854 | Hub retainer, 17mm hubs, M4 X 0.7 (4) (use with #5853X, #6856X, #6469) |
| 3647 | Nuts, 4mm flanged nylon locking (steel, serrated) (8) |
| 1747R | Nuts, aluminum, flanged, serrated (4mm) (blue-anodized) (4) |
| 1747G | Nuts, aluminum, flanged, serrated (4mm) (green-anodized) (4) |
| 1747T | Nuts, aluminum, flanged, serrated (4mm) (orange-anodized) (4) |
| 1747P | Nuts, aluminum, flanged, serrated (4mm) (pink-anodized) (4) |
| 1747A | Nuts, aluminum, flanged, serrated (4mm) (red-anodized) (4) |
| 1985 | PTFE-coated washers, 5x8x0.5mm (20) (use with ball bearings) |
| 1647 | Silicone grease |
| 2754 | Stub axle pins (4) |
| 5885A | Tire & wheel assy, glued (SCT Split-Spoke, black, blue beadlock wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires, inserts) (2) (2WD Front) |
| 5883A | Tire & wheel assy, glued (SCT Split-Spoke, black, blue beadlock wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tire, inserts) (2) (4WD f/r, 2WD rear) |
| 5880X | Tires & wheels, assembled, glued (SCT satin chrome, beadlock style wheels, Kumho tires, foam inserts) (2) (4WD front/rear, 2WD rear only) |
| 5880 | Tires & wheels, assembled, glued (SCT satin chrome, black beadlock style wheels, Kumho tires, foam inserts) (2) (4WD front/rear, 2WD rear only) |
| 5882 | Tires & wheels, assembled, glued (SCT Split-Spoke satin chrome, black beadlock style wheels, Kumho tires, foam inserts) (2) (2WD front) |
| 6873X | Tires & wheels, assembled, glued (S1 ultra-soft off-road racing compound) (SCT Split-Spoke satin chrome, black beadlock style wheels, BFG Mud-Terrain tires, foam inserts) (2) (4WD front/rear, 2WD rear only) |
| 5882R | Tires & wheels, assembled, glued (S1 ultra-soft off-road racing compound) (SCT Split-Spoke satin chrome, black beadlock style wheels, Kumho tires, foam inserts) (2) (2WD front) |
| 6874R | Tires & wheels, assembled, glued (S1 ultra-soft off-road racing compound) (SCT Split-Spoke satin chrome, black beadlock style wheels, Kumho tires, foam inserts) (2) (4WD front/rear, 2WD rear only) |
| 5877R | Tires & wheels, assembled, glued (S1 ultra-soft, off-road racing compound) (SCT Split-Spoke chrome, red beadlock style wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires) (2) (2WD front) |
| 6873R | Tires & wheels, assembled, glued (S1 ultra-soft, off-road racing compound) (SCT Split-Spoke chrome, red beadlock style wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires, foam inserts) (2) (4WD f/r, 2WD rear) |
| 5869A | Tires & wheels, assembled, glued (SCT chrome, blue beadlock style wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires, foam inserts) (2) (2WD front) |
| 5867A | Tires & wheels, assembled, glued (SCT chrome, blue beadlock style wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires, foam inserts) (2) (4WD front/rear, 2WD rear only) |
| 5869 | Tires & wheels, assembled, glued (SCT chrome, red beadlock style wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires, foam inserts) (2) (2WD front) |
| 5867 | Tires & wheels, assembled, glued (SCT chrome, red beadlock style wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires, foam inserts) (2)(4WD front/rear, 2WD rear only) |
| 5873R | Tires & wheels, assembled, glued (SCT satin chrome red beadlock wheels, ultra-soft S1 compound off-road racing tires, inserts) (2) (2WD rear, 4WD f/r) |
| 5881X | Tires & wheels, assembled, glued (SCT satin chrome, beadlock style wheels, Kumho tires, foam inserts) (2) (2WD front) |
| 5875 | Tires & wheels, assembled, glued (SCT satin chrome, beadlock style wheels, SCT off-road racing tires, foam inserts) (2) (2WD front) |
| 5873 | Tires & wheels, assembled, glued (SCT satin chrome, beadlock style wheels, SCT off-road racing tires, foam inserts) (2) (4WD front/rear, 2WD rear only) (TSM rated) |
| 5878 | Tires & wheels, assembled, glued (SCT satin chrome, black beadlock style wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires, foam inserts) (2)(4WD front/rear, 2WD rear only) |
| 5881 | Tires & wheels, assembled, glued (SCT satin chrome, black beadlock style wheels, Kumho tires, foam inserts) (2) (2WD front) |
| 5875X | Tires & wheels, assembled, glued (SCT satin chrome, black beadlock style wheels, SCT off-road racing tires, foam inserts) (2) (2WD front) |
| 5873X | Tires & wheels, assembled, glued (SCT satin chrome, black beadlock style wheels, SCT off-road racing tires, foam inserts) (2) (4WD front/rear, 2WD rear only) |
| 5873A | Tires & wheels, assembled, glued (SCT satin chrome, red beadlock style wheels, SCT off-road tires, foam inserts) (2) (4WD front/rear, 2WD rear only) |
| 6873A | Tires & wheels, assembled, glued (SCT Split-Spoke chrome, red beadlock style wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires, foam inserts) (2) (4WD f/r, 2WD rear) |
| 5891 | Tires & wheels, assembled, glued (SCT Split-Spoke satin chrome, beadlock style wheels, paddle tires, foam inserts) (2) (4WD front/rear, 2WD rear only) (TSM rated) |
| 6873 | Tires & wheels, assembled, glued (SCT Split-Spoke satin chrome, black beadlock style wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires, foam inserts) (2) (4WD f/r, 2WD rear) (TSM® rated) |
| 6874 | Tires & wheels, assembled, glued (SCT Split-Spoke satin chrome, black beadlock style wheels, Kumho tires, foam inserts) (2) (4WD front/rear, 2WD rear only) |
| 5885 | Tires & wheels, assembled, glued (SCT Split-Spoke, black, satin chrome beadlock wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires, foam inserts) (2) (2WD Front) |
| 5883 | Tires & wheels, assembled, glued (SCT Split-Spoke, black, satin chrome beadlock wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tire, foam inserts) (2) (4WD f/r, 2WD rear) |
| 5877A | Tires & wheels, assembled, glued (SCT Split-Spoke, chrome red beadlock style wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires, foam inserts) (2) (2WD front) |
| 5877 | Tires & wheels, assembled, glued (SCT Split-Spoke, satin chrome, black beadlock wheels, BFGoodrich® Mud-Terrain™ T/A® KM2 tires, foam inserts) (2) (2WD front) |
| 5865 | Tires & wheels, assembled, glued (SCT, chrome, green beadlock wheel, BFGoodrich® Mud-Terrain™ T/A® KM2 tire, foam inserts) (2) (2WD front only) |
| 6876 | Tires & wheels, assembled, glued (SCT, chrome, green beadlock wheel, BFGoodrich® Mud-Terrain™ T/A® KM2 tire, foam inserts) (2) (4WD front/rear, 2WD rear only) |
| 6871 | Tires, BFGoodrich® Mud-Terrain T/A® KM2 (dual profile 4.3x1.7 - 2.2/3.0") (2)/ foam inserts (2) |
| 6871R | Tires, BFGoodrich® Mud-Terrain T/A® KM2, ultra-soft (S1 off-road racing compound) (dual profile 4.3x1.7 - 2.2/3.0") (2)/ foam inserts (2) |
| 6870 | Tires, Kumho (dual profile 4.3x1.7 - 2.2/3.0") (2)/ foam inserts (2) |
| 6870R | Tires, Kumho, ultra-soft (S1 off-road racing compound) (dual profile 4.3x1.7 - 2.2/3.0") (2)/ foam inserts (2) |
| 5871 | Tires, off-road racing, SCT dual profile 4.3x1.7 - 2.2/3.0" (2)/ foam inserts (2) |
| 5871R | Tires, ultra-soft, S1 compound for off-road racing, SCT dual profile 4.3x1.7 - 2.2/3.0" (2)/ foam inserts (2) |
| 1654 | Wheel hubs, hex (rear) (2)/ stub axle pins (2) |
| 3654 | Wheel hubs, hex (tall offset, Rustler®/Stampede® front) (2)/ axle pins (2.5x10mm) (2) |
| 5853X | Wheel hubs, splined, 17mm, short (2), long (2)/wheel nuts, splined, 17mm (4) (blue-anodized)/ hub retainer M4x0.7 (4)/axle pin (4)/wrench, 5mm |
| 5353 | Wheel nuts, splined, 17mm (blue-anodized) (4) |
| 5480X | Wheel wrench, splined, 17mm |
| 5868A | Wheels, SCT chrome, blue beadlock style, dual profile (2.2" outer 3.0" inner) (2) (4WD front/rear, 2WD rear only) |
| 5870A | Wheels, SCT chrome, blue beadlock style, dual profile (2.2” outer, 3.0” inner) (2) (2WD front only) |
| 5870 | Wheels, SCT chrome, red beadlock style, dual profile (2.2” outer, 3.0” inner) (2WD front) (2) |
| 5868 | Wheels, SCT chrome, red beadlock style, dual profile (2.2” outer, 3.0” inner) (4WD front/rear, 2WD rear only) (2) |
| 5874 | Wheels, SCT satin chrome, beadlock style, dual profile (2.2" outer, 3.0" inner) (2WD front) |
| 5872 | Wheels, SCT satin chrome, beadlock style, dual profile (2.2" outer, 3.0" inner) (4WD front/rear, 2WD rear only) |
| 5872X | Wheels, SCT satin chrome, black beadlock style SCT, dual profile (2.2” outer, 3.0” inner) (4WD front/rear, 2WD rear only) (2) |
| 5874X | Wheels, SCT satin chrome, black beadlock style, dual profile (2.2” outer, 3.0” inner) (2WD front) (2) |
| 5874A | Wheels, SCT satin chrome, red beadlock style, dual profile (2.2" outer, 3.0" inner) (2WD front) (2) |
| 5886 | Wheels, SCT Split-Spoke, black, satin chrome beadlock style, dual profile (2.2" outer, 3.0" inner) (2WD front) (2) |
| 5884 | Wheels, SCT Split-Spoke, black, satin chrome beadlock style, dual profile (2.2" outer, 3.0" inner) (4WD f/r, 2WD rear) (2) |
| 6872X | Wheels, SCT Split-Spoke, chrome, green beadlock style, dual profile (2.2" outer, 3.0" inner) (4WD front/rear, 2WD rear) (2) |
| 6872A | Wheels, SCT Split-Spoke, chrome, red beadlock style, dual profile (2.2" outer, 3.0" inner) (4WD front/rear, 2WD rear) (2) |
| 5876 | Wheels, SCT Split-Spoke, satin chrome, black beadlock style, dual profile (2.2" outer, 3.0" inner) (2WD front) (2) |
| 6872 | Wheels, SCT Split-Spoke, satin chrome, black beadlock style, dual profile (2.2" outer, 3.0" inner) (4WD front/rear, 2WD rear only) (2) |
| 5866 | Wheels, SCT, chrome, green beadlock style, dual profile (2.2" outer, 3.0" inner) (2) (2WD front only) |
| 6875 | Wheels, SCT, chrome, green beadlock style, dual profile (2.2" outer, 3.0" inner) (2) (4WD front/rear, 2WD rear only) |
Transmission Components
| Part # | Part |
|---|---|
| 1552 | Motor screws (3x8mm hex cap) (6)/washers (6)/ wrench |
| 5116 | Ball bearings, blue rubber sealed (5x11x4mm) (2) |
| 3792 | Cover, gear/ rubber gear cover plug/ 3x6 RM (2) |
| 3790 | Gear adapter, fixed |
| 3691 | Gearbox halves (l&r) (black) w/ idler gear shaft |
| 3691A | Gearbox halves (l&r) (gray) w/ idler gear shaft |
| 5148 | Grease, white lithium |
| 9492 | Idler gear, 30-tooth/ idler gear shaft (steel) |
| 3696 | Idler gear, steel (30-tooth) |
| 9494 | Input gear, 22-tooth/ input shaft (transmission) (heavy duty) (fits Bandit®, Rustler®, Stampede®, Slash 2WD) |
| 3793 | Input shaft (slipper shaft) / spring pin |
| 2381X | Main diff with steel ring gear/ side cover plate/ screws (Bandit®, Stampede®, Rustler®) |
| 2382 | Planet gears (4)/ planet shafts (4)/ sun gears (2)/sun gear alignment shaft (1) all hardened steel |
| 2388X | Planetary gear differential with steel ring gear (complete) (fits Bandit®, Stampede®, Rustler®) |
| 9495 | Pro Series Magnum 272R™ Transmission, complete (assembled) (fits 1/10-scale 2WD Rustler®, Bandit®, Stampede®, Slash) |
| 5552X | Rebuild kit, slipper clutch (steel disc/ friction pads (3)/ spring (2)/ pin/ 4.0mm NL (1)/ 5.0mm NL (1)) |
| 2554 | Screws, 3x6mm cap-head machine (hex drive) (6) |
| 3931 | Screws, 3x8mm flat-head machine (hex drive) (6) |
| 1647 | Silicone grease |
| 5556 | Slipper pressure plate & hub (aluminum alloy) |
| 3195 | Top drive gear, steel (22-tooth) |
| 3695 | Transmission, complete (fits 1/ 10-scale 2WD Rustler®, Bandit®, Stampede®, Slash) |
Traxxas Tools
| Part # | Part |
|---|---|
| 3433X | Body reamer (aluminum handle) |
| 3433 | Body reamer (plastic handle) |
| 3436 | Cap, body reamer |
| 3432 | Scissors, curved tip |
| 3431 | Scissors, straight tip |
| 8712 | Speed Bit Essentials Set, hex and nut driver, 7-piece, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm) and nut drivers (5.0mm, 5.5mm, 7.0mm, and 8.0mm), 1/4” drive |
| 8721 | Speed bit handle, medium (one piece) |
| 8720 | Speed bit handle, premium, large (rubber overmold) |
| 8722 | Speed bit handle, premium, medium (rubber overmold) |
| 8710 | Speed Bit Master Set, hex and nut driver, 13-piece, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm, 3.0mm), (ball-end: 2.0mm, 2.5mm, 3.0mm), and nut drivers (4.00mm, 4.50mm, 5.00mm, 5.50mm, 7.00mm, 8.00mm) |
| 8711 | Speed Bit Master Set, hex driver, 7-piece straight and ball end, includes premium handle (medium), travel pouch, hex drivers (straight: 1.5mm, 2.0mm, 2.5mm, 3.0mm) (ball end: 2.0mm, 2.5mm, 3.0mm), 1/4" drive |
| 8719 | Speed Bit Master Set, nut driver, 6-piece, includes premium handle (medium), travel pouch, and nut drivers (4.0mm, 4.5mm, 5.0mm, 5.5mm, 7.0mm, 8.0mm), 1/4" drive |
| 8716 | Speed Bit Set, hex driver, 2-piece ball-end (2.0mm, 2.5mm), 1/4" drive |
| 8716X | Speed Bit Set, hex driver, 3-piece ball-end (2.0mm, 2.5mm, 3.0mm), 1/4" drive |
| 8715 | Speed Bit Set, hex driver, 3-piece straight (1.5mm, 2.0mm, 2.5mm), 1/4" drive |
| 8715X | Speed Bit Set, hex driver, 4-piece straight (1.5mm, 2.0mm, 2.5mm, 3.0mm), 1/4" drive |
| 2748R | Tool set (includes 1.5mm hex wrench / 2.0mm hex wrench / 2.5mm hex wrench/ 4-way wrench/ 8mm & 4mm wrench/ U-joint wrench) |
| 3415 | Tool set with pouch (includes 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4mm drivers/ 4mm, 5mm, 5.5mm, 7mm and 8mm nut drivers/ 2mm, 4mm, and 5mm slotted screwdrivers/ #00 Phillips, #0 Phillips, and #1 Phillips screwdrivers/ 4mm and 8mm wrench/ driver handle |
Turnbuckles & Threaded Rods
| Part # | Part |
|---|---|
| 5525 | Rod ends (12)/ hollow balls (12) |
| 5347 | Rod ends, Revo® (large) with hollow balls (12) |
| 3139A | Turnbuckles, aluminum (blue-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139G | Turnbuckles, aluminum (green-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139T | Turnbuckles, aluminum (orange-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139P | Turnbuckles, aluminum (pink-anodized), toe links, 59mm (2) (assembled w/ rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3139X | Turnbuckles, aluminum (red-anodized), toe links, 59mm (2) (assembled with rod ends & hollow balls) (requires 5mm aluminum wrench #5477) |
| 3644 | Turnbuckles, camber link, 39mm (69mm center to center) (assembled with rod ends and hollow balls) (1 left, 1 right) (fits front & rear on Slash) |
| 3745 | Turnbuckles, toe link, 59mm (78mm center to center) (2) (assembled with rod ends and hollow balls) |
Need different gearing for the pinion/spur combo above? Use the gear ratio calculator to dial in your final drive ratio.
Part numbers from Traxxas’ official Slash (Model 58024) Parts List, which covers the Slash 2WD and mixes stock spares with optional accessories. Some links above are affiliate links that support the site.
